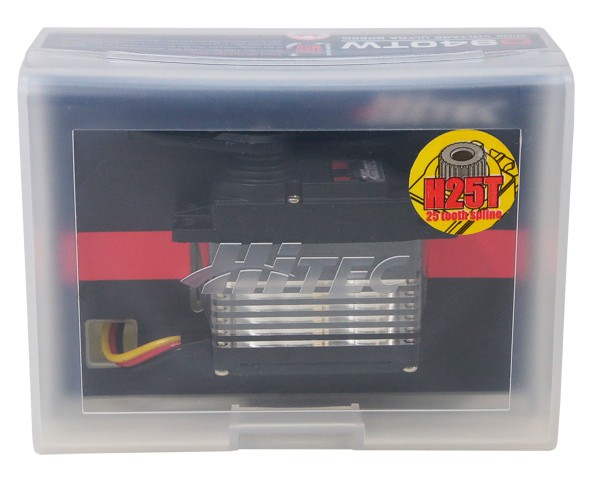

HiTec D-980TW 32-Bit, Ultra Torque, Titanium Gear Servo (44kg/611oz 0.17sec @7.4V)

Ask a question about this product
Printable version

Share

Options

Market Price: $267.95
Our Price:

$189.99
You Save

29%
Quantity (17)

Details

Availability 17 in stock
Weight 0.38 lbs
SKU HRC36980S
Manufacturer Hitec

The titanium gear D-980TW is part of Hitec’s D-Series dynamo servo line. All Hitec D-Series servos have been designed using their cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and a 12-bit ADC for unprecedented programmability and flexibility. These servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with an M3 pan head with a phillips drive style, each D-Series servo brings monster performance never known before in the market.

Features:

  • Wide Voltage Range: DC 3.5-8.4V
  • 2 cell Li-Pi (6 cell Ni-MH) compatible
  • Programmable digital amplifier with MOSFET drive
  • Gold plated connector
  • Narrow dead band width & high standing torque
  • Applied H25T horn gear
  • 3mm horn screw (‘+’ & HEX socket screw included)
  • 32bit MCU / 12bit ADC
  • Durable titanium alloy metal gears with dual ball bearings
  • Ultra hardness gear shaft with 3 axial metal bushing
  • Heat sink for motor
  • Water & dust resistant (splash proof)
Dimensions 1.72” x 0.88” x 1.57” (43.8 x 22.4 x 40mm )
Product Weight 2.76oz (78.2g)
Output Shaft Style 25 tooth (H25T) spline
Voltage Range 3.5V - 8.4V
No-Load Speed (4.8V) 0.28 sec/60°
No-Load Speed (6.0V) 0.21 sec/60°
No-Load Speed (7.4V) 0.17 sec/60°
Stall Torque (4.8V) 361 oz/in. (26.0 kg.cm)
Stall Torque (6.0V) 500 oz/in. (36.0 kg.cm)
Stall Torque (7.4V) 611 oz/in. (44.0 kg.cm)
Max PWM Signal Range (Standard) 750-2250μsec
Travel per µs (out of box) .080°/μsec
Max Travel (out of box) 120.5°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 2µs
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Type Straight Cut Spur
Gear Material Titanium
Wire Length 11.81" (300mm)

This is a special order item and is subject to manufacturer availability.
Please allow a minimum of 2 weeks for delivery.
No returns or cancellations allowed after placing order.





: *
: *
: *

XQ 4013 digital 6v

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 55cc Engine

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$429.00

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle long fuel filling nozzle with fuel filter.
Available in Red, Gold, and Blue.
Please make a note of your color choice.

MRC-H-010

$5.00
