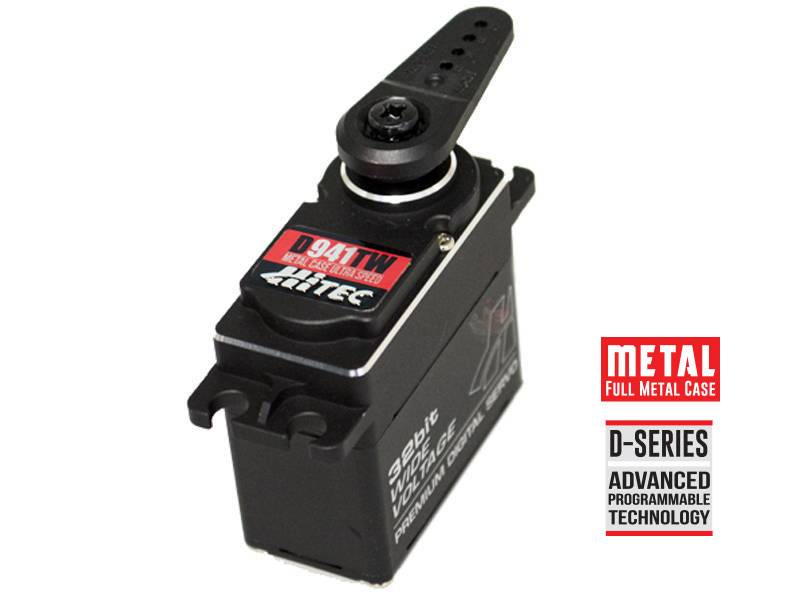

HiTec D-941TW 32-Bit, High Speed, Titanium Gear Servo (16.5kg/229oz 0.07sec @7.4V)

Contact UsCustomer Reviews

HiTec D-941TW 32-Bit, High Speed, Titanium Gear Servo (16.5kg/229oz 0.07sec @7.4V)

Market Price: $233.95
Our Price:

$149.99


You Save

36%

Quantity (15)

Availability 15 in stock
Weight 0.38 lbs
SKU HRC36941S
Manufacturer Hitec

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by their 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

Features:

  • High Response Circuitry
  • Wide Voltage Capabilities
  • 32-Bit MCU Technology
  • Full Programmability
  • Smart Sense Technology for Servo Analytics
  • 25-Tooth Output Spline

Programmable Features:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset
Dimensions 1.57" x 0.79" x 1.50" (40 mm x 20 mm x 38 mm)
Product Weight 2.4 oz (68 g)
Output Shaft Style 25 tooth (H25T) spline
Voltage Range 4.8 V - 7.4 V
No-Load Speed (4.8V) 0.11 sec/60°
No-Load Speed (6.0V) 0.08 sec/60°
No-Load Speed (7.4V) 0.07 sec/60°
Stall Torque (4.8V) 139 oz-in. (10.0 kg.cm)
Stall Torque (6.0V) 187 oz-in. (13.5 kg.cm)
Stall Torque (7.4V) 229 oz-in. (16.5 kg.cm)
Max PWM Signal Range (Standard) 750-2250 μsec
Max Travel (out of box) 120°
Pulse Amplitude 3-5 V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 1 µs
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Type Straight Cut Spur
Gear Material Titanium
Wire Length 11.81" (300 mm)
Wire Gauge 20 AWG




: *
: *
: *


Slo-Zap (Thick) 2oz Bottle (Yellow Label)













































































Description:

Bob Smith Industries CA Glue

Super-Gold+™ Odorless, CA

SUPER-GOLD™ and SUPER-GOLD+™ are our odorless INSTA-CURE CAs They are non-frosting and take only 2 or 3 seconds longer to bond. There are no fumes that irritate the nose and eyes. The SUPER-GOLD™’s do not attack white foam; therefore, they can be used in the building of foam core wings and the assembly and repair of plastic and foam ARF’s. They will not fog clear plastic. SUPER-GOLD+™ is ideal for attaching clear canopies in plastic model kits; however, MAXI-CURE™ is still recommended for assembling the rest of plastic kits. Wood can be bonded to white foam with SUPER-GOLD +™ in less than fifteen seconds. For bonding foam to foam, spray a very light fog of INSTA-SET™ to one piece and apply SUPER-GOLD+™ to the other before joining. Excess INSTA-SET™ may create too much heat, which can melt the foam. Both SUPER-GOLD™’s cure to a more flexible consistency for better shock absorbtion. Whenever a large amount of CA is to be used in such applications as saturating fiberglass or Kevlar, SUPER-GOLD™ eliminates the irritating fumes from the evaporating monomer that make repeated use of CA unpleasant at times.



Works Best On:

  • Rubber
  • White Foam

Works Good On:

  • Balsa Wood
  • Soft Wood
  • Hard Wood
  • Glass & Metal
  • Fiberglass
  • Ceramics
  • Hard Plastics
  • Laminating
  • Water-Resistant
  • Reinforcing
  • CA Hinges



Avaliable in 2oz and 3/4 Pocket Size.

Pocket CAs feature a new top that has a pin built into the cap that covers the nozzle. This pin seals the bottle so that if it is tipped over, the bottle will not leak. This makes the Pocket CAs ideal for keeping in your tool or field box, just like our IC-Gel. One disadvantage that the new Pocket CA top has is the bluntness of the nozzle. This makes it more difficult to apply small amounts of the CA, especially in tight places. From the feedback we have received, it appears about 25-30% of users prefer the new Pocket CA top, which means that over 70% prefer our standard top for general bonding purposes. Most users are buying both types. Our original top for the workshop, and the Pocket CA for use out in the field. The 3/4 oz. Pocket CAs are available in BSI's Insta-Cure, Insta-Cure+, Maxi-Cure and Super-Gold+. BSI's new extender tip #304 works on the Pocket CA.



Click to Download Safety Data Sheet
