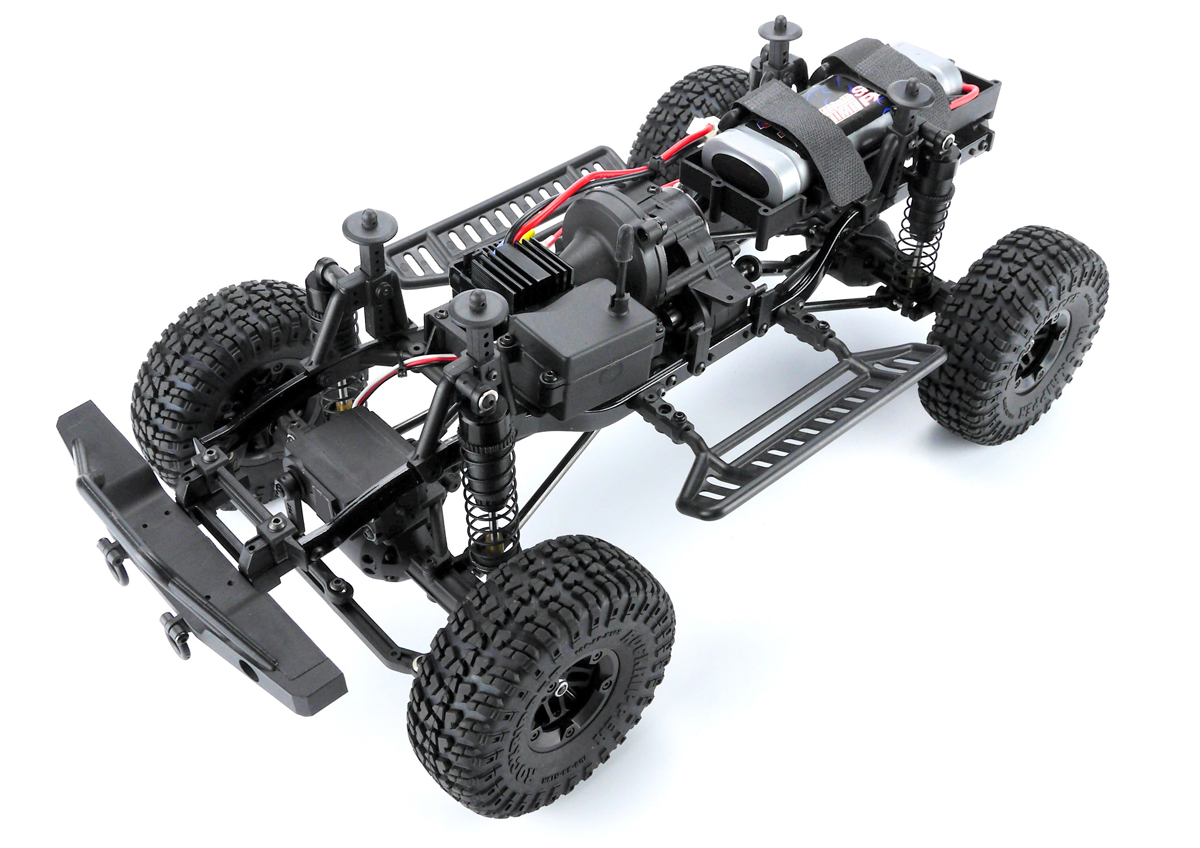

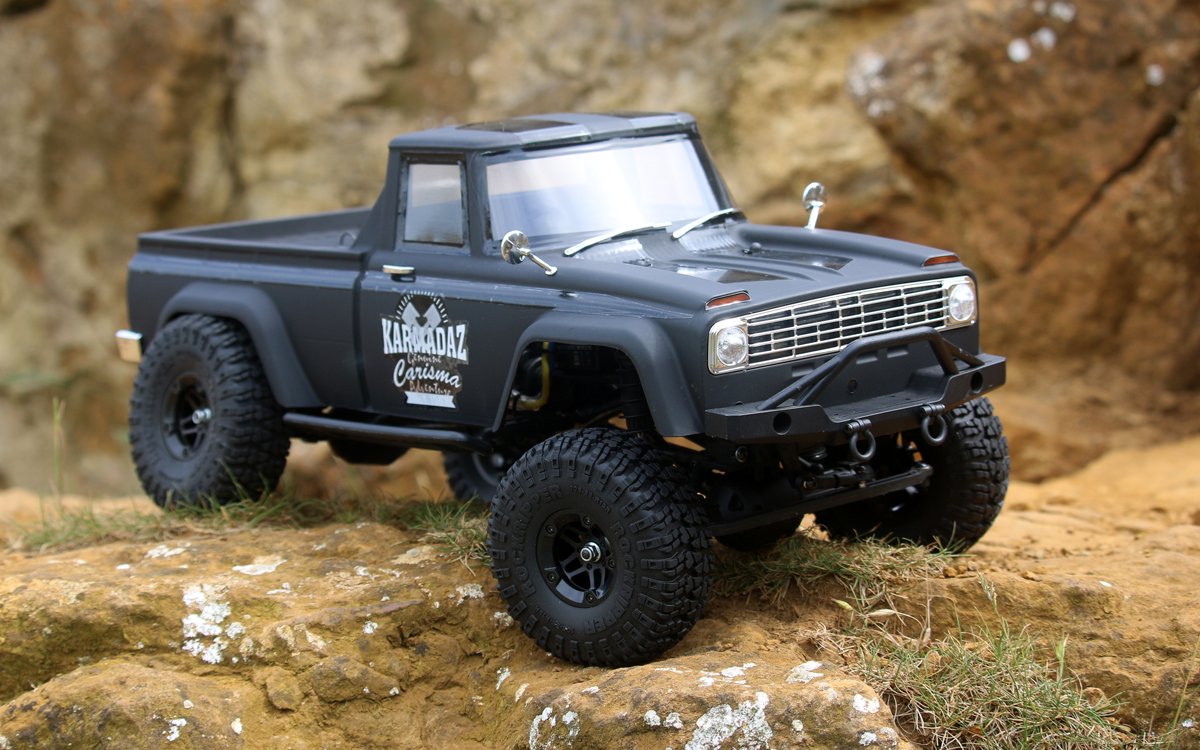

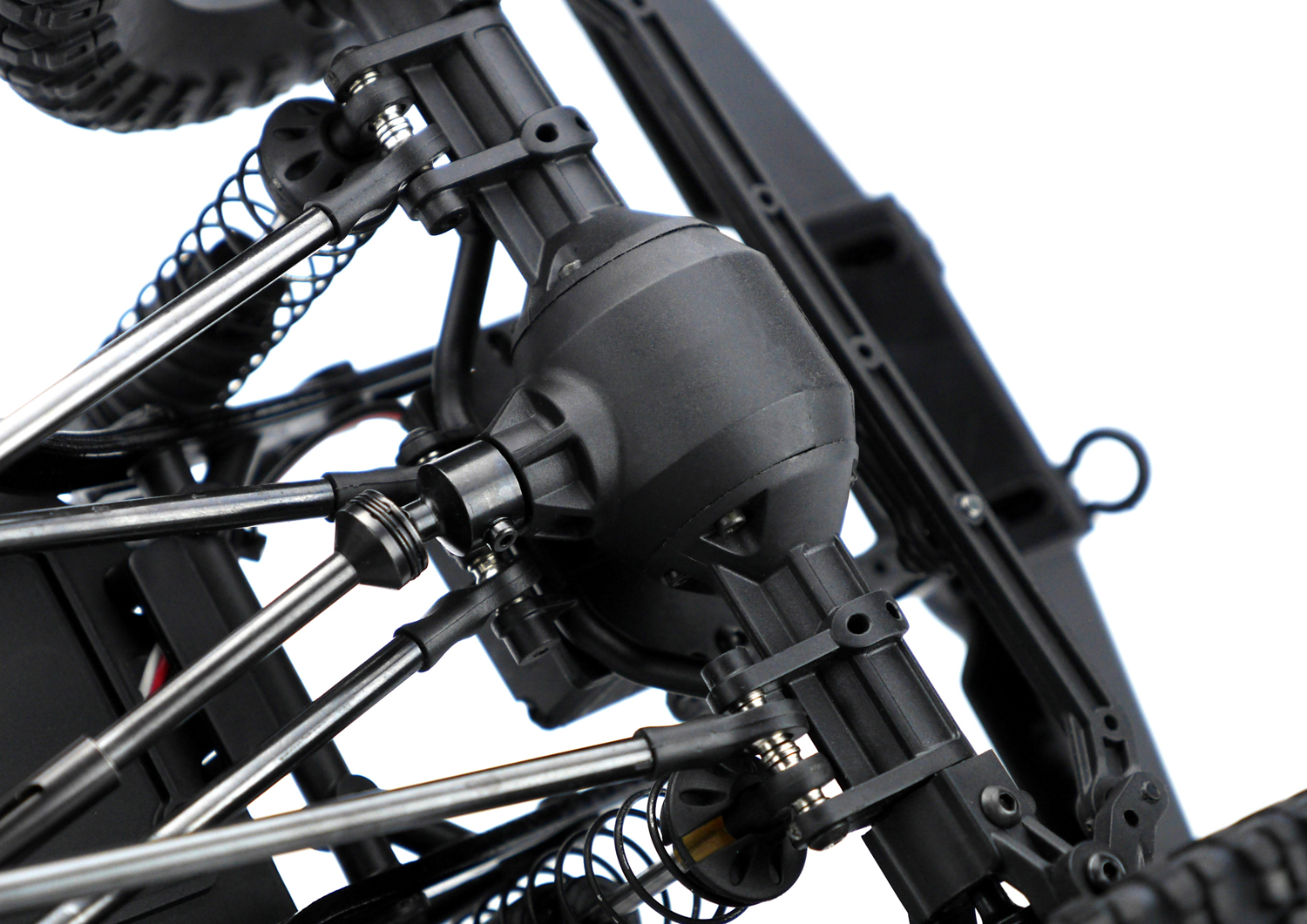

The RTR Coyote has all the features you would expect of a rig of this type. It's designed around a steel 'C' section ladder chassis, has a detailed 50's style truck body, and is designed to be the starting point for anyone wanting to get into this exciting and vibrant sector of RC at an affordable price. It's not a competition rig; it doesn't have any fancy gimmicks or technology, but it is a robust, well-designed and tested one-box solution. Just charge the pack and hit the trails. It really is as simple as that. But looks can be deceiving: Underneath the understated shell is a full steel Universal Joint-equipped driveline with a locked-axle transmission to generate maximum traction from the slipper clutch protected gearbox, right through to the wheels and tires. A 35T brushed motor offers the perfect balance between torque and RPM, and true 4-link double triangulated link geometry is used to minimize axle steer. The high torque, axle mounted servo can be chassis mounted in the future if so desired, and the waterproof electronic speed control is programmable for both NiMH and LiPo use, with a crawler mode set as its default which offers instant reverse and always-on drag brakes. The high grip 1.9" off-road tires are fitted to real beadlock wheels allowing the owner to fine tune the rig's weight bias for crawling by adding stick on wheel weights. For fun and trail-only use, the rig's stock setup is just perfect. The front bumper is winch-ready and the shell designed to accommodate an LED kit to add that extra touch of scale realism and allow night runs. Scale, Trail, Crawl. The SCA-1E is capable of all, and makes a great base for as detailed or as simple of a scale build as you want to undertake. The Coyote recently completed an ultra-tough RECON G6 event (12-hour endurance test) to become officially "RECON G6 Certified"-proving its durability and performance.
Includes 7.2v, 1400mAH NiMH battery and USB Charger
Description: The HS-5645MG is one of the best choices you can make for a 50cc sized plane for the cost. They will also work well in 30cc planes. It is fully programmable using Hi Tec's programmer. The combination of torque, speed, price and extreme holding power make it a favorite among pilots. Special alloy gears called “Alumite” offer tremendous strength yet are lightweight as well.
Specifications:
Torque:
143 oz/in at 4.8V (10.3 kg/cm)
168 oz/in at 6V (12.1 kg/cm)
Speed:
.23 sec at 4.8V
.18 sec at 6V
Voltage: 4.8V - 6V
Weight: 2.11oz (59.82g)
Size: 40.6 x 19.8 x 37.8mm (1.59 x 0.77 x 1.48in)
Motor Type: 3 Pole Ferrite
Bearing Type: Dual Ball Bearing
Gear Type: 3 Metal Gears and 1 Resin Metal Gear
Connector Wire Length: 11.81" (300mm)
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Temperature Range: -20 to +60 Degree C
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Dead Band Width: 8usec
Potentiometer Drive: Indirect Drive
Current Drain (4.8V): 8.8mA/idle and 400mA no load operating
Current Drain (6.0V): 9.1mA/idle and 500mA no load operating
Replacement Wings for V2 50cc Extra 330 (Red, Silver Scheme) This is a set of 2 wings (left & Right) will need to be re-covered to match your scheme. Please contact us if you are in need of a single 50cc size wing.
