Booma RC Ignition Switch

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

• Torque:
  • 166.7 oz/in at 4.8V (12.0 kg/cm)
  • 197.2 oz/in at 6V (12.8 kg/cm)

• Speed:
  • .13 sec at 4.8V
  • .11 sec at 6V

• Voltage: 4.8V - 6V
• Weight: 2 oz (59g)
• Size: 40x20x39mm

• Gear Style: Futaba Arms
• Modulation: Coreless Digital
• Gear Type: Titanium
• Weight: 2oz (59g)
• Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

• Titanium Gears
• Waterproof
• Coreless
• Digital
• High Torque/High Speed
• Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

• Stock Number: DLEG0020
• Displacement: 20 cc (1.22 cu in)
• Bore: 1.3 in (32 mm)
• Stroke: 1.0 in (25 mm)
• Weight: 28.9 oz (820 g)
• RPM Range: 1,750-9,000
• Output: 2.5 hp @ 9,000 rpm
• Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
• Suggested Propellers: 16x8 17x6
• Suggested Break-in Prop: 16x8
• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
• Compression Ratio: 10.5:1
• Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
• Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
• Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
• Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

Description:

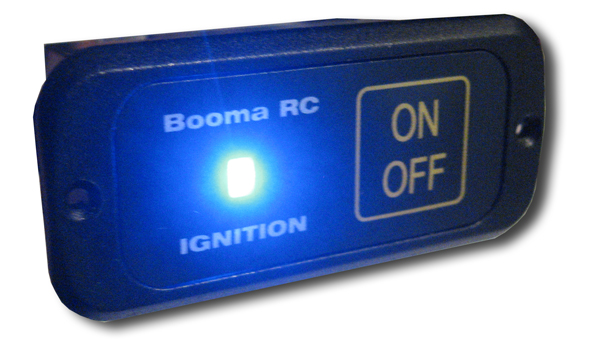

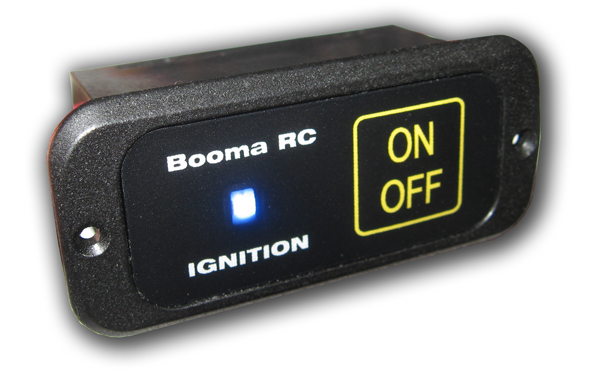

If you want a switch that offers complete dual battery balancing and redundancy with an ultra-small footprint for your scale model then look no further. The new Booma RC intelligent redundant battery balancing switch is the answer.

This switch works with any single or dual battery system. Works with battery chemistry and voltage range from 2.5v to 28v. It comes with a Pin Flag and Ultra Bright Blue LED which can be mounted discretely on your scale model. The Pin Flag controls the internally mounted switch and battery redundancy circuit. The result - beautiful scale appearance with dual battery redundancy peace of mind.

This new balancing technology offers zero voltage drop battery balancing and redundancy which means it can handle huge loads without generating heat. This also means your receiver and servos get all the power unlike conventional battery balancing which loses precious power as heat.

Package Includes:

• 1 x Pin Flag Switch with mounting hardware.

• 1 x Ultra Bright Blue LED with mounting hardware.

• 1 x Dual Battery Balancing power switch circuit.

• 2 x sets of Input and Output JR connectors.

Specs:

• Ultra low foot print for the best scale looks.

• Works with single or dual battery configuration.

• Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD. Battery voltage range can be from 2.5volts to 28 volts.

• Capable of handling input voltages up to 28volts.

•  Minimal external footprint - All you see on the outside of your model is a 3mm Pin Flag socket and (if required) an ultra-high bright Blue LED. The Pin Flag controls the internal power switch and dual battery redundancy.

• Full Dual Battery Redundancy - If one battery fails the other battery takes full control.

•  Maximum Battery Power Balancing - In a dual battery system HS1 draws current proportionally from both batteries while moving both batteries to a complete load balance situation. This means you get the maximum capacity out of both batteries all the time.

• 2 x 25 amp independent circuits. HS1 is 2 x 25amp circuits into a high power matching battery redundancy circuit. HS1 actually uses 4 x 50 amp rated FET circuits for battery power matching. We passively rate HS1 at 25amps per circuit.
