Drill Jig (DLE 111/120/222, DA 85/100)

Market Price: $27.99
Our Price:

$19.99


You Save

29%

Quantity (7)

Availability 7 in stock
Weight 0.50 lbs
SKU MRC-DJ-K-008

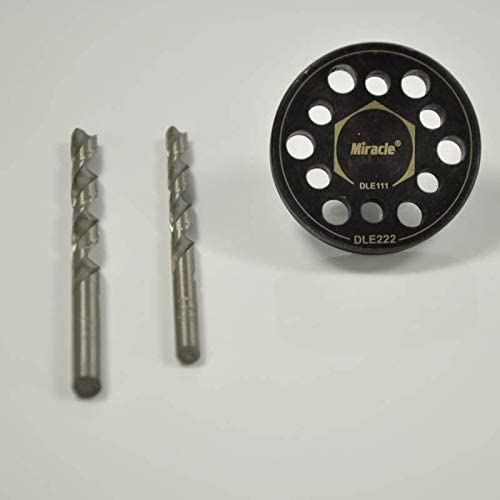

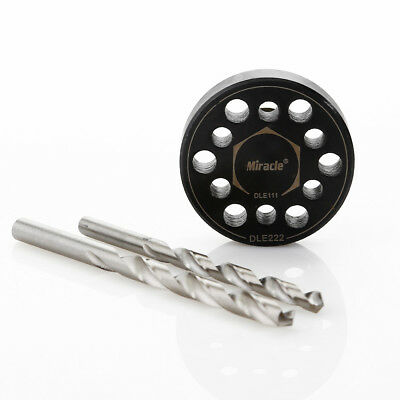

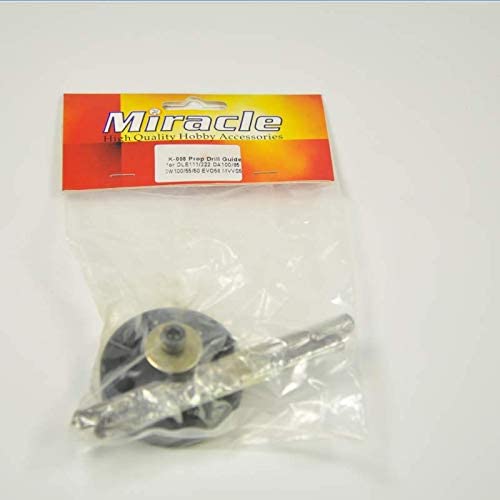

This Drill Jig is a high quality heavy steel jig that can be used to perfectly drill your props and spinners for the DLE 120cc.

Suitable for: DLE111/120/222, DA100/85, 3W 100/55/50, EVO 58, MVVS 58 Gas Engines

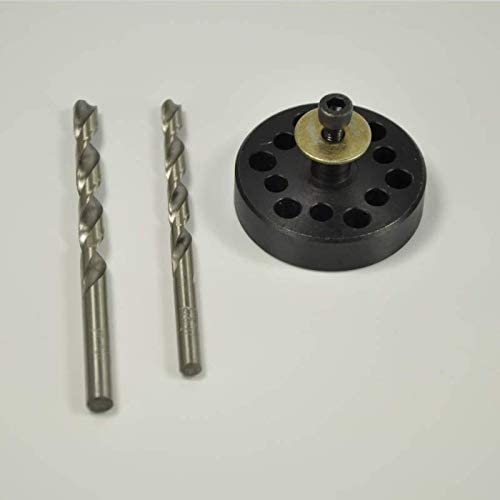

Simply slide the prop or spinner onto the guide and tighten down the bolt to secure it and drill out the holes using the included drill bits!

: *
: *
: *


Adjustable Push Rods (Turnbuckle)

$3.95 to $5.95

Description:
Our replacement adjustable push rods are as good as any out there at even better prices. Very similar to Hangar 9's Pro-Links, our adjustable push rods offer the ultimate in strength and security with the added bonus of ease of adjustability and ultra-light weight.

Our Pro-Links have a 4-40 right-hand thread on one side and a 4-40 left-hand thread on the other (turnbuckle). A machined hex in the middle (4mm / 5/32") allows you to make very fine length adjustments without removing the linkage from the servo arm or control horn.

They are also very lightweight, a 110mm (approx. 4.5") linkage weighs just 8 grams but has the strength to lift over 500 pounds. Pro-Links are ideal for any other 4-40 molded ball link or control horn and are available in a variety of sizes. We also have a machined-aluminum wrench that's perfect for making adjustments.


Sizes:

Metric Approx. US Standard
Non Threaded Length Entire Rod Including Threads Non Threaded Length Entire Rod Including Threads
20mm
45mm
0.79"
1.78"
30mm
55mm
1.18"
2.17"
40mm
65mm
1.57"
2.56"
80mm
110mm
3.15"
4.33"
110mm
140mm
4.33"
5.51"

(Sizes are approximate and can vary between rod length and threads as these are meant to be ADJUSTABLE)


SOLD IN PAIRS


SS-PR

$4.99

Painted Redwing RC 3D Propeller/Props - White & Red (15"-32" Sizes)

Description:
SAME GREAT PROPS JUST GOT BETTER! Brand new design to make your plane even more stylish - White with Red Tips!

These new, advanced designed props have been brought in by Redwing RC to compliment our line of planes. With advanced engineering, they are high efficient, lightweight and balance easily. These props are made with 3d and precision flying in mind. Made of beechwood, the sharp tips and thin design allow you to squeeze maximum efficeincy out of your engine. These properllors are the same in design as other more expensive props, but at significant savings. Close to 50% less. Buy several... you won't want to be without one if you break a prop!



Features:

  • Scimitar design for efficiency
  • Sharp tips - thin blades for better performance
  • Made of lightweight, high quality, beechwood
  • Beautiful looks, strength and performance
  • 24x9 - $29.99
  • 25x9 - $33.99
  • 27x10 - $42.99
  • 27x11 - $42.99
  • 28x10 - $49.99
  • 28x12 - $49.99
  • 29x10 - $54.99
  • -->

RWT-Prop

$16.99

Muffler Extensions, Exhaust Tubes (Fits DLE and other engines)





DLE Muffler Extensions

Description:

Choose from 5 sizes!

These extensions fit over the exhaust exits on your DLE muffler. Below are some size dimensions and the muffler that each will fit. It is still a good idea to measure the exits on your muffler.

FORMAT: LxW (width is inside diameter)

A: 63x15 mm : DLE 20RA

B: 64x17 mm : DLE 35RA/40

C: 78x20 mm : DLE 55RA

D: 96x25 mm : DLE 55, DLE 111, DLE 120

E: 121x31 mm : DLE 61, DLE 85

*Sold individually- if you have a twin engine, you will need two extensions

*Each Hose extension comes with a metal clamp to tightly secure it to the muffler.



DLParts-

$6.99
