Savox SB-2263 MG Low Profile Brushless Digital Servo .076/138.9 @ 6V

Contact UsCustomer Reviews

Savox SB-2263 MG Low Profile Brushless Digital Servo .076/138.9 @ 6V

Market Price: $120.99
Our Price:

$96.99


You Save

20%

Quantity (22)

Availability 22 in stock
Weight 0.40 lbs
SKU SAV-SB-2263MG-BE
Manufacturer Savox

Low Profile Brushless Digital Servo .076/138.9 @ 6V

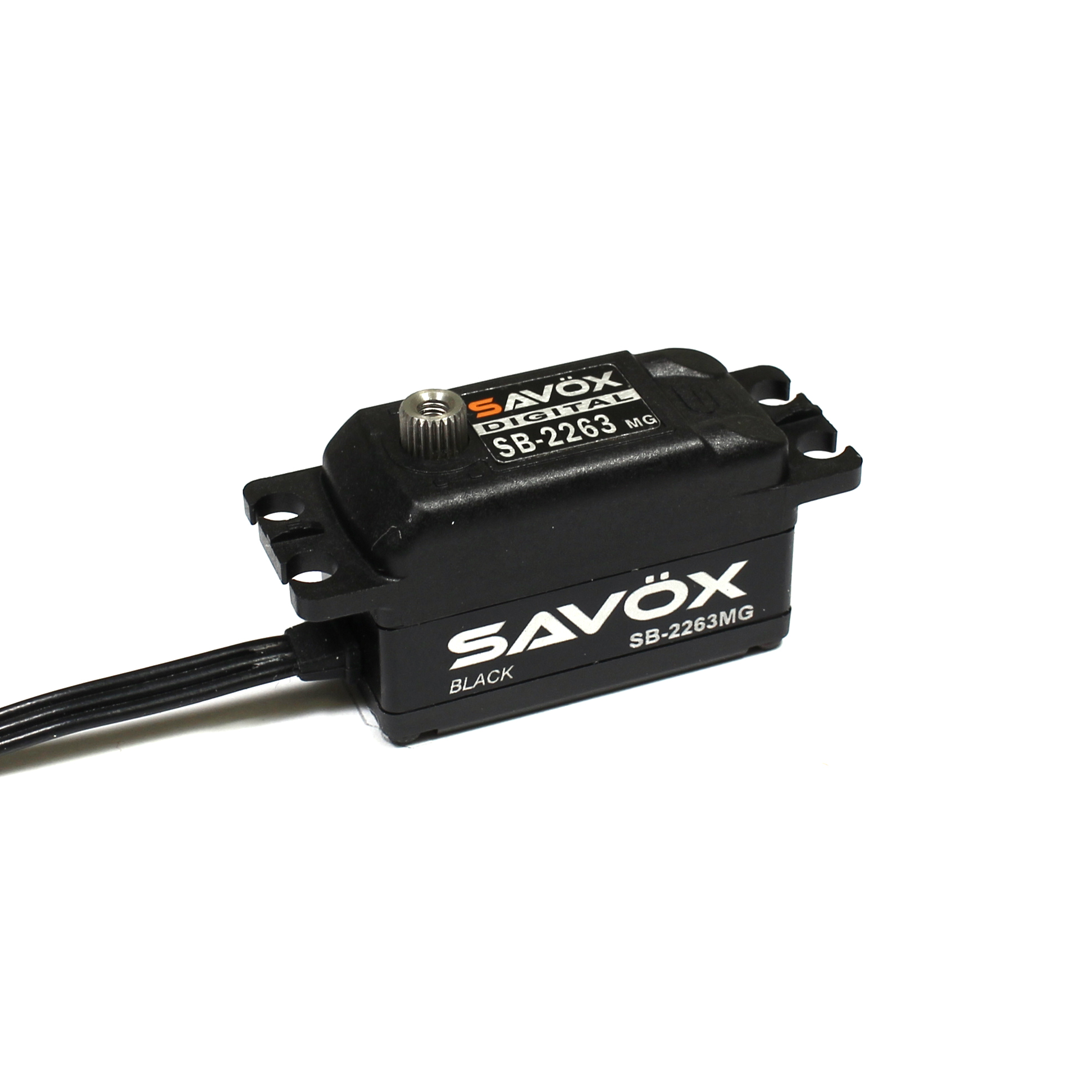

The SB2263MG-BE is a high speed, brushless, low profile servo that features an all black color for a stealth look in RC cars.
*Replacement for SAVSB2261MG*

Features:

  • Metal gear train ensures durability under harsh situations.
  • Sleek black design with laser etching and a shorter 200mm black lead wire
  • Extremely fast for quick response.
  • Ideal for 1/10 on road vehicles.

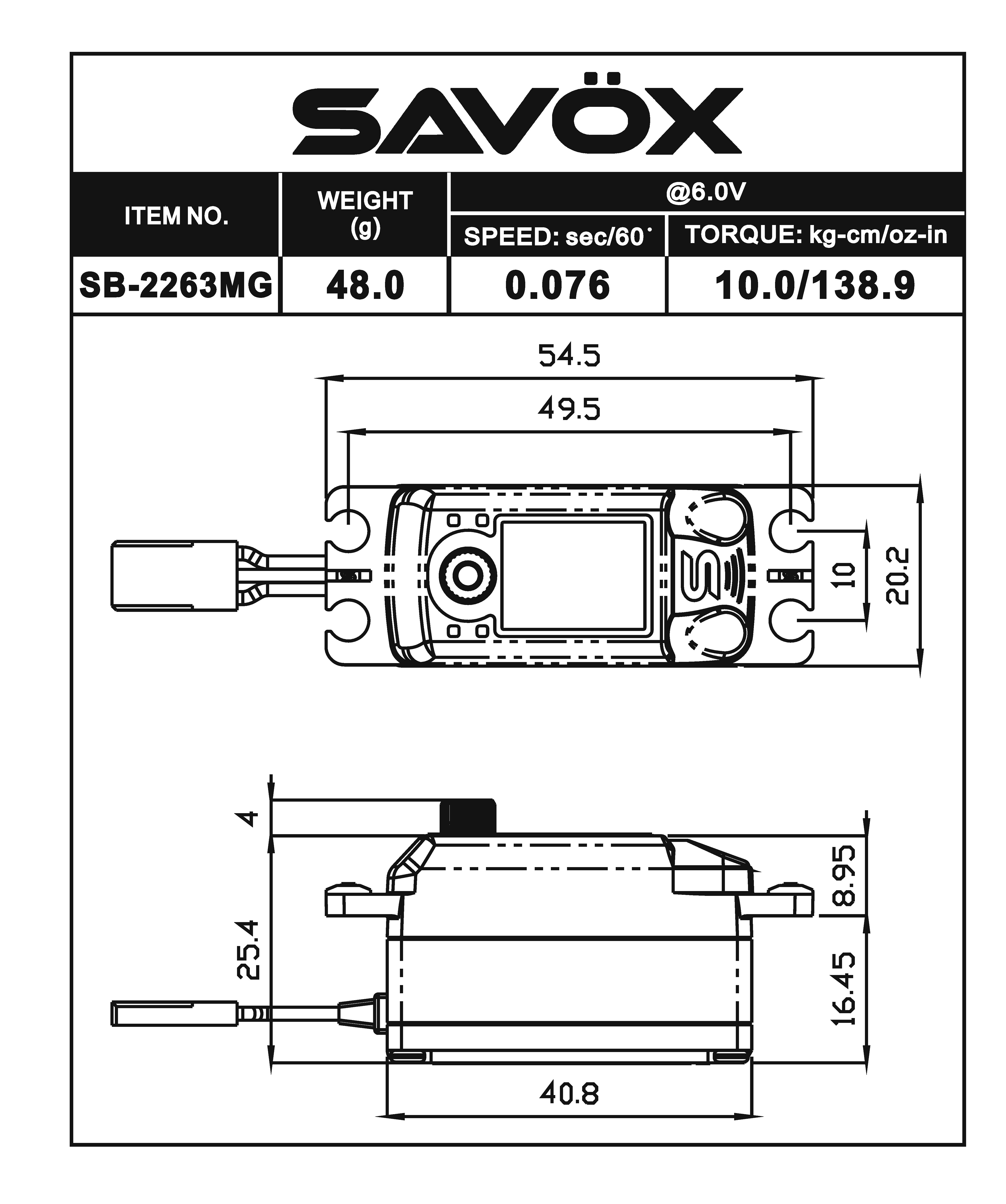

Specifications:

  • Torque @ 4.8v - 8.0kg/111.1oz-in
  • Torque @ 6v - 10.0kg138.9oz-in
  • Speed @ 4.8v - 0.10 sec/60 deg
  • Speed @ 6v - 0.076 sec/60 deg

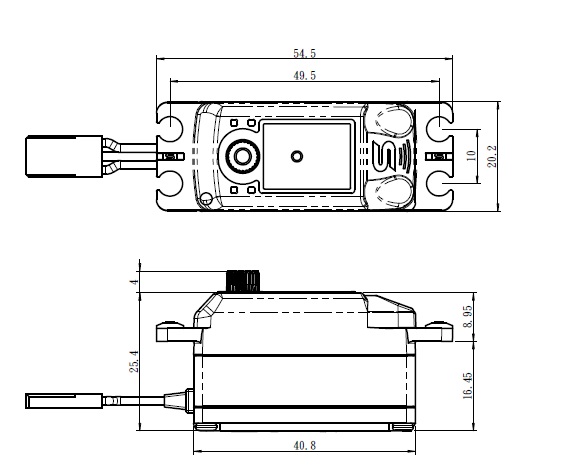

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 48.0g
: *
: *
: *


Gloster Meteor F8 Twin 70mm EDF Jet V2 6S 12-Blade with Split Flaps

Description:

RedwingRC Plug-and-Play aircraft!

Do you feel the need for speed? Check out the Dynam Meteor V2. This is a High Speed 70mm EDF Sport Jet that features retracts! How cool is that?! The Meteor V2 is constructed with EPO crash resilient foam and it is pre-painted saving you time. If that's not enough, all servos, 70mm Fan, and the 60Amp ESC are factory pre-installed. This airplane is designed for High-Speed flying which is made possible with twin powerful Brushless Electric Ducted-Fans. The Fan Unit is is very well constructed for High-Performance flying. In case you were wondering, this model is absolutely one of the fastest EPO EDF jet on the market.



Key Features:

  • Powerful 70mm EDF fan unit and motor
  • 60A Brushless ESC with Switch-Mode BEC
  • retractable landing gear
  • Easy to build.
  • SUPER FAST

Specifications:

Wingspan: 35.8 inch (910mm)
Overall Length: 43.3 (1100mm)
Flying Weight: 38.8oz (1100g) w/Battery
Fan Unit: 70mm fan unit (installed with motor)
Motor Size: Powerful 400 high speed outrunner brushless motors (installed)
Radio / Transmitter: 5 Channel Required - (Not Included)
Receiver: 5+ Channel (Not Included)
Servos: 4 servos installed ( 4 x 9g )
Speed Control : 1 x Dectrum 60A Brushless with Switch-Mode BEC (installed)
Battery: 14.8V 2600 mah 25C LiPo (Not Included)
Charger: NOT INCLUDED 2S - 4S lipo charger
Flight Time:

Average (6-10 mins)














DY8974V2

$399.99

50cc Slick Replacement Canopy

















This airframe is currently out of stock. No current ETA on a new shipment.”


Description:
The Slick 540 was designed with input from aerobatic expert, Glen Dell. This 50cc version of the Slick 540 was built with those expert modifications in mind. The 50cc Slick 540 has moved much of its weight near the center of gravity, helping to make high energy maneuvers cleaner and more comfortable.

This 50cc Slick is suited for both 3d AND pattern flight. Showing both very smooth lines, but also slowing down well for 3d flight. The Slick 540 does most of your typical maneuvers VERY well: clean knife edges, EXCEPTIONALLY smooth rolling harries, harriers well, and does SNAP maneuvers SO cleanly due to its weight distribution.

With the bold contrasting scheme of this 50cc Slick 540, you will have great visibility even from a distance. Comes complete with carbon fiber gear, spinner and accessories! Hurry and get your 50cc Slick before we run out!









Videos on this plane:

VIDEO 1: Slick 540 with SFG Demo


VIDEO 2: FEATURING JAKE FAHN


VIDEO 3: FEATURING JARED REEVES


Buy Replacement Parts
Product Manual




Specifications:

  • Wing span: 87"
  • Wing area: 1440 sq. in.
  • All up flying weight: 15-17 lbs. depending on build style
  • Length: 83"
  • Cowl:
    • Inside Width: 9.25" (234.95mm)
    • Inside Height: 9.25" (234.95mm)
  • Engine: Recommended: DLE 55, DLE 55RA
  • Radio: 6 channel recommended (4ch possible)
  • Recommended Spinner Size: 3.75"
  • Recommended CG: 6.25" to 6.5" from LE and Root of the wing
  • Recommended Prop Size:
    • 23x8 or 24x8
  • Recommended Throws: adjust to liking as you fly
    • Low Rates Settings | High Rate Settings
    • Rudder: 30 degrees, 20% expo | 50 degrees, 35% expo
    • Ailerons: 25 degrees, 25% expo | 40 degrees, 40% expo
    • Elevator: 20 degrees, 20% expo | 45 degrees, 40% expo




Features:
30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes

  • Removable stab
  • Ringed cowl
  • Adjustable push rods
  • Canister ready
  • Carbon fiber landing gear and accessories
  • Painted matching spinner (Optional)
  • Fast fly and easy build features, such as : Pre-drilled hinges, pre-plumbed fuel tank, and pre-installed rudder cable.


Build & Ship Plane

50-SLICK-Orange-canopy

$49.99

60" (1520mm) Pitts 3D Bipe ARF

60" (1520mm) Pitts 3D Bipe ARF

Pre-order sale $50 off! Estimated Arrival Late Oct 2024

  • This is an EXTREMELY popular product and quantiities limited, so we STRONGLY recommend pre-ordering if you wish to receive one from the first shipment.

Credit Card or other payment will be charged at the time of order.

Pre-order sale $100 off! Estimated Arrival Early Feb 2024

  • This is an EXTREMELY popular product and quantiities limited, so we STRONGLY recommend pre-ordering if you wish to receive one from the first shipment.

Credit Card or other payment will be charged at the time of order.

PNP=ARF and some electronics factory installed. The servos, arms and hinges are pre-installed. Pilots still need to install motor, prop and spinner. Assemable the large sections, add receiver and battery then fly!

Videos:</p>
<p>
<br />
<iframe allowfullscreen="" frameborder="0" height="360" src="https://www.youtube.com/embed/GAgax5rE1kw" width="630"></iframe></p>
<p>
<iframe allowfullscreen="" frameborder="0" height="360" src="https://www.youtube.com/embed/42e5nPGnITU?rel=0" width="640"></iframe><br />
<br />
<!-- Specs:         Specs:         Specs:         Specs:         Specs:           --><font color="#999999" face="Arial, Helvetica, sans-serif" size="4"><strong>Specifications:</strong></font></p>
<ul>

Pairs GREAT with a Lemon RX (LM0004) with a built in stabalizer. With this RX/Gyro (less than $34) it will feel like you are flying a 50cc even in strong winds. Also pair it up with some Power HD (LF-13 MG or 1207 TG) , Hitec 5245 or 7245, SAVOX SC-0252 or MKS DS-1220 servos for ultra precision and un-beatable performance!

Videos:











Specifications:

  • Wing span: 60"
  • Wing area: 607 sq. inches
  • All up flying weight: 4.5lbs (not including battery)
  • Length: 57.5"
  • Engine: Hacker A50-14XS or similar
  • Recommended CG: Initial test flight 117mm or 3 2/3" from leading edge then adjust to personal preference
  • Recommended Prop Size: 15x8 16x8
  • Recommended Throws: adjust to liking as you fly
    • Low Rates Settings | High Rate Settings
    • Rudder: 30 degrees, 20% expo | 35-45 degrees, 45-60% expo
    • Ailerons: 20 degrees, 20% expo | 35-45 degrees, 45-60% expo
    • Elevator: 20 degrees, 20% expo | 35-45 degrees, 45-60% expo


Features:

  • Carbon Fiber Wing Tube
  • Carbon Fiber Main Gear and Tail Gear
  • Carbon Fiber reinforced Landing Gear Mount
  • Lightweight design with Carbon fiber rods for stronger Fuse
  • Fiberglass Servo Arms and Control Horns
  • High Quality light weight Carbon Fiber Spinner










Build & Ship Plane



DW-XCG03-Pitts

$449.00
