TAFT-HOBBY QUANTUM 90MM EDF JET 6S PNP VERSION

Contact UsCustomer Reviews

TAFT-HOBBY QUANTUM 90MM EDF JET 6S PNP VERSION

Market Price: $399.99
Our Price:

$339.99

You Save

15%

Battery Combo
Quantity

OUT OF STOCK


Availability No items available
Weight 55.00 lbs
SKU TH-QT-6SPNP

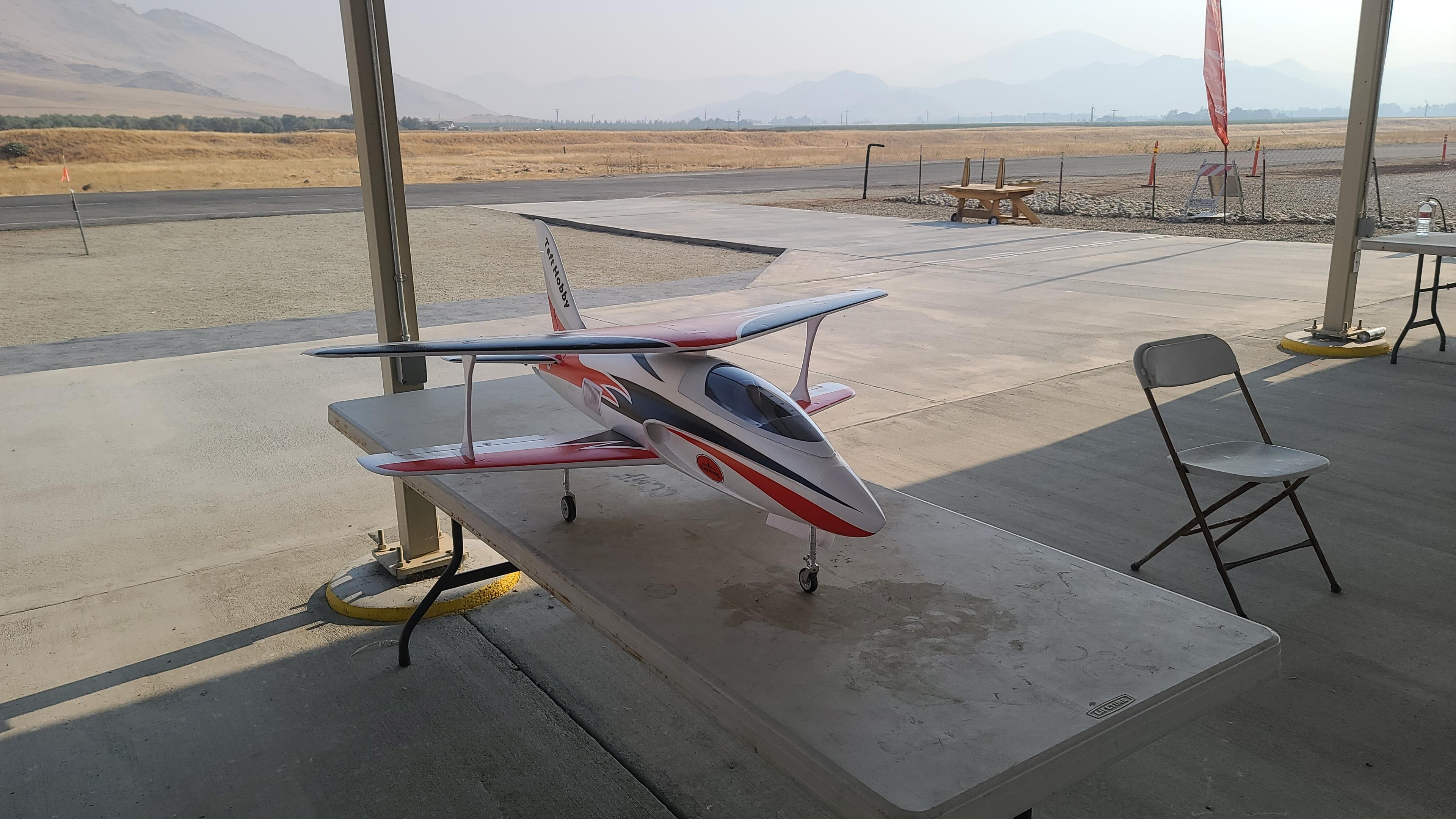

Taft-Hobby QUANTUM 90mm EDF Jet BI-Wing 50" Wingspan PNP Version

- High Performance EPO Electric Ducted Fan Jet.

- Upper Wing can be removed for high speed flying.

- With 90mm EDF (11 Blade) Installed'

- With 9 x 9g Digital Metal Gear Servo Installed

- With Electric Servoless Retract Landing Gear & Metal Suspension Leg Installed.

- With Front Landing Gear Door System Installed.

Specification:

  • Wingspan: Upper 1267mm (49.9 in) Lower 1109mm (43.7 in)
  • Length: 1389mm (54.7 in)
  • Flying Weight: 3100g (109.34 oz)
  • Motor: BL3541 1450Kv Outrunner Brushless Motor
  • Ducted Fan: 90mm 11 Blade
  • Servo: 8 X 9g high speed digital metal gear servos
  • Landing Gear: Electric Servoless Retract Landing Gear with Metal Suspension Leg
  • ESC: 80A Hobbywing Brushless speed controller
  • Battery: 22.2V 5000-5200mah Li-Polymer
  • Radio: 6-7 Ch Radio  (see all Redwing RC radios)

  PNP: Everything included except: Transmitter&Receiver, battery and Charger.





: *
: *
: *


6S Pulse LiPo Batteries





































Description:

Pulse Lithium Polymer Batteries - Setting a New Standard.

As Lithium Polymer battery technology continues to push new boundaries, Pulse Lithium Polymer Batteries bring a whole new element into the mix - power & performance at a price that simply can't be ignored.

Designed specifically for the demands of the latest power plants, not to mention the new realm of extreme 3D flight, Pulse brings a whole new battery to bear at a cost never seen before. Simply put, premium power no longer comes at a premium price.

Incorporating the latest advancements in Lithium Polymer technology, Pulse Batteries are designed to bring performance levels to a new stratosphere with 35C, 45C, and 65C battery packs in multiple capacities for the helicopter of your choice. Add the 5C charge rates, and the fun just begins.

Pulse Lithium Polymer Batteries - Can You Feel Your Pulse Quicken?

Pulse Batteries Available Individually or in a PRE-MADE System!

Take the guesswork out of your electric battery set up- we've done it for you! Check out the suggested set up systems for 30cc and 50cc.

LiPo 4500mah 5S, 18.5v - $104.99 each

30cc 10S System: Two (2) LiPo 4500mah 5S, 18.5v - $208

  • Voltage: 18.5V
  • Cell Count: 5S
  • Capacity: 4500mAh
  • Discharge Rate: 45C
  • Dimensions: 159mm x 45mm x 38mm (LxWxH)
  • Weight: 630g
  • Balance Tap: JST-XH


LiPo 3300mah 45C 6S, 22.2v - $94.99 each

30cc 12S System #1: Two (2) LiPo 3300mah 45C 6S, 22.2v - $188

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 3300mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 139mm x 42mm x 43mm  (LxWxH)
  • Weight: 567g
  • Balance Tap: JST-XH


LiPo 3700mah 45C 6S, 22.2v - $109.99 each

30cc 12S System #2: Two (2) LiPo 3700mah 45C 6S, 22.2v - $218

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 3700mAh
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 138mm x 44.5mm x 48mm (LxWxH)
  • Weight: 567g
  • Balance Tap: JST-XH


LiPo 4100mah 45C 6S, 22.2v - $119.99 each

30cc 12S System #3: Two (2) LiPo 4100mah 45C 6S, 22.2v - $238

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 4100mAh
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 137mm x 53mm x 42mm (LxWxH)
  • Weight: 680 grams
  • Balance Tap: JST-XH


LiPo 5000mah 45C 6S, 22.2v - $139.99 each

50cc 12S System #1: Two (2) LiPo 5000mah 45C 6S, 22.2v - $278

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 5000mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 158mm x 45mm x 49mm  (LxWxH)
  • Weight: 800g
  • Balance Tap: JST-XH


LiPo 5500mah 45C 6S, 22.2v - $149.95 each

50cc 12S System #2: Two (2) LiPo 5500mah 45C 6S, 22.2v - $298

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 5500mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 160mm x 44.5mm x 52mm  (LxWxH)
  • Weight: 873g
  • Balance Tap: JST-XH


LiPo 6000mah 35C 6S, 22.2v - $149.99 each

50cc 12S System #3: Two (2) LiPo 6000mah 35C 6S, 22.2v - $298

  • Cell Count: 6S 22.2V
  • Capacity: 6000mah
  • Discharge Rate: 35C
  • Charge Rate: 5C
  • Dimensions: 160mm x 49mm x 51mm  (LxWxH)
  • Weight: 884g
  • Balance Tap: JST-XH



Purchase pre-made system or buy individually! Select below.



PLU-6S

$149.99

6S 5200MAH 45C LIPO BATTERY

6S 5200MAH 75C LIPO BATTERY



JH-6S-5200

$149.99

Muffler Silencers (fits DLE 30/55/111 or similar size exhaust)

Description:

Do you want a more SCALE engine purr?! Look no further, these DLE Muffler Silencers will give that throaty sound to your engine with very little muss or fuss. This DLE Muffler Silencer significantly reduces the high pitched noise of the DLE 30 and makes it sound more scale - and they hardly increase the temperature of your cylinder head.

This unit ONLY works on the DLE 30.

Simply press fit the silencer in place and then hold with the included silicone tubing and zip ties - or drill a hole and install a screw - either way installation is easy - and these bad boys don't go anywhere! Friction alone helps keep them in place.

This silencer is a simple way to reduce the noise level of your rc engine without compromising the quality or performance - and at OUR price?! Simply cannot be beat.



Sold Individually! RA's or others with 2 exhaust pipes will need 2





D-3030M

$17.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99

EPP Mini Shark Airplane 39.4" (1000MM) Wingspan

31.5" EPP 3D Airplane YAK55 Features: • Kit version - Assemble and install your choice of electronics • All hardware accessories included in kit • Durable EPP material with realistic printing resemblance of a shark • Simple to build Specification: Wingspan: 800mm Length: 875mm Flying Weight: 400g Suggested Power System: Motor: 2212 1400KV ESC: 20A Servo: 9g *4 Propeller: SF 8-9inch Radio: more than 4CH BATT: 2S 1200-1500mAh (Not incl.) Different versions supplied as below: E1701=E17 YAK55 KIT+APC SF9047 E1702=E17 YAK55 KIT+Motor(2212 1400KV+3.5mm Banana Male Plug+3.0mm Prop Adapter) E1704=E17 YAK55 KIT+Motor+ESC(20A E-Power+3.5mm Banana Female Plug+XT60 Plug)+Servo(9g*4)

DW-E1401

$64.99
