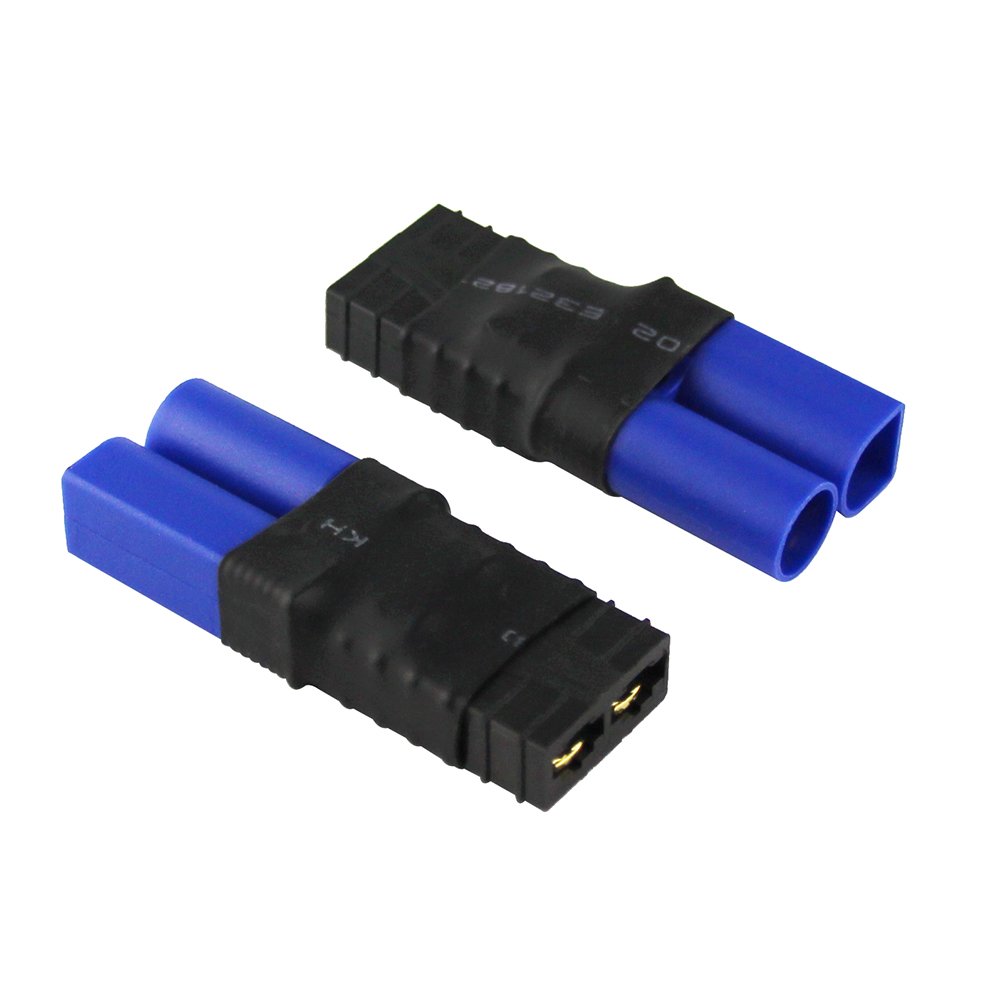

Male EC5 Losi to Female TRX Traxxas Adapter Connector

Power Board - PRO SERIES - Red (4104)

All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.

The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause).

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.

They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.





Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:

Red Power Board (4104)

• Dual battery redundancy for safer flying
• LCD display which shows real time info of your in and out voltages
• Built in regulator that supplies a clean 5v to your receiver
• Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
• 8 channels in, 16 channels out (+ ignition)
• Electronically isolated for interference free flying

  (We recommend our LiFe batteries and 6v servos with this unit - be sure to select ones with XT connectors for this use)

Specs:

Red Power Board (4104)

• Input Voltage: 5-13v
• Working load: 0A to 20A
• Weight: 3 oz.
• Dimensions: 4.5"x2.5"x5/8"
• Working Temperature: -20c to -85c

Recommended Set ups: Use the Red Power Board for 30-50cc planes using 6v servos. Use 2 LiFe batteries, and "jump" power down from an open servo port on the board, to run to your ignition
