Talon 60 ESC

Contact UsCustomer Reviews

Talon 60 ESC

Market Price: $85.95
Our Price:

$69.95


You Save

19%

Quantity (9)

Availability 9 in stock
Weight 1.50 lbs
SKU ESC-TALON-60

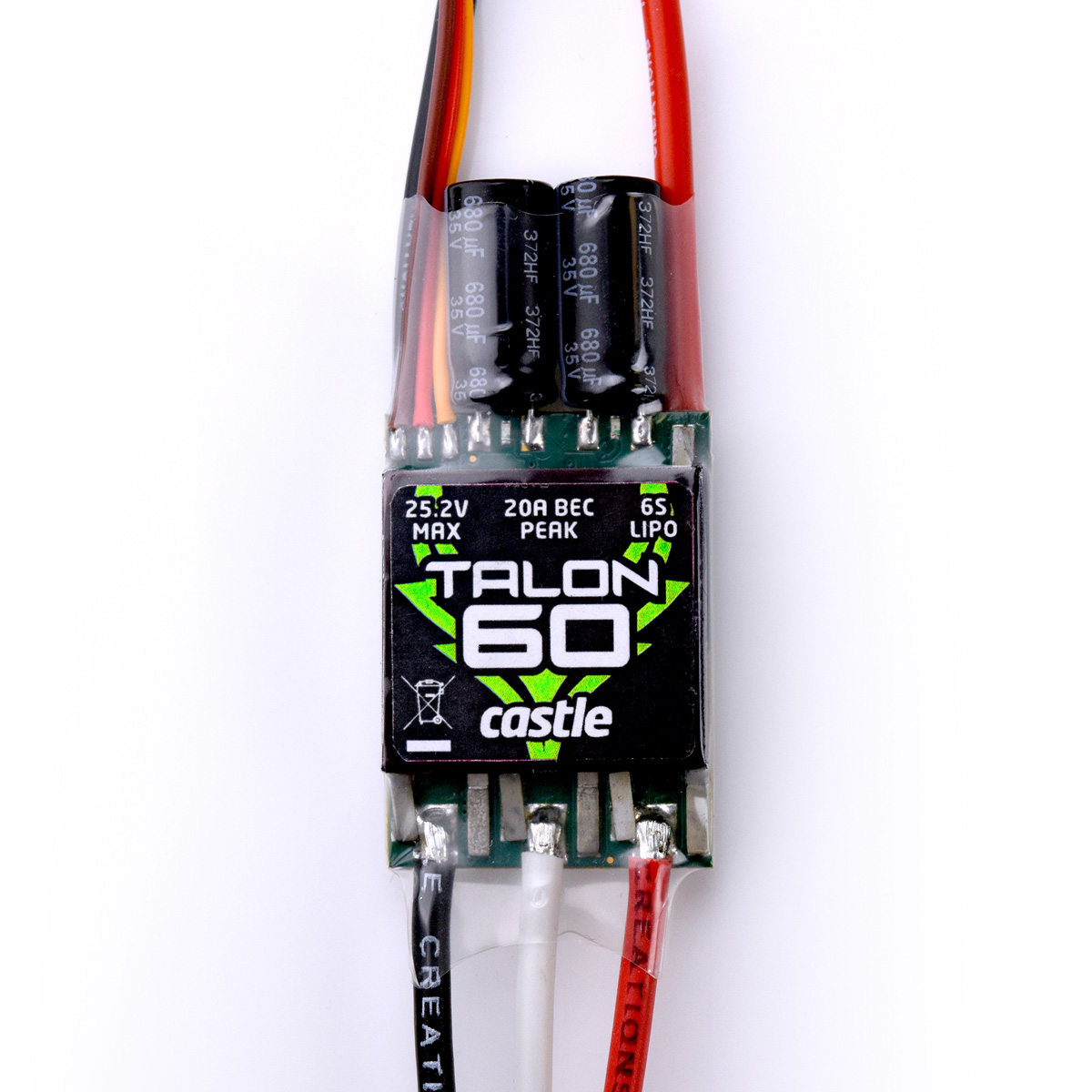

Talon 60, 6S / 25.2V, 60amp ESC w/ 20amp BEC

The Talon 60 is well suited for small scale or aerobatic heli's ranging from 360-450 size requiring up to 1400 watts on 6S. This ESC offers Castle's industry-leading helicopter functions, such as the remarkable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (redeemable coupon enclosed with purchase) and the free Castle Link Programming Suite running on a Windows PC.

The compact layout and slim profile of the Talon 60 is also perfect for SCALE, SPORT and AEROBATIC PLANES in the .32 - .60 range requiring up to 1400 watts on 6S. Mounting the Talon 60 is simple and stress-free in any setup.

The Talon series ESCs are known for sporting heavy-duty BEC's designed for today's servos. The Talon 60 is no exception. With its 20 AMP PEAK POWER and 8 AMPS OF CONTINUOUS POWER, it will keep even the most draining servos at ease.

Features:

  • Input Voltage Range: 2S-6S LiPo
  • Max Continuous Amperage at full throttle: 60 amps
  • Max Voltage: 25.2V
  • BEC Voltage: User selectable choice of 6 or 8 volt output (default is 6V).
  • BEC Output: 20 amp peak , 8 amp continuous
  • Tools needed for installation: Soldering iron for attaching High Current bullet connectors to ESC, motor, and battery. (Deans Ultra Plugs, EC5 or Castle Polarized, 4mm or 6.5mm)

Specifications:

  • Width: 1.19" (30.2mm)
  • Length: 2.56" (65mm)
  • Depth: 0.41" (10.6mm)

: *
: *
: *
