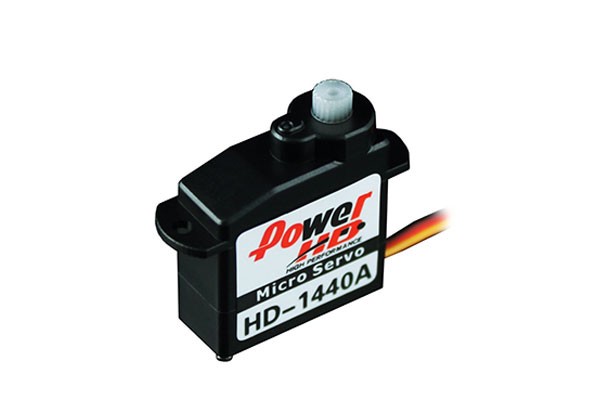

Power HD 1440A - Micro Servo - 0.8 kg (11.11 oz/in), .09/sec - 4.4g

Power HD HD-1711MG Mini Servo - 3.5Kg/cm(48.61 oz/in), 0.11 sec - 17.5g

The Power-HD DSM44 digital servo is a micro servo with digital control electronics for increased performance. Just like the Power-HD DSP33 ,the DSM44 is also very light and ranks as the secont lightest servo at RedwingRC- weighing only slightly over 6g!!! In the DSM44, the output shaft is supported by a ball bearing for decreased friction, and another great feature is that most of the gears are metal for increased durability! The lead is terminated with a Futaba-compatible standard “JR”-style connector. Servo horns and associated hardware are included.

It is important to note that stalling or back-driving this servo can strip its gears.



Specifications:

• Torque:
  16.66 oz/in at 4.8V (1.2 kg/cm)
  22.21 oz/in at 6V (1.6 kg/cm)

• Speed:
  .09 sec at 4.8V
  .07 sec at 6V

• Voltage: 4.8v to 6v
• Weight: .24oz (6.75 g)

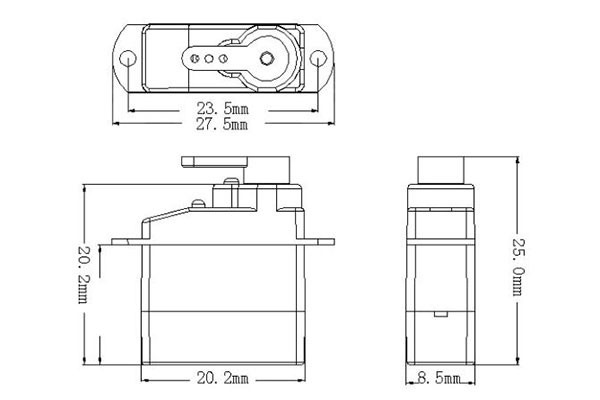

• Size: .68 x .87 x 1.06in (22 x 8.7 x 27mm

• Digital
• Lead Length: 160 mm
• Storage Temperature: -20℃~60℃
• Operating Temperature: -10℃~50℃

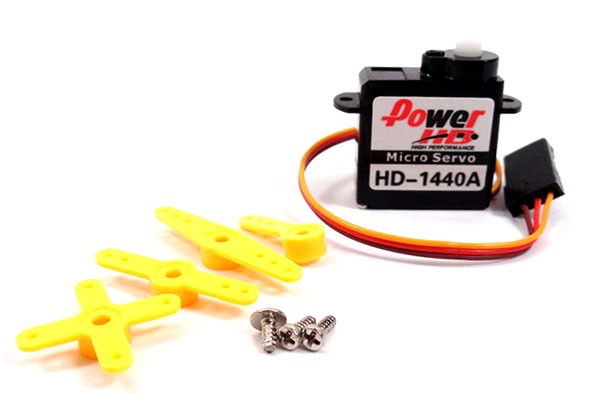

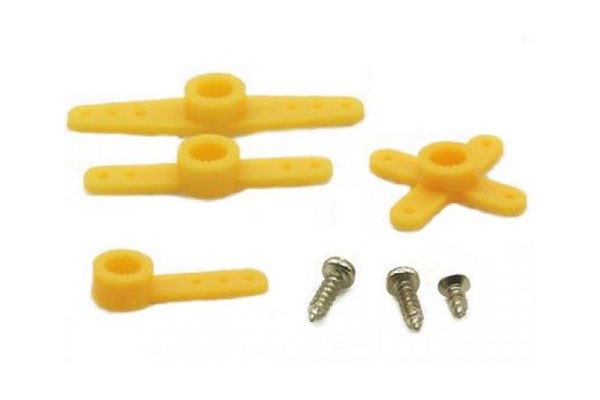

• Hardware included
• Suitable for F3P/EPP/KT Airplanes

Standoff (25mm) 100-120CC (Anodized Gas Engine 25m Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.


Power HD 1250MG Mini Servo - 3.5Kg/cm(48.61 oz/in), 0.12 sec - 25.0g

The Power-HD DSM44 digital servo is a micro servo with digital control electronics for increased performance. Just like the Power-HD DSP33 ,the DSM44 is also very light and ranks as the secont lightest servo at RedwingRC- weighing only slightly over 6g!!! In the DSM44, the output shaft is supported by a ball bearing for decreased friction, and another great feature is that most of the gears are metal for increased durability! The lead is terminated with a Futaba-compatible standard “JR”-style connector. Servo horns and associated hardware are included.

It is important to note that stalling or back-driving this servo can strip its gears.



Specifications:

• Torque:
  16.66 oz/in at 4.8V (1.2 kg/cm)
  22.21 oz/in at 6V (1.6 kg/cm)

• Speed:
  .09 sec at 4.8V
  .07 sec at 6V

• Voltage: 4.8v to 6v
• Weight: .24oz (6.75 g)
• Size: .68 x .87 x 1.06in (22 x 8.7 x 27mm

• Digital
• Lead Length: 160 mm
• Storage Temperature: -20℃~60℃
• Operating Temperature: -10℃~50℃
• Hardware included
• Suitable for F3P/EPP/KT Airplanes
