Power HD 1711MG Mini Servo - 3.5Kg/cm(48.61 oz/in), 0.11 sec - 17.5g

Contact UsCustomer Reviews
  0
  5. Power HD 1711MG Mini Servo - 3.5Kg/cm(48.61 oz/in), 0.11 sec - 17.5g
Tariff Information update
more offers

Power HD 1711MG Mini Servo - 3.5Kg/cm(48.61 oz/in), 0.11 sec - 17.5g

Ask a question about this product
Printable version

Share

Options

Market Price: $12.99
Our Price:

$9.99
You Save

23%
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 0.10 lbs
SKU HD-1711MG
Manufacturer Power HD

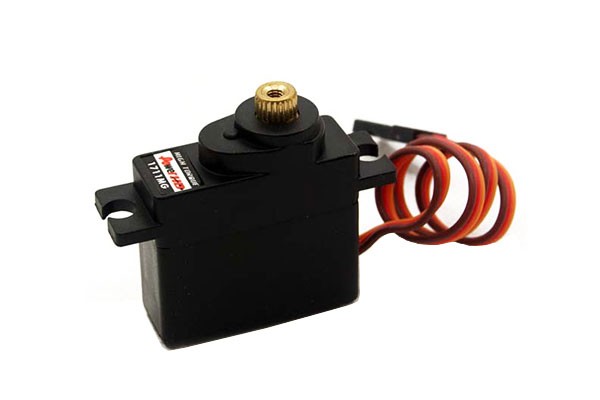

The Power-HD 1711MG servo is a great economical servo for every day use.

We have grown to love this little servo. It offers excellent quality for a very reasonable price. The performance is good, and we just do not have problems with these servos. We use them in all kinds of foamies, combat planes, and even the occasional hollow molded plane. A very reliable workhorse.

Specifications:

  • Torque:
    41.66 oz/in at 4.8V (3.0 kg/cm)
    48.61 oz/in at 6V (3.5 kg/cm)

  • Speed:
    .13 sec at 4.8V
    .11 sec at 6V

  • Voltage: 4.8v to 6v
  • Weight: .62oz (17.5g)

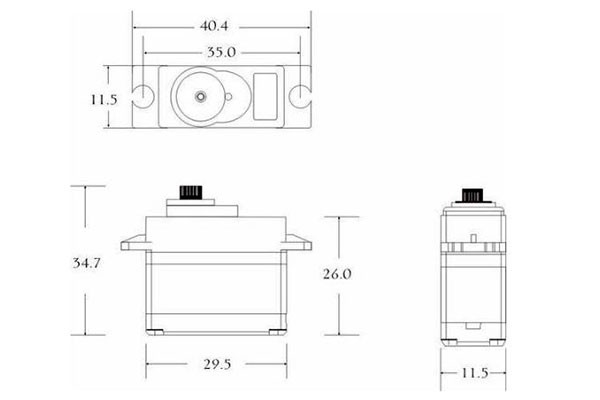

  • Size: 29.5 x 11.5 x 31.5 mm ( 1.16 x 0.45 x 1.24 in)
  • Analog
  • Lead Length: 150 mm
  • Gear Type Metal (Copper)
  • Operating Temperature: -10℃~50℃

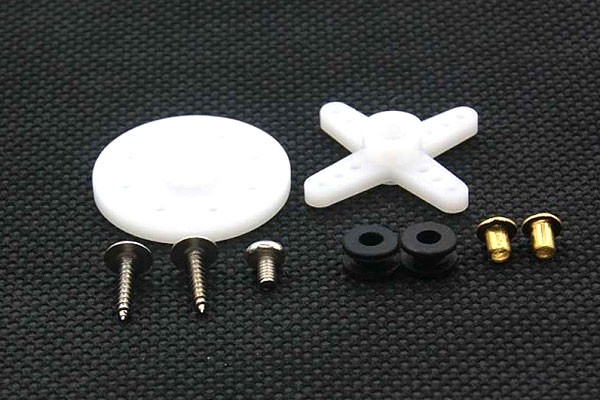

  • Hardware included
  • Suitable for Foamies/Gliders/Combat/ Airplanes



: *
: *
: *
