SCORPION TRIBUNUS III 14-150A ESC SBEC

Contact UsCustomer Reviews

SCORPION TRIBUNUS III 14-150A ESC SBEC

Our Price:

$419.99

Quantity (1)

Availability 1 in stock
Weight 1.50 lbs
SKU ESC-III_14_150
Manufacturer Scorpion

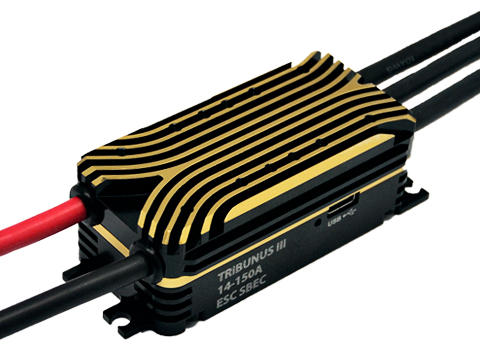

The Tribunus III 14-150A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.

Specifications

Max Continuous Current 150 Amps
Peak Current 200 Amps
Operating Voltage Range 12 - 61.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.6mOhms * 2
ESC Body Size 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt
Weight (With wires) 218g ( 7.69oz)
Weight (without wires) 148g (5.22oz)
Drive frequency 8kHz - 32kHz

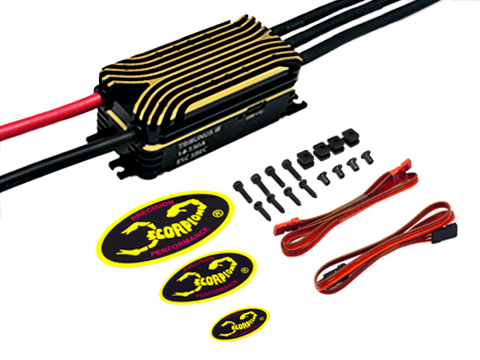

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack

: *
: *
: *


XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

MULTIPLEX (MPX) Servo Harness 6" Male 6" Female 20 AWG





















































































































Description:
Male Deans to Male XT60 Connector

With this Deans to XT connector you can convert a battery with T-Plug to XT-60 on ESC / charger
The connector has many applications and can be used for charger adapter.

Features:

  • Male Deans T style plug to Male XT60
  • Durable design
  • Heatshrink seal

MPX-Single-6/6

$10.99

Scorpion A-5025-215KV (12s / 30-35cc / 4000+w) 19-21" Props

Scorpion A-5025-215KV (12s / 30-35cc / 4000+w) 19-21" Props

Thinking about converting your 50cc gas powered plane to electric power? Our 50cc size electric powerset combo takes the hassel out of figuring out exactly what you need because we've done it for you! By choosing one of our pre-grouped electric power combos, you are getting everything you need to convert your plane to electric power in one click of your mouse.

This combo includes the electric motor, the electric speed controller, a battery pack and a prop.

Features

  • Hacker A60-18L High-End Brushless Motor
  • Castle Creations Phoenix Edge 120HV Brushless Electric Speed Controller
  • Two (2) Lightweight Aero-Model 5000 mAh 6 Cell 22.2V Battery Packs
  • APC 24*12 Electric Prop



For those lucky people who have more than one plane be sure to check out our 20cc and 30cc Electric Powersets also!

A-5025-215

$383.99
