DLE 20RA Engine

DLE 20RA Engine
DLE 20RA Engine
DLE 20RA Engine
DLE 20RA Engine
DLE 20RA Engine
DLE 20RA Engine
DLE 20RA Engine
DLE 20RA Engine
Ask a question about this product
Printable version

Share

Options

Market Price: $328.90
Our Price:

$299.99
You Save

9%
Quantity (13)

Details

Availability 13 in stock
Weight 5.00 lbs
SKU DLE-20RA

The DLE 20RA improves upon the original 20 version by adding a rear exhaust port for a cleaner and easier install. The DLE 20RA allows you to better hide your muffler in the cowl of most planes making for a more scale appearance.

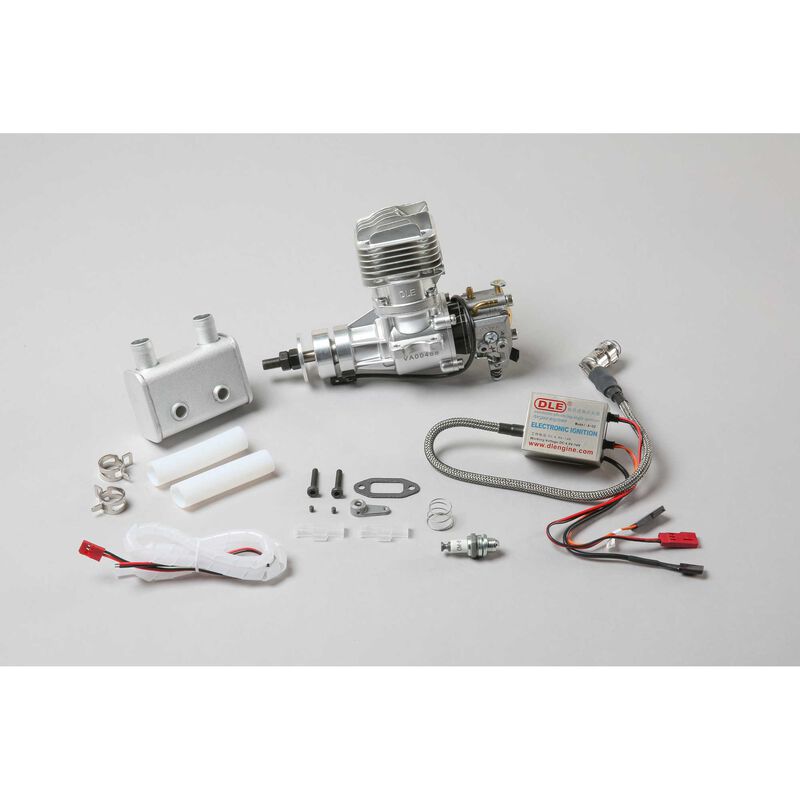

Glow power isn't the only option anymore. The DLE-20RA not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20RA. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20RA is an attractive alternative to glow…and a solid buy for value and performance.

Specifications:

  • Displacement: 1.22 cu in (20cc)
  • Bore and Stroke: 1.26 x .98 (32 x 25mm)
  • Compression Ratio: 10.5:1
  • REQUIRES: Gasoline with at least 87 octane rating; battery for ignition; Propeller
  • Fuel Mixture: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Fuel Octane Level: 93
  • Propeller Range: 14x10, 15x8, 16x6, 17x6
  • Ignition Battery: 4.8 - 8.4V
  • Replacement Spark Plug: NGK CM6
  • Output Power: 2.5 HP at 9,000RPM
  • Best Performance RPM Range:
  • Idle Speed: 1,700RPM
  • Weight, breakdown: Engine: 1.7lbs (660g); Exhaust: 2.8oz (80g); Ignition: 4.6oz (130g)
  • Static Thrust: 13.14lbs (6.3kg) 328ft (100m) altitude / 12.6lbs (5.6kg) 5,900ft (1800m) altitude
DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine

DLE 20RA Engine


: *
: *
: *

Servo Extensions 22AWG and 20AWG

Servo Extensions 22AWG and 20AWG

High quality 22AWG wire, twisted silicone wire extensions. JR type connections, so they will plug into any receiver/switch, and most servos (Hitec/JR/PowerHD/etc etc....futaba you would have to trim the edge off).


  • Soft flexible silicone casing
  • Heavy duty 22awg
  • Universal - XQ Power/Hitec/Power HD/JR/more...
  • Reliable! We've NEVER gotten a pair returned

    Prices
    • 2" 1 pair - $2.50
    • 2" 2 pair - $4.50
    • 2" 3 pair - $6.99

    • 3" 1 pair - $3.50
    • 3" 2 pair - $6.50
    • 3" 3 pair - $8.99

    • 6" 1 pair - $3.99
    • 6" 2 pair - $6.99
    • 6" 3 pair - $9.99

    • 8" 1 pair - $3.99
    • 8" 2 pair - $6.99
    • 8" 3 pair - $9.99

    • 10" 1 pair - $3.99
    • 10" 2 pair - $6.99
    • 10" 3 pair - $9.99

    • 12" 1 pair - $4.99
    • 12" 2 pair - $8.99
    • 12" 3 pair - $12.99

    • 14" 1 pair - $4.99
    • 14" 2 pair - $8.99
    • 14" 3 pair - $12.99

    • 16" 1 pair - $4.99
    • 16" 2 pair - $8.99
    • 16" 3 pair - $12.99

    • 18" 1 pair - $6.99
    • 18" 2 pair - $10.99
    • 18" 3 pair - $13.99

    • 24" 1 pair - $7.99
    • 24" 2 pair - $12.99
    • 24" 3 pair - $15.99

    • 28" 1 pair - $7.99
    • 28" 2 pair - $12.99
    • 28" 3 pair - $15.99

    • 32" 1 pair - $7.99
    • 32" 2 pair - $12.99
    • 32" 3 pair - $15.99

    • 36" 1 pair - $8.99
    • 36" 2 pair - $14.99
    • 36" 3 pair - $17.99

    • 44" 1 pair - $8.99
    • 44" 2 pair - $14.99
    • 44" 3 pair - $17.99

    • 48" 1 pair - $8.99
    • 48" 2 pair - $14.99
    • 48" 3 pair - $17.99


EX

$2.50

Falcon Carbon Fiber Props

Falcon Carbon Fiber Props



Description:

We are proud to be an official retailer for Falcon© Brand Carbon Fiber Props. These high quality props are the real deal- a lightweight and durable wood prop wrapped in carbon fiber weave for extra strength.




Features:

  • Scimitar design for efficiency
  • Sharp tips - thin blades for better performance
  • Made of high quality 3K carbon fiber weave
  • Lightweight for quick spool up
  • Created from high quality European steel molds
  • Pre balanced at the factory (final fine tuning recommended)
  • Beautiful looks, strength and performance


*Falcon Hats are currently out of stock

Falcon Prop Test Chart

FLC-

$56.00

Servo Safety Locks, Multi or Single Color, 6-Pack

Servo Safety Locks, Multi or Single Color, 6-Pack

Servo Safety Locks, Multi or Single Color, 6-Pack
10 pack of servo safety clips. Made to retain your servo wires to keep them from slipping off during flight.

A must have to to ensure your servo connectors stay securely connected.

Packs of 10:

bbr-safety-lock

$2.99
