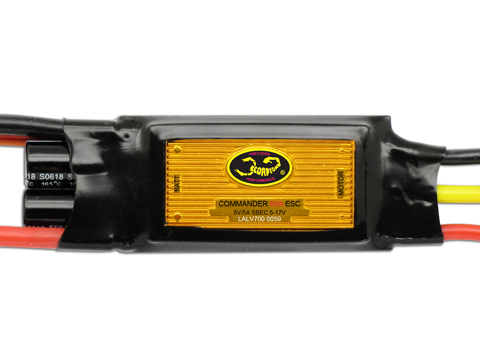

SCORPION COMMANDER 15V 60A ESC SBEC (V3)
The Commander 4S LBEC series ESC(V3) operates from 6 to 17V. It features switching BEC will convert the voltage from your battery packs to 5V to power your receiver and servos. The Commander LBEC will deliver 3 Amps of continuous current with 5 Amps bursts. And can handle up to 4 digital servos or 5 standard servos on fix wing models. With a Switching type BEC, the BEC is not needed to de-rate as the input voltage increases. The full 3 Amps of BEC current is available for input between 2-cell to 4-cell Lipo operation. The full-featured IR Programming Card allows the user to set the following parameters: Low Voltage Cut-off (5V to 13.5V at 0.5V increments) no need to select battery type just set the voltage the ESC should work on, by doing this, the ESC will be compatible with any future type of battery designs. LVC= LOW VOLTAGE CUT: 050 (5V) TO 138(13.8V) BRK= BRAKE SETTING: 1: NO BRAKE, * 2: VERY SOFT BRAKE, 3: SOFT BRAKE, 4: HARD BRAKE, 5: VERY HARD BRAKE AIR= ACTIVATE AIRPLANE MODE* PCT= PROGRAM CUT TYPE (LVC TYPE): 1: CUT 50%*, 2: NO CUT JUST LED WARNING, 3: PULSE WARNING MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15* Seconds, 2: 0.3 Seconds, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds CAR/B= DISABLED COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY) MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15 Seconds, 2: 0.3 Seconds*, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds CAR/B= DISABLED COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY) FREQ= DRIVE FREQUENCY: 1: 8 kHz * SB= MOTOR STARTING BOOSTER 1: SOFT, 2: MEDIUM, 3: STRONG SOFT START DURATION: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3: STRONG 20 Seconds GOV (P Gain) = POWER GAIN: 1 to 11 (SOFT to HARD), DEFAULT: 5* SB (I Gain) = CURRENT GAIN: 1 to 8 (INSENSITIVE to SENSITIVE), DEFAULT: 5* SOFT START DURATIO: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3:STRONG 20 Seconds *Factory Default Specifications
Included in the Box1 x Scorpion Commander 15V 60A ESC This ESC does NOT INCLUDE IR Transmitter (Programming Card) & IR RECEIVER
|
RedwingRC Hooded Sweatshirt
The New RedwingRC Hooded Sweatshirt!Show your Redwing spirit at the field and wherever you go with the RedwingRC hooded sweatshirt. Stay warm and look cool! The "Built Light Built Right" words are now on the front like the T-Shirts.
50% cotton, 50% polyester; made with up to 5% polyester from recycled plastic. Available in S, M, L, XL, 2XL, and 3XL |
T-Hoodie-
$25.00
Savox SB2292SG - Monster Performance Brushless Servo, Black Edition
| Savox SB2292SG, Monster Performance, Brushless Servo Black Edition 0.055sec / 624.9oz @ 8.4v
Description:Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230. The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears. The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out! You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to! All in all - these servos are a great choice for your RC plane. Order yours now!
Specifications:
GET YOURS TODAY!
|
SAVSB2292SG
$145.99
Hitec HS-65MG
Hitec HS-65MGThe HS-65 HB+ is a great choice because it is one of Hi-Tec's strongest micro servo and it has a very long life due to the durable Karbonite gears. The HS-65 HB+ can provide over 30 oz/in of power at 6 volts. Created for higher performance micro helicopters, electric park flyers, & 1/18 scale cars. This servo features a top ball-bearing for long life and positive centering. Arms included: Single arm, Double arm, Quad arm Features
Specifications
|
HRC32065S
$32.99
