Miracle Brushless Smoke Pump

Contact UsCustomer Reviews
  0
  4. Miracle Brushless Smoke Pump
Tariff Information update
more offers

Miracle Brushless Smoke Pump

Ask a question about this product
Printable version

Share

Options

Market Price: $169.99
Our Price:

$119.99
You Save

29%
Quantity (10)

Details

Availability 10 in stock
Weight 0.75 lbs
SKU MRC-K-028

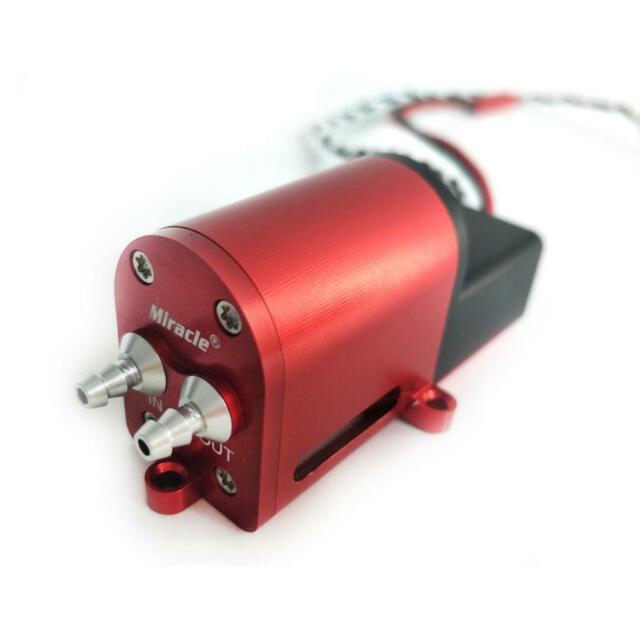

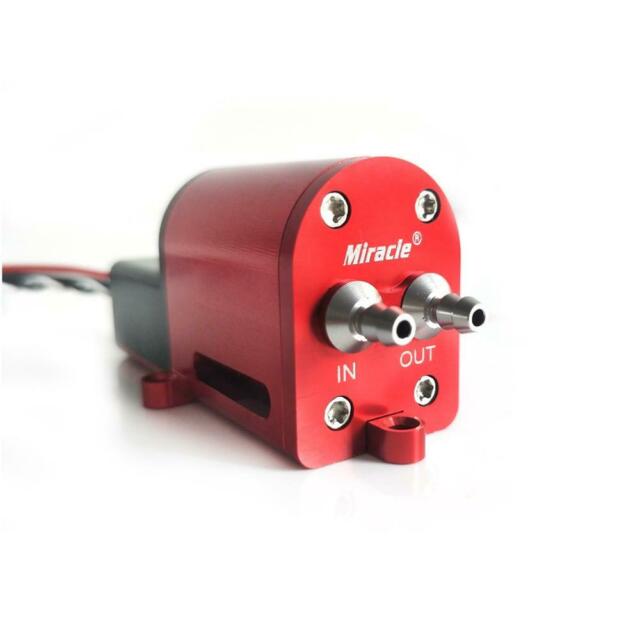

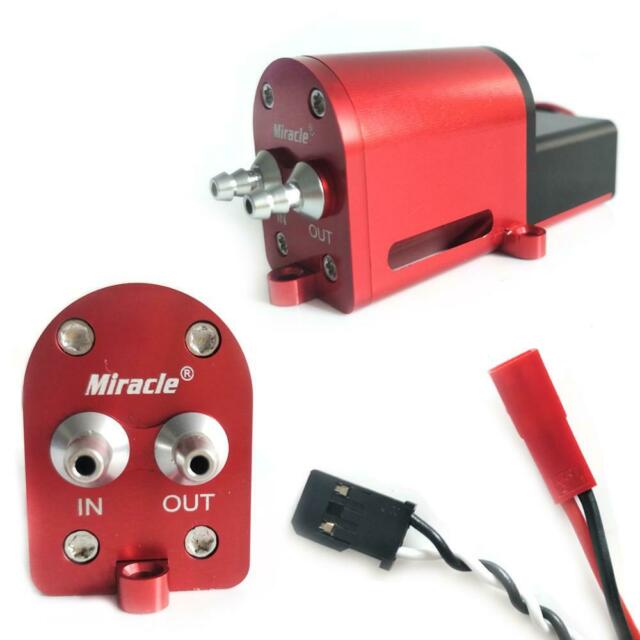

Miracle Brushless Smoke Pump made by Dualsky

Introducing the new Miracle Brushless Motor Smoke Pump made by Dualsky! These light weight pumps (only 3.1 oz) have a CNC processed 6061 case with a Japanese high speed oil seal. The powerful Outrunner Brushless Motor with carbon composite gear pump supplies 1330PPM @8.0v of flow to provide a great smoke show for any Giant Scale Gasser or Jet! This pump is designed to run off any 2-cell Lipo and can easily be used with programmable and non-programmable radios on any set up with an open channel.

Radio Set up:

Non programmable Radios

Use a switched channel to switch the Smoke pump on and off. Since there is no trim control on a switched channel, the flow rate is consistent. When the switch is on, flow will be at maximum. You can set the END POINT/ATV of the radio switch channel to control the maximum flow rate to control the smoke density.

Programmable Radios

Plug the smoke signal wire into a spare channel (such as the 8th channel). Set this channel program mixing like the Throttle channel, then set a switch for programming mixing on/off to control smoke pump on/off. Adjust the END POINT/Travel of this channel to control smoke pump flow rate to control the smoke density. For more detailed information please see your radio manual.

Specifications:

  • Weight: 3.1 oz (89g)

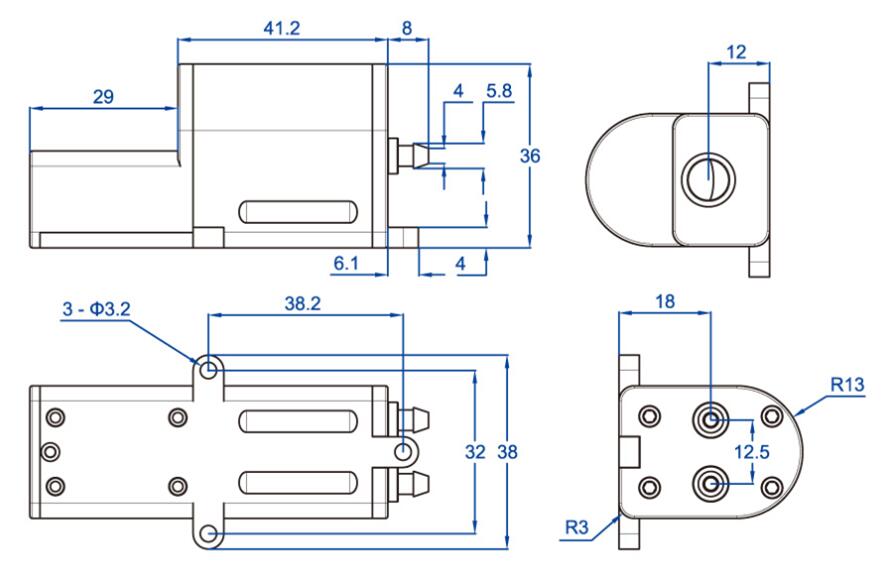

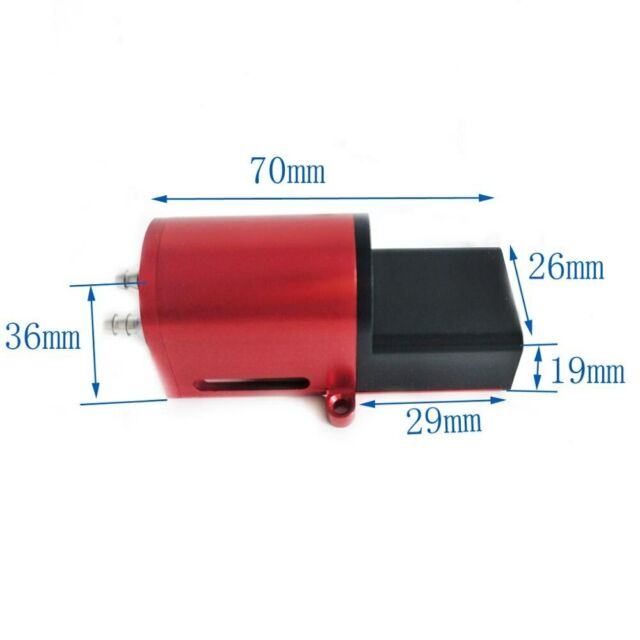

  • Dimension: L70 x W26 x H35mm
  • Nominal Voltage: 7.4V, 2S Lipo
  • Working Current: 0.9A @ 7.4V
  • Motor: XM1806PU, Outrunner Brushless
  • Drive Module: Hornet 12A, Brushless Sensorless
  • Quatity of Flow(QoF): 1000PPM @ 7.4V, 1330PPM @ 8.0V
  • Fully Aluminium Case: YES, CNC-made
  • Gear pump: YES, Carbon composites

You will need a smoke tank, and smoke muffler (coming soon).

**Color may vary

**DO NOT dry run pump! This may cause failure and will void warranty.*









: *
: *
: *

DLE 35RA Engine

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00

DLE 55cc Engine

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$429.00

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle long fuel filling nozzle with fuel filter.
Available in Red, Gold, and Blue.
Please make a note of your color choice.

MRC-H-010

$5.00
