DLE-130cc Twin Gas Engine with Electric Ignition and Mufflers

Contact UsCustomer Reviews
  0
  4. DLE-130cc Twin Gas Engine with Electric Ignition and Mufflers
Tariff Information update
more offers

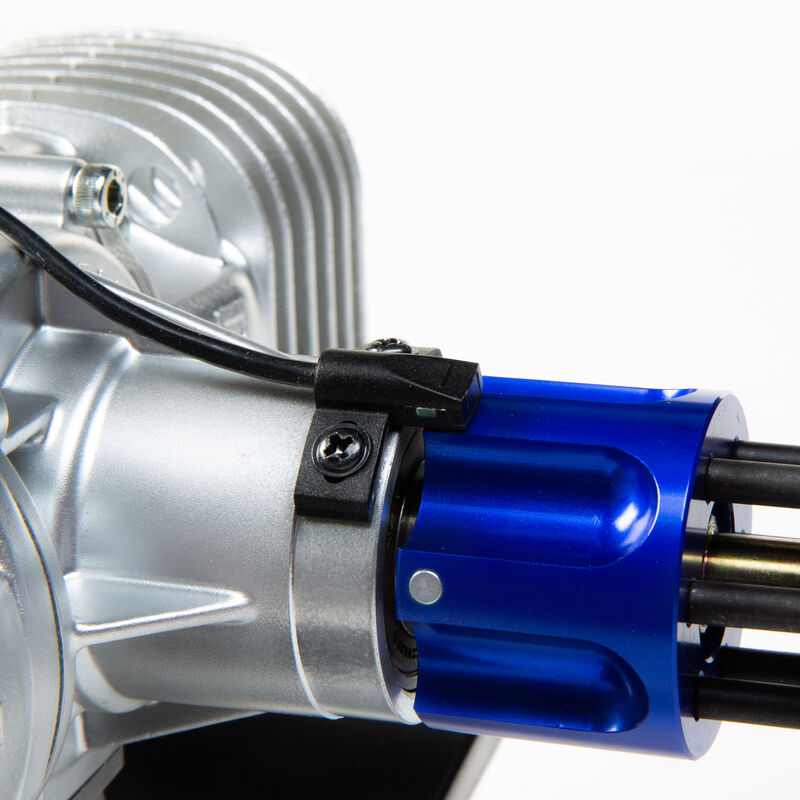

DLE-130cc Twin Gas Engine with Electric Ignition and Mufflers

Ask a question about this product
Printable version

Share

Options

Our Price:

$949.00
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 5.00 lbs
SKU DLE-130

This is a special order item and is subject to manufacturer availability.
Please allow a minimum of 2 weeks for delivery.
No returns or cancellations allowed.

Perfect Engine for the Redwing RC 108" Extra

Giant-scale enthusiasts will love the power, performance and value of the DLE-130cc. This thing is a MONSTER! The DLE 130 delivers 50 pounds of static thrust - MORE than enough power for the most intense 3d maneuvers. Plus the twin cylinders are always a plus - reducing the vibration and engine wear and tear AND increasing overall performance.

The DLE 130 deivers the most punch and power at the lowest weight and price of any other engine in its class - who can say no to that?!

Specifications:

  • Displacement: 7.93 cu in (129.94cc)
  • Bore: 1.85" (47mm)
  • Stroke: 1.47" (37.5mm)
  • Weight: 5.59lbs (2,540.1g) engine only;  6.94lbs (3,152.3g) Total weight
  • RPM Range: 1,600-8,500
  • Output: 13HP at 8,500RPM
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
  • Suggested Propellers: 27x12, 28x10, 28x11, or 29x9
  • Suggested Break-in Prop: 27x12
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio:
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: DLE-6; NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine:
  • Recommended Propeller: Redwing RC 3d Props - type 27x12, 28x10, 28x11 Propeller or Falcon 29x9










: *
: *
: *

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99

DLE Prop Drill Guide DLE85 DLE111 DLE120

DLE Prop Drill Guide DLE85 DLE111 DLE120

Description:
This is a genuine DLE Porpeller Drill Guide made of high quality heavy steel that can be used to perfectly drill your props and spinners for the DLE 30cc, DLE 35RA, DLE40T Gasoline Aircraft Engines.

MountSimply mount the drill jig on the back side of the prop. Orientate the blade tips 9 and 3 o'clock - or horizontal to the ground. Tighten the bolt so the fixture can not move. Drill your prop from the back side or mounting side.

DLP-DJ-120

$27.99

108" Extra 330 SC

SALE

108" Extra 330 SC

Description:

The RedwingRC 108" Extra 330 SC

The 2015 & 2016 Redwing RC Extra 330s have been some of the most popular air frames to come to the RC market.. The rollout of the 2019 Redwing RC 108" Extra 330 SC is is the newest addition for the Redwing RC Extra 330 airframes completing the lineup from 30cc-120cc!

After hundreds of hours of research and testing between Redwing Pilots and aeronautical advisors they have improved the airfoil, fuselage shape and other aerodynamic features of the plane.  You will notice that this plane still maintains the amazing predictable stability that customers have come to know about the Redwing 50cc Extra, but picks up some additional roll rate and elevator authority, as well as more side area to assist in wing down positions. You won’t notice trade offs – just improvements!

Redwing RC 100cc Extra Prototype!

https://www.youtube.com/watch?v=iggKoWrasIM



Flight Video



Specifications:

  • Wing span: 2745mm/108"
  • Wing area: 143-65dzm
  • Empty Starting weight:9100-9600g
  • Length: 2550mm
  • Engine: 100CC-120cc
  • Radio: 9channels
  • Recommended Spinner Size:
  • Recommended CG:
  • Recommended Prop Size: 24x8 to 25x9
  • Recommended Throws:
    • Low Rates Settings | High Rate Settings
    • Rudder: |
    • Ailerons: |
    • Elevator: |
  • Removable stab
  • Ringed cowl
  • Adjustable push rods
  • Canister Tunnel built in
  • Painted matching spinner (available separately)
  • Carbon fiber landing gear and accessories
  • Fast fly and easy build features, such as : Pre-drilled hinges, pre-plumbed fuel tank, and pre-installed rudder cable
  • NOW COME WITH SIDE FORCE GENERATORS!



Features:
30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes




SS-EXTRA-330SC-120

$999.00
