HC6 1/10 6x4 Scale Off Road Military Truck Kit

Contact UsCustomer Reviews

HC6 1/10 6x4 Scale Off Road Military Truck Kit

Market Price: $749.99
Our Price:

$649.99

You Save

13%

Quantity

OUT OF STOCK


Availability No items available
Weight 17.20 lbs
SKU CZRHC6

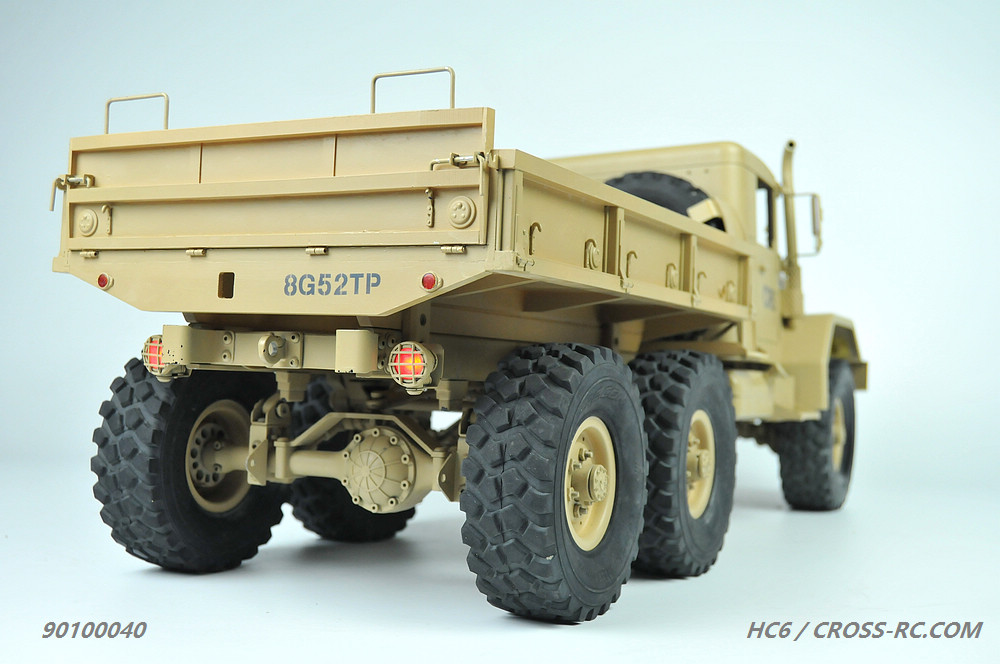

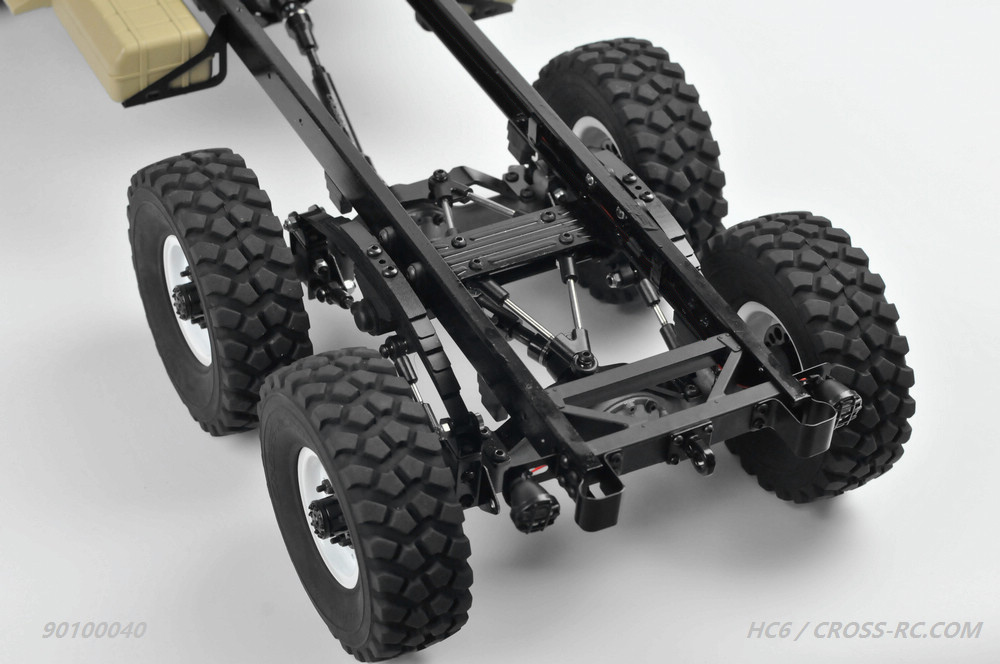

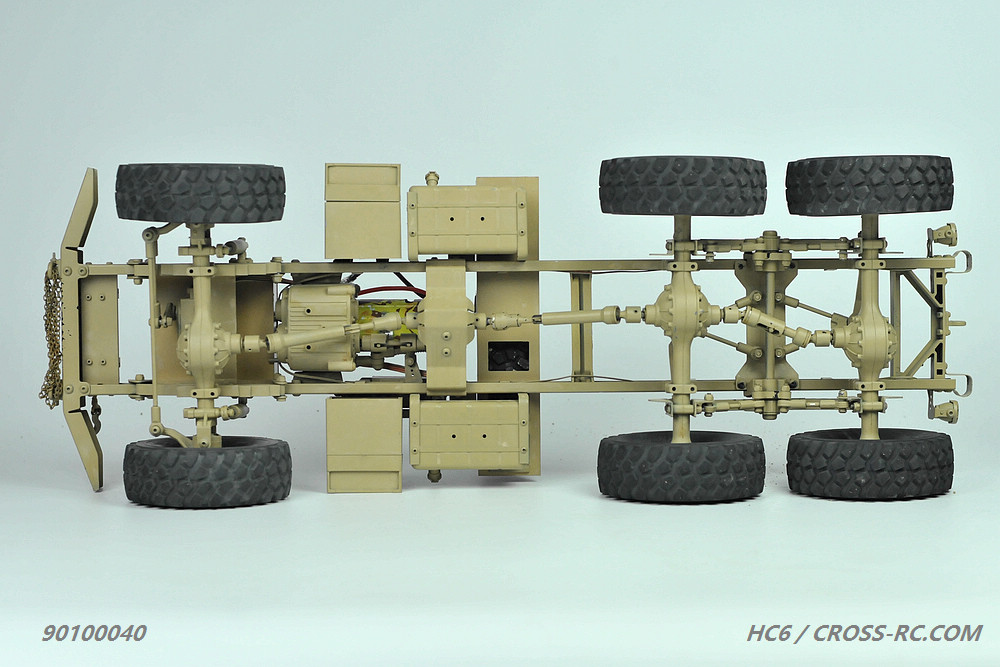

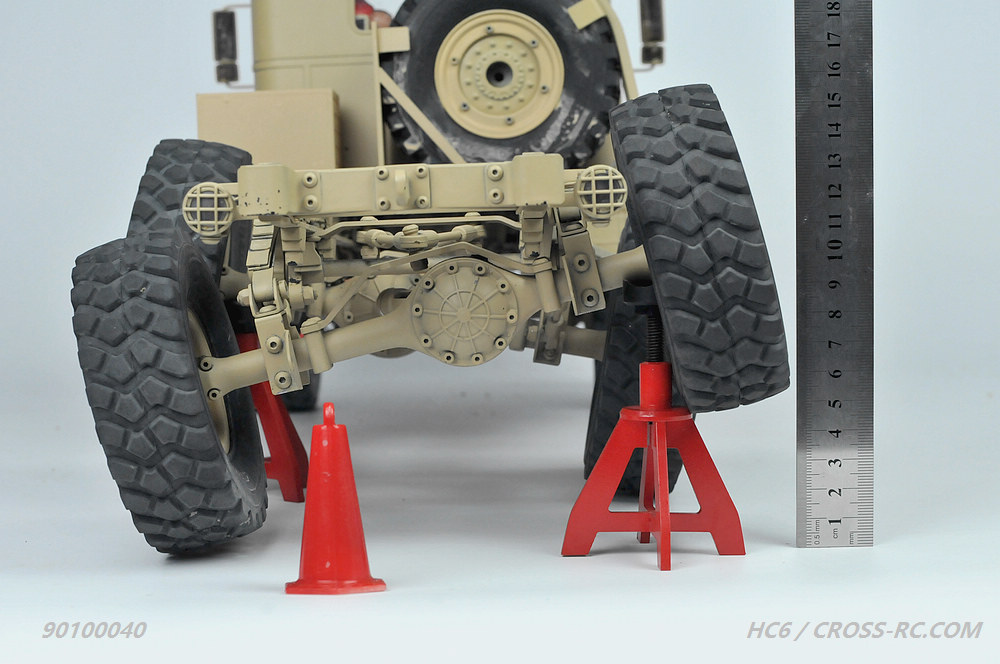

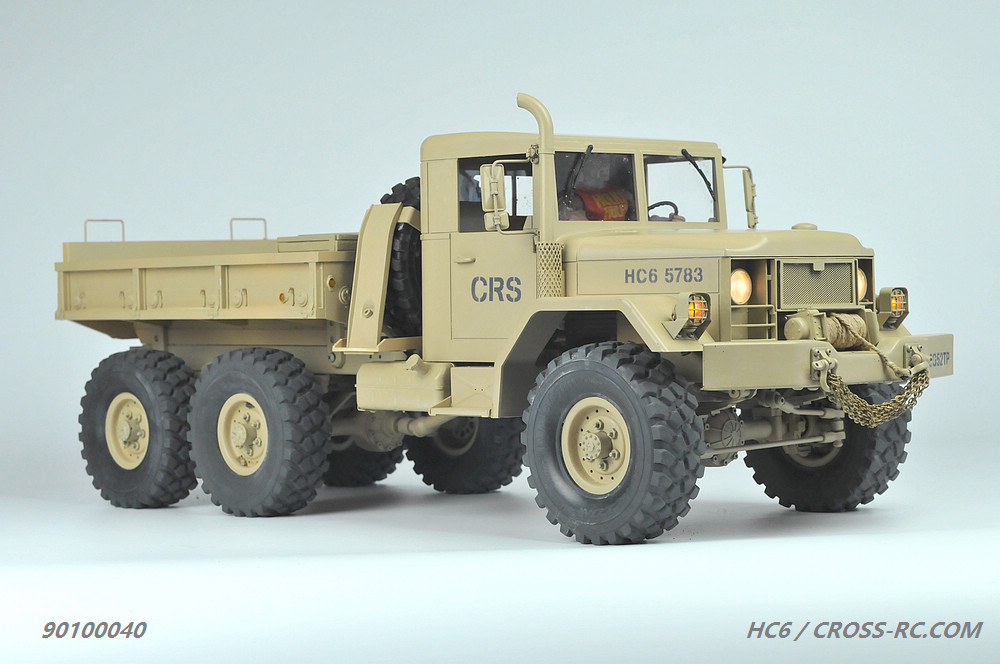

HC6 1/10 6x4 Scale Off Road Military Truck Kit

A 1/10th ultra scale 6-wheel off road military truck. Complete with full interior, 2 speed transmission, alloy axles, alloy driveshafts, steel 1.9 beadlock rims and a realistic leaf spring suspension. Assembly kit requires radio, steering servo, receiver, ESC, battery and charger.

HC6 Packaged Parts Contents
HC6 Dimensions Sheet

Shown painted for display purposes only - Requires assembly

Product Manual

: *
: *
: *


XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$249.99

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$399.99
