BIGAOLE BGL-3G-A V2 3-AXIS GYRO SYSTEM

Our Price:

$39.99


Quantity (8)

Availability 8 in stock
Weight 0.81 lbs
SKU BGL-3G-A V2 Gyro

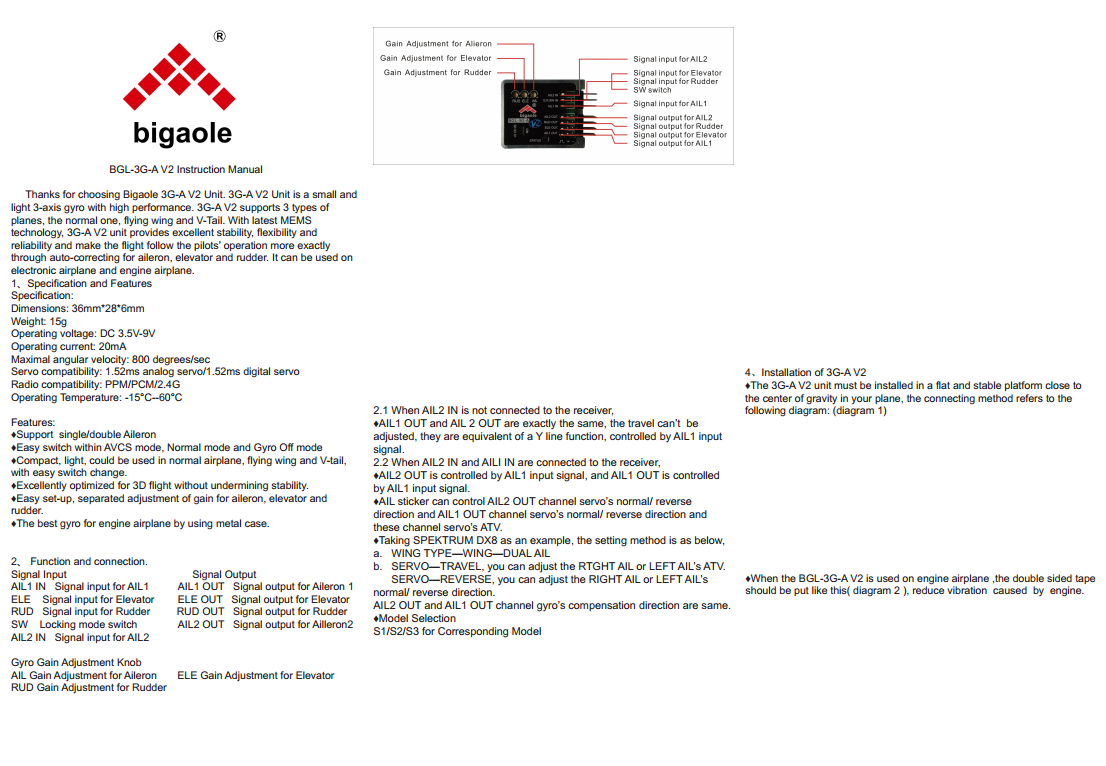

BIGAOLE BGL-3G-A V2 3-AXIS GYRO SYSTEM

The 3G-A stabilizer is a small lighweight, high performance, 3-Axis gyro. The version 2 model allows the option of independent aileron control, so you can have the benefits of a gyro yet retain flaperon, spoileron and or differential functions. Conversely you can still use a single channel to operate both ailerons making this gyro rather versatile. The V2 has also been enclosed in a robust aluminum housing for added protection.

The 3G-A V2 supports 3 types of planes--Standard Wing, Flying Wing and V-Tail. With the latest MEMS technology the 3G-A V2 provides excellent stability, flexibility, and reliability. Whether you are looking for sharp predictability from a 3D-plane or want to have the ability to fly smoothly in the wind, this gyro is a rock solid performer!

 Features:

  • Easily switch between 3 modes: Gyro Off, Normal Flight and AVCS
  • Great 3D flight performance without compromising stability
  • Easy to setup using independent gain adjustments for aileron, elevator and rudder
  • Supports single/double Aileron
  • Compact light design in robust case

Specifications:

  • Dimensions: 36mm x 28mm x 6mm
  • Weight: 15g
  • Operating voltage: DC 3.5V - 9V
  • Operating current: 20ma
  • Maximal angular velocity: 800 degrees/sec.
  • Servo compatibility: 1.52ms analog servo, 1.52ms digital servo
  • Radio compatibility:PPM, PCM & 2.4G
  • Operating Temperature: -15℃ - 65℃
: *
: *
: *


30cc Edge Replacement Canopy

Replacement canopies for our 30cc "Strong Design" Edge 540! Following the success of our 20cc Profile Edge 540, we decided it was time for a full fuse version and has been equally well received!

The 20cc Edge 540 is known for its unsurpassed stability in high alpha and this 30cc version is no different. The RedwingRC 30cc Edge 540 was specifically designed by Adam Strong to take advantage of the scale plane's tendencies, with focus on you expect of a modern day RC plane. Prepare to be amazed!

Click Here to see the 30cc Edge

Just like the plane, these canopies are available in 3 color schemes.

Replacement canopies for our 30cc planes can be made to order if we do not have them stock. The standard price shown is for a canopy to be produced at the time of order and air-freighted as quickly as possible from the factory direct. This allows for a more custom match to your plane and the most economical method of production. We will contact you with any questions about the batch number of your plane to make sure we get an ideal fit for you. The complete process from time of order will take about 4-6 weeks.

Contact us with any questions and to determine availability.

Please enter plane and color scheme in info box above. To be sure we are ordering the correct canopy please list all measurements where canopy touches the fuse.

Air Freight EMS direct to you: $49

CNP-FW-EG

$39.99

Zap Goo 1oz Tube

Zap Goo 1oz Tube



























































































































































































































































































Description:

Bob Smith Industries CA Glue

Super-Gold+™ Odorless, CA

SUPER-GOLD™ and SUPER-GOLD+™ are our odorless INSTA-CURE CAs They are non-frosting and take only 2 or 3 seconds longer to bond. There are no fumes that irritate the nose and eyes. The SUPER-GOLD™’s do not attack white foam; therefore, they can be used in the building of foam core wings and the assembly and repair of plastic and foam ARF’s. They will not fog clear plastic. SUPER-GOLD+™ is ideal for attaching clear canopies in plastic model kits; however, MAXI-CURE™ is still recommended for assembling the rest of plastic kits. Wood can be bonded to white foam with SUPER-GOLD +™ in less than fifteen seconds. For bonding foam to foam, spray a very light fog of INSTA-SET™ to one piece and apply SUPER-GOLD+™ to the other before joining. Excess INSTA-SET™ may create too much heat, which can melt the foam. Both SUPER-GOLD™’s cure to a more flexible consistency for better shock absorbtion. Whenever a large amount of CA is to be used in such applications as saturating fiberglass or Kevlar, SUPER-GOLD™ eliminates the irritating fumes from the evaporating monomer that make repeated use of CA unpleasant at times.



Works Best On:

  • Rubber
  • White Foam

Works Good On:

  • Balsa Wood
  • Soft Wood
  • Hard Wood
  • Glass & Metal
  • Fiberglass
  • Ceramics
  • Hard Plastics
  • Laminating
  • Water-Resistant
  • Reinforcing
  • CA Hinges



Avaliable in 2oz and 3/4 Pocket Size.

Pocket CAs feature a new top that has a pin built into the cap that covers the nozzle. This pin seals the bottle so that if it is tipped over, the bottle will not leak. This makes the Pocket CAs ideal for keeping in your tool or field box, just like our IC-Gel. One disadvantage that the new Pocket CA top has is the bluntness of the nozzle. This makes it more difficult to apply small amounts of the CA, especially in tight places. From the feedback we have received, it appears about 25-30% of users prefer the new Pocket CA top, which means that over 70% prefer our standard top for general bonding purposes. Most users are buying both types. Our original top for the workshop, and the Pocket CA for use out in the field. The 3/4 oz. Pocket CAs are available in BSI's Insta-Cure, Insta-Cure+, Maxi-Cure and Super-Gold+. BSI's new extender tip #304 works on the Pocket CA.



Click to Download Safety Data Sheet

PT-12

$4.99

Blazer 2-in-1 Sport Trainer 50.4" (1280mm) PNP or RTF

Blazer 2-in-1 Sport Trainer 50.4" (1280mm) PNP or RTF

TOP-019B

$229.99
