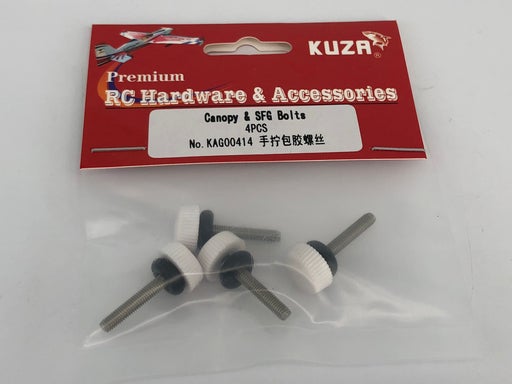

Canopy & SFG Bolts (4PCS) (M3X18mm / with O rings)

Contact UsCustomer Reviews

Canopy & SFG Bolts (4PCS) (M3X18mm / with O rings)

Our Price:

$5.99


Quantity

OUT OF STOCK


Availability No items available
Weight 0.10 lbs
SKU KAG00414 Canopy-SFG Bolts

Canopy & SFG Bolts( 4PCS) (M3X18mm / with O rings)

This little hard to find part is great to have on hand. These bolts fit most needs and are especially useful, since you won't need to have any tools on hand to quickly access your canopy!


: *
: *
: *


LiFe Batteries 2S

Description:
Our LiFe Batteries (also known as A123 Batteries) have huge advantages over most other options.

1) LiFe Batteries are lightweight - as light as Lipos
2) LiFes are safer than Lipos (do not combust easily like lipos)
3) LiFe Batteries supply a constant voltage (They stay right near 6volts from start to finish ensuring consistent flights)
4) Run Life batteries to your servos and ignition without regulators (For extra caution some people run a regulator to their ignition still)
5)Life's have a high Charging Capacity. Charge up to 5amps, allowing you to charge them up in MINUTES!

The 2100 or 3000 Mah can be used as a SINGLE battery system for 30cc planes. (we recommend spliting the lead and put 2 JR leads on, to run to the receiver and the other to ignition). You can also run a single 3000 Life Battery on a 50cc Plane.

The 1450mah LiFE Battery is a great option for those that want a separate battery for ignition and receiver (if you are running FM or hesitant to use a single battery system). The 1450mah Life is a great battery for the ignition for either a 30cc or 50cc sized plane

We recommend the following:
On the MXSR (2) 2100mah, or 1 3000mah placed on the mount box or front of the plane. It is a bigger plane and will do well with the extra voltage and weight.
Other 30cc planes - (1) 1450mah for ignition, (1) 2100mah for receiver or for a lighter set up
(1) 2100mah for both (split the wire to 2 leads) OR (2) 1450mah (one for ignition one for receiver).

50cc sized planes (1) 1450mah LiFe battery for ignition and (1) 3000mah LiFe battery for receiver or, for a lighter set up
(1) 1450mah for ignition, and (1) 2100 for receiver OR (1) 3000mah LiFe for both receiver and ignition



WATCH THIS VIDEO: Explains whether to use a regulator or not, 2 batteries or 1 for your plane, Redundancy and more.


Specifications:

  • Type: LiFe Battery (same technology as A123)
  • Weight:
    • 1450mah - 2.8oz,
    • 2100mah - 4oz,
    • 3100mah Life - 5.5oz
  • Size:
    • 1450mah- 15mm x 34mm x 87mm,
    • 2100mah- 12mm x 50mm x 106mm,
    • 3000mah- 130mm x 45mm x 15m
  • Voltage: 6.6Volts
  • Discharge rate:
    • 20c maximum continuous
    • 40c maximum burst
  • 2 cells (2s)
  • 14gauge Wire
  • Connectors: Two Options!
    • T Connector (T connector that fit a standard Dean)
    • XT-60 Connector. Choose Below
  • Also a balancing lead

Be sure to select the XT connector if purchasing for use with our Power Box PRO's. Please select connector type: Deans or XT.






  • 1450mah - $15.99
  • 2100mah - $25.99
  • 3000mah - $39.99


LiFe

$16.99

Spinner Bolts (M5x30mm-130mm)

Description:
Socket Head 5mm x 70/80/90/100/120/140mm
6 sizes for most spinners


Spinner-bolt

$4.00

Power Board - PRO SERIES - Black (4106)

Power Board - PRO SERIES - Black (4106)











































































All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.



These new versions offer SEVERAL new features:
1) Digital read out on all models - displaying voltage going IN and OUT of all devices (see photo)
2) LED and audible alarm for all models that you can set to warn when your system drops below a voltage of your choosing
3) TOUCH button programming to select your warning voltage
4) Wires to your RX are PRE-installed
5) Enclosed lightweight and strong plastic housing
6) XT-60 Connectors





The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause).

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.



They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.





Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:


Black Power Board (4106)

  • Dual battery redundancy for safer flying
  • LCD display which shows real time info of your in and out voltages
  • Built in regulator that supplies a clean 5v to your receiver
  • Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
  • 8 channels in, 16 channels out (+ ignition)
  • Electronically isolated for interference free flying
  • Adjustable voltage selection to your servos via the dial on the side (from 4.8v to 9.7)
  • Ability to use High voltage servos while providing a clean 5v to your RX
  • Battery balancing (draws extremely evenly from your dual battery set up)
  • Short Circuit protection (in the unlikely event of a short it will protect from battery drain)

    (input voltage MUST be between 6-13v. A 4S Life would be ideal)



Specs:

Black Power Board (4106)

  • Input Voltage: 6-13v
  • Working load: 0A to 30A
  • Weight: 4.5 oz.
  • Dimensions: 4.5"x2.5"x5/8"
  • Working Temperature: -20c to -85c



Recommended Set ups: Use the Black Power Board for 50cc to 100cc or bigger.

PB-4106

$169.00
