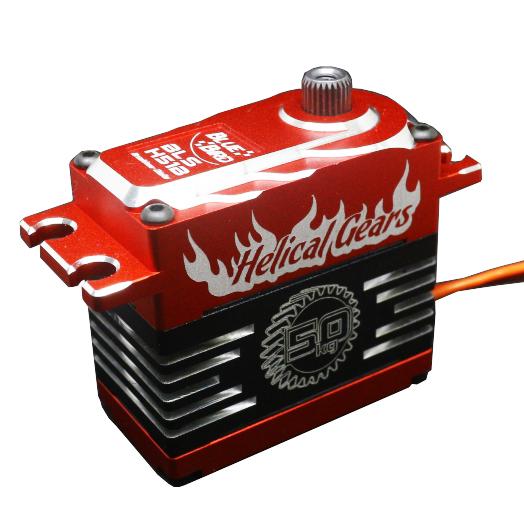

Factory Clearance BLS-H51B V1 HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS (62.9kg/873.6oz, 0.09sec at 8.4V)

Contact UsCustomer Reviews
  0
  3. Factory Clearance BLS-H51B V1 HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS (62.9kg/873.6oz, 0.09sec at 8.4V)
Tariff Information update
more offers

Factory Clearance BLS-H51B V1 HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS (62.9kg/873.6oz, 0.09sec at 8.4V)

Ask a question about this product
Printable version

Share

Options

Market Price: $129.99
Our Price:

$80.00
You Save

38%
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 0.51 lbs
SKU BBR-BLS-H51BV1
Manufacturer Blue Bird

Factory clearance original V1 powerful BLS-51B no packaging, hardware or servo arm.

Smoother．Precision．More Reliable & More Efficiency

Helical Gears for supreme strength and precision.

★Soft Start Protection
★Over Voltage Protection
★Low Voltage Protection
★Locked Rotor Protection
★Temperature Protection

APPLICATION / SUITABLE



Ideal for 3D Airplane, Jet & 1/5、1/8th Monster / Crawler / Off-road Car & Helicopter.

 ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V 46.2 kg-cm / 641.7 oz-in
Torque At 7.4V 55.7 kg-cm / 773.6 oz-in
Torque At 8.4V 62.9 kg-cm / 873.6 oz-in
Speed At 6.0V 0.12 sec / 60°
Speed At 7.4V 0.10 sec / 60°
Speed At 8.4V 0.09 sec / 60°

 PROTECTION MECHANISM

Soft Start Protection Soft start to neutral position.
Over Voltage Protection Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degree C, drive the protection mode and down 75 degree C
return to normal mode.

 POWER SUPPLY

Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

 CONTROL SPECIFICATION

Control System

Digital Controller / AD 12-Bits ( 4096 Steps )

Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width 0.001ms ( 1us )

 MECHANICAL SPECIFICATIONS

Ball Bearing Dual, Steel
Gear All Steel Alloy Metal Helical Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor High Efficiency Japan Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )

 PHYSICAL SPECIFICATIONS

Dimension (mm) 40.5 x 21 x 38.5 mm / 1.59 x 0.83 x 1.52 in
Weight (gram) 84.0 ± 1 grams / 2.96 oz
Product Picture / Dimension Sketch ​





Includes Servo and Servo Arm














: *
: *
: *

HiTec 5585 MH

HiTec 5585 MH

Product Description

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5585MH is rated for  7.4 volt, 2S LiPo operation (or NEAR the same performance with a Redwing LIFE battery.  The HS-5585MH, supplies your airplanes up to 35 percent with outstanding strength and precision.

Get all the muscle you need without straining your wallet! Hitec is proud to introduce our economical, premium digital, high voltage, coreless motor servos, the HS-5585MH

Specifications

  • Torque:
    • 194 oz/in at 6V (14 kg/cm)
    • 236 oz/in at 7.4V (17 kg/cm)

  • Speed:
    • .17 sec at 6V
    • .14 sec at 7.4V

  • Voltage: 6V - 7.4V
  • Weight: 2.10oz (60g)
  • Size: 1.57 x 0.78 x 1.49 in (39.8 x 19.8 x 37.8 mm)

  • Motor Type: Standard HV Digital
  • Bearing Type: 6.0 - 7.4 Volts DC



Advanced Servo Specifications Hitec 5585 MH

  • Control System: Standard HV Digital
  • Operating Voltage Range: 6.0 - 7.4 Volts DC
  • Operating Temperature Range: -4° - 140° Fahrenheit
  • Idle Current: 4 mA
  • No Load Running Current (6.0V/7.4V):
  • Stall Current (6.0V/7.4V): 2100 / 2700 mA
  • Dead Band Width: 2 µs
  • Potentiometer Type: 4 Slider 1M Cycle
  • Connector Wire Length: 11.8 in. / 300 mm.
  • Connector Wire Gauge: 25 AWG
