138" Scale Monsun Bolkov B09 (100-120cc)

Ask a question about this product

Printable version

Options

Market Price: $1499.00

Our Price:

$999.99

You Save

33%

Quantity (1)

Details


Availability	1 in stock
Weight	300.00 lbs
SKU	ss-100-Monsun-Green

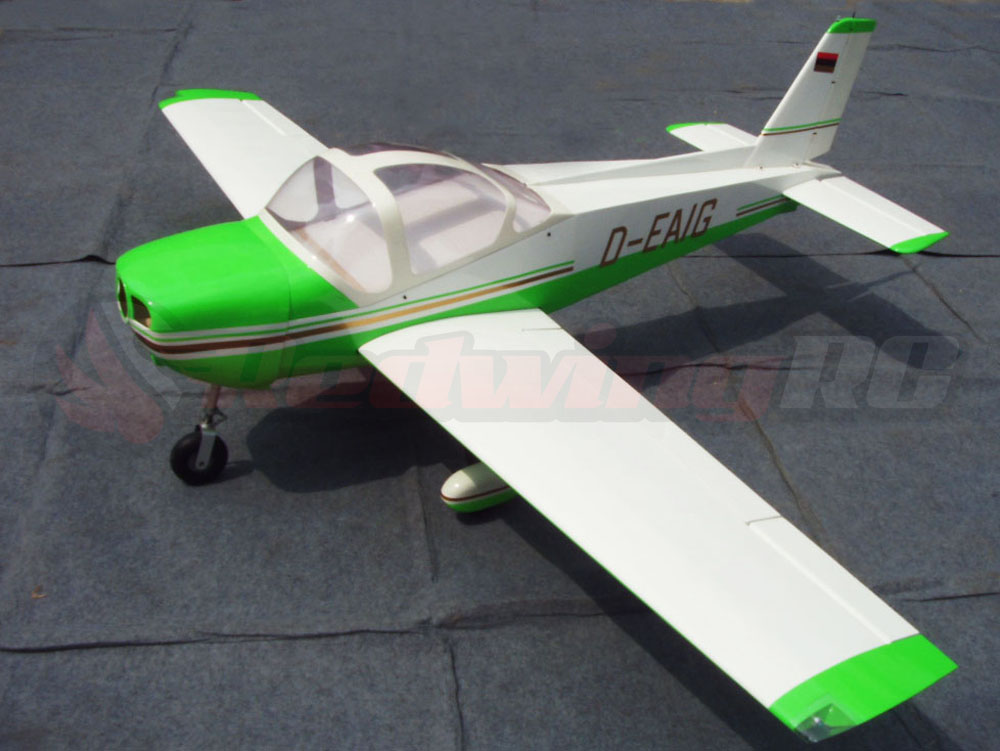

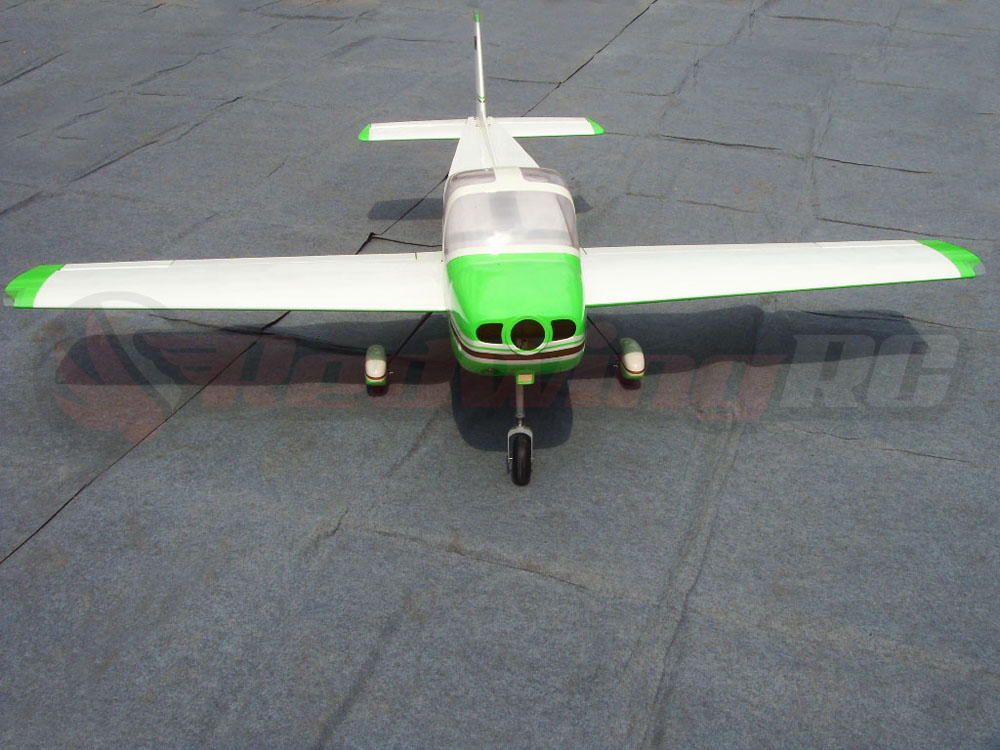

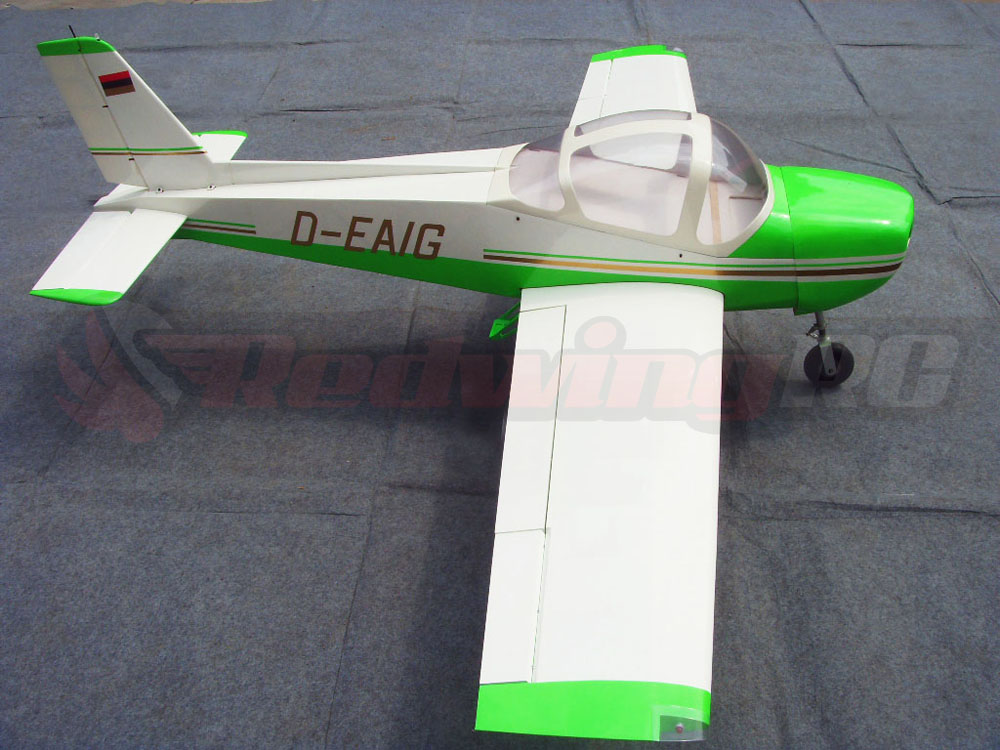

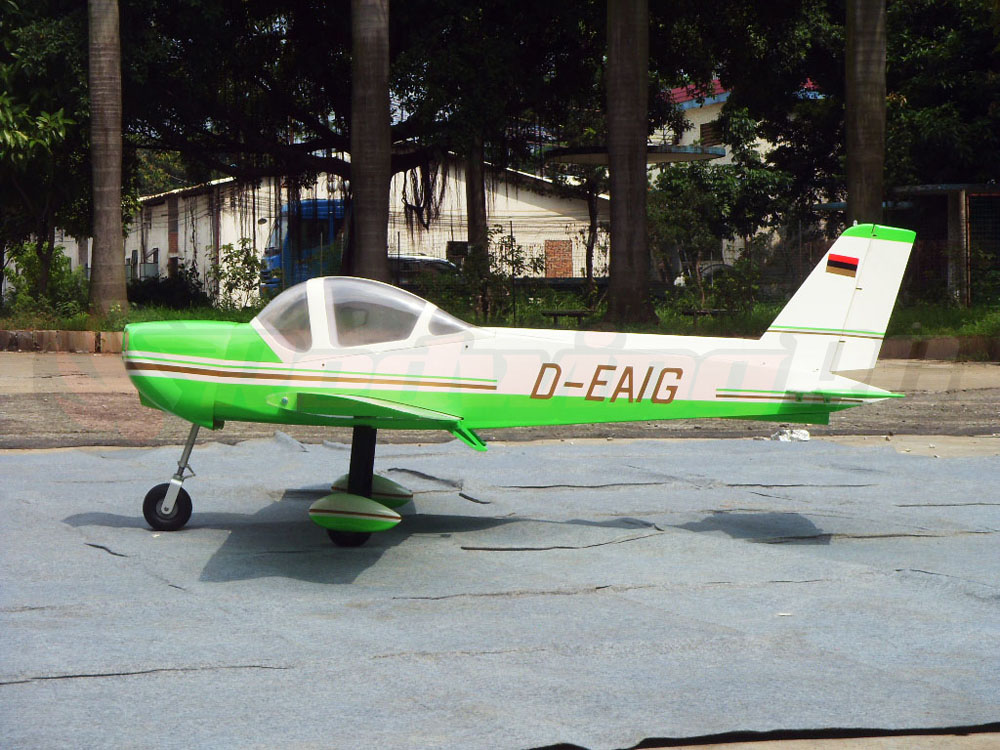

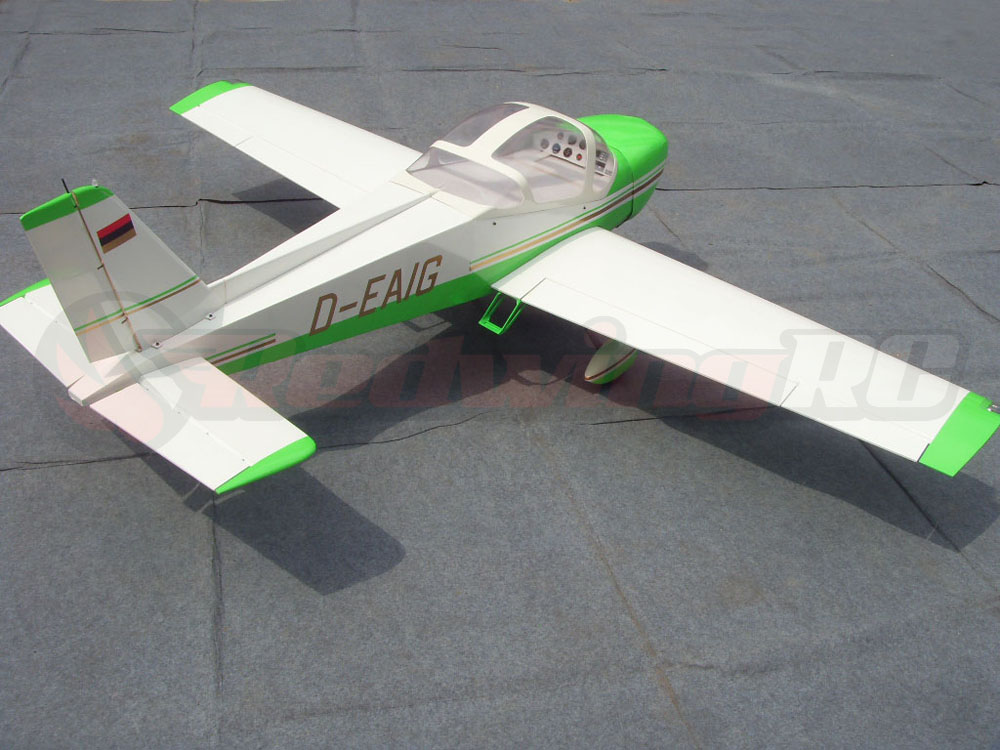

138" Scale Monsun Bolkov B09 (100-120cc)

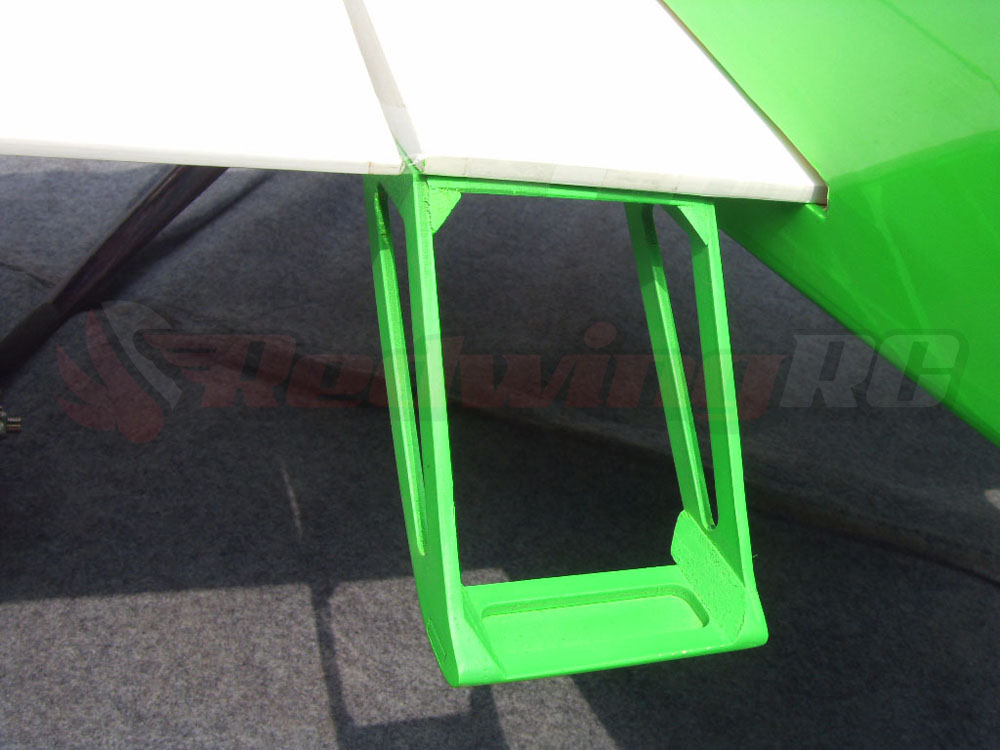

The Monsun is a two seater aerobatic sport aircraft that is a pleasure to fly and spectacular to see in the air. Complete with step ladder, navigation and landing lights, front wheel steering, and more! This model, made famous by Graupner is one of the best constructed iconic models on the market and a must for any serious large scale model collector. The Monsun, with it's giant 138" (3.5M) wingspan is a true masterpiece that will amaze you and your friends at the flying field. Get ready for a new flying experience!

Specifications:*(More Coming Soon)*

Wing span: 3500mm / 138 in
Wing area: 173.3 sq.dm
Empty weight: 10.8kg/ 23.8 lbs
Length: 2532mm / 99.7.in
Engine: 100-120cc
Radio: 6-9 Channels, at least 6 servos (25-30KG torque or more)
Receiver Battery: 4.8-6V
Recommended Spinner Size: 4.0 in
Recommended Prop Size: 27x10
Recommended CG: 173.5mm measured from leading edge
Recommended Throws: see manual

Product Manual

Features:

ARF Giant-Scale airplane model
Bonnet GRP
Fuselage and wings in wood construction; Balsa (laser-cut)

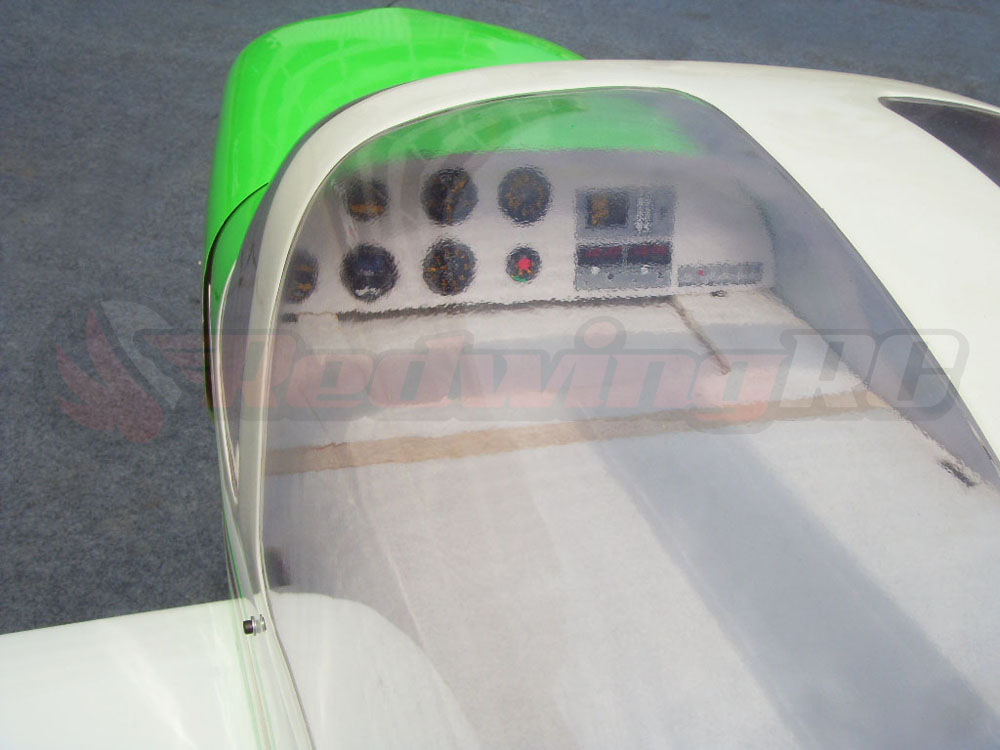

High-quality film and decal instrumanet Panel
Excellent flight characteristics
Perfect for towing gliders
Fully functional landing flaps

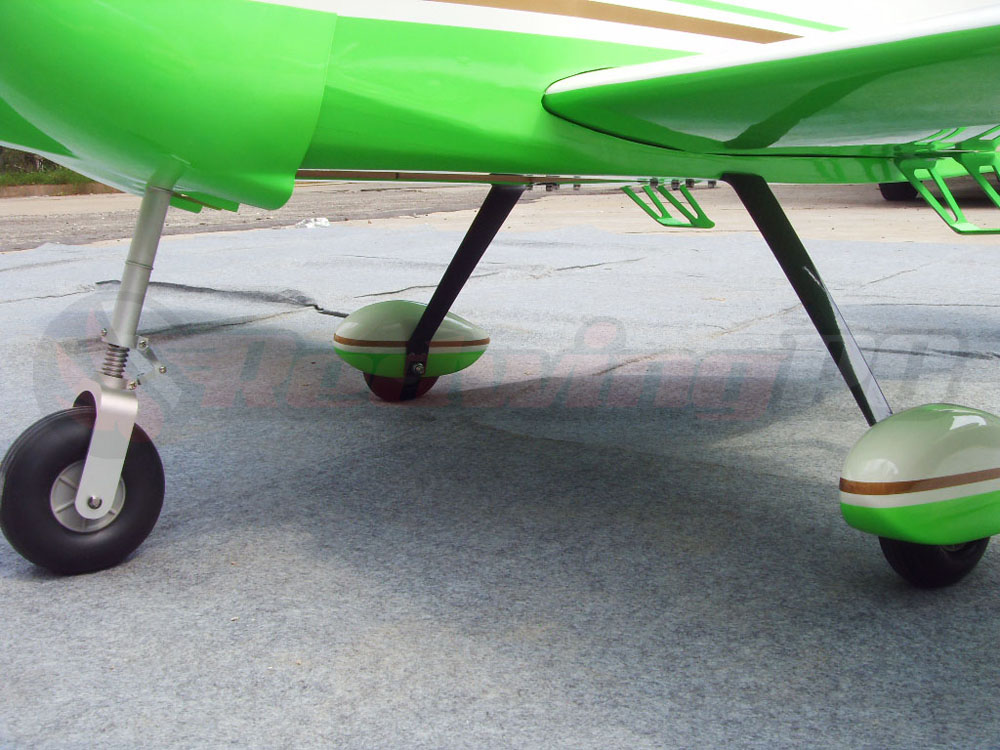

Scale-chassis; Main landing gear, strap made of CFRP

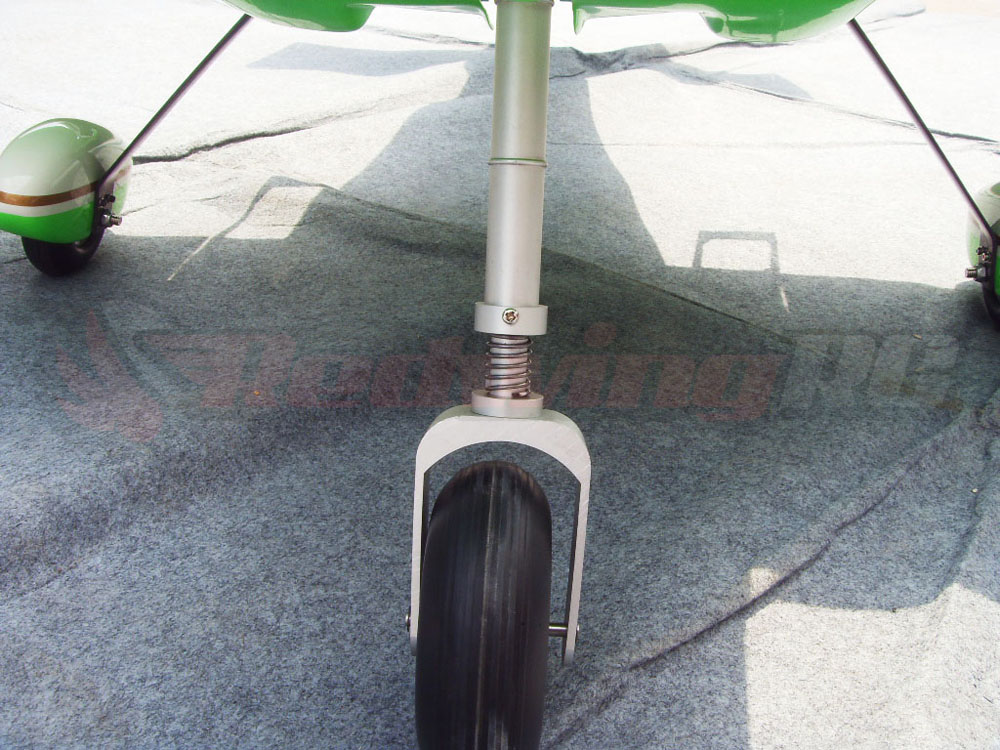

Front suspension with aluminum shock absorbers
Professional, newly developed joint members; GFK control horns and servo arms CFK

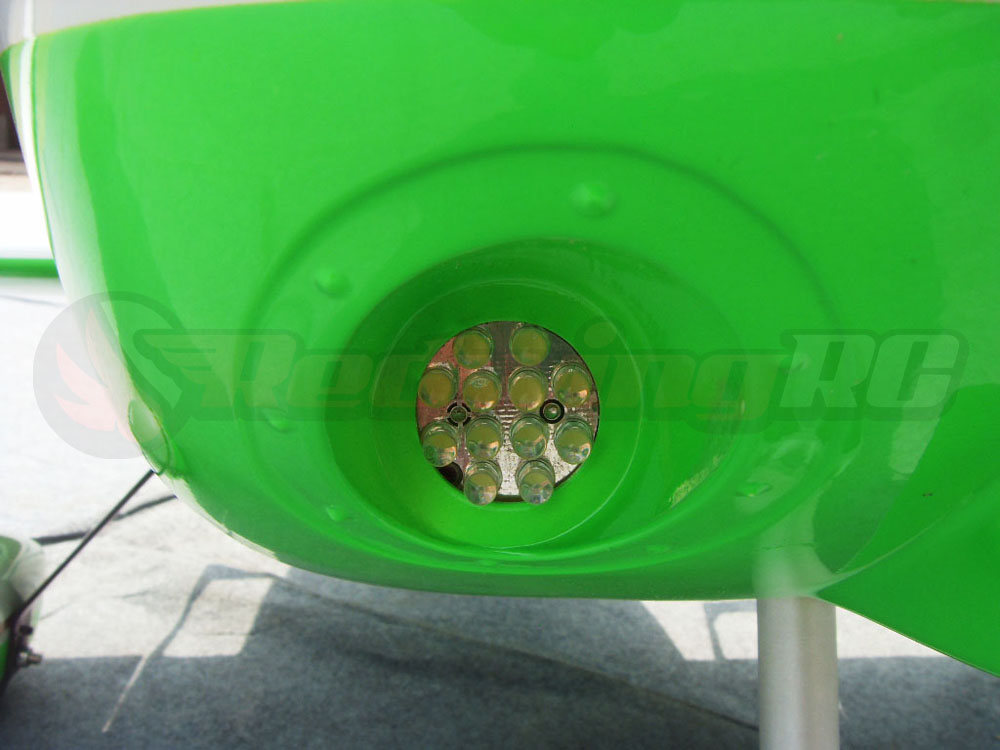

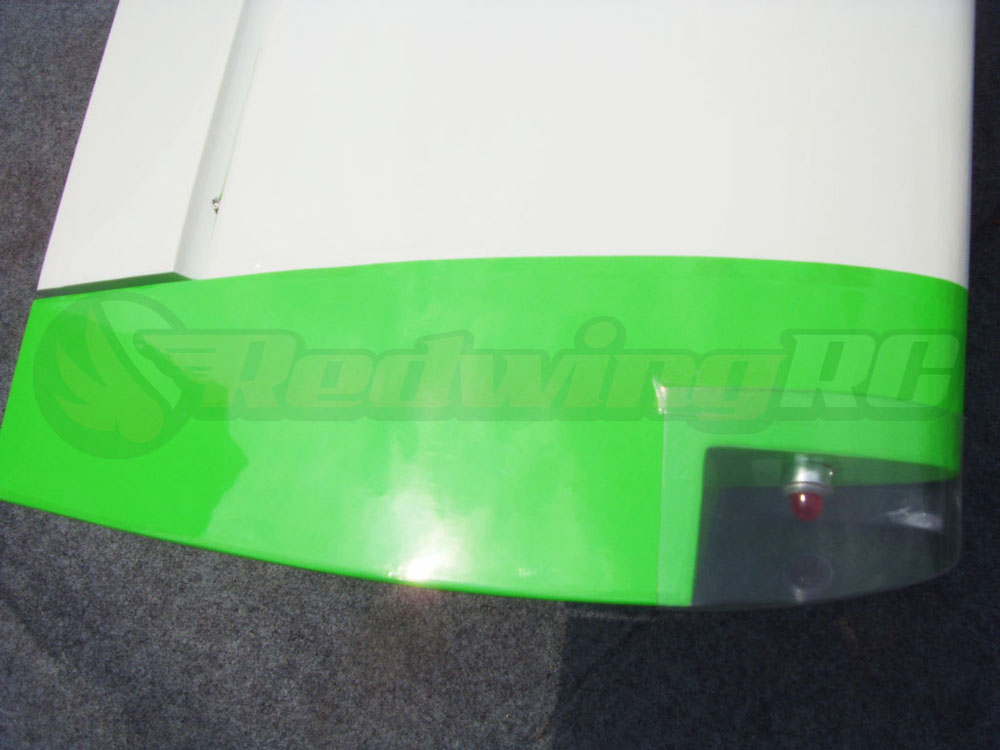

LED position lights

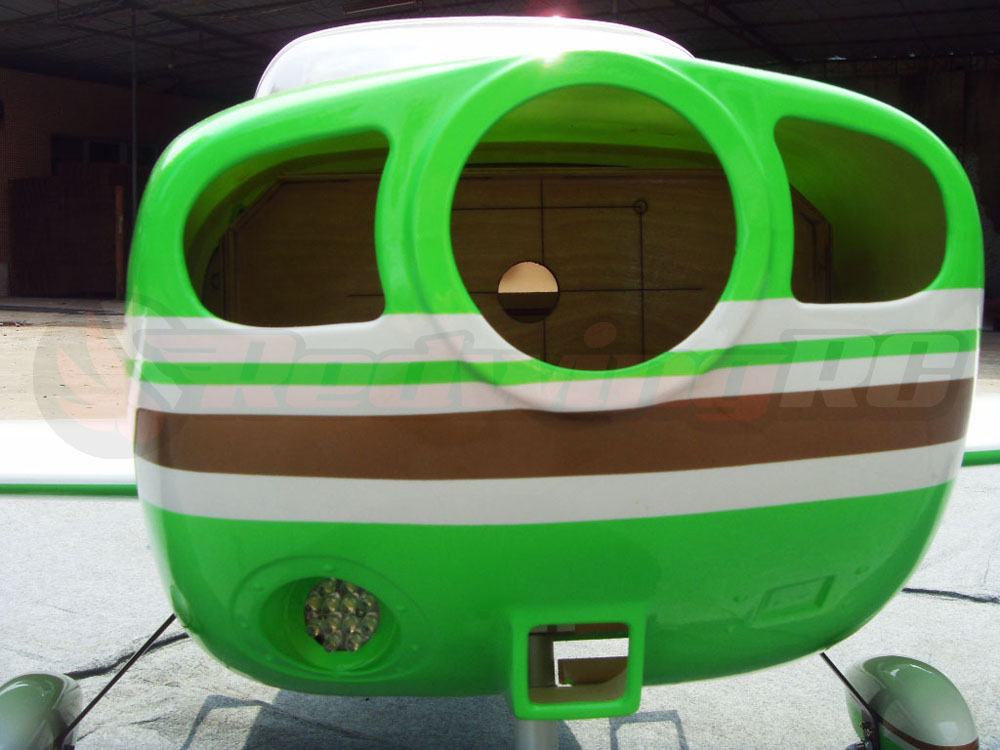

Pre-painted fiberglass cowl
Wheels, linkages, small parts, illustrated instructions
Removable Wings
Ringed Cowl
Adjustable push rods

Note: Weight listed as 250.00lbs and is the dimensional shipping weight because it is 3 large boxes:

fuselage: 223x48.5x57cm GW: 13.6KG
cowl: 46X38X39cm GW: 2KG
Wing: 164x60x14cm GW: 8KG

Monsun Green

50cc Monsun Green

Monsun Green

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00 399.00

Redwing RC Aluminum Servo Circle Arms

Description: DID YOU GET COOL ALUMINUM OR CARBON FIBER ARMS WITH YOUR KIT, BUT DON'T WANT TO USE THE PLASTIC CIRCLE ARMS THAT COME WITH YOUR SERVOS? FINALLY! THE SOLUTION IS HERE!!

Now made to fit Hitec, OR XQpower/Futaba/PowerHD

Made to line up with Redwing, Goldwing, and MOST other ARFS that include servo arms. The holes pre drilled are threaded for a 2mm bolt, so that you do NOT have to use a nut on the bottom. Just a little loc tite on the servo arm threads, and tighten. YOUR DONE!

Not sure if it's the best thing since sliced bread, but it's close!

1 circle $4.99
5 = $19.95
10= $38.90

RW-Circle-Arm

$4.99 4.99

MPI Aluminum Servo Arms

Description:

MPI servo arms are made with heavy duty anodized aluminum offset servo arms designed for Hitec, Futaba, XQ Power, Power HD Servos. These MPI servo arms are drilled and tapped for 4-40 with a starter hole for another hole closer in if necessary. The clamping arm on these MPI arms ensures a safe and secure installation, minimizing any risk of slop or the arms coming loose.

We recommend the following sizes of MPI arms for the planes below:

30cc planes typically use 1.25" for ailerons and elevators, and 3" for rudder.

50cc planes typically use 1.25-1.5" for ailerons and elevators, and 3.5" - 4" for rudder.

100cc planes typically use 1.5" for ailerons and elevators, and 4" for rudder.

1.25", 1.5", 3", 4" Sizes
Available for HiTEC, XQ Power, PowerHD, Futaba Servos

MPI Arms feature:
Bracing for Extra Strength
Lightweight and Strong
Extra Security Screw to Keep Arms on
Pre Dented to Allow for Optional Holes

Futuba style arms fit: Power HD, XQ-Power, and Futaba
Hitec fit: Hitec

**Now introducing new size! 2-inch lengths for HiTec and Futaba!

MPI Servo Arm Pricing:
