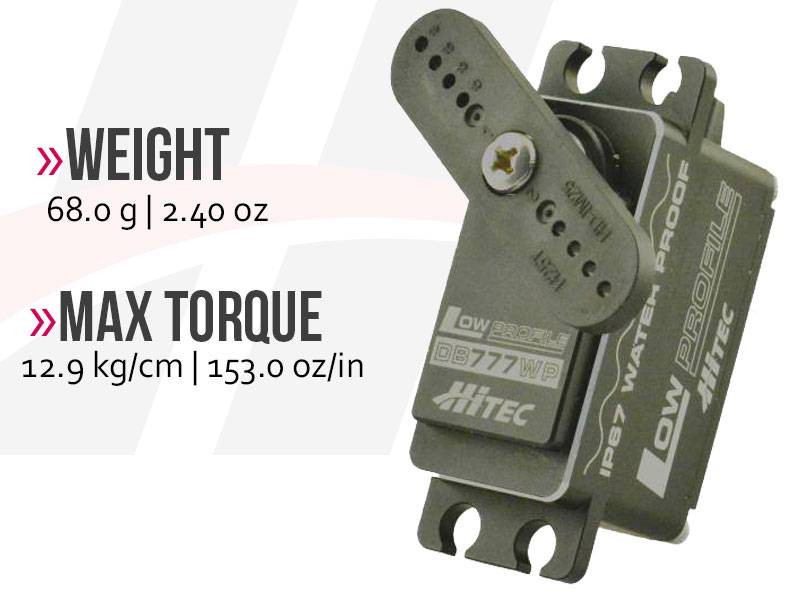

HiTec DB777WP 32bit Brushless Low Profile Waterproof Full Metal Case (IP-67 Rated) 11kg/153oz [email protected]

Contact UsCustomer Reviews

HiTec DB777WP 32bit Brushless Low Profile Waterproof Full Metal Case (IP-67 Rated) 11kg/153oz [email protected]

Market Price: $199.99
Our Price:

$134.99


You Save

33%

Quantity (15)

Availability 15 in stock
Weight 0.38 lbs
SKU HRC36778S
Manufacturer Hitec

RWRC is excited to introduce the new addition to the Hitec D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers. The DB777WP is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear! Look to us when you need unprecedented engineering, and the ultimate reliability!

FEATURES

  • Voltage Range is 4.8V - 8.4V
  • Full Programmability
  • IP-67 Waterproof Rated
  • Ultra Efficient Brushless Motor
  • 32-Bit MCU Technology / 4096 Resolution
  • Smart Sense Technology for Servo Analytics
  • High Response, High Resolution Circuitry
  • Full Metal Case
  • 1M Cycle, Long-Life Potentionmeter
  •  H25T -Industry Standard Output Spline
  • Compatible with Fully Charged 2S LiPo Batteries

D777WP SERVO SPECIFICATIONS

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°)  0.08 ~ 0.06
Maximum Torque Range oz. / in. 111 ~ 153
Maximum Torque Range kg. / cm.   8.0 ~ 11.0
Current Draw at Idle 35mA / 40mA
No Load Operating Current Draw 250mA / 350mA
Stall Current Draw 3500mA / 4500mA
Dead Band Width 1usec

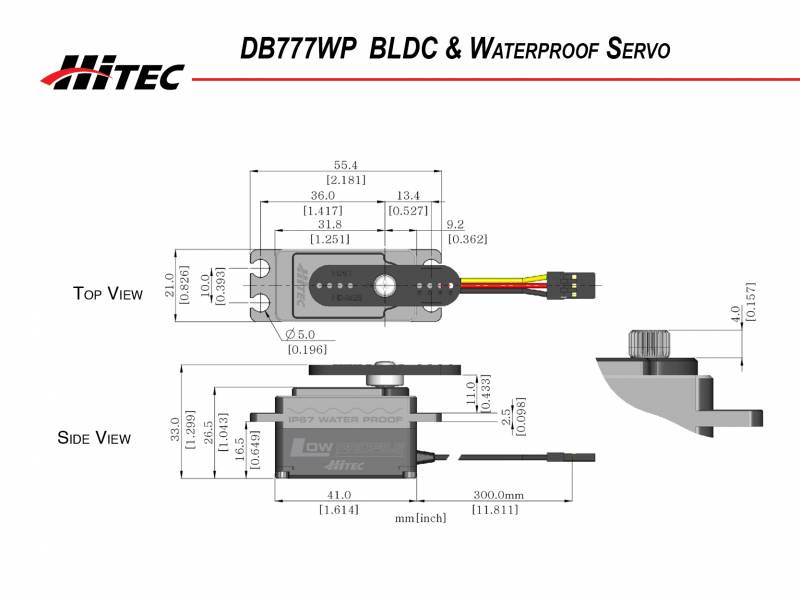

Physical Specifications
Dimensions (Inches)  1.61 x 0.83 x 1.04 in.
Dimensions (Metric) 41.0 x 21.0 x 26.5
Weight (Ounces) 2.40
Weight (Gram) 68.0
Circuit Type 32bit Programable Digital
Motor Type Brushless
Gear Material Metal
Bearing Type Brushless
Output Shaft (type / Ømm) H25T
Case Material  Aluminum
Dust / Water Resistance IP-67 Rated
Connector Gauge (AWG) / Strand Count 20AWG / 80
Radio Control Applications
Parkflyer N / A
Sport Plane N / A
Sailplane N / A
3D Performance N / A
Scale N / A
Electric Helicopter N/A
Gas Helicopter N/A
On Road 1/8th
Monster Truck N/A
Buggies 1/8th
Truggies N/A
Short Course / Truck N/A
Crawlers N / A
Sail Boat N / A
Power Boat N / A



: *
: *
: *
