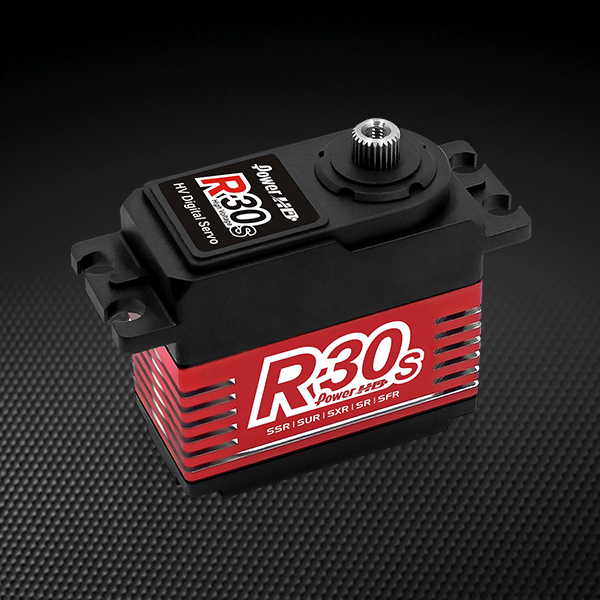

Power HD R30S HV Servo - 35Kg/cm (486.1 oz/in), 0.13sec (Upgraded SR/SXR/SSR/SUR/SFR Compatible)

Contact UsCustomer Reviews

Power HD R30S HV Servo - 35Kg/cm (486.1 oz/in), 0.13sec (Upgraded SR/SXR/SSR/SUR/SFR Compatible)

Our Price:

$59.99


Quantity (5)

Availability 5 in stock
Weight 0.35 lbs
SKU HD-R30S
Manufacturer Power HD

Power HD R30S HV Servo - 35Kg/cm (486.1 oz/in), 0.13sec (Upgraded SR/SXR/SSR/SUR/SFR Compatible)

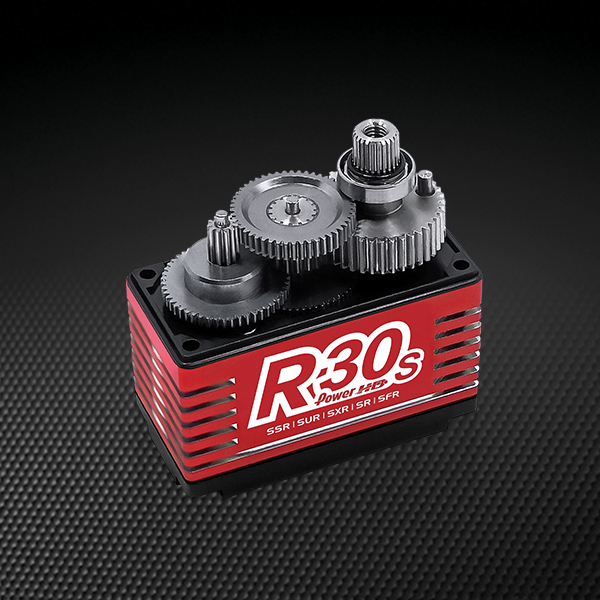

The R30S is the upgrade to proven R30 with more Torque and faster Speed! One of the advantages of coreless motors is their ability to change direction very quickly, due to the low rotational mass of their armatures. The motor spins titanium and aluminum gears that are supported by bronze bushings and dual ball bearings on the output. The main body of the servo is machined from aluminum and houses the motor, potentiometer and digital decoder / ESC board.

The SR/SXR/SSR/SUR/SFR multi-mode competition-level servo, overcomes the issues of incompatibility between the multi-branded models. Designed with the convenience of "Automatic Matching" that allows you to plug and use immediately without the need to be tied to the same brand.

Specifications:

  • Modulation: Digital
  • Gear Type: Titanium and Steel
  • Torque: 8.4v- 486.1 oz-in (35 kc-cm), 7.4v - 416.62 oz-in (30 kg-cm), 6.0v - 333.3 oz-in (24 kg-cm)
  • Speed: 8.4v- 0.13 sec, 7.4v - 0.15 sec, 6.0v - 0.17 sec
  • Operating Voltage: 6.0-8.4 V
  • Weight: 67.0 g (2.36 oz)
  • Bearing Type: Ball Beating x2
  • Motor Type: Coreless Motor
  • Operating Temperature: -20C-60C
  • Working Frequency: 1520µs / 333hz
  • Size: 41.0 x 20.5 x 38.3 mm (1.61 x 0.81 x 1.51 in)
: *
: *
: *


RedwingRC Hooded Sweatshirt

The New RedwingRC Hooded Sweatshirt!

Show your Redwing spirit at the field and wherever you go with the RedwingRC hooded sweatshirt. Stay warm and look cool!

The "Built Light Built Right" words are now on the front like the T-Shirts.



50% cotton, 50% polyester; made with up to 5% polyester from recycled plastic.

Available in S, M, L, XL, 2XL, and 3XL

T-Hoodie-

$25.00

Savox SB2292SG - Monster Performance Brushless Servo, Black Edition

Savox SB2292SG, Monster Performance, Brushless Servo Black Edition 0.055sec / 624.9oz @ 8.4v



























































Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230.

The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 416.6 oz/in at 4.8V
    • 500 oz/in at 6V

  • Speed:
    • .20 sec at 4.8V
    • .16 sec at 6V

  • Voltage: 4.8V to6V
  • Weight: 2.78 oz (79 g)
  • Size: 1.6 x .79 x 1.77 in (40.3 x 20.2 x 45.0 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAVSB2292SG

$145.99

Hitec HS-65MG

Hitec HS-65MG

The HS-65 HB+ is a great choice because it is one of Hi-Tec's strongest micro servo and it has a very long life due to the durable Karbonite gears. The HS-65 HB+ can provide over 30 oz/in of power at 6 volts. Created for higher performance micro helicopters, electric park flyers, & 1/18 scale cars. This servo features a top ball-bearing for long life and positive centering.

Arms included: Single arm, Double arm, Quad arm

Features

  • High Efficiency Neodymium Magnet Motor
  • Ball Bearings
  • Karbonite Gears



Specifications

  • Torque:
    • 24.99 oz/in at 4.8V (1.8 kg/cm)
    • 30.55 oz/in at 6V (2.2 kg/cm)

  • Speed:
    • .14 sec at 4.8V
    • .11 sec at 6V

  • Voltage:
  • Weight: 0.39 oz (11.2 g)
  • Size: 23.6 x 11.6 x 24 mm (0.92 x 0.42 x 0.94 in)

  • Motor Type: Neodymium Magnet
  • Bearing Type: Yes


HRC32065S

$32.99
