Power HD R20S HV Servo - 25 Kg/cm (347.2 oz/in), 0.08 sec (Upgraded SR/SXR/SSR/SUR/SFR Compatible)

Contact UsCustomer Reviews

Power HD R20S HV Servo - 25 Kg/cm (347.2 oz/in), 0.08 sec (Upgraded SR/SXR/SSR/SUR/SFR Compatible)

Our Price:

$57.99


Quantity (40)

Availability 40 in stock
Weight 0.35 lbs
SKU HD-R20S

Power HD R20S HV Servo - 25 Kg/cm (347.2 oz/in), 0.08 sec (Upgraded SR/SXR/SSR/SUR/SFR Compatible)

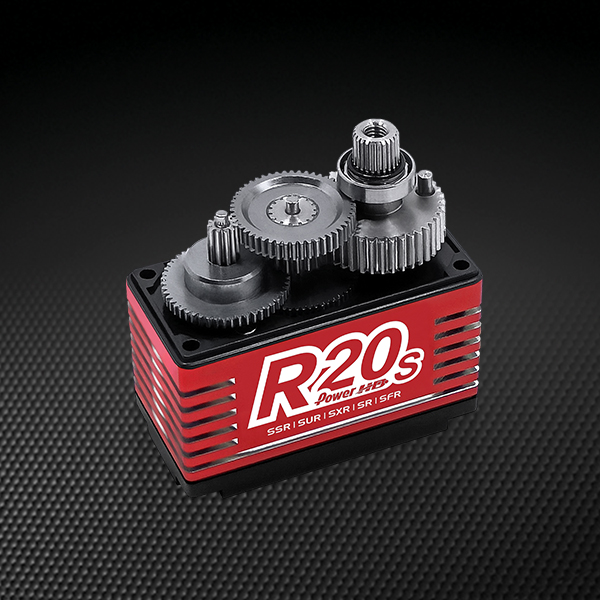

The R20S is the upgrade to proven R20 with more Torque and faster Speed! One of the advantages of coreless motors is their ability to change direction very quickly, due to the low rotational mass of their armatures. The motor spins titanium and aluminum gears that are supported by bronze bushings and dual ball bearings on the output. The main body of the servo is machined from aluminum and houses the motor, potentiometer and digital decoder / ESC board.

The SR/SXR/SSR/SUR/SFR multi-mode competition-level servo, overcomes the issues of incompatibility between the multi-branded models. Designed with the convenience of "Automatic Matching" that allows you to plug and use immediately without the need to be tied to the same brand.


Specifications:


  • Modulation: Digital
  • Gear Type: Titanium and Aluminum Geared
  • Torque: 8.4v- 347.2 oz-in (25 kg-cm), 7.4v - 277.7 oz-in (20 kg-cm), 6.0v - 236.1 oz-in (17 kg-cm)
  • Speed: 8.4v- 0.08 sec, 7.4v - 0.09 sec, 6.0v - 0.11 sec
  • Operating Voltage: 6.0-8.4 V
  • Weight: 67.0 g (2.36 oz)
  • Bearing Type: Ball Beating x2
  • Motor Type: Coreless Motor
  • Operating Temperature: -20C-60C
  • Working Frequency: 1520µs / 333hz
  • Size: 41.0 x 20.5 x 38.3 mm (1.61 x 0.81 x 1.51 in)
: *
: *
: *


Bob Smith Industries Mid-Cure Epoxy (15 min)

Untitled Document

Description:

Bob Smith Industries CA Glue

Super-Gold+™ Odorless, CA

SUPER-GOLD™ and SUPER-GOLD+™ are our odorless INSTA-CURE CAs They are non-frosting and take only 2 or 3 seconds longer to bond. There are no fumes that irritate the nose and eyes. The SUPER-GOLD™’s do not attack white foam; therefore, they can be used in the building of foam core wings and the assembly and repair of plastic and foam ARF’s. They will not fog clear plastic. SUPER-GOLD+™ is ideal for attaching clear canopies in plastic model kits; however, MAXI-CURE™ is still recommended for assembling the rest of plastic kits. Wood can be bonded to white foam with SUPER-GOLD +™ in less than fifteen seconds. For bonding foam to foam, spray a very light fog of INSTA-SET™ to one piece and apply SUPER-GOLD+™ to the other before joining. Excess INSTA-SET™ may create too much heat, which can melt the foam. Both SUPER-GOLD™’s cure to a more flexible consistency for better shock absorbtion. Whenever a large amount of CA is to be used in such applications as saturating fiberglass or Kevlar, SUPER-GOLD™ eliminates the irritating fumes from the evaporating monomer that make repeated use of CA unpleasant at times.



Works Best On:

  • Rubber
  • White Foam

Works Good On:

  • Balsa Wood
  • Soft Wood
  • Hard Wood
  • Glass & Metal
  • Fiberglass
  • Ceramics
  • Hard Plastics
  • Laminating
  • Water-Resistant
  • Reinforcing
  • CA Hinges



Avaliable in 2oz and 3/4 Pocket Size.

Pocket CAs feature a new top that has a pin built into the cap that covers the nozzle. This pin seals the bottle so that if it is tipped over, the bottle will not leak. This makes the Pocket CAs ideal for keeping in your tool or field box, just like our IC-Gel. One disadvantage that the new Pocket CA top has is the bluntness of the nozzle. This makes it more difficult to apply small amounts of the CA, especially in tight places. From the feedback we have received, it appears about 25-30% of users prefer the new Pocket CA top, which means that over 70% prefer our standard top for general bonding purposes. Most users are buying both types. Our original top for the workshop, and the Pocket CA for use out in the field. The 3/4 oz. Pocket CAs are available in BSI's Insta-Cure, Insta-Cure+, Maxi-Cure and Super-Gold+. BSI's new extender tip #304 works on the Pocket CA.



Click to Download Safety Data Sheet

BSI-PX-203

$11.99

Metal Folding Propeller with CNC Aluminum Alloy Spinner

Metal Folding Propeller with CNC Aluminum Alloy Spinner

Features

Going from a gas engine plane to all electric and need a durable, quality prop to make the switch? This new prop is a thin, lightweight 20 x 11composite APC prop for electric engines. The locating ring combines with the hub to create a precision fit - making this a great and easy-to-use prop when going electric with your plane!

Specifications

  • Center hole diameter: 1/4"
  • Propeller diameter: 20"
  • Propeller pitch: 11

DW-Folding-Prop

$19.99

Viton Tubing Fuel Tube 1 Meter 1/8" ID x 1/4" OD x 1/16" Wall For Gas Engine

Viton Fuel Tube/Tubing 1 Meter 1/8" ID x 1/4" OD x 1/16" Wall For Gas Engine
Safe for Gasoline - sized for DLE engines and many others
3mm i.d. - 6mm o.d.
(also known as medium size - fits the DLE 20/30/55/111 and many other)

Sold in 1 meter (3ft) Sections. Please select how many Meters you want

Viton-Fuel Tube

$19.99
