Power HD S25 Storm Brushless HV High Torque, Ultra Speed 30.0 kg/ 416.6 oz 0.055 sec 8.4V

Contact UsCustomer Reviews

Power HD S25 Storm Brushless HV High Torque, Ultra Speed 30.0 kg/ 416.6 oz 0.055 sec 8.4V

Market Price: $134.99
Our Price:

$119.99


You Save

11%

Program Box
Quantity (10)

Availability 10 in stock
Weight 0.35 lbs
SKU HD-S25
Manufacturer Power HD

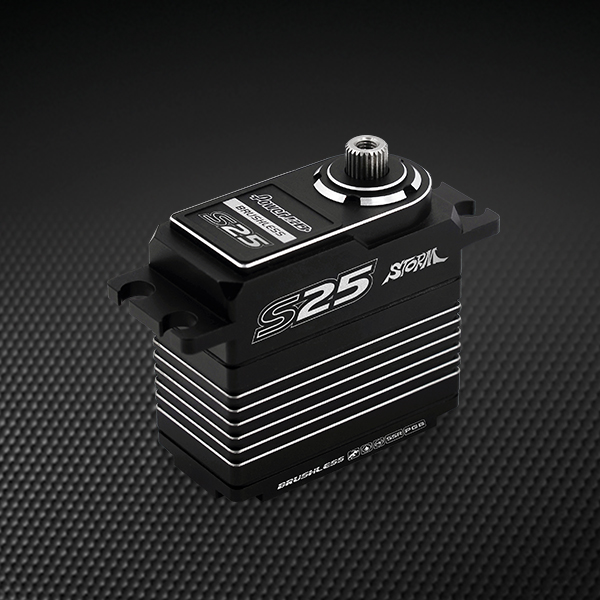

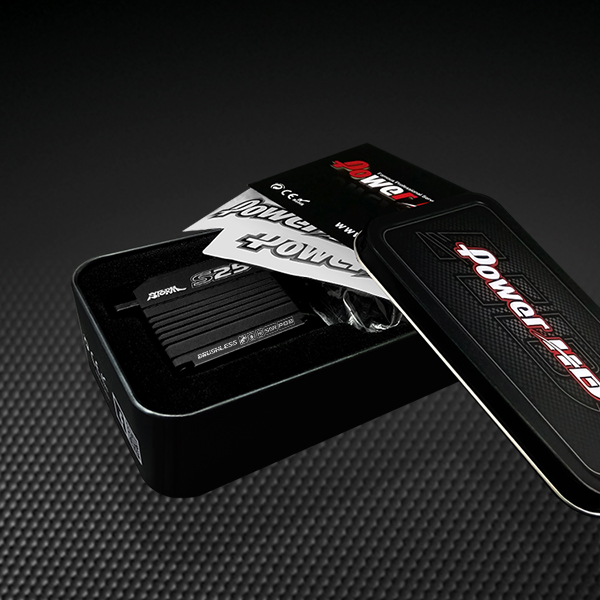

Power HD S25 Storm Brushless HV High Torque, Ultra Speed 30.0 kg/ 416.6 oz 0.055 sec 8.4V

Thought our other servos were great? Well of course they are! But wait until you check out these new Power HD servos - they will rock your wheel pants off* (no wheel pants will be harmed by using this product - but you get the idea).

The S25 replaces the HD Storm 4s and are lighter, much more efficient and perform far superior. They are faster and stronger plus run cooler and quieter with less vibration due to no brush arcings with significantly reduced electronic noise and radio frequency interference.

All aluminum housing, high voltage and the new brushless technology gives you the best strength and speed while being incredibly efficient and long lasting.

New and Improved Technology!

The Power HD S25 HV servos are made with brushless technology. Now - we've heard about this "brushless" stuff before but it is time to ask the question on all of our minds - why is that so great? Take a brushless motor for example - no brushes in a brushless motor (no kidding...) nor does it have the communicator - instead a small circuit board coordinates the energy delivery to the windings. Think about this technology being used in a power tool - since the electronics communicate directly with the stationary windings the tool can adapt to its surroundings - only using enough juice necessary to accomplish the job. So if you are using a brushless drill to drive a screw into Styrofoam - it will sense the lack of resistance from the foam and pulls only enough charge from the battery that it needs. Whereas a brushed drill will run as fast and hard as it can no matter the job simultaneously wasting your battery life.

"What the heck does that have to do with my servo?" Well now they are incorporating that smart technology into these S25 HV servos - so they are not going to be sucking the life out of your Redwing LiFe battery when it doesn't have to - which means not only will you be getting a great and powerful servo - but it's smart! Your "LiFe" will thank you.

This SSR/PGB dual-mode competition-level servo, overcomes the issues of incompatibility between the two branded models. Designed with the convenience of "Automatic Matching" that allows you to plug and use immediately without the need to be tied to the same brand. Also programmable using the Power HD Multi-Function Program Box with servos with the PGB, PGC tag.

Perfect for Giant Scale/3D planes and 1/5 Buggy/Crawler! So now the only question is - why are you still reading this? Go buy your Power HD S50 servos before they're gone!

Specs:

  • Torque:
    • 21.5 kg-cm (298.6 oz/in) at 6V
    • 25.0 kg-cm (347.2 oz/in) at 7.4V
    • 30.0 kg-cm (416.6 oz/in) at 8.4V
  • Speed:
    • 0.075 sec at 6V
    • 0.060 sec at 7.4V
    • 0.055 sec at 8.4V

  • Voltage: 6.0 ~ 8.4 V
  • Weight: 2.65 oz (75g)
  • Size: 1.60 x 0.81 x 1.52 in (40.7 x 20.5 x 38.6 mm)

  • Operating Temp- -20~60centigrade
  • Working Frequency - 1520μs / 333hz
  • BRUSHLESS Motor
  • Double Ball Bearings
  • Titanium and Steel gears
  • Water resistant O-Rings
: *
: *
: *


XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$249.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
