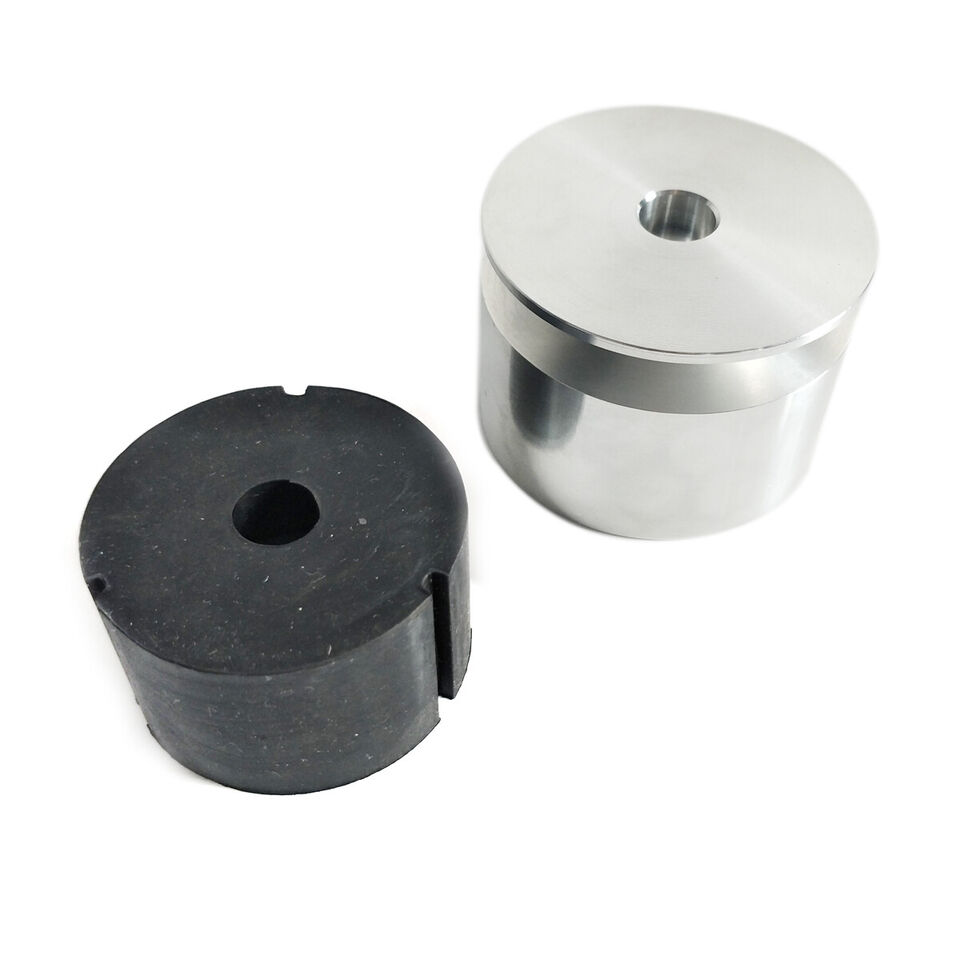

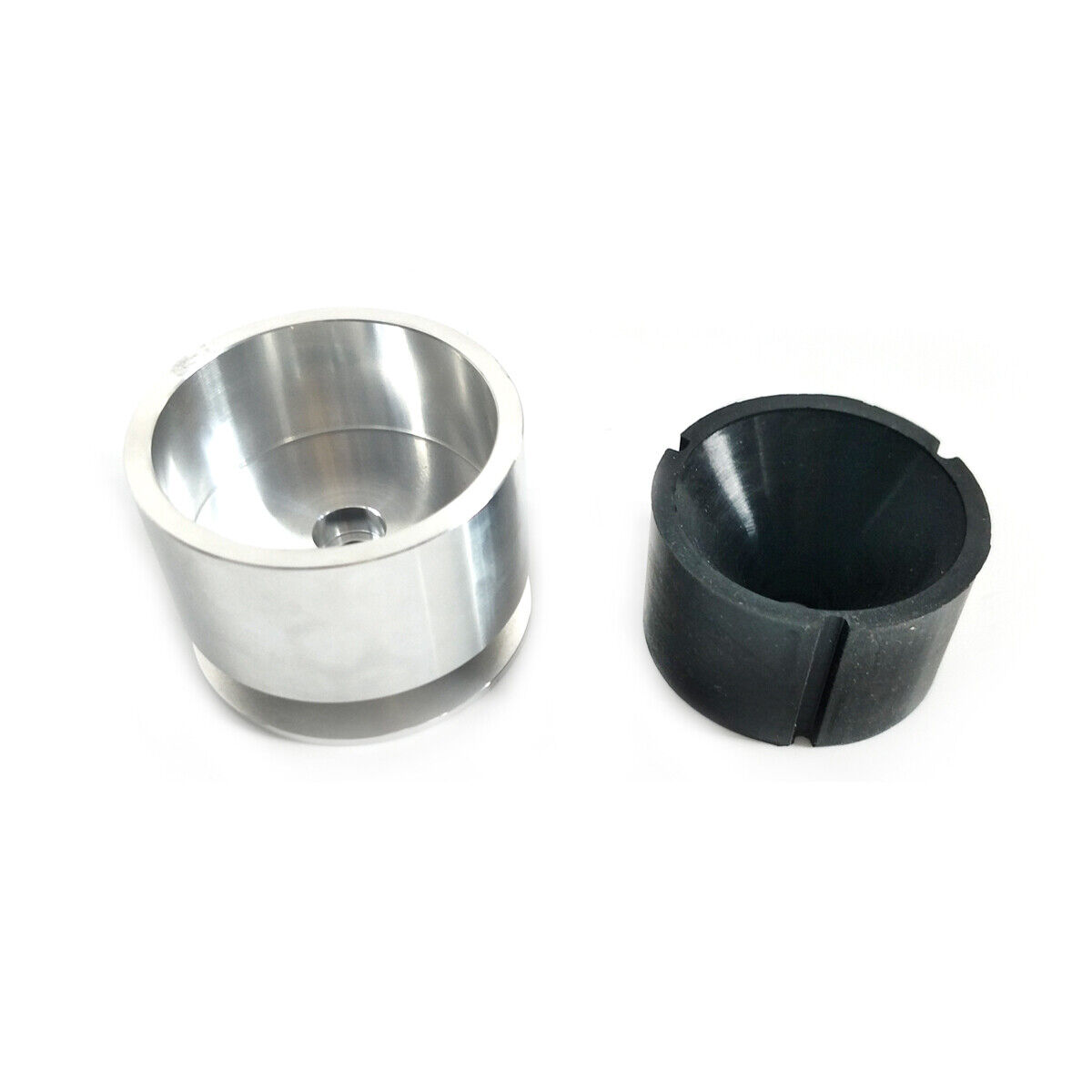

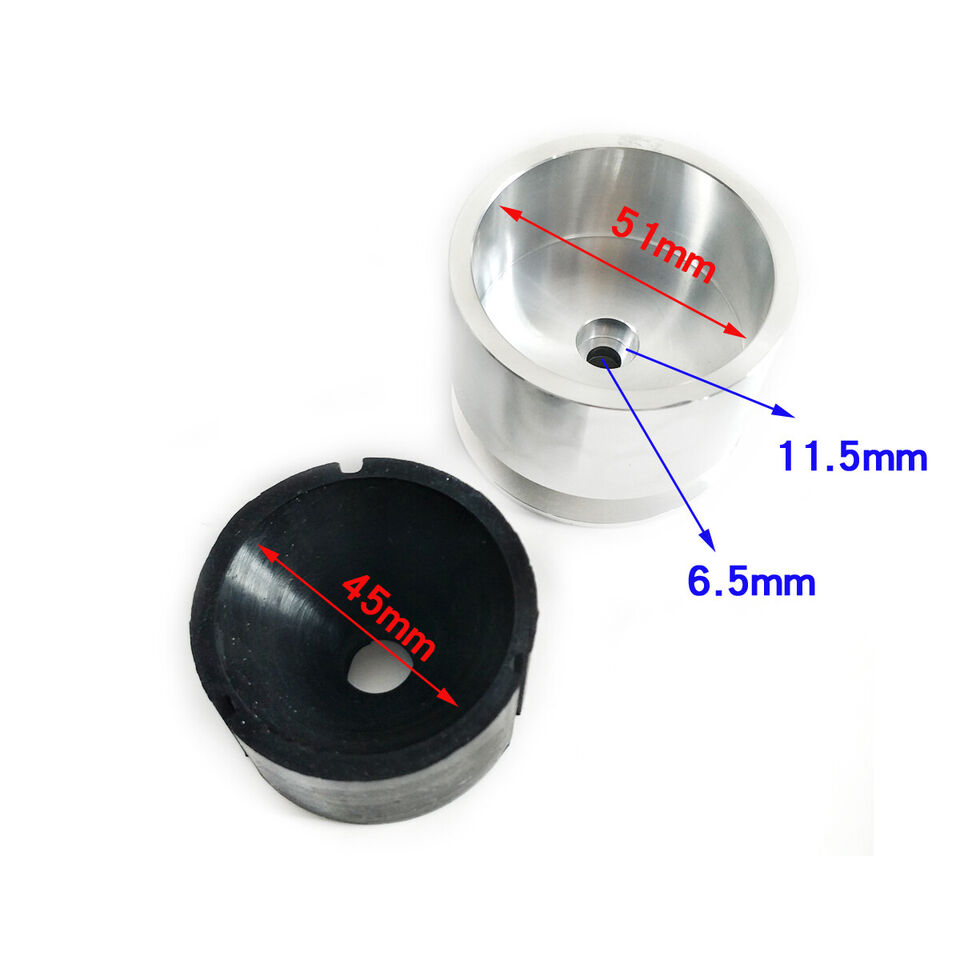

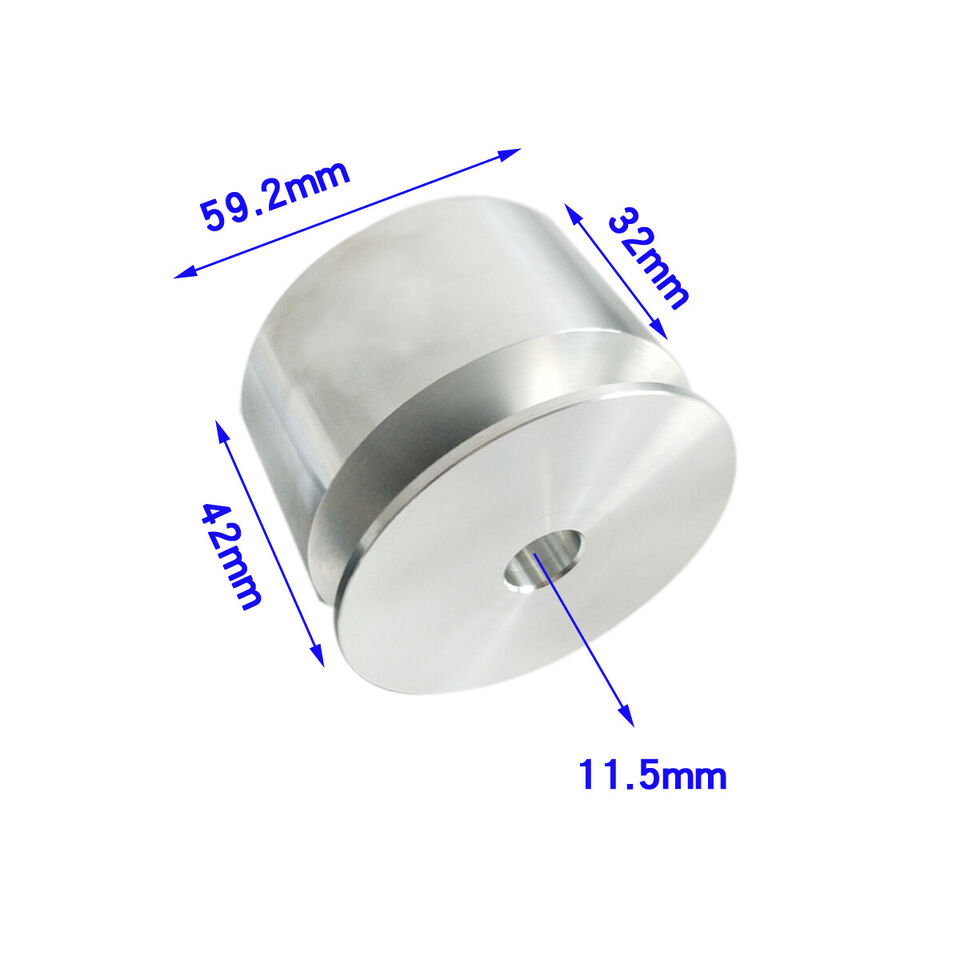

Replacement Rubber Cap and Aluminum Starter Cone for 20-80cc ESTDB Electric Starter

dle35RA

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:

• Extremely Reliable
• Mechanically Efficient Design
• Simple and Solid Construction
• Fewer parts needed for install
• Ball Bearings

Pricing

• 20-40cc: $27.00
• 50-70cc: $34.99
• 85-120cc: $44.99
• 150cc-220cc: $54.00

Weight

• 20-40cc: 1.2 oz
• 50-70cc: 1.6 oz
• 85-120cc: 2.2 oz
• 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

RCGF 15CC RE Stinger Gas Engine

Glow size：economy and powerful

New Series Engines with all new design --  Stinger Engines
More powerful , Stronger material , More precision , More shining

Engine SIZE:

 RCGF 15cc (SE)

1. Parameter
2. Type : 2 cycle piston valve type gasoline engine for airplane
3. Displacement (cc) : 15cc (.91 cu in)
4. Bore x Stroke (mm): 1.3 in (32mm)*0.8 in (19.6mm)
5. Carburetor : Walbro
6. Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
7. Power supply: 6-8.4V
8. Maximum Output : 2.4 hp/1.76KW
9. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
10. speed rang : 1500-15000rpm
11. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1) (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
12. Lubrication Oil : 2 cycle engine oil
13. Propeller : 15*6 9000 rpm; 13*6 11000rpm (Standard Two leafs prop)
14. recommended props :13 x 6, 14 x6,13X8,15X8,15X6
15. recommended Airplane: 60 size plane,50 size plane,40 size plane
16. Cooling System : Air Cooled
17. RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight

1. Engine: 1.31 lb (594 g)
   Muffler: 1.8 oz (51 g)
   Ignition Module: 4.4 oz (125 g)
   Total: Weight: 1.69 lb (770 g)

Technical Data

1. Technical Data:
2. Ignition Battery: 6-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
3. Gasoline/Oil Mix: 30:1
4. Replacement Spark Plug: M8 1/4-32 or equivalent
5. Idle Speed: 1800 rpm/min
6. Static Thrust:
7. 10.2 lb (4.6 kg) @ 328 ft (100 m) altitude
8. 9.1 lb (4.1 kg) @ 5,900 ft (1800 m) altitude
