Ezrun Max4 ESC for 1/4 and 1/5 Vehicles

Ask a question about this product

Printable version

Options

Market Price: $636.00

Our Price:

$449.00

You Save

29%

Quantity (2)

Details


Availability	2 in stock
Weight	1.50 lbs
SKU	HWI30104002

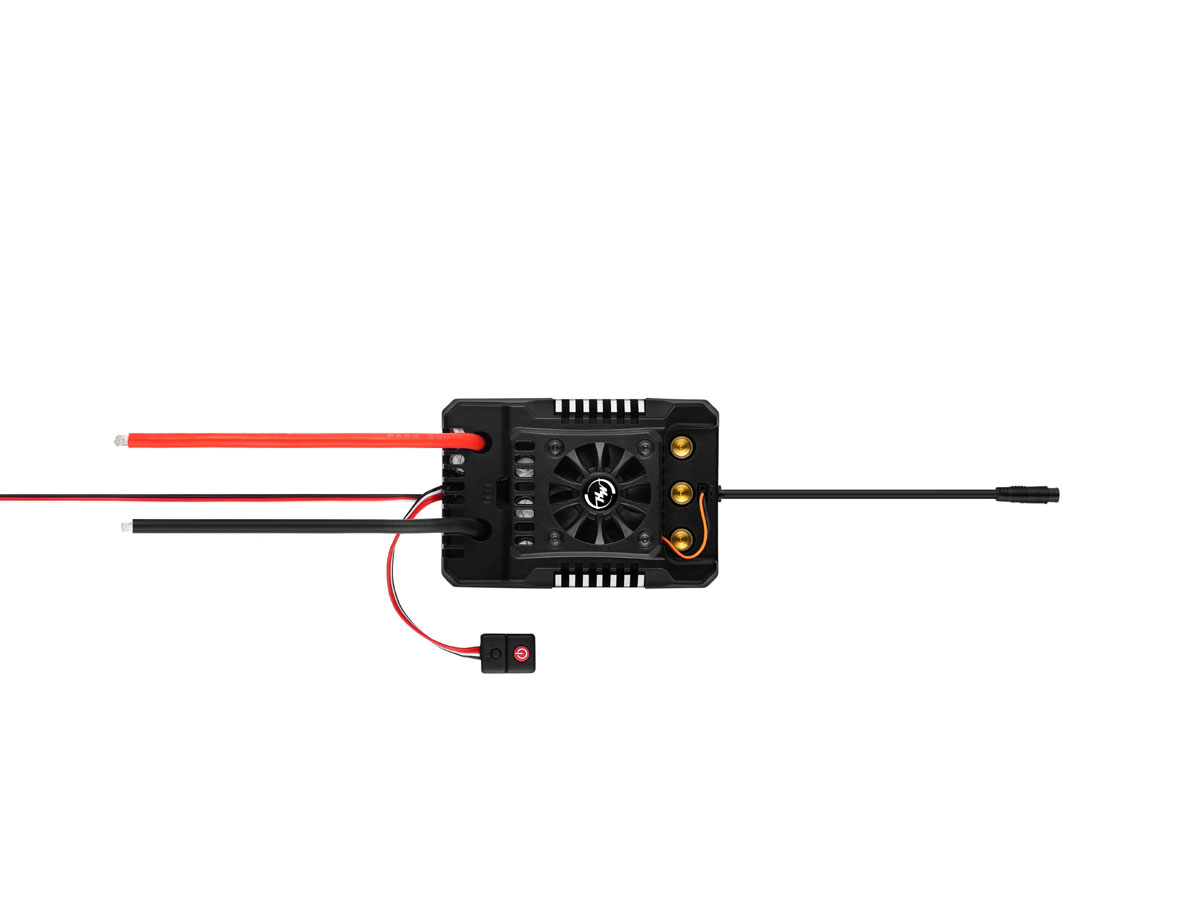

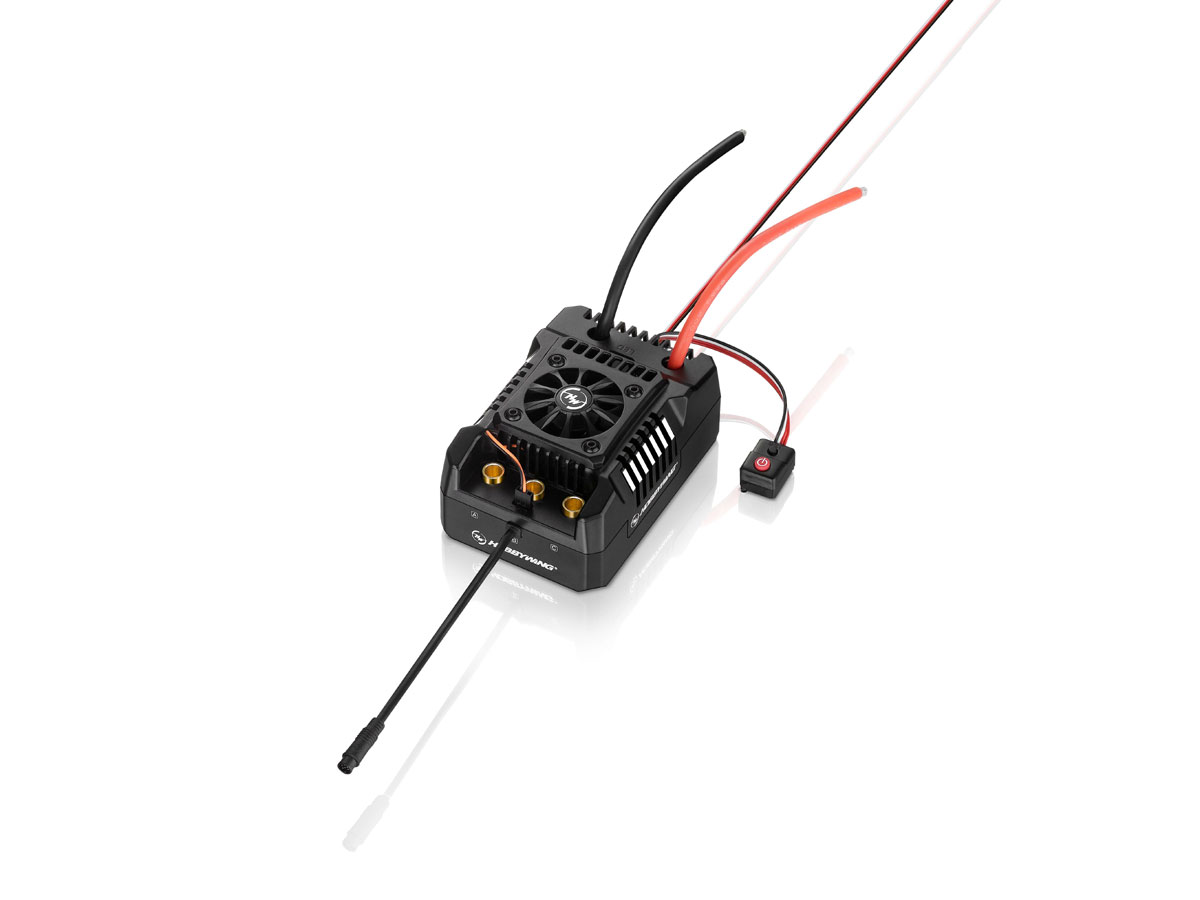

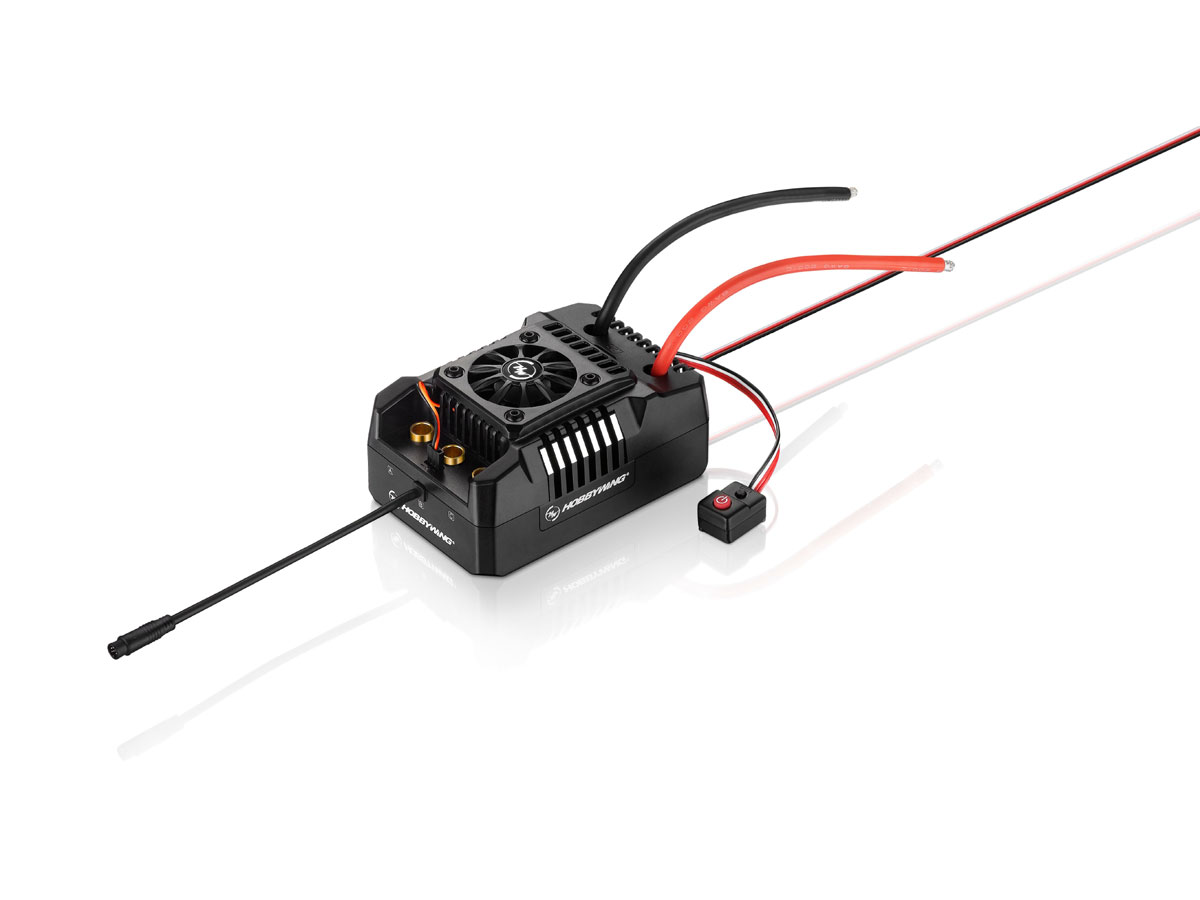

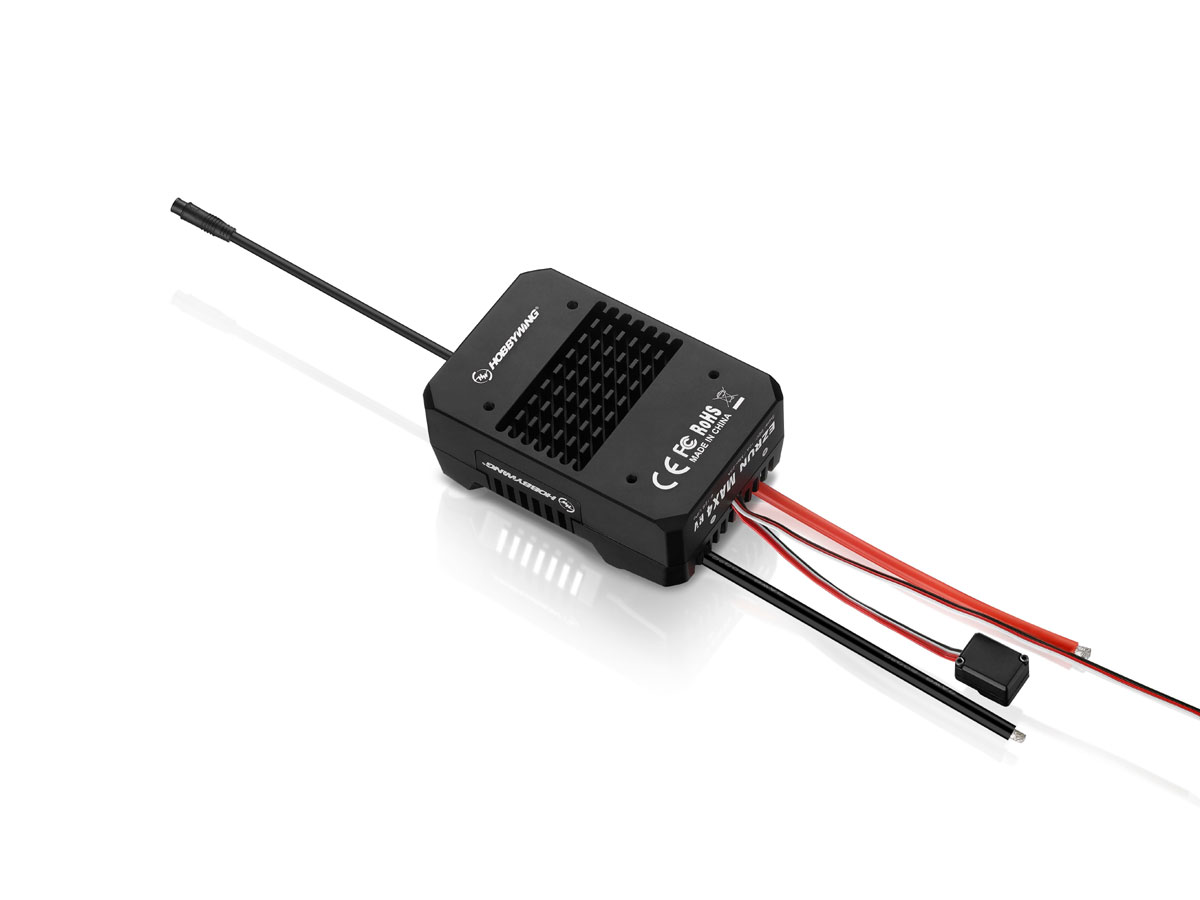

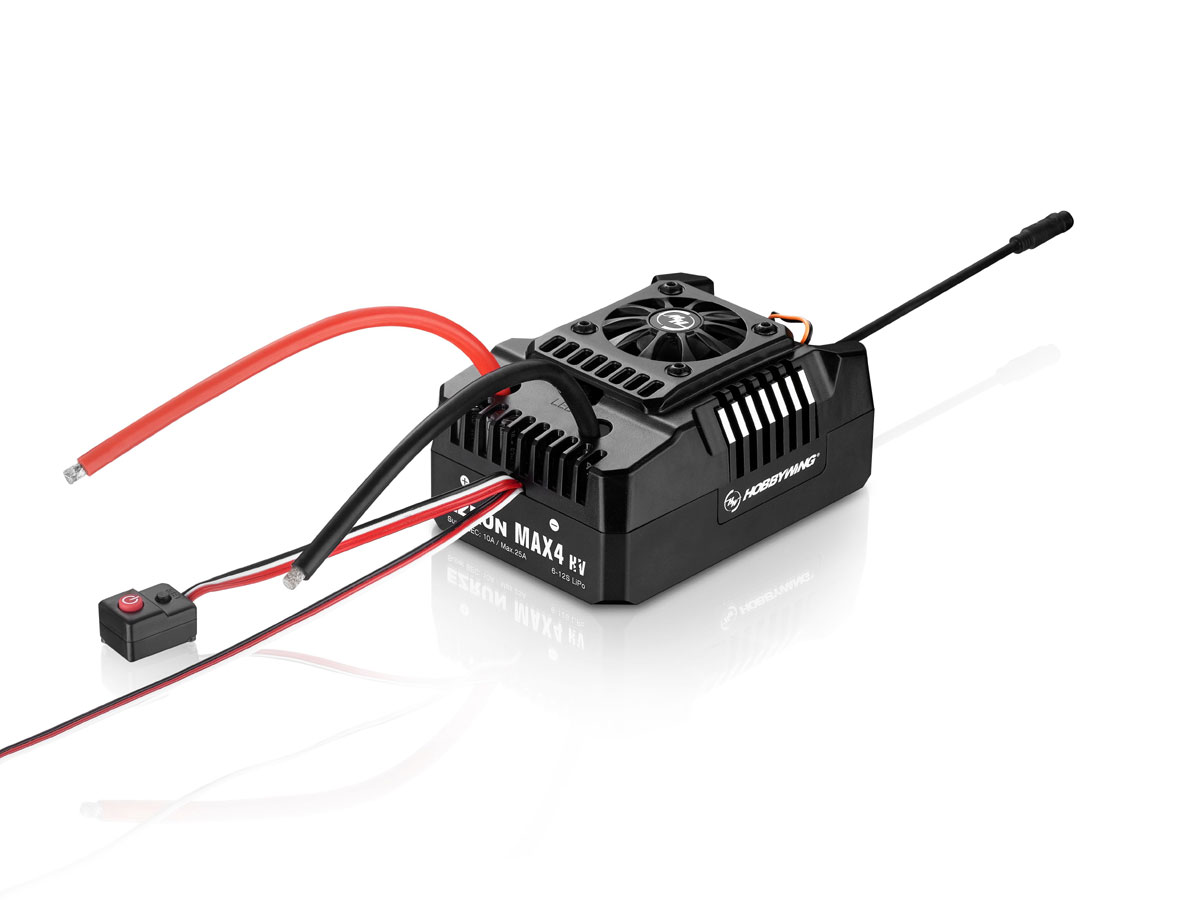

Ezrun Max4 ESC for 1/4 and 1/5 Vehicles

Features:

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.

Specifications:

Scale Vehicles 1/4 - 1/5th
Motor Mode Sensored and sensorless brushless motor
Motor Limit With 12S Lipo: KV=600 70125 size motor
BEC Output 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Size (L.W.H) mm 125 x 85 x 61.7mm
Weight (g) 775.4g

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
Speed:
- .13 sec at 4.8V
- .11 sec at 6V
Voltage: 4.8V - 6V
Weight: 2 oz (59g)
Size: 40x20x39mm
Gear Style: Futaba Arms
Modulation: Coreless Digital
Gear Type: Titanium
Weight: 2oz (59g)
Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

Titanium Gears
Waterproof
Coreless
Digital
High Torque/High Speed
Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

X-4013

$42.50 42.50

DLE 35RA Engine

dle35RA

DLE-35 RA

$399.00 399.00

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
