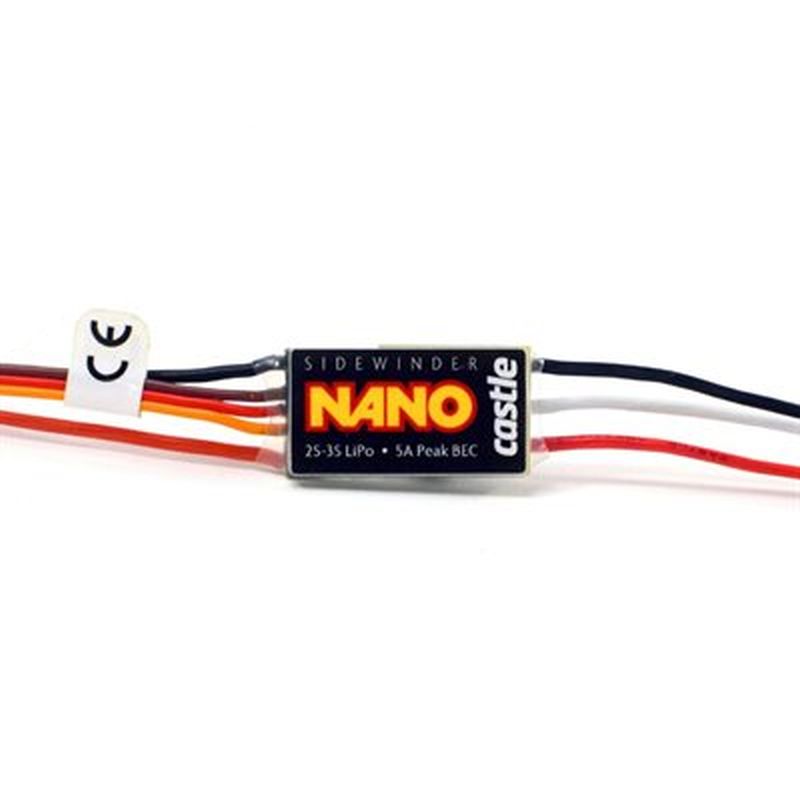

Castle Creations Sidewinder Nano Micro ESC, 12.6V

Sidewinder Nano Micro ESC, 12.6V

Castle Creations is thrilled to add a performance upgrade solution to the ever-growing micro-scale phenomenon in R/C. The SIDEWINDER NANO may be small in stature, but it's colossal in power and includes their proprietary CRYO-DRIVE Technology resulting in improved thermal performance during partial throttle operation where the majority of driving occurs. The Sidewinder Nano is ready-to-run out of the box but can also be "tuned" for the drivers' preferences using a Windows based PC and a Castle Link USB adapter (sold separately), or with a mobile device using Castle B-Link Bluetooth Adapter (sold separately).

PRODUCT APPLICATIONS:
Ideal for 1/24th scale 2WD or 4WD vehicles up to 1lbs
Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24
1/18th crawlers up 2.25lbs (no rock racing/hill climbing)
Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18

Features:

• Input Voltage Range 2s-3s LiPo, 12.6V Max
• Sensorless and Brushed Running Modes
• Internal BEC 5V Fixed, 5A Peak
• CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)
• Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
• Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
• Audible alerts for easy diagnoses of common issues such as low-voltage cutoff
• Proudly designed and supported in Kansas, USA.
• Backed by Castle Creations' 1-YEAR WARRANTY

Specifications:

• Input Voltage Range: MIN: 2s LiPo MAX: 3s LiPo 12.6V
• BEC Specifications: 5V fixed output, 5A Peak
• Operating Environment: Not waterproof, silicone conformal coated for water resistance.
• Size: Length: 1.1" (28mm) Width: .61" (15.5mm) Height: .37" (9.3mm)
• Weight (with no battery connector): 0.35oz. (10 Grams)
• Product Use Statements: Any appropriately sized outrunner can be utilized. A 1806 (stator size) is popular for the 24th scale crawlers, monster trucks, etc. 3000-3500ish KV for 2S, 2000-2500kv for 3S. (motor outside dimensions are ~16mm diameter, ~20mm length). A 2204 to 2208 (stator size) is a good choice for 1/18th scale crawlers (IE Axial UTB18, Traxxas TRX4m). Same KVs as before. (motor outside dimensions ~28mm diameter, ~26mm length)
• Applications Guidelines: For 1/24th scale 2WD or 4WD (Axial SCX24, Axial AX24, Element Eduro24, FMS FCX24) vehicles up to 1lbs. 1/18th crawlers up to 2.25lbs (Axial UTB18, Traxxas TRX4m, FMS FCX18) (No rock racing/hill climbing)

Includes:

• Sidewinder Nano ESC
• ESC Quick Start Guide

Required to Complete:

• Battery and Motor Connectors sold seperately
