SCORPION TRIBUNUS III 08-160A ESC SBEC

Our Price:

$339.99

Quantity (3)

Availability 3 in stock
Weight 1.50 lbs
SKU ESC-III_08_160
Manufacturer Scorpion

Now capable for 8s Lipo Operation!

The Tribunus III 08-160A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC features

Scorpion Tribunus III 06-160A ESC SBEC Full Dimension



Specifications

Max Continuous Current 160 Amps
Peak Current 200 Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.37mOhms * 2
ESC Body Size 36.5 x 75.0 x 27.0 mm (1.44 x 2.95 x 1.06 in)
Mounting Tab Dimensions 24.0 x 84.0mm ( 0.944 x 3.30 in) / M3 Bolt
Weight (Without Connectors) 155g ( 5.47oz)
Drive frequency 8kHz - 32kHz

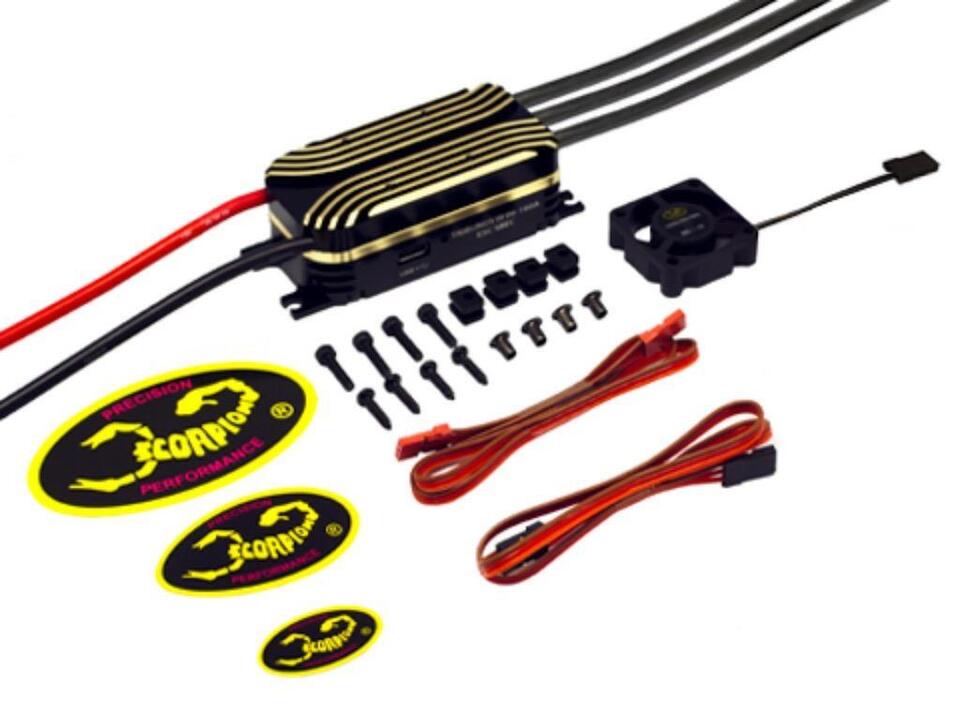

Included in the Box

1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
1 x Mounting Hardware Pack

: *
: *
: *
