MKS HV1250 (0.054 sec/60° - 11.0 kg-cm (152.76 oz/in) @8.2V)

Contact UsCustomer Reviews

MKS HV1250 (0.054 sec/60° - 11.0 kg-cm (152.76 oz/in) @8.2V)

Our Price:

$101.25


Quantity (3)

Availability 3 in stock
Weight 0.35 lbs
SKU MKS-HV-1250

HV1250

Description:

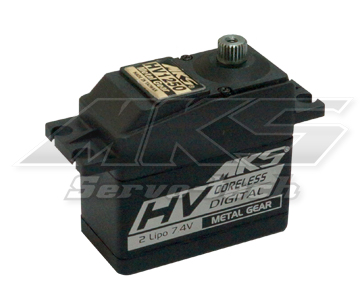

The MKS HV1250 is a high quality "Coreless" Servo.

The nice thing about coreless servos is that a light weight wire mesh replaces the heavy steel core. By swapping the metal core for something lighter, this servo is able to produce quick acceleration and deceleration, smooth operation, excellent torque, fast response times, and a guarantied quality performance because it operates at low temperatures.

Specs:

  • Torque:
    • 183 oz/in at 7.4V (10.4 kg/cm)
    • 144.43 oz/in at 8.4V (11.0 kg/cm)

  • Speed:
    • .0.061 sec at 7.4V
    • .0.054 sec at 8.4V

  • Voltage: 4.8 to 8.4
  • Weight: 2.03oz (57.70 g)

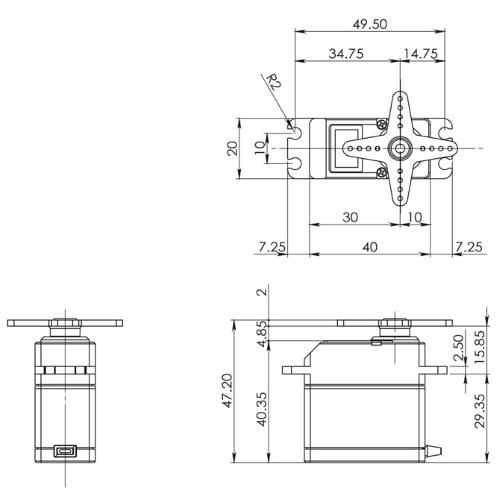

  • Size: 1.57 x .78 x 1.45 in (40.0 x 20.0 x 37.0 mm)

  • Operating Temp - -10~60centigrade
  • Working Frequency - 1520μs / 333hz
  • Dead Band- 0.0008ms (Default)
  • 15 cm connector wire
  • CORELESS Motor
  • Double Ball Bearings
  • FET Driver
  • Direct Drive Potentiometer
  • Titanium gears
: *
: *
: *


MPX Dual Servo Harness 12" Male 8"-24" Staggered Female (2 Channels 1 Plug) 20 AWG





































































































































































































































































Description:
Male Deans to Male XT60 Connector

With this Deans to XT connector you can convert a battery with T-Plug to XT-60 on ESC / charger
The connector has many applications and can be used for charger adapter.

Features:

  • Male Deans T style plug to Male XT60
  • Durable design
  • Heatshrink seal

MPX-Dual-12/8-24

$18.99

BMS-3310, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, CORELESS (38.4kg/533.4oz 0.08sec @8.4V)

BMS-3310, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, CORELESS (38.4kg/533.4oz 0.08sec @8.4V)

BBR-BMS-3310

$68.99

Standoff (25mm) 100-120CC (Anodized Gas Engine 25mm Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

Standoff (25mm) 100-120CC (Anodized Gas Engine 25m Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.




KAG0228

$24.99
