FUTABA S-U306– Standard Digital Airplane/Car Servo (No S.BUS) 0.18sec/123.6oz @ 6.0V

Contact UsCustomer Reviews

FUTABA S-U306– Standard Digital Airplane/Car Servo (No S.BUS) 0.18sec/123.6oz @ 6.0V

Our Price:

$57.99


Quantity (10)

Availability 10 in stock
Weight 0.11 lbs
SKU 01102396-3

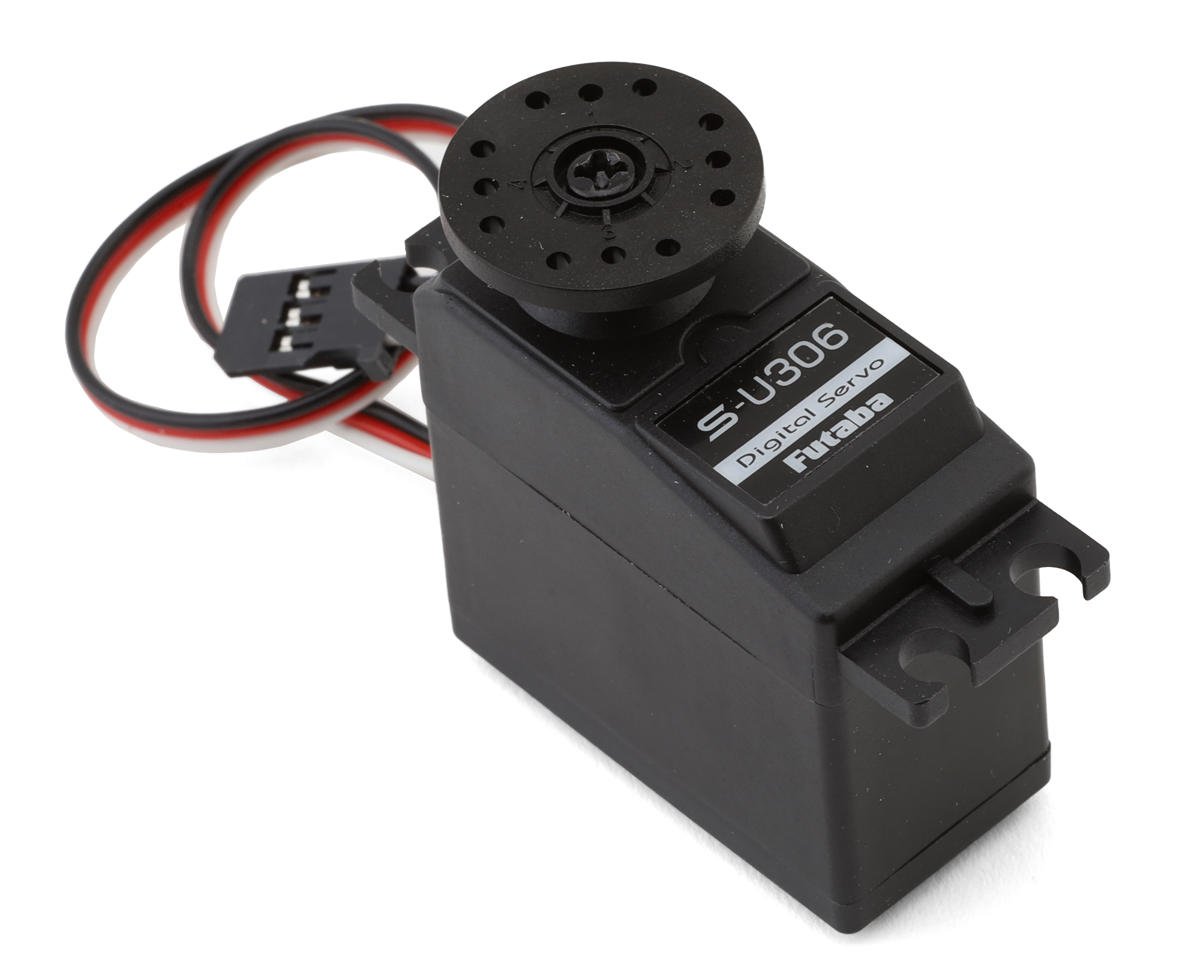

FUTABA S-U306– Standard Digital Airplane/Car Servo (No S.BUS) 0.18sec/123.6oz @ 6.0V

Heavy Duty Metal Gear Servo w/ traditional analog angle (01102396-3) replaces S3305 servo (01102253-3)

Designed for cars and airplane applications in need of a high quality budget digital servo. Features an all-metal gear design with a durable composite case, this S-U306 is capable of putting out 123.6oz-in of torque at a speed of 0.18sec/60° while operating at 6V! Get the S-U306 digital standard servo to enhance performance and durability at a budget-friendly cost!

Features:

  • Standard Digital
  • All metal gears
  • High quality composite case
  • Budget friendly
  • Perfect for cars and airplanes
  • -60 to +60 degree output angle

Input pulse 1220uS <—>1820uS

Output angle -60° <—-> +60°

SPEED:
0.18 sec/60°at 6.0V
0.23 sec/60°at 4.8V

TORQUE:
8.9 kgf/cm at 6.0V
123.6 ozf/in at 6.0V

7.1 kgf/cm at 4.8V
98.6 ozf/in at 4.8V

SIZE:
40 mm x 20 mm x 38.1 mm
1.57 in x 0.79 in x 1.50 in

WEIGHT:
46.5 g
1.64 oz

NO DRY BATTERY USE

NO SBUS

DO NOT LEAVE SERVO STALLED

  • Stall may cause printed circuit board to burn
: *
: *
: *


Quick Connect Ball Joint

Quick connect ball joint for the throttle. Easy to connect throttle links!

Comes in Pairs!, smaller than our standard ball joints.

SD-519B50

$10.00

Savox SB2292SG - Monster Performance Brushless Servo, Black Edition

Savox SB2292SG, Monster Performance, Brushless Servo Black Edition 0.055sec / 624.9oz @ 8.4v



























































Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230.

The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 416.6 oz/in at 4.8V
    • 500 oz/in at 6V

  • Speed:
    • .20 sec at 4.8V
    • .16 sec at 6V

  • Voltage: 4.8V to6V
  • Weight: 2.78 oz (79 g)
  • Size: 1.6 x .79 x 1.77 in (40.3 x 20.2 x 45.0 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAVSB2292SG

$145.99

Savox SW-1210SG Waterproof, HV, Brushless, Digital Servo 0.13 sec / 444.4oz @ 7.4V

Savox SW-1210SG Waterproof, HV, Brushless, Digital Servo 0.13 sec / 444.4oz @ 7.4V















Savox SW-2210SG Waterproof, HV, Brushless, Digital Servo 0.11 sec / 500oz @ 7.4V

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1231.

The Savox SA-1231 servos are a more powerful, high torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1231 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

  • Torque:
    • 389 oz/in at 4.8V
    • 444.4 oz/in at 6V

  • Speed:
    • .18 sec at 4.8V
    • .14 sec at 6V

  • Voltage: 4.8V to 6V
  • Weight: 2.78 oz (79g)
  • Size: 1.58 x .79 x 1.77 in (40.3 x 20.2 x 45 mm)

  • Gear Type - Unique Steel
  • Case - Full Aluminum
  • Bearing - dual ball bearings
  • Frequency - 250-333hz
  • Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







SAV-SW1210SG

$99.99
