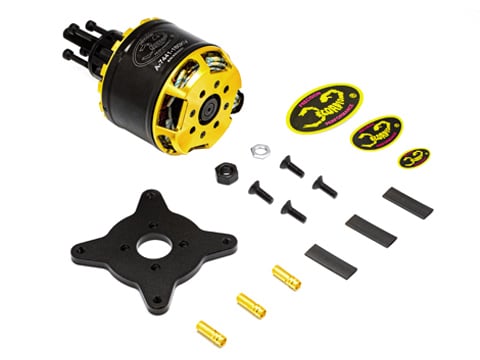

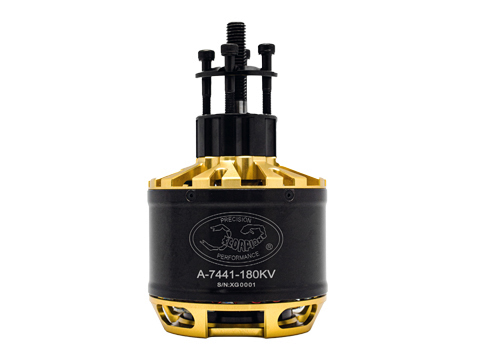

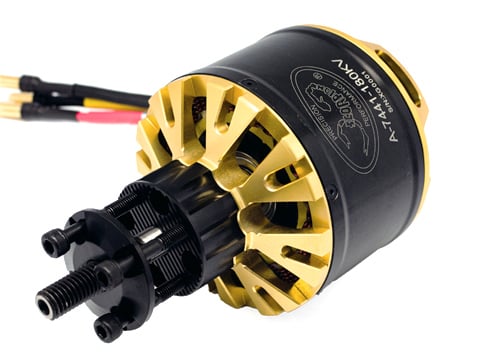

SCORPION A-7441-180kv (V2) Motor for Giant Scale Airplane (12S 100-120cc)

Contact UsCustomer Reviews

SCORPION A-7441-180kv (V2) Motor for Giant Scale Airplane (12S 100-120cc)

Our Price:

$959.99


Stand Off
Cross Mount
ESC
Battery
Quantity (1)

Availability 1 in stock
Weight 5.00 lbs
SKU A-7441-180kv (V2)
Manufacturer Scorpion

The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and single strand enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

The A-7441 was designed specifically for airplanes requiring a 100cc - 126cc equivalent gas engine, or other airframes requiring up to 9,300w of power.

Recommended Prop Selection :

  • 12s Lipo - 28x13E, 29x12E, 30x12E
  • 14s Lipo - 27x12E, 28x10E

Recommended ESC:  SCORPION TRIBUNUS III 14-220A ESC SBEC

NOTE: Due to the large size of airframes in this class, normally the battery wires must be extended. Running to long of battery cables WILL damage ESC and void your warranty. Precautions must be taken. We recommend the use of the Scorpion 1880uF Capacitor / PDB Board

 Tutorial / WARNING about using ESC's with a Power Supply, or Long Battery Cables

NOTE: Due to the large size of airframes in this class, attaining proper ESC cooling can be difficult. The ESC MUST have direct access to airflow using baffles directing air directly to the ESC. Simply adding a hole in the cowl is not suitable, and air must be carried directly to the ESC via baffling.

Acrobatic Weight Range -: 11.80kg - 27.21kg (26.0lbs - 60.0lbs)

Sport / UAV (single engine) Weight Range : - 18.67kg - 56.80 kg (41.7lbs -125.2lbs)

Scorpion A-7441-180kv - Santiago Perez

Specifications

Motor Kv 180 RPM / Volt
Weight (Motor only) 1599g (56.40 oz)
Weight (including mount + Prop mount accessories) 1806.8g (63.73 oz)
Motor Body Dimensions 86.80mm x 81.90mm (+20.0mm prop hub) (3.42" x 3.22" (+0.79 prop hub))
External Shaft Diameter 10mm
Continuous Current 120A
Continuous Power 6260 Watts
Peak Current* 178A
Peak Power* 9300 Watts
Max Rated Lipo Cell** 12s - 14s
Stator Diameter 74.0 mm (2.91 in)
Stator Thickness 41.6 mm (1.64 in)
No. of Stator Arms 24
Magnet Poles 28
Motor Wind 5T 4Y
Motor Wire 1.35 mm
No-Load Current (IO/15V) 3.49 Amps
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*
**Higher Cell Count possible with smaller prop usage**
