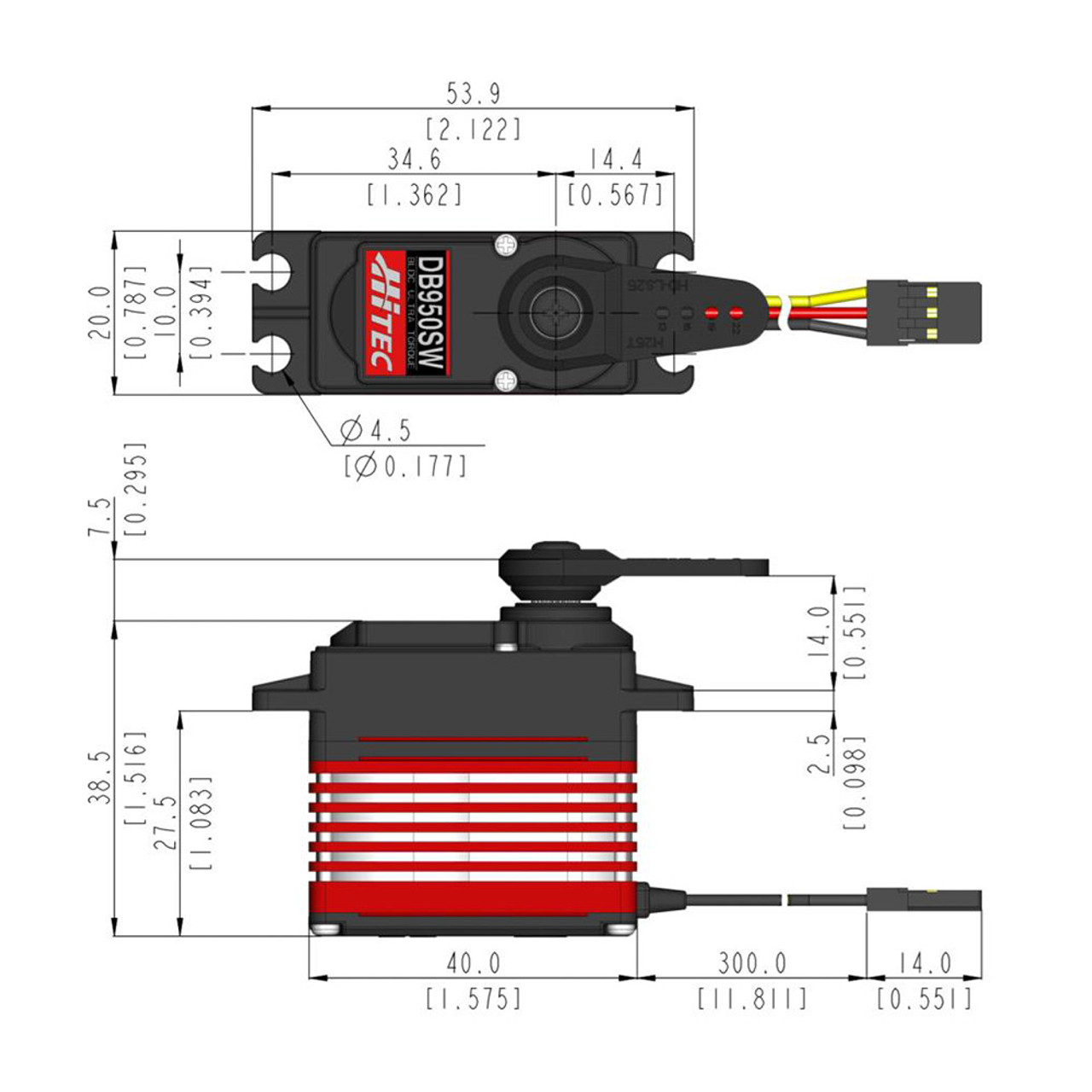

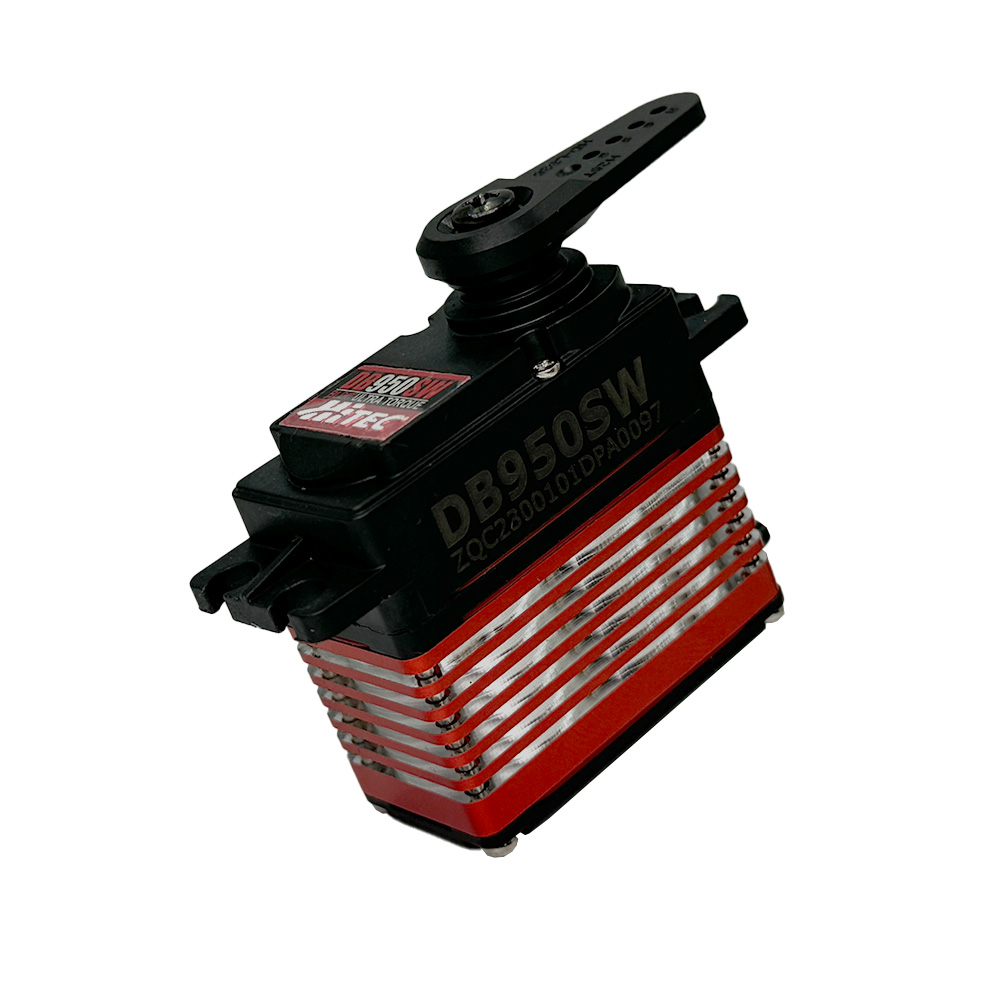

HiTec DB-950SW Wide Voltage High Torque Steel Gear Servo .14sec/555oz @ 7.4v

Savox SB2290SG - Monster Torque Brushless Servo, Black Edition 0.11sec / 902.7oz @ 8.4v



























































Description:

Ever go to a restaurant and look at the menu and think to yourself - "there's so many options that all just look so good!" - and have trouble deciding? Well here at Redwing RC our awesome servo collection is very similar! We have a great variety of spectacular servos to choose from so there is something for everyone! But let's introduce yet another great option to consider - the Savox SA-1230.

The Savox SA-1230 servos are a more powerful, MONSTER torque, coreless digital servo that can fit every control surface for giant scale aircrafts - while still being super lightweight, 20% lighter than its kind! Sounds great - right?! These servos combine leading edge technology with super high 12 bit resolution and super strong unique steel gears.

The coreless motor ensures high speed, incredible efficiency and LOW POWER CONSUPTION - so no "hungry hungry servo" sucking away your battery life - also allowing cooler and smoother operating temperatures. So chill out!

You can trust that these SA-1230 servos are a perfect match for your large scale model because they are especially designed to handle the stresses of large scale flying. Whether is be jet, 3D or scale - these servos take on the stress so you don't have to!

All in all - these servos are a great choice for your RC plane. Order yours now!



Specifications:

• Torque:
  • 416.6 oz/in at 4.8V
  • 500 oz/in at 6V

• Speed:
  • .20 sec at 4.8V
  • .16 sec at 6V

• Voltage: 4.8V to6V
• Weight: 2.78 oz (79 g)
• Size: 1.6 x .79 x 1.77 in (40.3 x 20.2 x 45.0 mm)

• Gear Type - Unique Steel
• Case - Full Aluminum
• Bearing - dual ball bearings
• Frequency - 250-333hz
• Output Shaft - 25 Tooth Spline







GET YOURS TODAY!







HiTec DB961WP 20mm, Ultra-Premium, Brushless, Hardened Steel Gear, Waterproof Servo (IP-67 Rated) 55kg/763oz [email protected]

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for pilots with the need for speed!

Features:

• Power Efficient Brushless Motor Controller
  Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
• Custom NeuMotor
  Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
• Constant Torque Output:
  Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
• Hybrid MPD 1st Gear:
  Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
• Industry-Leading Titanium Gear Train
  Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
• 25-Tooth Standard Spline
  Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.


  Specifications:

  • Torque:
    • 236 oz/in at 6V (17.0 kg-cm)
    • 236 oz/in at 7.4V (17.0 kg-cm)

  • Speed:
    • .08 sec at 6V
    • .06 sec at 7.4V

  • Voltage: 6V - 7.4V
  • Weight: 2.40oz (68g)
  • Size: 40 x 20 x 68 mm (1.57 x 0.79 x 1.50in)

FUTABA HPS-A703 (S.Bus2/Brushless) High-Voltage Mega Torque Airplane Servo .12sec/66Kg/916.6oz @ 7.4V (Perfect for Giant Scale)



















































































































































































































Product Description

With 4 times the resolution of its predecessor, the Aurora 9, the Aurora 9X is sure to become a favorite among the most demanding pilots. It is HiTec's first triple protocol radio which allows selection from the G1 and G2 Adaptive Frequency Hopping Spread Spectrum (AFHSS) or Secure Link (SLT) 2.4GHz technologies. It features dual processors for fast low latency response and ultra-smooth 4096 resolution. With more than 30 additional programming enhancements and new dynamically assignable switches, it is sure to thrill sport and professional level airplane and helicopter pilots alike.



Features



• Built in AFHSS 2.4GHZ / SLTTM Module (Single / Bi-Directional Selectable)
• 4096 Resolution
• Improved Latency (Dual Processor 7ms Frame Rate)
• Vibration Mode
• Included Touch Screen Stylus
• Easy-to-Read, Easily Accessible 5.1-inch Wide Backlit LCD Touch Screen (320 x 80 Pixels)
• Customizable Menu
• One-Stop Model Type Setting
• 3 Multi-Tasking Digital Trims
• Fully Assignable Control Switches, Knobs, Sticks and Digital Trims
• Ultra-Smooth Quad Ball Bearing Gimbals
• Full-Size Comfortable Hand Grips (Top Quality Elastomer)
• Selectable 4 Different Control Stick Modes, Plus 2 Additional Manual Modes (Software)
• Easy Gimbal Mode Change and Tension Adjustment (Hardware)
• Power Management System (Adjustable Backlight & Auto Shut-off Time)
• Digital Trim Nano-Adjuster (200 Adjustable Trim Steps)














•
•
•
•
•
•
•
•
•
•
•

Standard Programming

• 9 Assignable Control Channels
• 3-Model Type Programming (ACRO/GLID/HELI)
• 30-Model Memory
• 20 Character Model Naming
• 8 Flight Conditions with 10 Characters
• Fail-Safe
• Channel Function
• EPA
• Dual Rate & EXP*
• Sub-Trim
• Servo Reverse
• Servo Speed (up to 25 sec. in each direction)*
• Servo Monitor (Monitor & Servo Test)
• 8 Programmable Mixes (5x 2-Point, 3x 7-Point Curves)**
• Trainer
• Throttle Lock

* Capable of a Maximum of 24 rates by 8 flight conditions and 3 switch positions
** Capable of a Maximum of 8 Rates by 8 Flight Conditions
