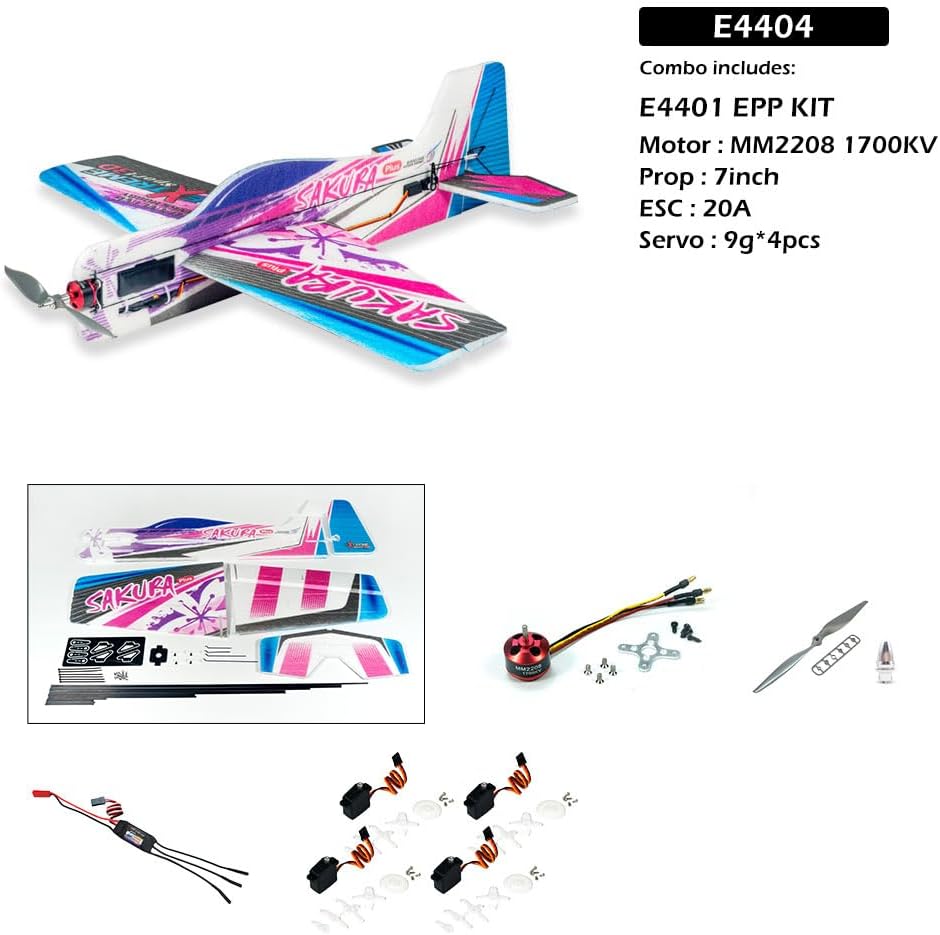

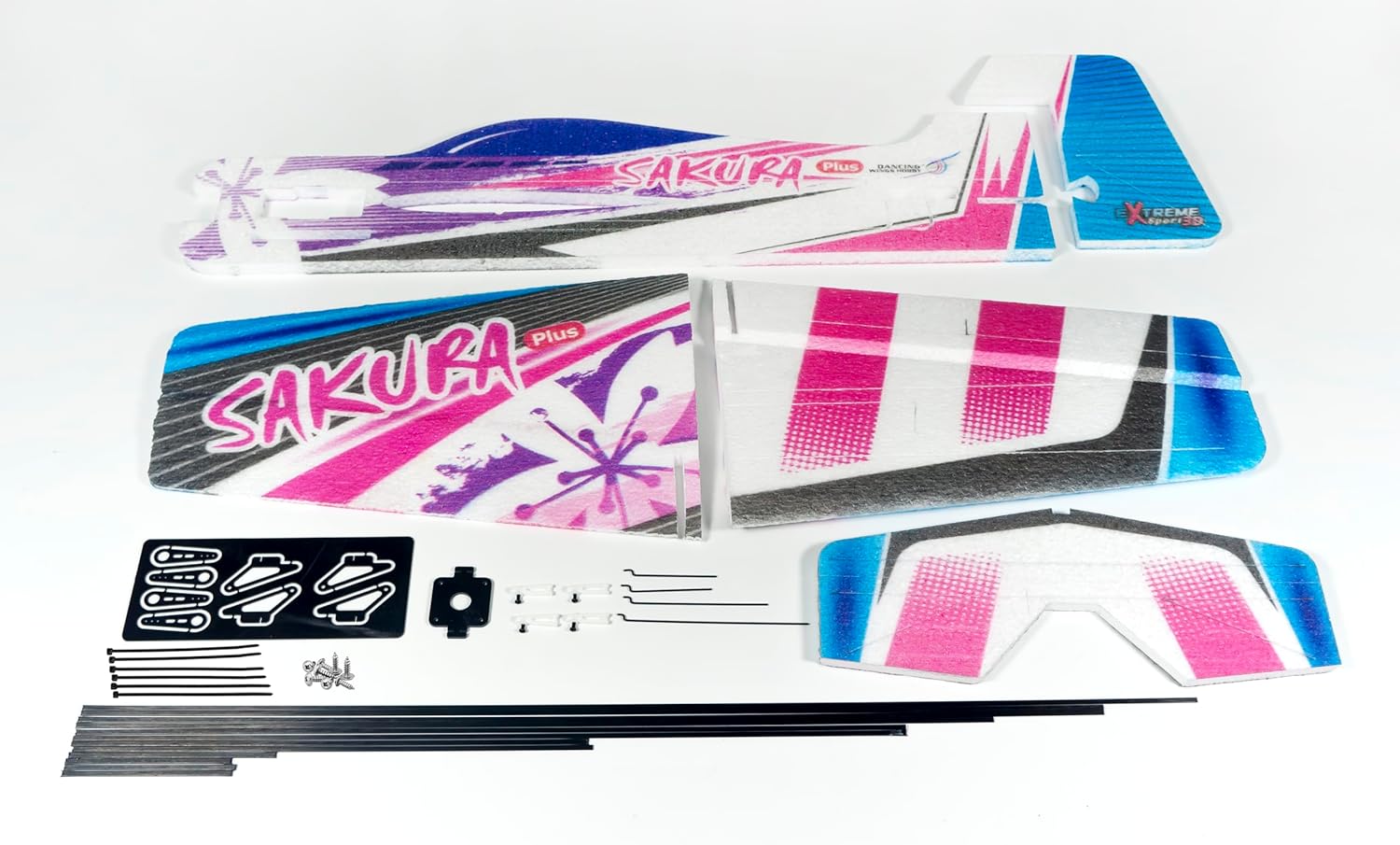

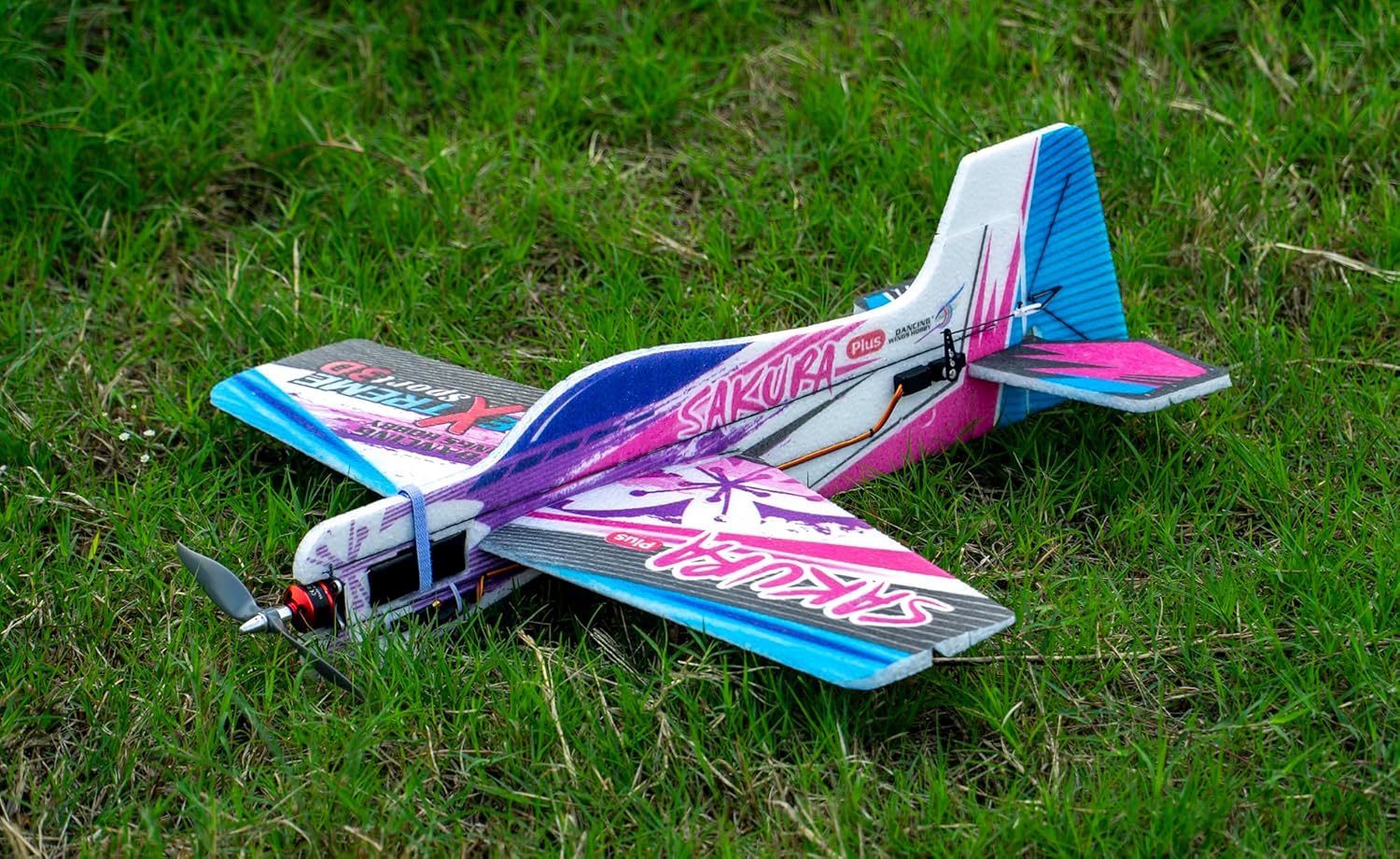

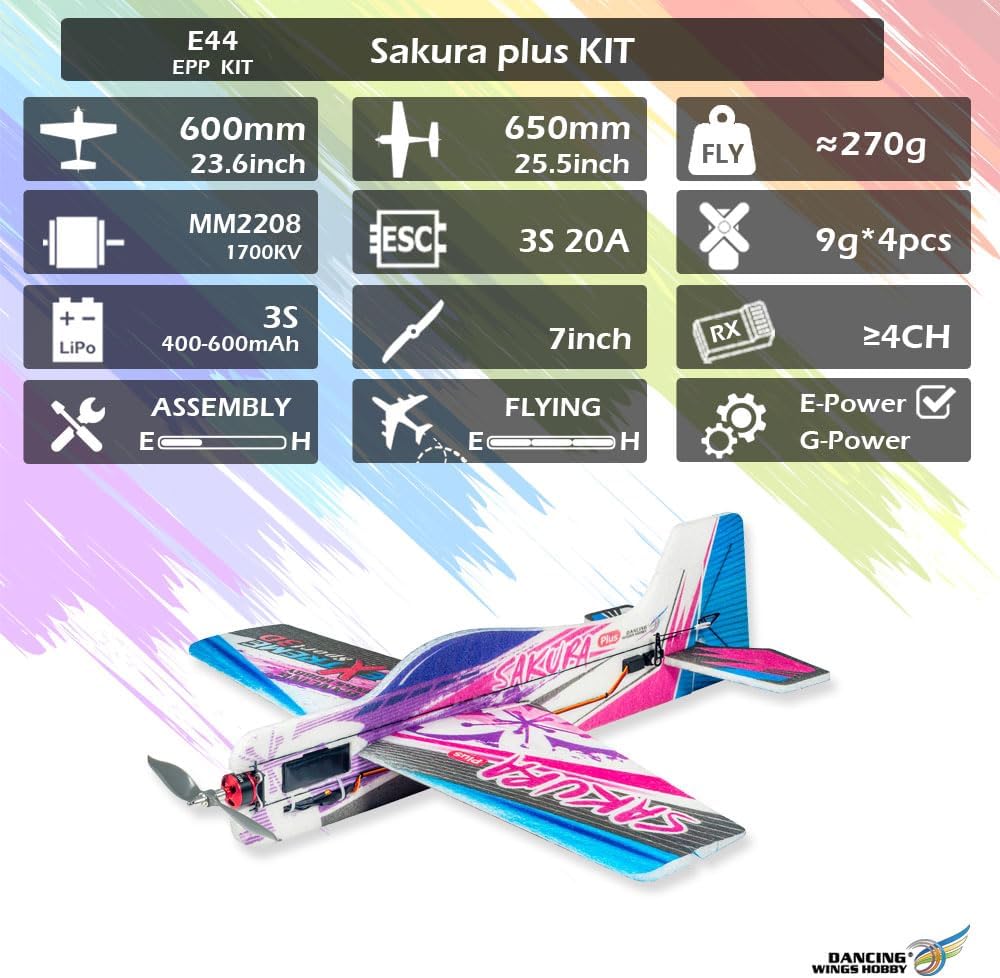

SAKURA PLUS Extreme Sport 3D EPP Airplane 23.6" (600mm) Wingspan Kit with Power Pack

Description:
Our LiFe Batteries (also known as A123 Batteries) have huge advantages over most other options.

1) LiFe Batteries are lightweight - as light as Lipos
2) LiFes are safer than Lipos (do not combust easily like lipos)
3) LiFe Batteries supply a constant voltage (They stay right near 6volts from start to finish ensuring consistent flights)
4) Run Life batteries to your servos and ignition without regulators (For extra caution some people run a regulator to their ignition still)
5)Life's have a high Charging Capacity. Charge up to 5amps, allowing you to charge them up in MINUTES!

The 2100 or 3000 Mah can be used as a SINGLE battery system for 30cc planes. (we recommend spliting the lead and put 2 JR leads on, to run to the receiver and the other to ignition). You can also run a single 3000 Life Battery on a 50cc Plane.

The 1450mah LiFE Battery is a great option for those that want a separate battery for ignition and receiver (if you are running FM or hesitant to use a single battery system). The 1450mah Life is a great battery for the ignition for either a 30cc or 50cc sized plane

We recommend the following:
On the MXSR (2) 2100mah, or 1 3000mah placed on the mount box or front of the plane. It is a bigger plane and will do well with the extra voltage and weight.
Other 30cc planes - (1) 1450mah for ignition, (1) 2100mah for receiver or for a lighter set up
(1) 2100mah for both (split the wire to 2 leads) OR (2) 1450mah (one for ignition one for receiver).

50cc sized planes (1) 1450mah LiFe battery for ignition and (1) 3000mah LiFe battery for receiver or, for a lighter set up
(1) 1450mah for ignition, and (1) 2100 for receiver OR (1) 3000mah LiFe for both receiver and ignition



WATCH THIS VIDEO: Explains whether to use a regulator or not, 2 batteries or 1 for your plane, Redundancy and more.


Specifications:

• Type: LiFe Battery (same technology as A123)
• Weight:
  • 1450mah - 2.8oz,
  • 2100mah - 4oz,
  • 3100mah Life - 5.5oz
• Size:
  • 1450mah- 15mm x 34mm x 87mm,
  • 2100mah- 12mm x 50mm x 106mm,
  • 3000mah- 130mm x 45mm x 15m
• Voltage: 6.6Volts
• Discharge rate:
  • 20c maximum continuous
  • 40c maximum burst
• 2 cells (2s)
• 14gauge Wire
• Connectors: Two Options!
  • T Connector (T connector that fit a standard Dean)
  • XT-60 Connector. Choose Below
• Also a balancing lead

Be sure to select the XT connector if purchasing for use with our Power Box PRO's. Please select connector type: Deans or XT.


• 1450mah - $15.99
• 2100mah - $25.99
• 3000mah - $39.99


Untitled Document

Description:

Bob Smith Industries Foam Cure

Foam-Cure™

FOAM-CURE™ is a silicone based adhesive that works very well on EPP and EPO foams. It is crystal clear and cures to a more flexible consistency than CA. It is, however, not instant bonding like CA and there is no accelerator to speed it’s curing. To obtain a faster initial bond when bonding two pieces, FOAM-CURE™ can be applied to one piece and after the two are joined, they can then be pulled apart. After letting it air dry for about ten minutes, FOAM-CURE™ will act like a contact cement when the parts are rejoined, resulting in enough tack strength to allow the next steps of assembly. Full strength is reached in 10-12 hours.

FOAM-CURE™ works with all foams, and will actually bond most other materials. It will bond wood and plastic to foam, and is a good canopy glue. FOAM-CURE™ does not, however, cure flexible enough to act as a hinge for aircraft control surfaces. Its limitations occur when bonding large areas of two non-porous materials. FOAM-CURE™ requires exposure to air for drying. If one tried to bond, for example, a half-dollar coin to glass, over 90% of the adhesive would never cure, since the solvent it contains would have no where to evaporate. A small amount of denatured alcohol can be mixed into the Foam-Cure to make it thinner.

Works Best On:

• EPP Foam
• EOP Foam
• Clear Canopy
• Paper and Crafts

Cut off tip of nozzle. Apply to one part before joining. Use tape to hold parts in place during cure. For faster curing, pull the joint apart and let Foam-Cure™ air dry for 5-10 min before rejoining the parts. This results in enough tack strength to allow the next steps of assembly. Full cure takes 10-12 hours. Foam-Cure™ works on all foams, especially on EPP and EPO, and will bond a porous surface to non-porous materials. Foam-Cure™ is also an excellent glue for clear canopies, and will also bond paper. If needed, denatured alcohol can be used to thin or clean up uncured Foam-Cure™. Replace cap after use.

Click to Download Safety Data Sheet

JST-XH 2-6S Lipo Battery Charger Balance Board

This Paraboard lets you charge and balance up to six lipo batteries at once! This board features Traxxas connectors for your batteries' main leads and JST-XH balance plugs ranging from 2S to 6S. They plug right into most popular models of 6S lipo balancing chargers that have 7-pin balance ports with 2.5mm pin spacing.

To get the most out of your Paraboard, pick up one of our GT-400 chargers. It provides 400W of total charging power and charge rates of up to 20 amps! This paraboard has a maximum charge rate of 30 amps.

Battery packs must be of the same cell count (only charge 2S with 2S, 3S with 3S, etc.) and battery voltages must be within 0.1V per cell (0.1V for 1S, 0.2V for 2S, etc.) of all other batteries connected to the Paraboard at the same time. Use a Cell Spy or similar voltage tester to check the voltage of each cell before connecting to the Paraboard.
