FanTrainer 64mm EDF Foam EPP Jet Trainer Airplane Combo Kit 31.5" (800mm)

Contact UsCustomer Reviews

FanTrainer 64mm EDF Foam EPP Jet Trainer Airplane Combo Kit 31.5" (800mm)

Our Price:

$149.99

Radio and Receiver combo
Battery Charger combo
Quantity (27)

Availability 27 in stock
Weight 1.50 lbs
SKU DW-E39-EDF-FanTrainer-EPP

FanTrainer 64mm EDF Foam EPP Jet Trainer Airplane Combo Kit 31.5" (800mm)

Introducing the DW Hobby 64mm EDF FanTrainer, your ticket to the thrilling world of radio control aviation! This electric EPP foam EDF jet, boasts an impressive 800mm wingspan and is engineered for unparalleled performance.

At the heart of this sleek jet aircraft is a 10-blade EDF ducted fan, delivering a powerful and efficient thrust for an exhilarating flying experience. This EDF jet is a complete set with everything you need to get airborne. The kit includes the motor, ESC speed controller, servos, and all necessary hardware so pilots can unbox and assemble with ease.

Forget about the hassle of intricate wiring – the electric components come factory soldered, ready for a convenient plug-and-play setup. Whether you're a seasoned pilot or a beginner looking to enter the world of electric jets, the DW Hobby FanTrainer simplifies the process.

Compatible with a common-sized park flyer 4S LiPo battery, this RC jet airplane ensures a hassle-free power source for your flights. Constructed from damage-resistant EPP foam, the aircraft not only guarantees durability but also offers a lightweight yet sturdy frame for optimal maneuverability.

If you have ever dreamed of building your own electric jet but didn't know where to start, look no further. The DW Hobby FanTrainer from RedwingRC is the ideal choice for enthusiasts of all levels. Elevate your RC flying experience with this dynamic and ready-to-go electric EDF jet – because the sky is no longer the limit!

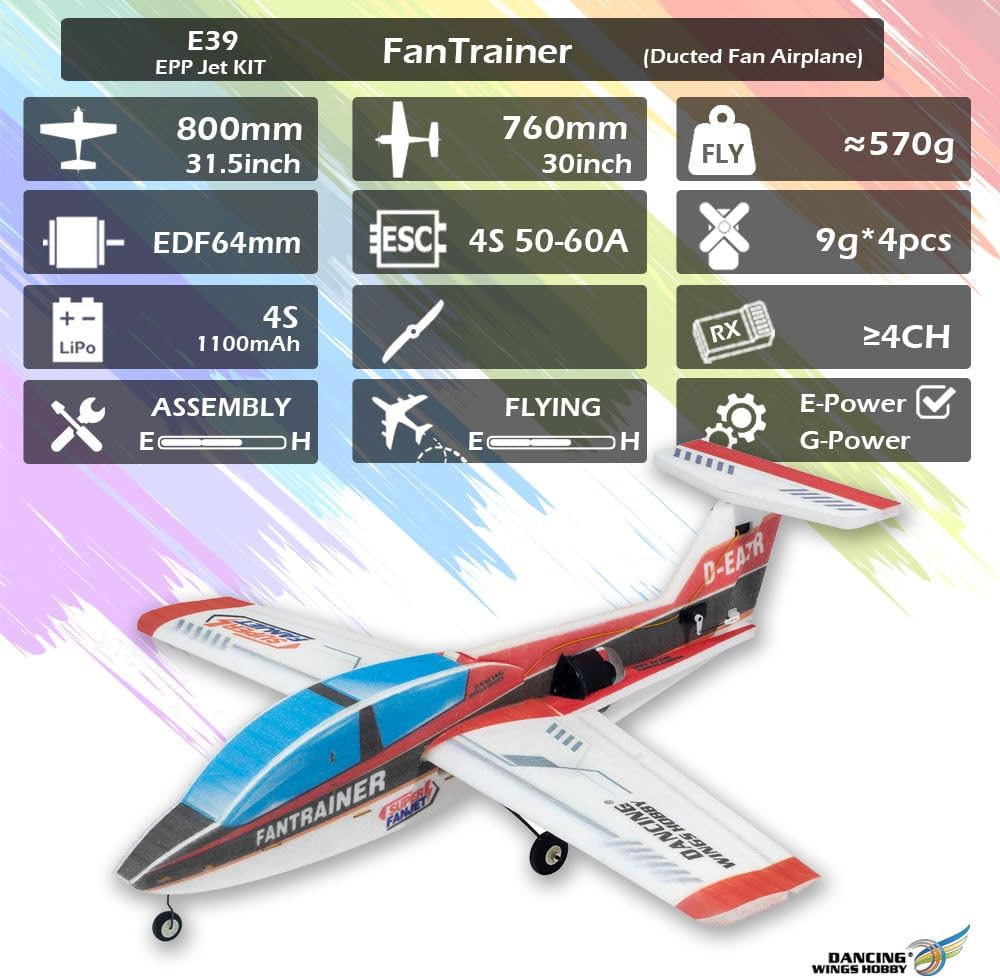

Technical Specs:

  • Wingspan: 800mm ( 31.5inch)
  • Length: 760mm ( 30inch)
  • Flying Weight≈ 570g
  • Wing Area : 11.7dm2
  • Wing Load : 48.7g/dm2

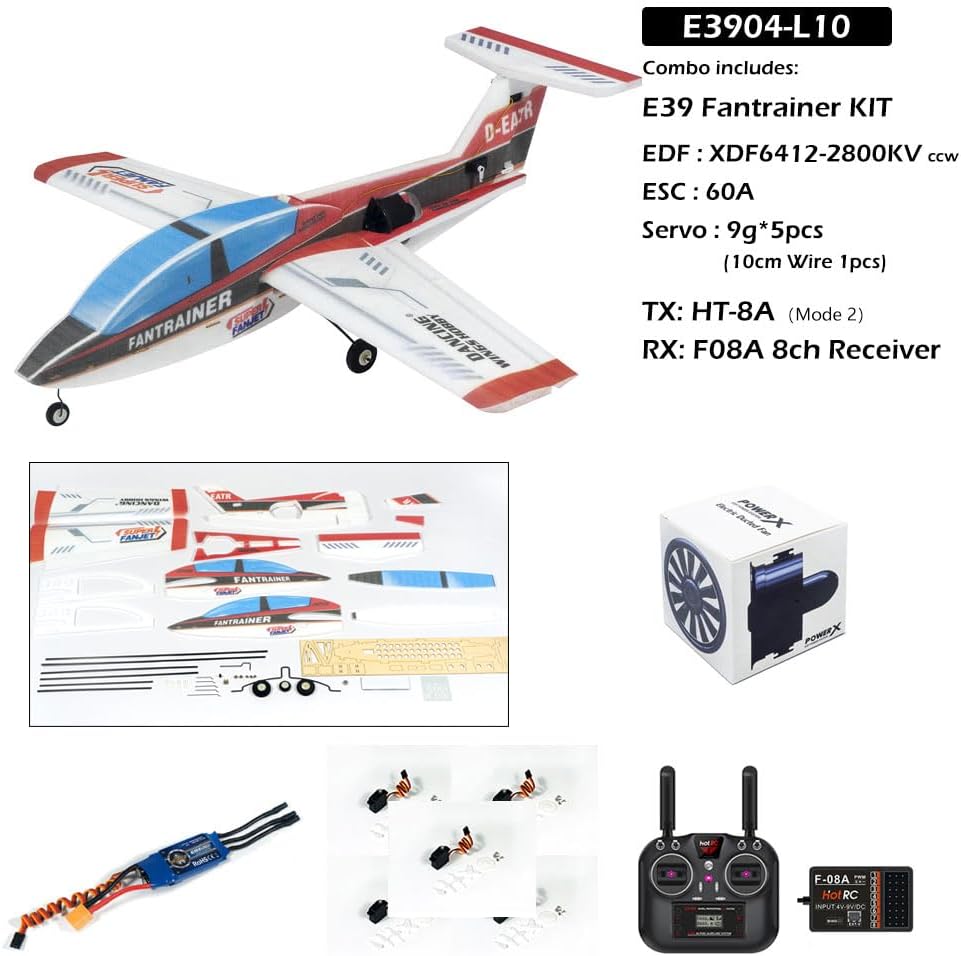

What is included:

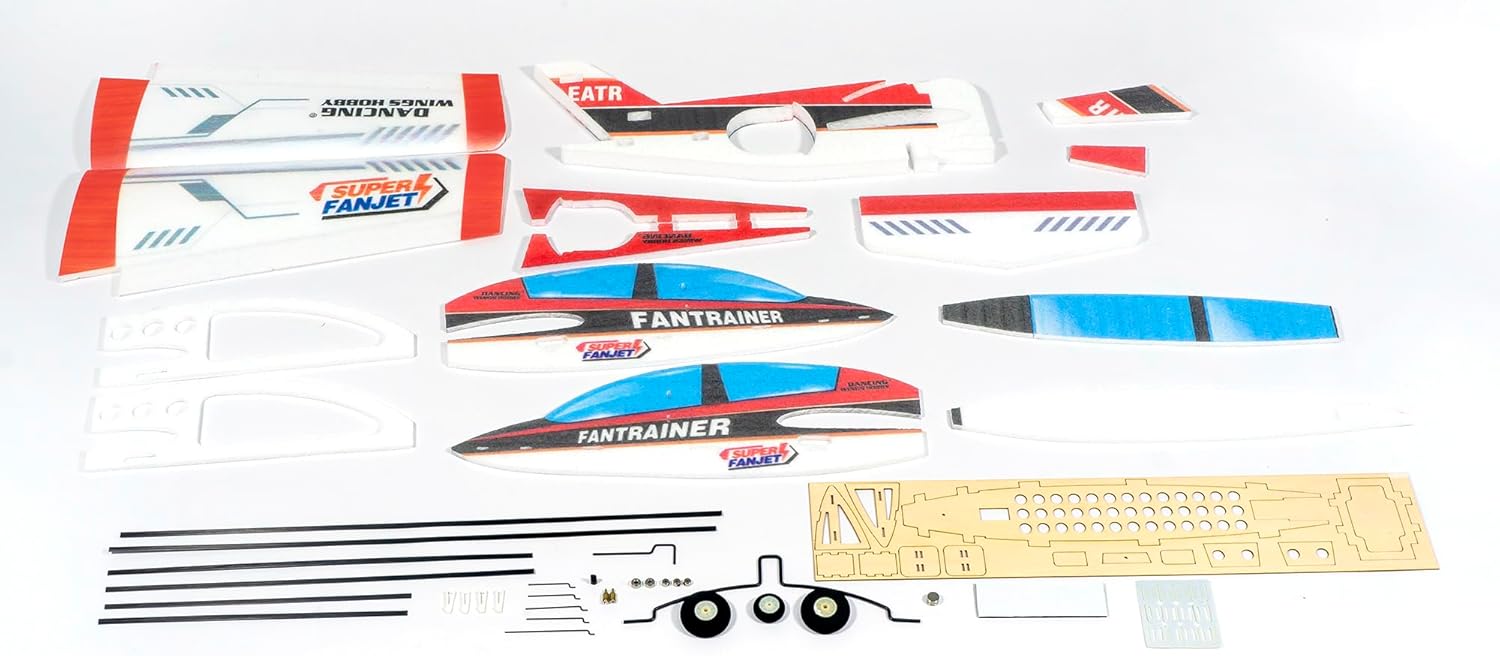

  • PrePainted EPP FanTrainer - Foam Parts
  • All required Hardware for full assembly (ply wood, landing gear, push rods)
  • XDF6408-2800KV Brushless Motor and 64mm EDF Fan Unit (Pre assembled) with 3.5mm bullets
  • 60A Brushless ESC with 3.5mm bullets & XT60
  • 5 x 9G Servos
  • Y harness for Wing Serovs

Whats Needed

  • 4 Channel or more Radio and Receiver, see combo pricing
  • 4S (14.8v) Lipo Batter with XT60

More Information

More Information
Airplane Category Sport
Airplane Completion Level Kit (unassembled)
Airplane Material EPP Foam
Airplane PowerPlant EDF Jet Motor & Fan
Airplane Pilot Skill Level Beginner
Manufacture DW Hobby



: *
: *
: *


DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$429.00

DLE 55RA Engine

55RA

DLE-55 RA

$479.00

Miracle 3 Way T Joint with Fuel Filter

Miracle 3 Way T Joint with Fuel Filter

Miracle long fuel filling nozzle with fuel filter.
Available in Red, Gold, and Blue.
Please make a note of your color choice.

MRC-H-010

$5.00
