Der Big Red Max Model Rocket Kit

Contact UsCustomer Reviews

Der Big Red Max Model Rocket Kit

Our Price:

$59.99

Quantity (4)

Availability 4 in stock
Weight 1.50 lbs
SKU EST9721

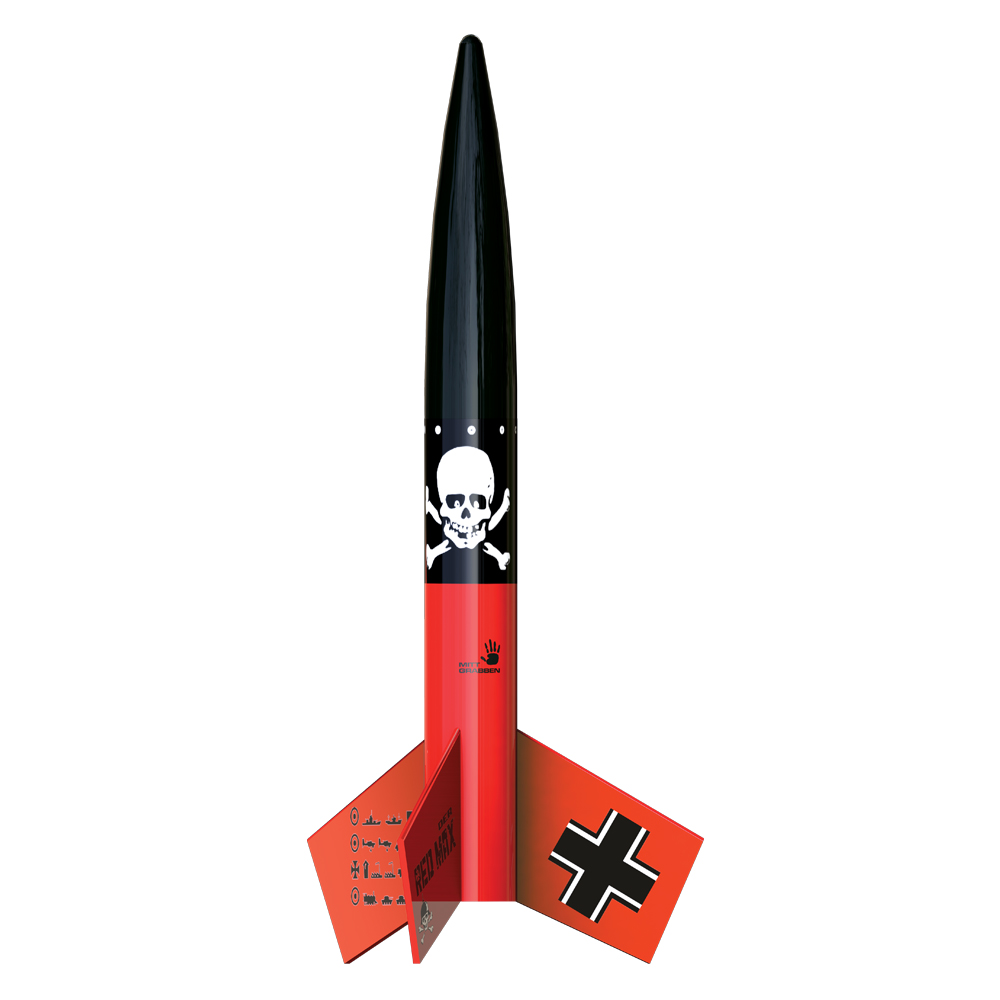

Der Big Red Max Model Rocket Kit

This is a larger (3" diameter) model of an Estes classic, known for it's slow lift-offs, it's a Pro Series kit with an Advanced Skill Level.

This version will deliver the long slow lift-offs that Red Max is famous for. Imagine 3.5 seconds of smoke and fury on an Estes F15-4! And Big Red is not just fun on the flying field, it's fun to build too. Thru-the-wall fins make assembly and alignment easy while giving this rocket extra strength so you can fly it over and over. And only Red Max rockets come with their own special printed Skull & Bones 18 inch parachute.

WHAT YOU NEED TO BUILD: Scissors, pencil, ruler, fine sandpaper, wax paper, epoxy, yellow glue, sanding block, hobby knife, masking tape, primer (white), paint (red, black) and clear coat (optional). Tools, construction and finishing supplies not included.

WHAT YOU NEED TO LAUNCH (sold separately): Porta-Pad E Launch Pad and Pro Series II Launch Controller, Estes model rocket engines, starters and recovery wadding. Six C 1.5V high quality AA alkaline batteries are also required for launch controller (not included).

Specifications:

  • Skill Level: Pro Series II
  • Length: 29.9" (75.9cm)
  • Diameter: 3in. (76mm)
  • Est. Weight: 14.5oz. (411g)
  • Recovery: Parachute
  • Projected Max Altitude: 1100ft. (335m) on a F15-4

: *
: *
: *


XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

DLE 55RA Engine

55RA

DLE-55 RA

$479.00
