  4. SCORPION A-6528-180kv Motor for Giant Scale Airplane (12S 60-76cc)
Tariff Information update
The Redwing RC Office will be operating with reduced staff until 24 Jun. Orders can still be accepted during this time but will take longer than usual to process/ship. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you as quickly as possible.
more offers

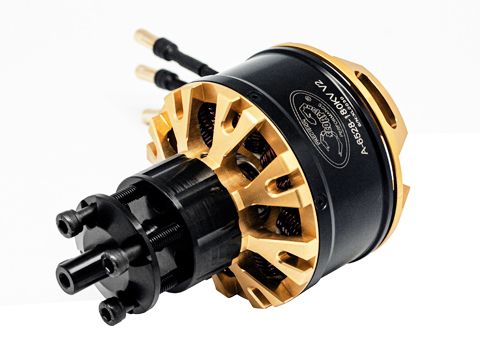

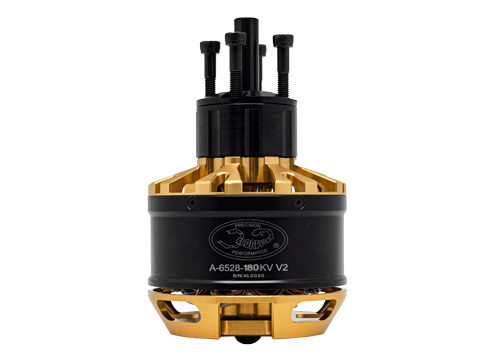

SCORPION A-6528-180kv Motor for Giant Scale Airplane (12S 60-76cc)

Ask a question about this product
Printable version

Share

Options

Our Price:

$539.99
ESC
Battery
Quantity (1)

Details

Availability 1 in stock
Weight 5.00 lbs
SKU A-6528-180kv
Manufacturer Scorpion

The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and 2 x single strand 1.2mm enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

The A-6528-180kv was designed for 90"- 95" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 7200w of power. Compared to the -200kv version, this motor is designed to swing a larger / slower spinning prop in the 24" - 26" range on 12s battery.

Recommended Prop Selection :

24x10E / 24x13E (Carbon) / 25x12E / 26x8E

Recommended ESC -: Tribunus II+ 14-200A ESC SBEC

Acrobatic Weight Range -: 8.18kg - 12.7kg (18.0lbs - 28.0lbs)

Sport / UAV (single engine) Weight Range : - 12.7kg - 36kg (28.0lbs -80lbs)



Specifications

Motor Kv 180 RPM / Volt
Weight (Motor only) 998g (35.20 oz)
Weight (including mount + Prop mount accessories) 1115g (39.33 oz)
Motor Body Dimensions 78.5 mm x 67.8mm (3.09" x 2.67")
External Shaft Diameter 10mm
Continuous Current 95A
Continuous Power 4218 Watts
Peak Current* 162A
Peak Power* 7200 Watts
Max Rated Lipo Cell** 12s
Stator Diameter 65.0 mm (2.56 in)
Stator Thickness 28 mm (1.10 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 7T Delta
Motor Wire 2-Strand x 1.18mm
No-Load Current (IO/20V) 2.39 Amps
Motor Internal Resistance (phase-phase) ## m?
Motor Inductance (phase-phase) @ 1khz ##µH
*Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling*
**Higher Cell Count possible with smaller prop usage**

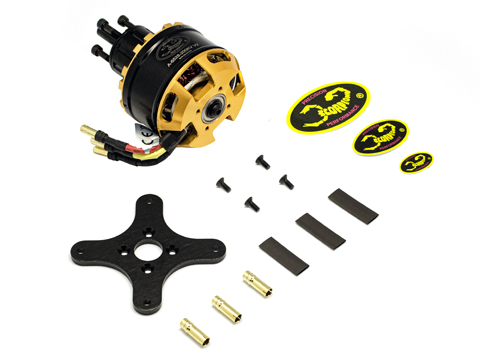

Included in the Box

1 x Scorpion A-6528 BLDC Motor
1 x A-55/65 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
3 x Female 6mm Connectors
3 x Heat Shrink
3 x Scorpion Stickers
2 x M10 Nuts

Weight including packaging

1490g

Full Dimension

View Scorpion A-6528-180kv Full Dimension





: *
: *
: *
