Dynam P-61 Black Widow Twin Engine Warbird 4S 55" (1500mm) w/ Flaps (Black)

Contact UsCustomer Reviews

Dynam P-61 Black Widow Twin Engine Warbird 4S 55" (1500mm) w/ Flaps (Black)

Our Price:

$299.00


PNP or SRTF Version
Quantity (1)

Availability 1 in stock
Weight 5.00 lbs
SKU DY8973-P61-Black

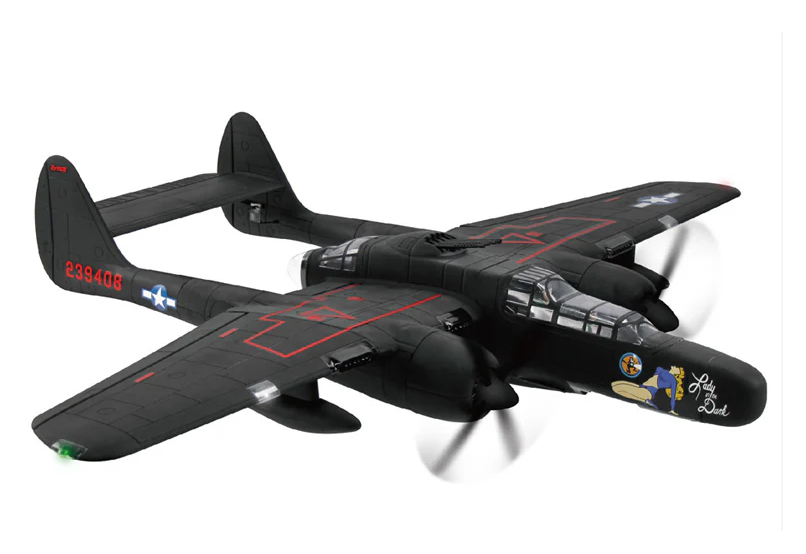

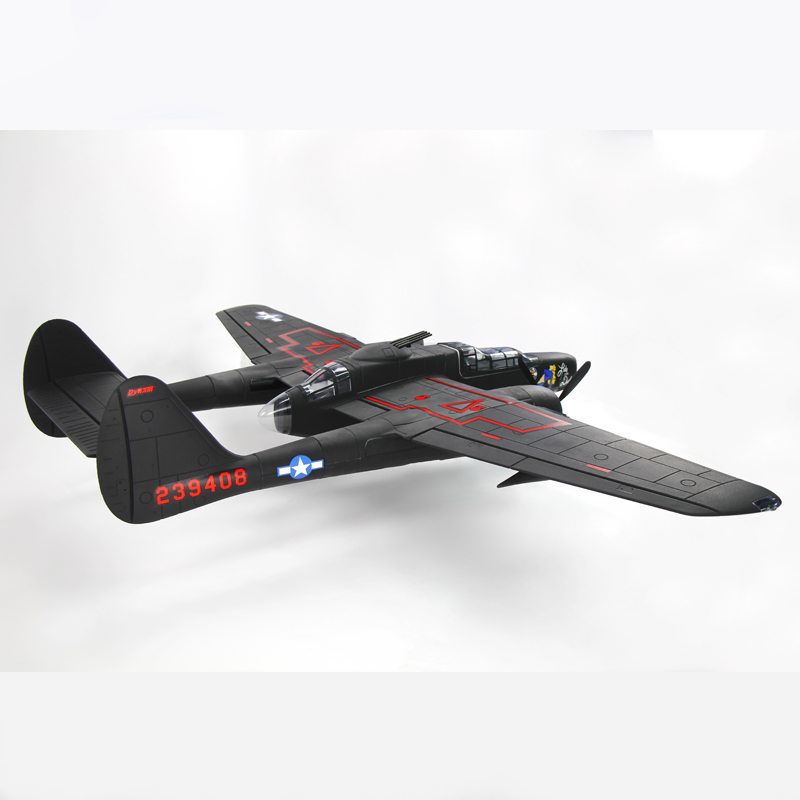

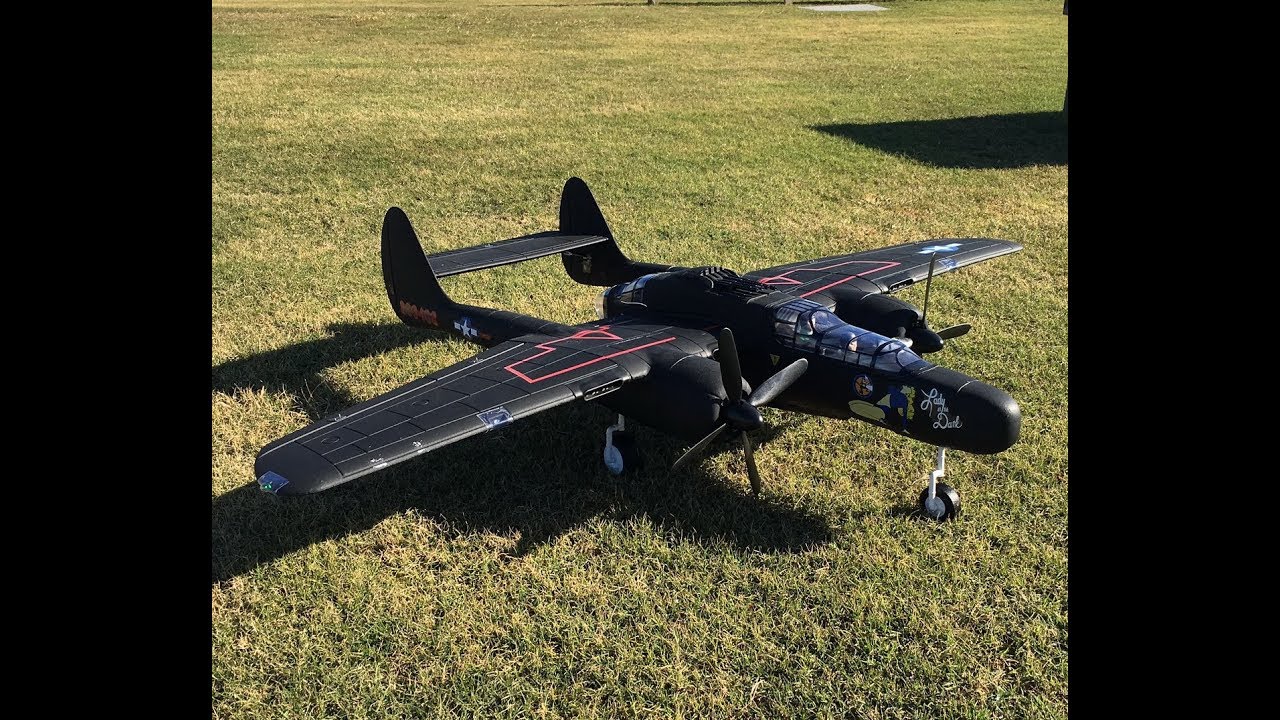

The P-61 Black Widow is a twin-engine, twin-boom bomber with tricycle landing gear. It is the first operational U.S. warplane designed as a night fighter with a nearly all-green appearance and the first RC aircraft designed to use radar. We are proud to launch the Dynam P-61 Black Widow 1500mm (59") twin-engined warbird. It has a familiar scale outline and excellent flight performance. P-61 enthusiasts can easily take the Dynam P-61 Black Widow warbird home and fly in the sky with great enjoyment.

This Dynam P-61 Black Widow plane is made with high-quality materials and features a durable EPO foam construction that can withstand the wear and tear of flying. The P-61 Black Widow RTF ready-to-fly is easy to assemble and comes with everything you need to get started, including a GAVIN 8-channel 2.4Ghz transmitter, MSR66A 6-CH receiver, 4S 14.8V 4000mAh battery, and charger. It also has a wide wingspan and large control surfaces, making it easy to fly and maneuver.

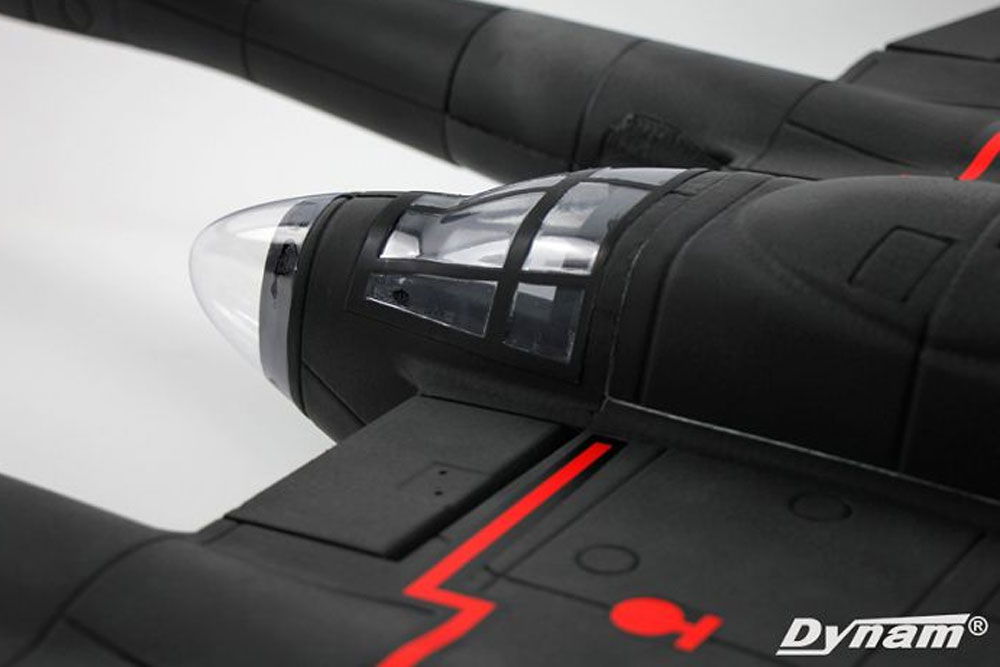

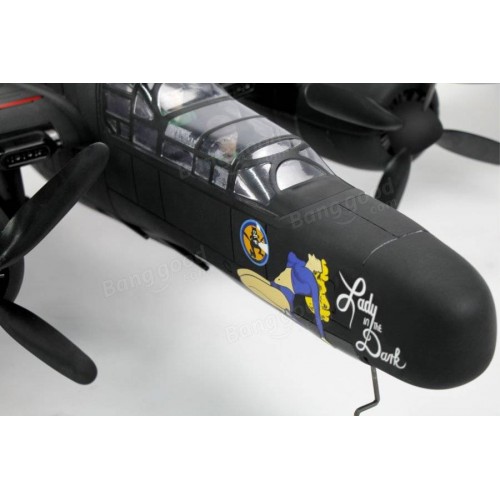

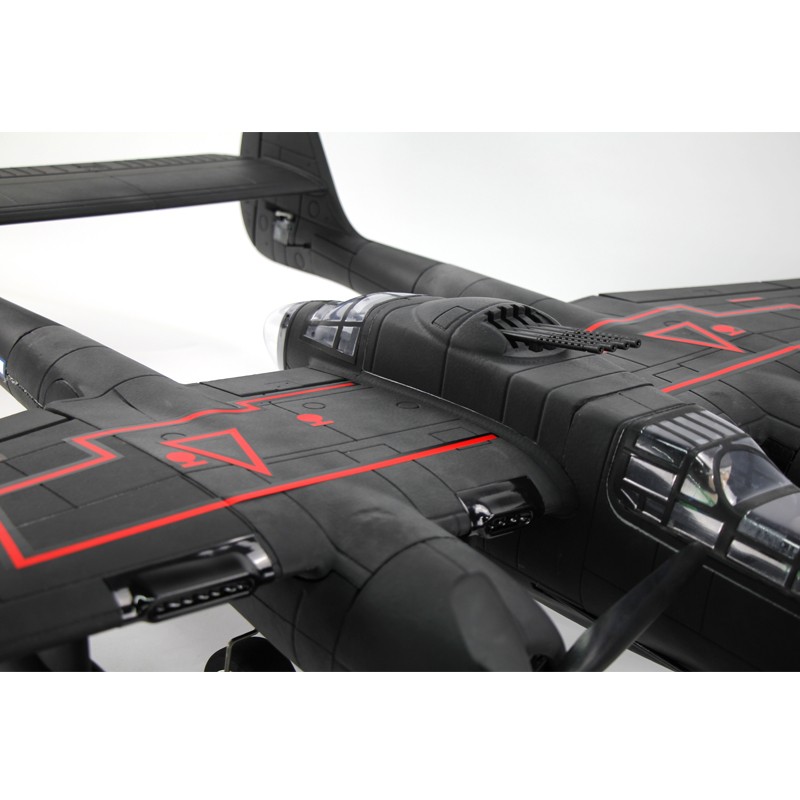

Dynam P-61 Black Widow 1500mm twin-engined warbird has a green appearance with a red pattern that deserves the title of Black Widow. Two-tiered canopy design and all-transparent tail cone fully reflect the P-61 features. Both top and bottom turrets have four guns, and the former can change the direction of pilots. There are bombs and an auxiliary fuel tank on the lower fuselage, which has excellent detail.

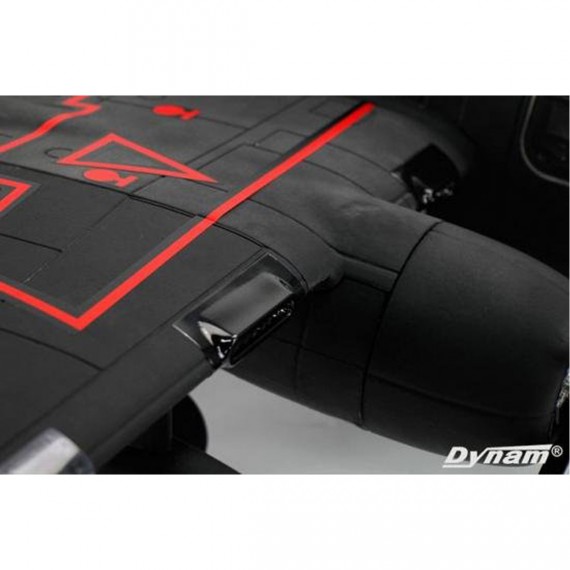

Adopt two Detrum BM3512A-KV650 motors to provide enough power and uses two Tomcat Skylord 40A ESCs to control precisely. 4S 14.8V 4000mAh Li-Po 25C Lipo battery can greatly extend the flight time for pilots. The counter-rotating 10.5*8*4 propellers effectively bring good flight performance. The four flaps design can increase the takeoff speed and reduce the landing speed, making the flight smooth. There are four navigation lights on the Dynam P-61 Black Widow. The light on the left wing tip is red, and the light on the right is green. The two lights on the landing edge of the wing are white. Pilots can understand the location and working direction of the airplane during the night flight by these lights.



Features

  • Durable and lightweight EPO construction
  • Aileron, rudder, and elevator controls
  • Green appearance with a red pattern
  • Two-tiered canopy design
  • Both top and bottom turrets have four guns
  • Two Detrum BM3512A-KV650 motors and Tomcat Skylord 40A ESCs
  • Counter-rotating 4-blade propeller 10.5*8*4 propeller
  • Four flaps design
  • Detachable Outer wings and rear engine nacelles
  • Four navigation lights
  • GAVIN 8CH 2.4GHz radio system
  • Detrum MSR66A 6CH 2.4Ghz Mini Receiver iStone 6-Axis Gyro Stabilizer w/ ABS System
  • 4S 14.8V 4000mAh 25C Lipo battery w/ XT60 Connector
  • Comes with a decal set
  • Suitable for intermediate or experienced pilots

Specifications

  • Wingspan: 1500mm (59in)
  • Overall Length: 1126mm (44.3in)
  • Flying Weight: 2450g (86.4oz)
  • Wing Loading: 72g/dm²
  • CG (Center of Gravity): 70-75mm from the leading edge of the wing at the root
  • Power System: Detrum BM3512A-650KV brushless outrunner motor - (pre-installed)
  • Electronic Speed Control: TomCat Skylord-40A ESC 5A-BEC - (pre-installed)
  • Propeller: 4-blade propeller 10.5*8*4
  • Servo: 9x 9g micro servos, 1x 17g micro servos - (pre-installed)
  • Landing Gear: E-Retract (Retractable) - (pre-installed)
  • Required Transmitter: GAVIN-8C 2.4Ghz 8-Channel or above
  • Required Receiver: MSR66A 6CH 2.4Ghz (iStone 6-Axis Gyro Stabilizer w/ ABS System)
  • Required Battery: 4S 14.8V 4000mAh Li-Po 25C w/ XT60 Connector
  • Aileron: Yes
  • Elevator: Yes
  • Rudder: Yes
  • Flaps: Yes
  • Approx. Flying Time: 7 minutes
  • Material: EPO Foam
  • Skill Level: Intermediate
  • Assembly Time: 2 hour
  • Age Level: 14+
  • Recommended Environment: Outdoor
  • Aircraft Type: Warbird

What's the difference between RTF, BNF, and PNP?

PNP (Plug-N-Play) RC airplanes have everything you need EXCEPT a transmitter, receiver, and battery pack (battery & charger). It contains model kits, Detrum motors, TomCat Skylord ESCs, and servos.

BNF (Bind-N-Fly) RC airplanes come with everything you need to get in the air EXCEPT the Transmitter and battery pack (battery & charger). It contains model kits, Detrum motors, TomCat Skylord ESCs, servos, and an iStone gyro receiver. They are easy to use, versatile, and safe, making them the perfect choice for beginners and experienced pilots. The BNF (Bind and Fly) version, receivers such as the MSR66A work exclusively with Detrum transmitters.

Dynam SRTF version is based on the standard RTF (Ready to Fly), which integrates the iStone 6-Axis Gyro Stabilizer w/ ABS System: RC airplanes get everything in a box to fly. The radio system (Transmitter and receiver), battery pack (battery and charger), and all other required electric parts are included and pre-installed. It contains model kits, Detrum motors, TomCat Skylord ESCs, servos, Detrum transmitters, iStone gyro receivers, battery, charger, and adapter. RTF planes are a great way to enjoy the thrill of flying without too much hassle.

SRTF-6C Version: Includes a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Gavin-6C transmitter, MSR66A iStone gyro receiver, battery, charger, and adapter.

SRTF-8C Version: Features a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Gavin-8C transmitter, MSR66A iStone gyro receiver, battery, charger, and adapter.

SRTF-DT9 Version: Comes with a PNP kit, Detrum motors, TomCat Skylord ESCs, servos, Blitz-DT9 transmitter (programming & telemetry), SR86A-G 8-channel gyro receiver, battery, charger, and adapter.

iStone Gyro Receiver (The receiver integrated with iStone stabilizer):

  • Six-axis gyro high-precision stabilization function, auto-recovery, one-click rescue. Incredibly accurate and greatly improves the flying experience.
  • Regarding different aircraft, the parameter and sensitivity of the gyro receiver can be programmed with a Detrum transmitter (Gavin6C/Gavin8C/Blitz DT9) directly.
  • Quick and easy setup process. If you don't want Gyro to join the flight, just choose Gyro off mode on Transmitter.

$20 Flat Rate shipping lower 48 USA only. Contact us at [email protected] to calculate international shipping cost.



: *
: *
: *


Power Board - PRO SERIES - Black (4106)

Power Board - PRO SERIES - Black (4106)











































































All NEW 4000 SERIES! *with Digital Readout and Touch-button programming.

Description:

Completely redesigned from the ground up, with these new Power Boards you are able to use 2 batteries with redundancy to avoid possible crashes from battery failure. Simply plug in your batteries with XT-60 style connectors to this Power Board Expander (Our LiFe batteries are perfect for this) and you now have 2 batteries working in tandem to supply your servos AND ignition.



These new versions offer SEVERAL new features:
1) Digital read out on all models - displaying voltage going IN and OUT of all devices (see photo)
2) LED and audible alarm for all models that you can set to warn when your system drops below a voltage of your choosing
3) TOUCH button programming to select your warning voltage
4) Wires to your RX are PRE-installed
5) Enclosed lightweight and strong plastic housing
6) XT-60 Connectors





The Power Board board electronically isolates the batteries from each other so that there is no interference possible from your ignition. It also regulates the voltage down to an ideal voltage to your RX (5v) and then is select-able to your servos (yellow and black units only - the red unit offers the same voltage as your batteries to the servos).

You can Plug in, up to 8 servos into the board (12 servos with the Black Power Board), which has 2 outputs for EACH channel, effectively DOUBLING the number of servos you can use in a plane ( a total of 16 output channels) without reducing the amperage (that a Y cable would cause).

These Power Boards also features LED lights to give you clear indication that your batteries are connected and working properly, as well as voltage etc.



They feature a mounting space in the middle to mount your RX and also include mounting hardware to mount it securely to your plane.





Watch this video for an overview of the different versions


View this video for a full explanation on how to use these power boards




Features:


Black Power Board (4106)

  • Dual battery redundancy for safer flying
  • LCD display which shows real time info of your in and out voltages
  • Built in regulator that supplies a clean 5v to your receiver
  • Integrated CDI remote cut off switch to kill your engine (OPTO KILL)
  • 8 channels in, 16 channels out (+ ignition)
  • Electronically isolated for interference free flying
  • Adjustable voltage selection to your servos via the dial on the side (from 4.8v to 9.7)
  • Ability to use High voltage servos while providing a clean 5v to your RX
  • Battery balancing (draws extremely evenly from your dual battery set up)
  • Short Circuit protection (in the unlikely event of a short it will protect from battery drain)

    (input voltage MUST be between 6-13v. A 4S Life would be ideal)



Specs:

Black Power Board (4106)

  • Input Voltage: 6-13v
  • Working load: 0A to 30A
  • Weight: 4.5 oz.
  • Dimensions: 4.5"x2.5"x5/8"
  • Working Temperature: -20c to -85c



Recommended Set ups: Use the Black Power Board for 50cc to 100cc or bigger.

PB-4106

$169.00

Spot On Single Fuel Dot (Magnet Style)

High Quality Single Fuel Dot (Magnet Style)

Available in Black or Silver.

SPO-FDSG-

$23.30

MKS-X6 Metal 3.5" Rudder Arm

MKS-X6 Metal 3.5" Rudder Arm

X6 Long Metal rudder horn. 3.5" long.
This horn is for the 6mm 25 tooth Spline.
HV777, HBL599, HBL575, HBL575SL, HV747, HV737, HV9767, HV1220-50, DS1220-50

MKS-2025-3

$24.50
