Tamiya 1/14 RC Mercedes Benz Arocs 4151 8x4 Tipper Truck Kit

Ask a question about this product

Printable version

Options

Market Price: $1240.00

Our Price:

$868.00

You Save

30%

Quantity (1)

Details


Availability	1 in stock
Weight	10.00 lbs
SKU	TAM56366

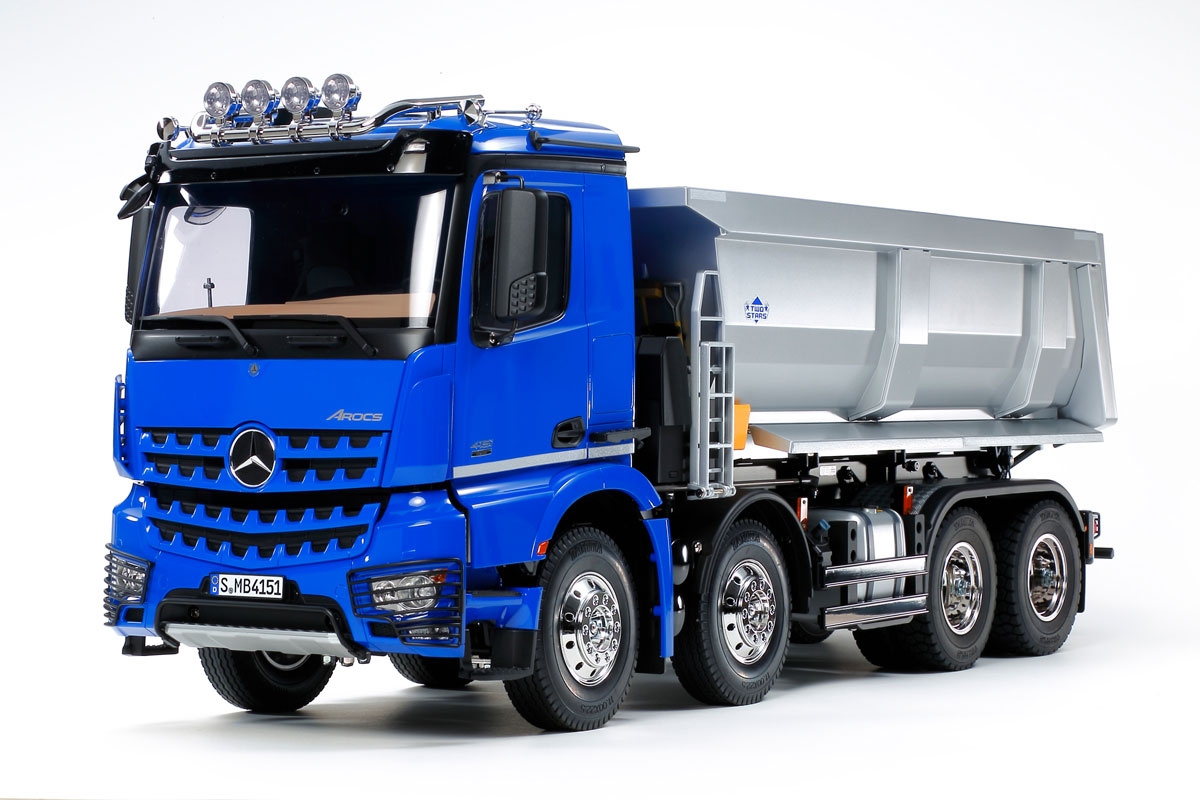

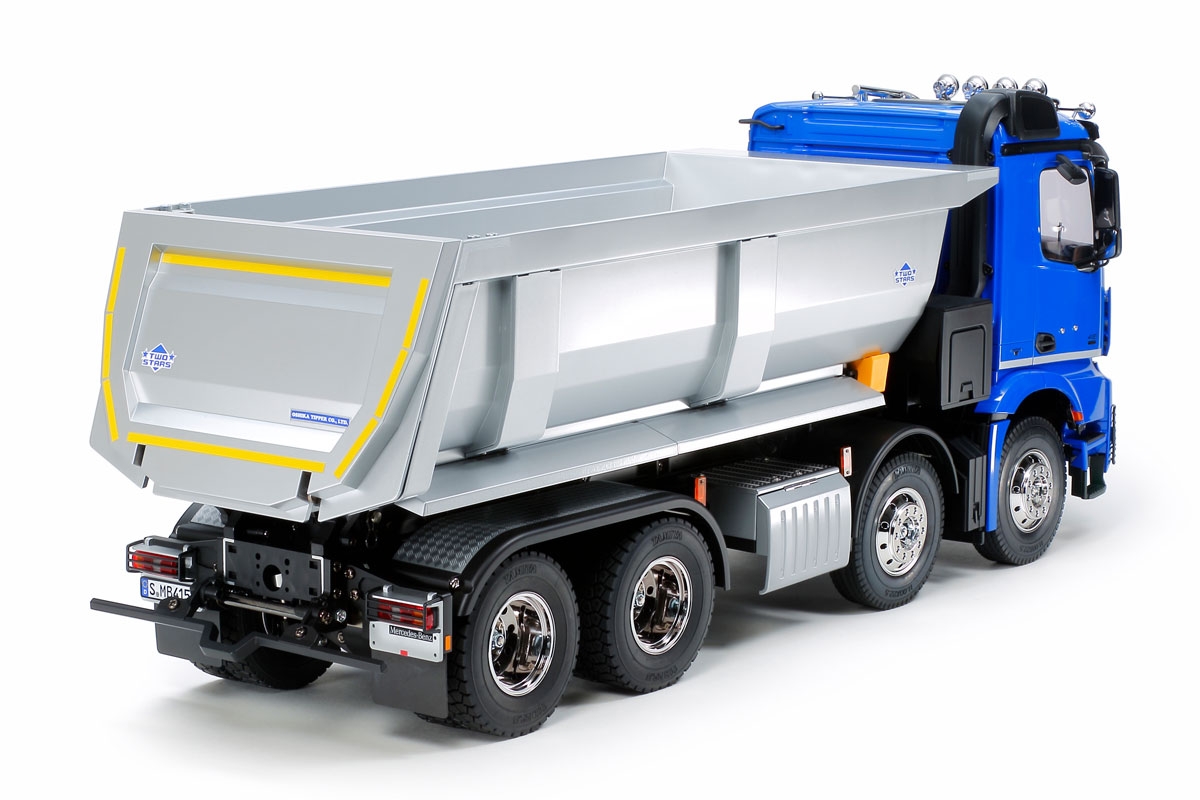

Tamiya 1/14 RC Mercedes Benz Arocs 4151 8x4 Tipper Truck Kit

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck in the 8x4 configuration. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set (Item 56545)!

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction shock-dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A separately sold 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately)

Requires:
Tamiya Attack 4-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya TS spray paint.

Features:

The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details. Separate parts recreate side mirrors and visor, etc.
Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles.
Features a truck bed section comprised of metal subframe for superb durability.
Install the separately sold Actuator Set (Item 56545) for realistic truck bed motion.
TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed.
The battery case is located over the second axle, which allows access even when there are loads in the bed.
The roof features a depiction of light pods on the visor, which can be fitted with LEDs for a realistic finish.
3-speed transmission can be controlled via a separately sold 4ch R/C transmitter.
Metal leaf spring dampers with built-in coil springs provide durable suspension.
Use with separately-sold MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic lights and sounds.
1/14 scale R/C model assembly kit. Length: 667mm, Width: 196mm, height: 268mm.

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
Speed:
- .13 sec at 4.8V
- .11 sec at 6V
Voltage: 4.8V - 6V
Weight: 2 oz (59g)
Size: 40x20x39mm
Gear Style: Futaba Arms
Modulation: Coreless Digital
Gear Type: Titanium
Weight: 2oz (59g)
Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

Titanium Gears
Waterproof
Coreless
Digital
High Torque/High Speed
Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

X-4013

$42.50 42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$279.99 279.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
