Multi-Switch (Dual Battery Redundancy switch with Fail-Safe Tech)

If you want a switch that offers complete dual battery balancing and redundancy with an ultra-small footprint for your scale model then look no further. The new Booma RC intelligent redundant battery balancing switch is the answer.

This switch works with any single or dual battery system. Works with battery chemistry and voltage range from 2.5v to 28v. It comes with a Pin Flag and Ultra Bright Blue LED which can be mounted discretely on your scale model. The Pin Flag controls the internally mounted switch and battery redundancy circuit. The result - beautiful scale appearance with dual battery redundancy peace of mind.

This new balancing technology offers zero voltage drop battery balancing and redundancy which means it can handle huge loads without generating heat. This also means your receiver and servos get all the power unlike conventional battery balancing which loses precious power as heat.

Package Includes:

• 1 x Pin Flag Switch with mounting hardware.

• 1 x Ultra Bright Blue LED with mounting hardware.

• 1 x Dual Battery Balancing power switch circuit.

• 2 x sets of Input and Output JR connectors.

Specs:

• Ultra low foot print for the best scale looks.

• Works with single or dual battery configuration.

• Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD. Battery voltage range can be from 2.5volts to 28 volts.

• Capable of handling input voltages up to 28volts.

•  Minimal external footprint - All you see on the outside of your model is a 3mm Pin Flag socket and (if required) an ultra-high bright Blue LED. The Pin Flag controls the internal power switch and dual battery redundancy.

• Full Dual Battery Redundancy - If one battery fails the other battery takes full control.

•  Maximum Battery Power Balancing - In a dual battery system HS1 draws current proportionally from both batteries while moving both batteries to a complete load balance situation. This means you get the maximum capacity out of both batteries all the time.

• 2 x 25 amp independent circuits. HS1 is 2 x 25amp circuits into a high power matching battery redundancy circuit. HS1 actually uses 4 x 50 amp rated FET circuits for battery power matching. We passively rate HS1 at 25amps per circuit.

TEMPORARILY BACK ORDERED. Add to cart to PRE ORDER and we will ship ASAP. Email us for updated estimated ship date.

Lemon RX DSMX/DSM2 Compatible 6-Channel Receiver /Top-Pin

Description:

Lemon Rx DSMX Compatible 6-Channel Receiver with Diversity Antenna

How dual antennas work

An independent processor monitors an incoming signal and choose the appropriate antenna for reception. This allows 2 different location for installing the antennas along with different orientation. Satellite is no longer needed for receiver diversity. This greatly reduces weight with increased overall reliability in comparison to the use of a primary receiver with satellite receiver.

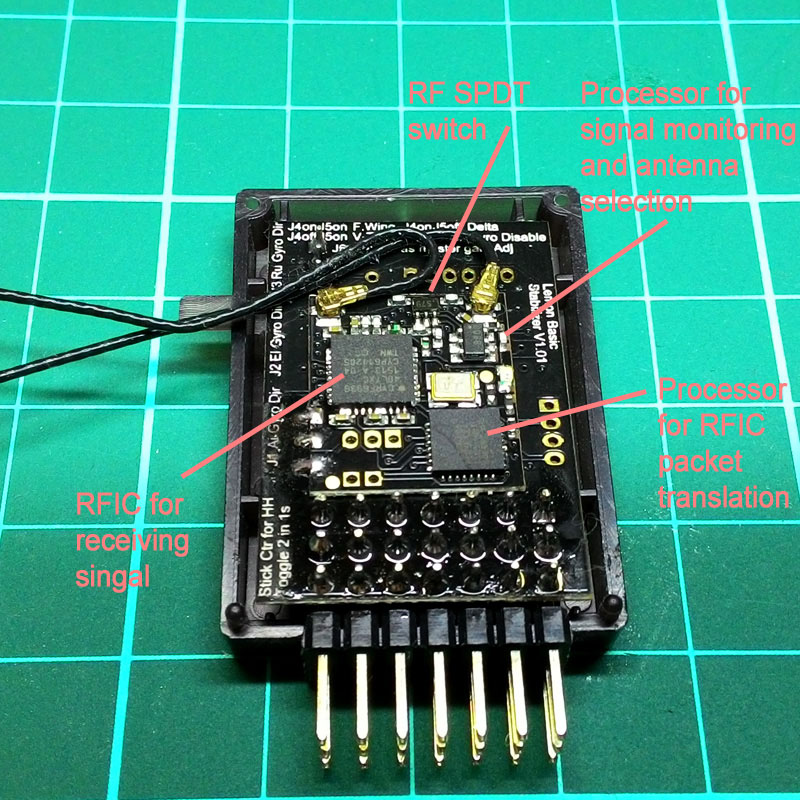

Photo showing below is the diversity receiver for end-pin stabilizer. The same diversity receiver is also used in this product.

Highlight
- True diversity dual antennas with independent processor for monitoring singal on both antennas
- Antennas extended for carbon fuselage / metalic structure installation
- FailSafe for all channels via press of a button
- DSMX Satellite port

Understanding the receiver (Showing DSMX 6-channel non-diversity receiver)

Binding Setup

1. Plug bind plug to the receiver.
2. Provide power to the unit. LED flashes quickly.
3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
4. Remove bind plug.

Failsafe Enable (Video showing 10-Channel receiver)

1. Plug bind plug to the receiver.
2. Provide power to the unit.
3. Plug the side pushbutton for memorize current position in Failsafe mode.
4. Green light will turn on at the bottom of the receiver to indicate Failsafe is successfully enabled.
5. Remove bind plug.



Failsafe Disable (Video showing 10-Channel receiver)

1. Rebind the receiver without pressing the side pushbutton will disable the Failsafe mode.
2. Green light off indicates Failsafe disabled.

ESC (10A 20A 30A 40A) E-Power for RC Electric Airplane, Heli or Drone Models

Overview

The new Dualsky XC-45-LITE speed control is economically priced and perfect for 2-3S LiPO powered aircraft. The Dualsky XC-45-LITE speed control is compatible with the Dualsky ProgCard V2 and has a burst rating of 60A. The BEC is rated at 5.2V 3A and will punch this out all day unlike other low priced speed controls.

This ESC works well with the Dualsky XM 3542, 950KV motor

Specifications

• Dimensions: 67x 25x 7mm(L x W x D)
• Weight: 38g (with wires)
• Number of Cell:
  • LiPo 2-3s, 7.4-11.1V
• Resistance(Ri)(Ohm): 0.0026
• Max Cont.  Current & Max Cont.Output: 45A, 500W
• Max Burst Current & Max Burst Output: 60A, 666W
• BEC / Dissipative Power: 5.2V/3A (Linear)
• Programmable: Throttle + ProgCARD V2
• Signal Wire: 300MM JR
