Vintage Stick X4 (4ch) Micro RTF Airplane with Ailerons and PASS (Pilot Assist Stability Software) System (Scratch and Dent)

Ask a question about this product

Printable version

Options

Market Price: $179.99

Our Price:

$125.00

You Save

31%

Quantity (4)

Details


Availability	4 in stock
Weight	5.00 lbs
SKU	RGRA1119SD

Vintage Stick X4 Micro RTF Airplane with PASS (Pilot Assist Stability Software) System--Minor Box Damage additional 10% off ($14 savings)

With the new Rage RC Vintage Stick X4, X stands for X-treme. With the addition of ailerons for 4-channel control and two 7mm coreless motors providing outstanding thrust, the X4 is an aerobatic sport flyer that's capable of flying nearly any stunt that comes to mind. Even better, the ultralight wing load from the original stick design gives this new version a wide flight performance envelope that's capable of maneuvers from lazy figure 8's to loops, spins, barrel rolls, and inverted flight! The lightweight (54g with battery) construction and high capacity 400mAh flight battery combine to not only deliver plenty of power for aerobatics, but flight times of up to 10 minutes. This classic-looking aircraft includes the Rage RC PASS system so that the capabilities of the airplane grow as your flying skills increase.

The RTF (Ready-to-Fly) version of the Vintage Stick X4 features a factory-applied vintage WWI-style trim scheme in hi-vis red with everything required to fly in the box; including a 2.4GHz 5-channel capable transmitter, a 400mAh 35C 1s LiPo flight battery and USB charger. The only additional items required for flight are four AA batteries for the transmitter. Your new X4 will have you flying any maneuver you wish at your local park or gymnasium within minutes of opening the box!

Key Features:

Ultralight wing loading
Aileron, Rudder, Elevator and Throttle Control.
Compact 440mm wingspan allows for easy transportation and storage.
Durable and lightweight carbon fiber fuselage and frame.
2.4GHz Onboard Control System with integrated servos, receiver, and ESC
2.4GHz transmitter provides interference-free link between pilot and aircraft
Includes 400mAh Lipo battery for flight times up to 10 minutes.

Specifications:

Wingspan: 17 1/4" (440mm)
Length: 14 3/4" (374.7mm)
Wing Area: 75 sq.in. (4.84 dm/sq)
Weight with Battery: 1.9 oz. (54g)
Battery: 1S 3.7v 400mAh 35C LiPo

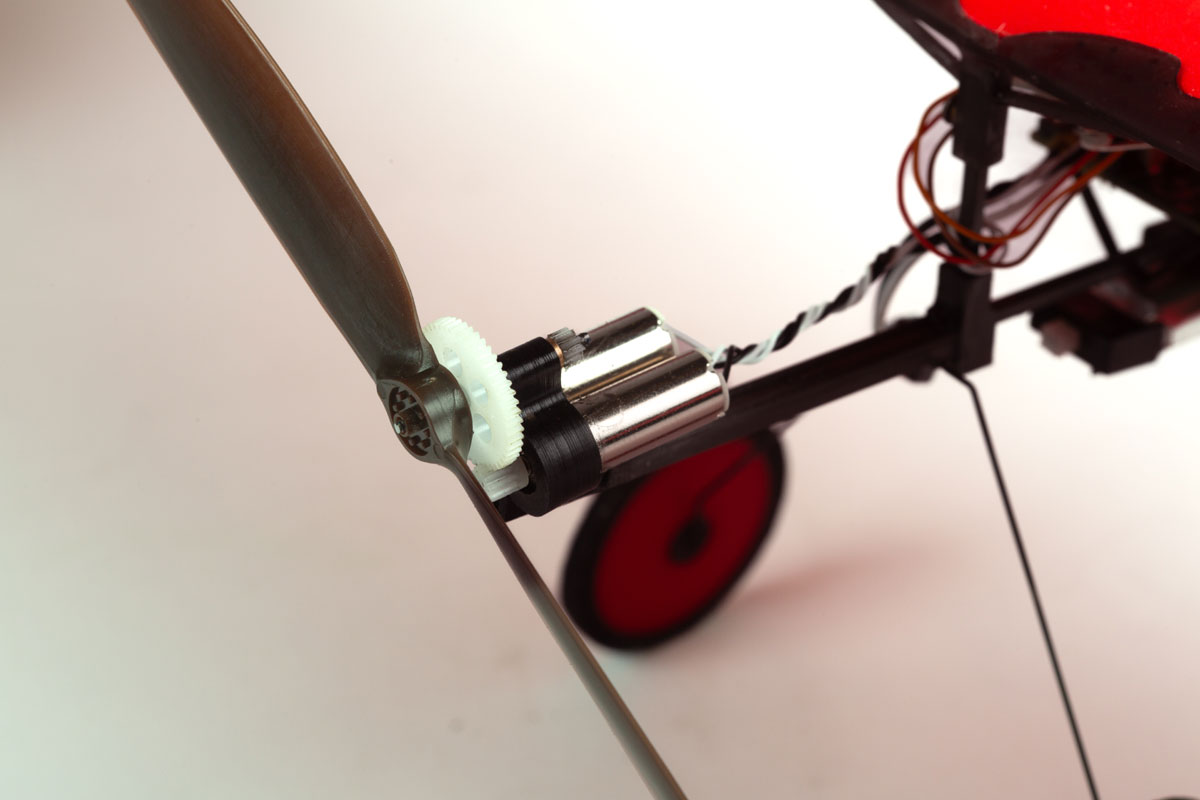

Motors: 7mm Coreless (2)
Transmitter: 5-channel capable, 2.4GHz system
Airplane Control: 4-Channels - throttle, rudder, elevator, and ailerons
On-Board Electronics: Combo RX/ESC with integrated servos and 2.5g aileron servo
PASS flight assist software

$20 Flat rate shipping lower 48 only. Contact us at [email protected] to calculate international shipping cost.

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
Speed:
- .13 sec at 4.8V
- .11 sec at 6V
Voltage: 4.8V - 6V
Weight: 2 oz (59g)
Size: 40x20x39mm
Gear Style: Futaba Arms
Modulation: Coreless Digital
Gear Type: Titanium
Weight: 2oz (59g)
Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

Titanium Gears
Waterproof
Coreless
Digital
High Torque/High Speed
Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

X-4013

$42.50 42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)
