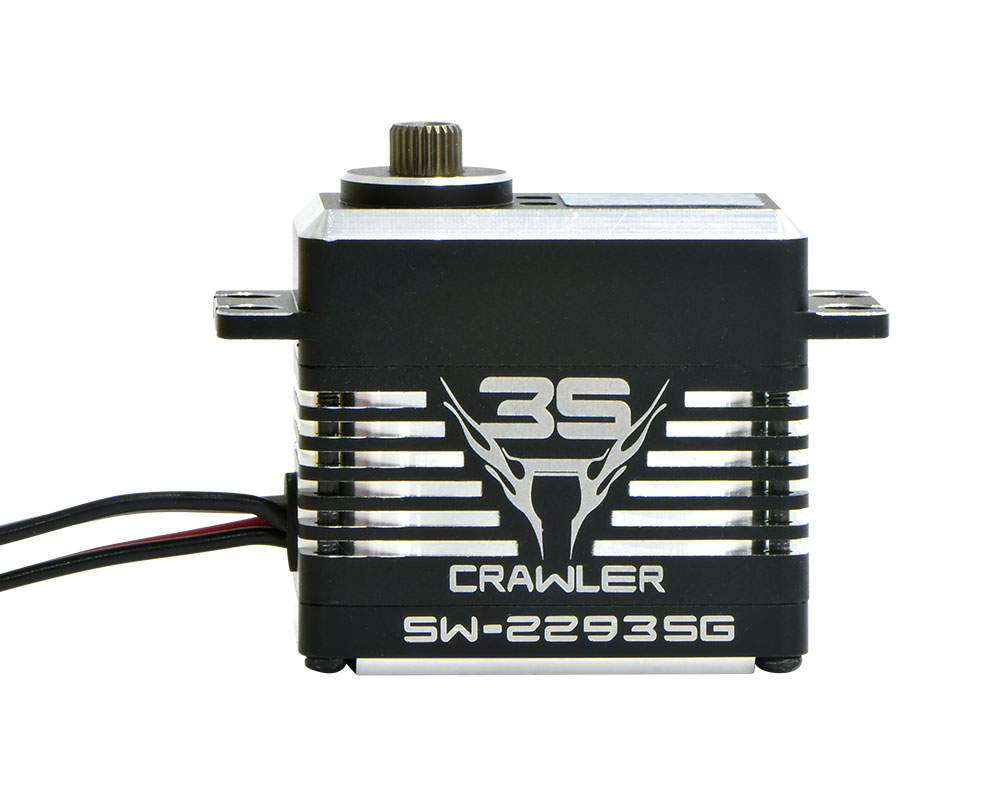

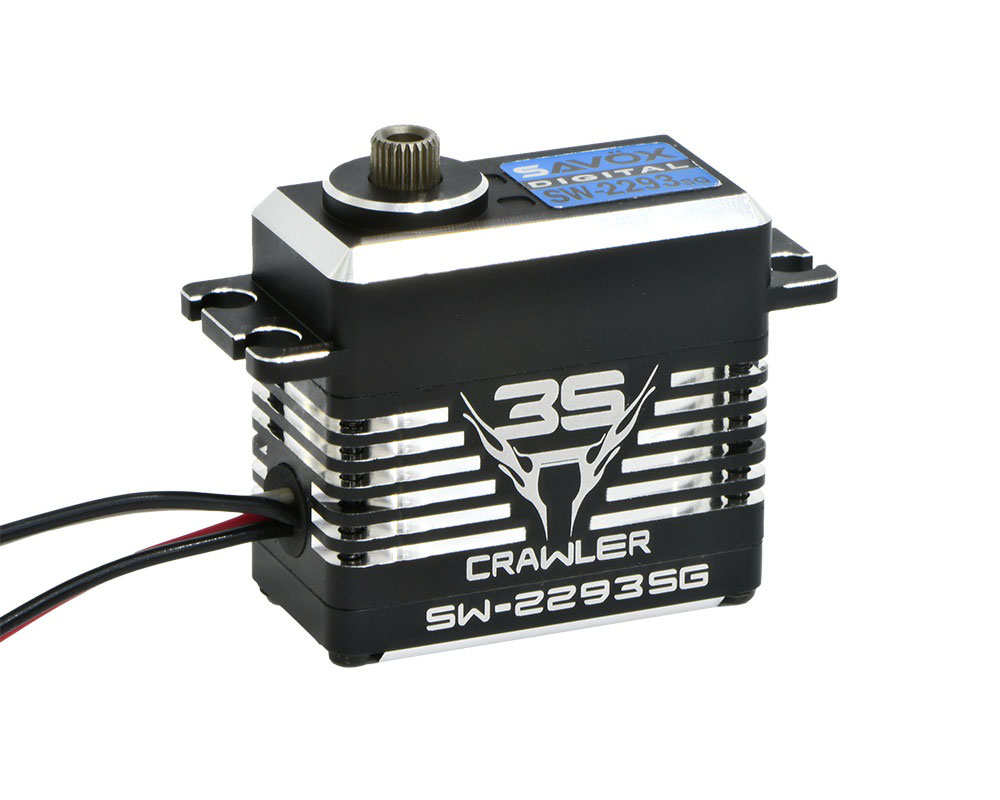

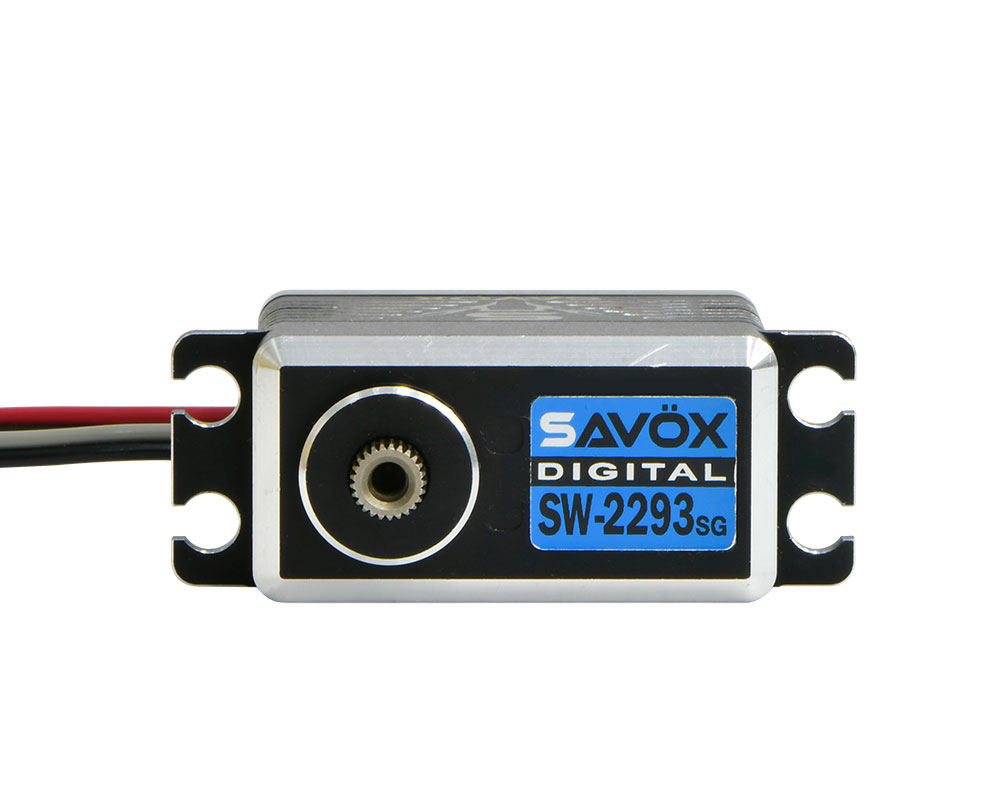

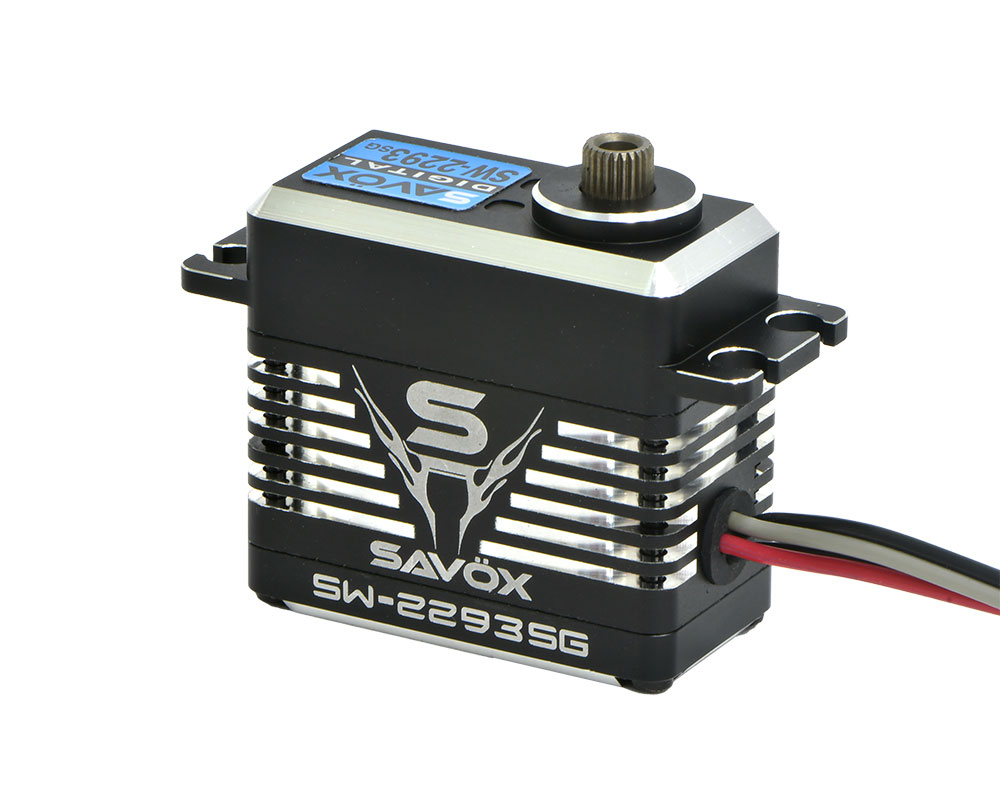

Savox SW-2293SG Waterproof, Mega High Torque, 3S Direct Power HV Brushless Servo, 0.11sec/1041.5 oz/in @ 12.6V

3S Direct Power High Voltage Brushless, Waterproof Servo 0.11sec/1041.5oz

When the trail gets brutal or the bashing gets wild, the SW-2294SG steps up. Built for high-torque demands and extreme conditions, this servo delivers relentless power and lightning-fast response. Whether you're tackling vertical rock faces or sending your rig off sketchy jumps, the SW-2294SG keeps you in control. This beast of a servo delivers the torque and toughness your rig deserves.

Direct powered servos reduce voltage drop through the ESC's BEC, delivering stronger torque and faster response consistently, especially under load. They are ideal for demanding applications like crawlers, monster trucks, and heavier models.

Many internal BECs in ESCs max out at 3-5 amps. Direct-powered servos can pull 10A+ without issue, so they won't brown out under hard loads (e.g. wedging a crawler tire or landing off-camber at high speed).

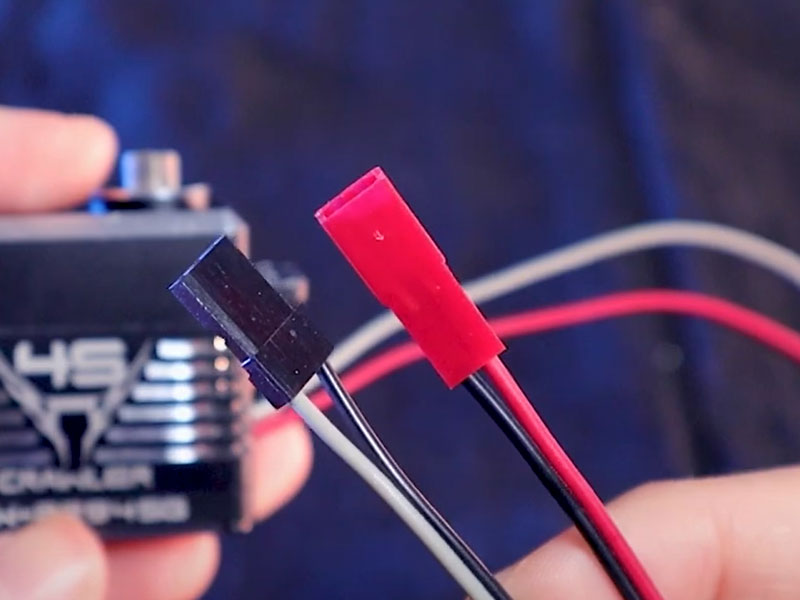

The direct power lead features a common JST connector.

Features:

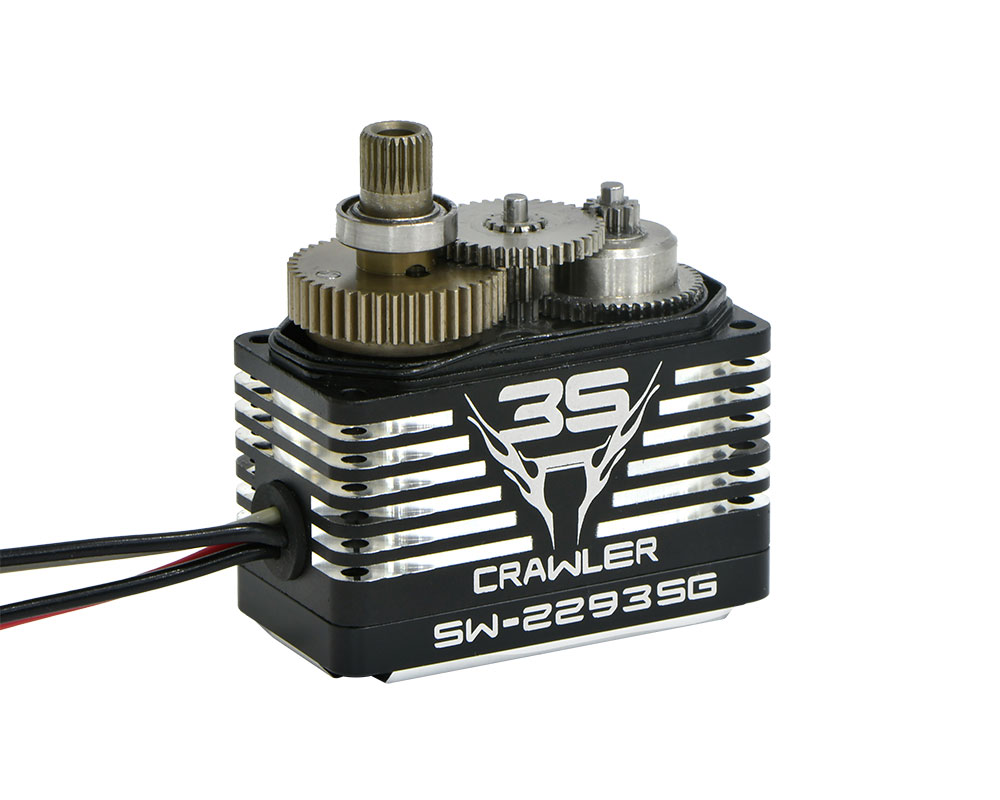

  • Extremely strong unique steel gears ensure long-life and durability.
  • Brushless motor for smooth operation and efficiency.
  • Ideal for rock crawlers, monster trucks, and control surfaces for giant scale aircraft.
  • Motor - Brushless
  • Gears - Steel
  • Case - CNC Aluminum
  • Bearings - Triple
  • Waterproof - IP67

Specifications:

  • Torque @ 12.6V - 1041.5 oz-in
  • Speed @ 12.6V - 0.11 sec/60

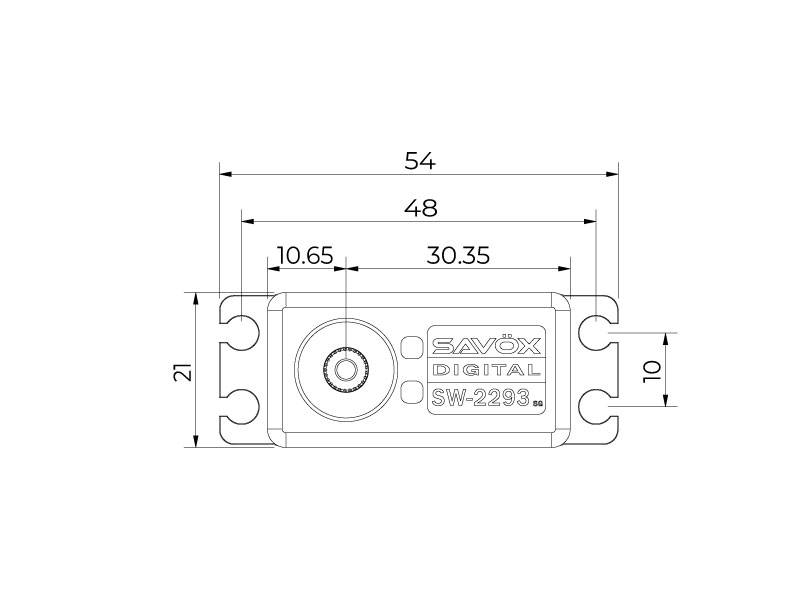

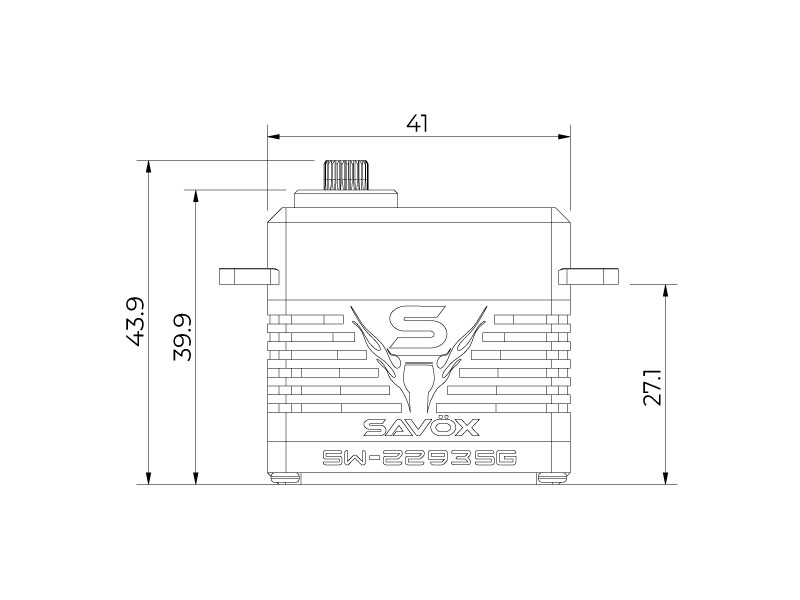

  • Dimensions - 41.0 x 21.0 x 39.9 mm
  • Weight - 90g








: *
: *
: *
