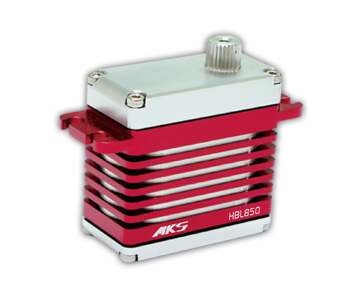

MKS HBL850

MKS HBL850

Description:

The MKS HBL850 is a high quality Digital "Brushless" Servo with all aluminum casing and metal gears. The heat sink on the outside of this servo is very helpful for dissipating the heat and keeping your system cool.

NOTE: This high torque servo uses a large 8mm output shaft. Traditional servo arms will not fit.

New and Improved Technology!

Why choose brushless servos? They have many benefits, one being that they only use the power necessary to get the job done. If the servo encounters resistance then more power is given, if it senses less resistance then less power is given. With brush servos, full power is used no matter what the situation.

Specs:

• Torque:
  • 252.75 oz/in at 6V (18.2 kg/cm)
  • 312.47 oz/in at 7.4V (22.5 kg/cm)
  • 345.80 oz/in at 8.4V (24.9 kg/cm)

• Speed:
  • .1 sec at 6V
  • .079 sec at 7.4V
  • .071 sec at 8.4V

• Voltage: 4.8V to 8.4V
• Weight: 2.57 oz (73g)
• Size:1.39 x .59 x 1.12 in (35.5 x 15.0 x 28.5 mm)

• Operating Temp- -10~60centigrade
• Working Frequency - 1520μs / 333hz
• Dead Band- 0.0008ms
• 29.5 cm connector wire
• BRUSHLESS Motor
• Indirect Potentiometer Drive
• Double ball bearings
• All Aluminum casing
• Chrome-Titanium alloy gears
