SR 22 - White

Contact UsCustomer Reviews

SR 22 - White

SR 22 - White
SR 22 - White
Our Price:

$229.00


Quantity

OUT OF STOCK


Availability No items available
Weight 5.00 lbs
SKU DY8936-WHITE

Description:

*Free shipping is for continental US only

RedwingRC Plug-and-Play aircraft!

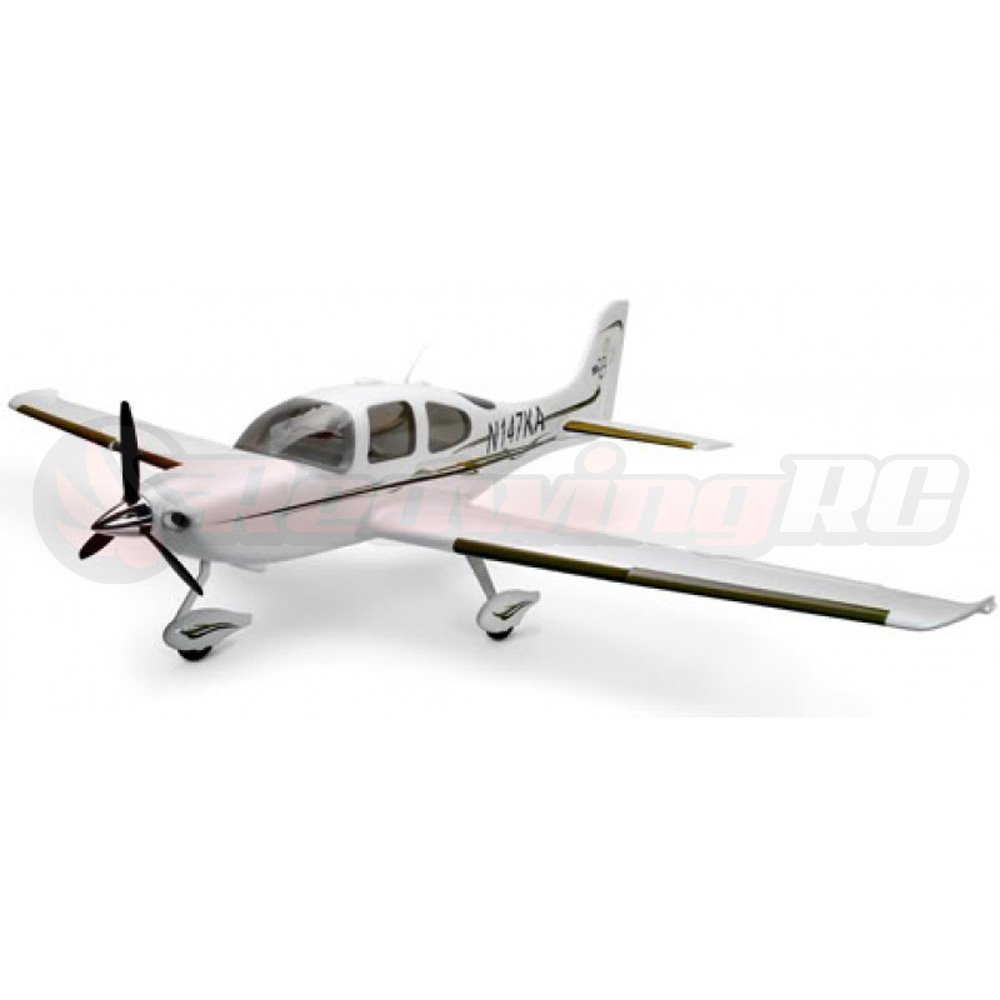

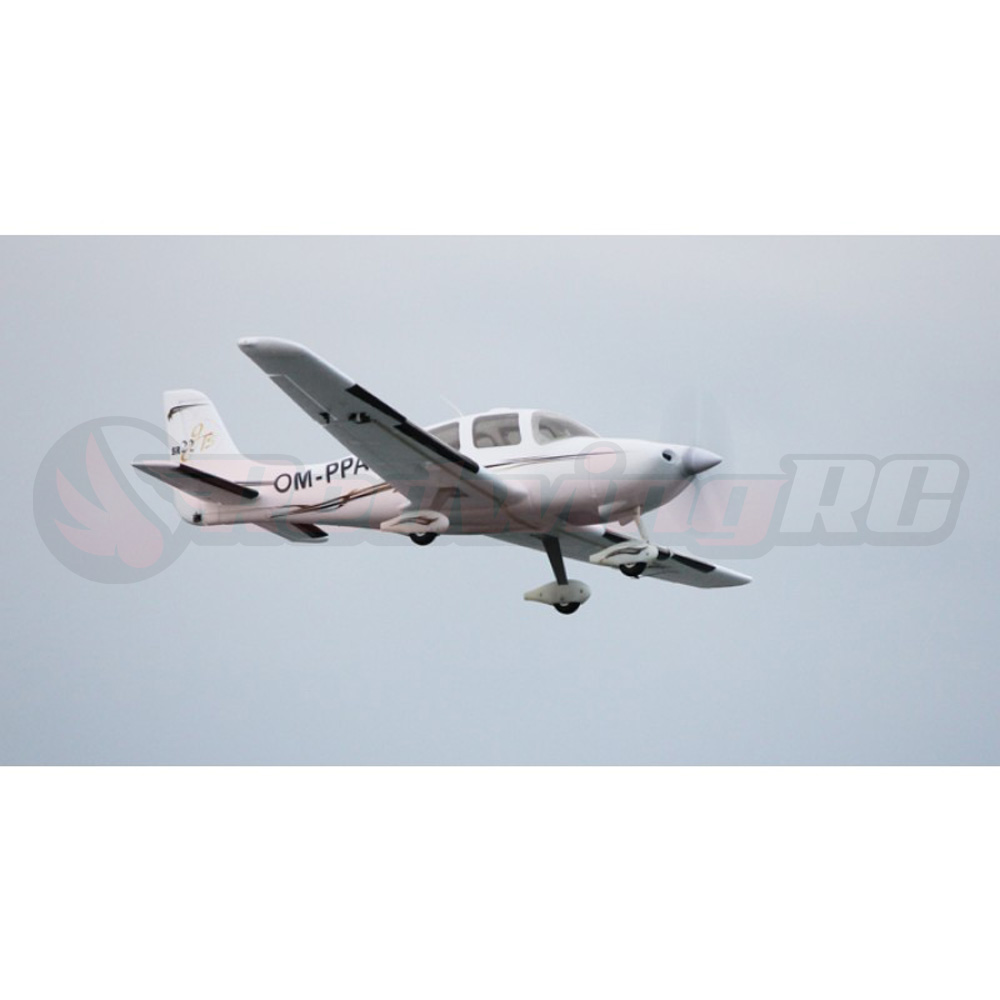

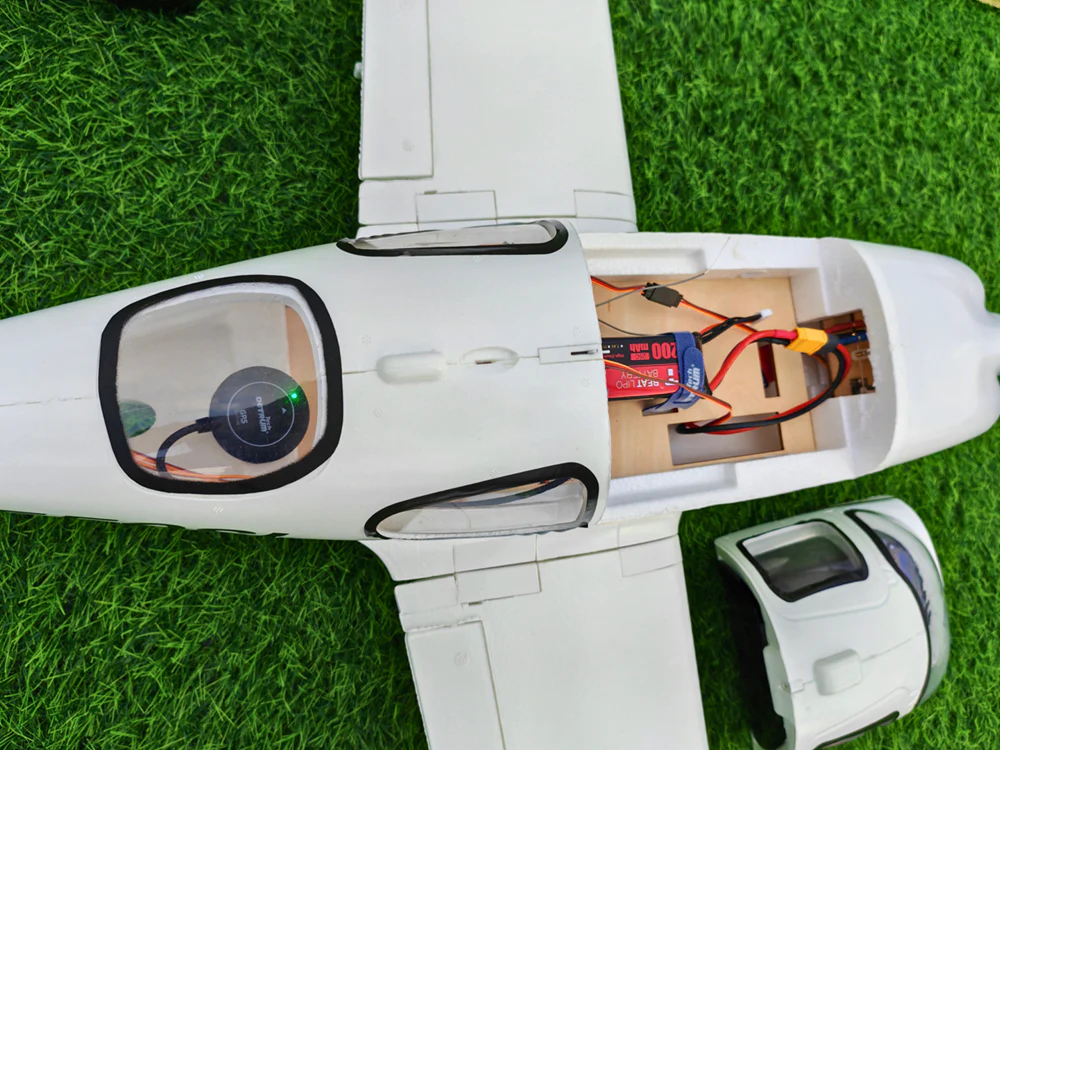

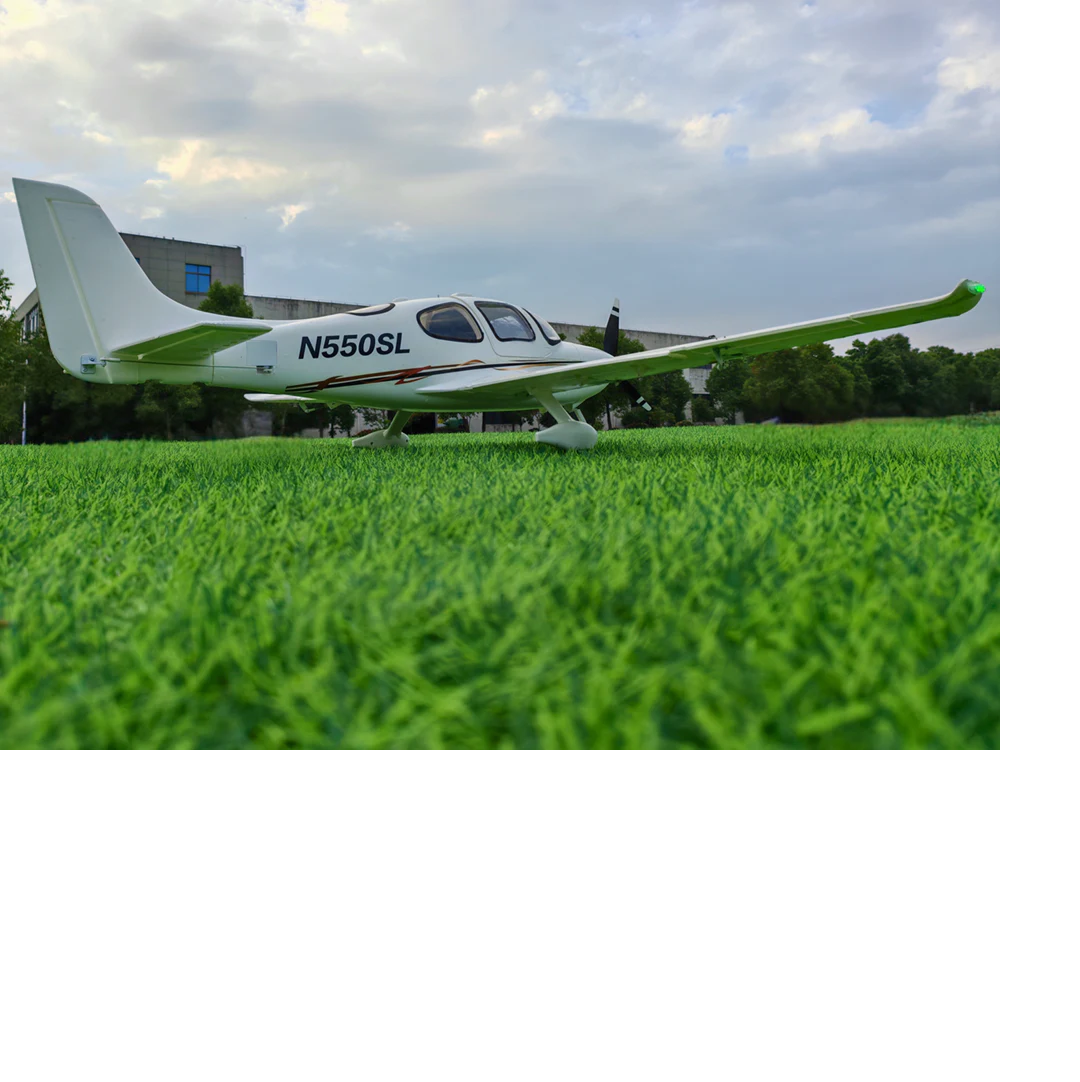

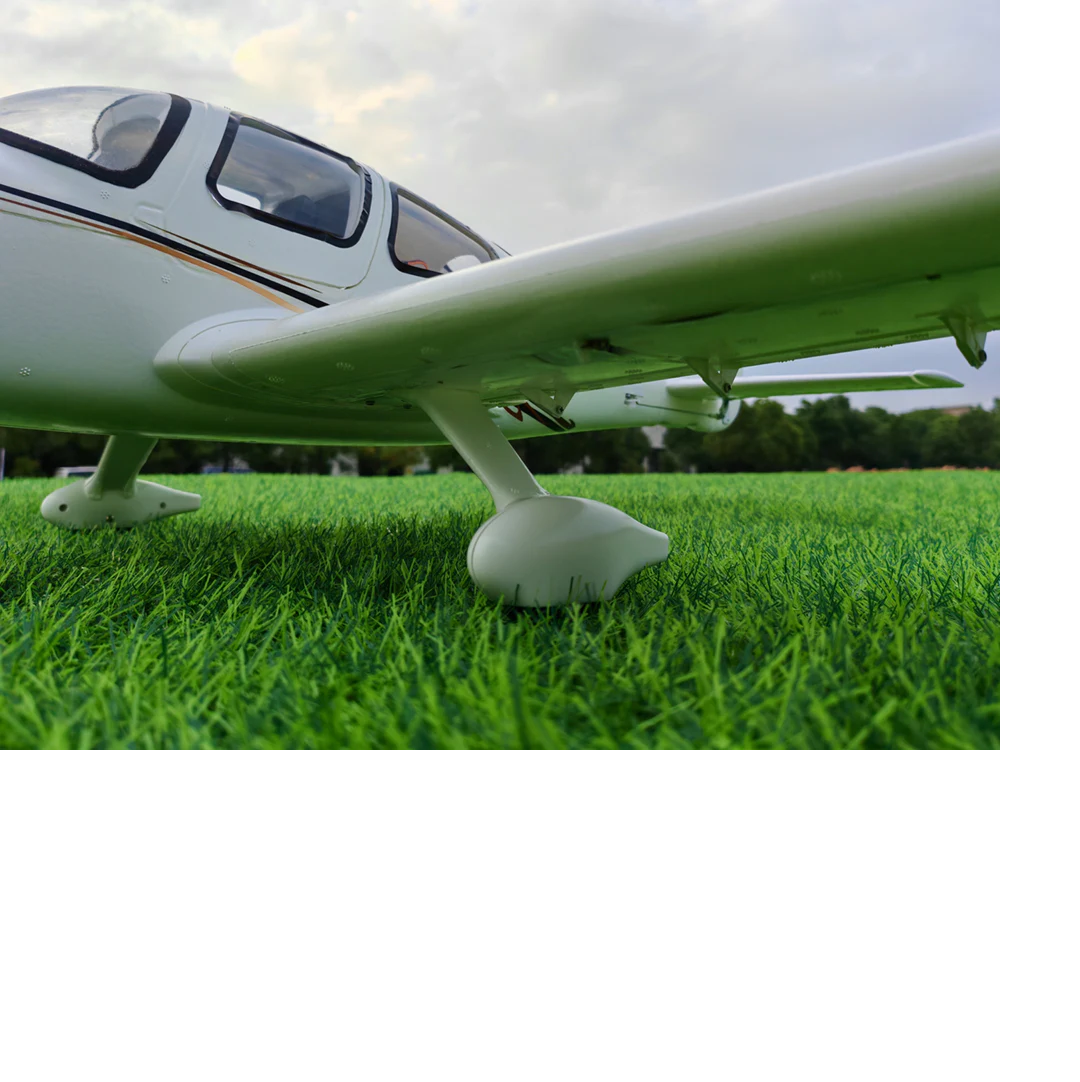

The Dynam SR-22 is an impressive single engine aircraft that has a very aerodynamic design. At 1:12 scale of the SR-22, the Dynam SR-22 is constructed by crash resistant EPO foam. No need to wonder about power- this plane is equipped with a 1000 kv brushless motor and a 30A ESC. Add a 3S 2200mAh Lipo battery and you are ready to go! The high aspect-ratio wings makes this airplane very stable with good glide capability. All servos, receiver, Brushless Motor and ESC are pre installed from the factory.



Key Features:



Specifications:

Wingspan: 55.1 in (1400mm)
Overall Length: 40 in (1016mm)
Flying Weight: 31.04 oz (880 g) w/Battery
Motor Size: 480 size (1000kv) outrunner brushless motors (installed)
Propeller: 13 x 7 x 3 (3 bladed)
Radio / Transmitter: 5 Channel (NOT INCLUDED)
Receiver 4+ channel (not included)
Servos: 4 x 9g Servos installed
Speed Control : Dynam Pro 30A Brushless with Switch-Mode BEC (installed)
Battery: 11.1V 2200 mah 20C LiPo (Not Included)
Charger:
Flight Times: Average (6-12 mins)
Assembly Time: 45min




$20 Flat Rate shipping lower 48 USA only. Contact us at [email protected] to calculate international shipping cost.




SR 22 - White

SR 22 - White

: *
: *
: *


DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$249.99

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$399.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
