2.5 Gallon Smoke with DLE Hand Pump (Can be used for Gas, Kero or Diesel)

Contact UsCustomer Reviews

2.5 Gallon Smoke with DLE Hand Pump (Can be used for Gas, Kero or Diesel)

Our Price:

$179.95


Quantity (1)

Availability 1 in stock
Weight 6.80 lbs
SKU JMR-2.5SKD

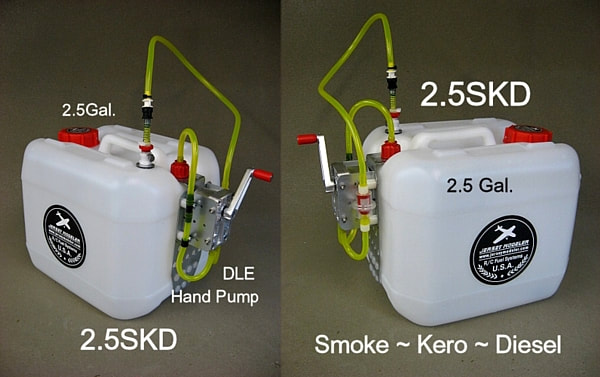

2.5 Gallon Smoke with DLE Hand Pump (Fuel system can also be used for Gas, Kero or Diesel)

Features high quality DLE High Flow hand pump, fuel probe filler and return line to return fuel to fuel tank with no waste or spill. Inline fuel filter traps contaminants before introduced to plane's fuel system! Systems come with hand or electric pumps depending on model and are fully assembled.

Comes with:

  • 3/16" x 5/16" Tygon Tubing
  • Over-Flow Return Line
  • Refueling Port and Tethered Plug
  • In-Line Fuel Filter
  • High Flow pump

: *
: *
: *


Adjustable Push Rods (Turnbuckle)

$3.95 to $5.95

Description:
Our replacement adjustable push rods are as good as any out there at even better prices. Very similar to Hangar 9's Pro-Links, our adjustable push rods offer the ultimate in strength and security with the added bonus of ease of adjustability and ultra-light weight.

Our Pro-Links have a 4-40 right-hand thread on one side and a 4-40 left-hand thread on the other (turnbuckle). A machined hex in the middle (4mm / 5/32") allows you to make very fine length adjustments without removing the linkage from the servo arm or control horn.

They are also very lightweight, a 110mm (approx. 4.5") linkage weighs just 8 grams but has the strength to lift over 500 pounds. Pro-Links are ideal for any other 4-40 molded ball link or control horn and are available in a variety of sizes. We also have a machined-aluminum wrench that's perfect for making adjustments.


Sizes:

Metric Approx. US Standard
Non Threaded Length Entire Rod Including Threads Non Threaded Length Entire Rod Including Threads
20mm
45mm
0.79"
1.78"
30mm
55mm
1.18"
2.17"
40mm
65mm
1.57"
2.56"
80mm
110mm
3.15"
4.33"
110mm
140mm
4.33"
5.51"

(Sizes are approximate and can vary between rod length and threads as these are meant to be ADJUSTABLE)


SOLD IN PAIRS


SS-PR

$4.99

Muffler Extensions, Exhaust Tubes (Fits DLE and other engines)





DLE Muffler Extensions

Description:

Choose from 5 sizes!

These extensions fit over the exhaust exits on your DLE muffler. Below are some size dimensions and the muffler that each will fit. It is still a good idea to measure the exits on your muffler.

FORMAT: LxW (width is inside diameter)

A: 63x15 mm : DLE 20RA

B: 64x17 mm : DLE 35RA/40

C: 78x20 mm : DLE 55RA

D: 96x25 mm : DLE 55, DLE 111, DLE 120

E: 121x31 mm : DLE 61, DLE 85

*Sold individually- if you have a twin engine, you will need two extensions

*Each Hose extension comes with a metal clamp to tightly secure it to the muffler.



DLParts-

$6.99

Wheel Pants (20cc-80cc)

Replacement wheel pants for our 30cc & 50cc planes. These work for both the sizes of planes. Please select color choice.
Sold in pairs.Please select color choice. Stock is limitied to the Silver Green and Black or Silver Orange and Black pants but at these prices pilots are buying spare pairs and painting them!
Sold in pairs.

wheel Pants

$19.99
