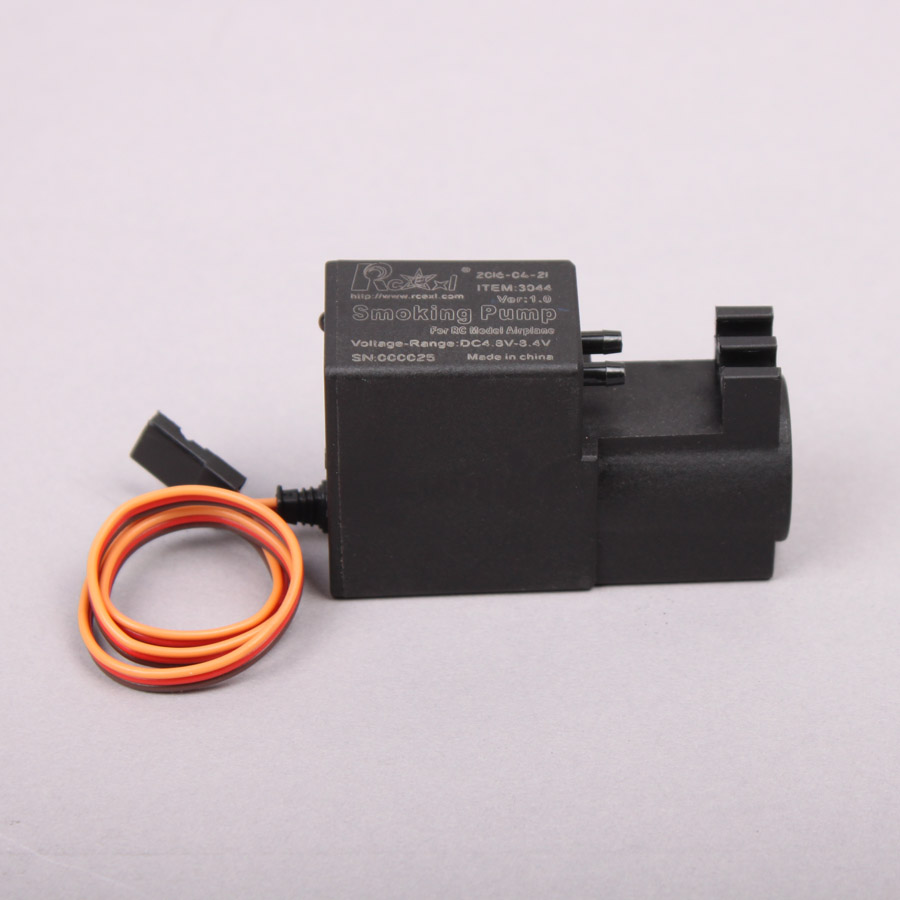

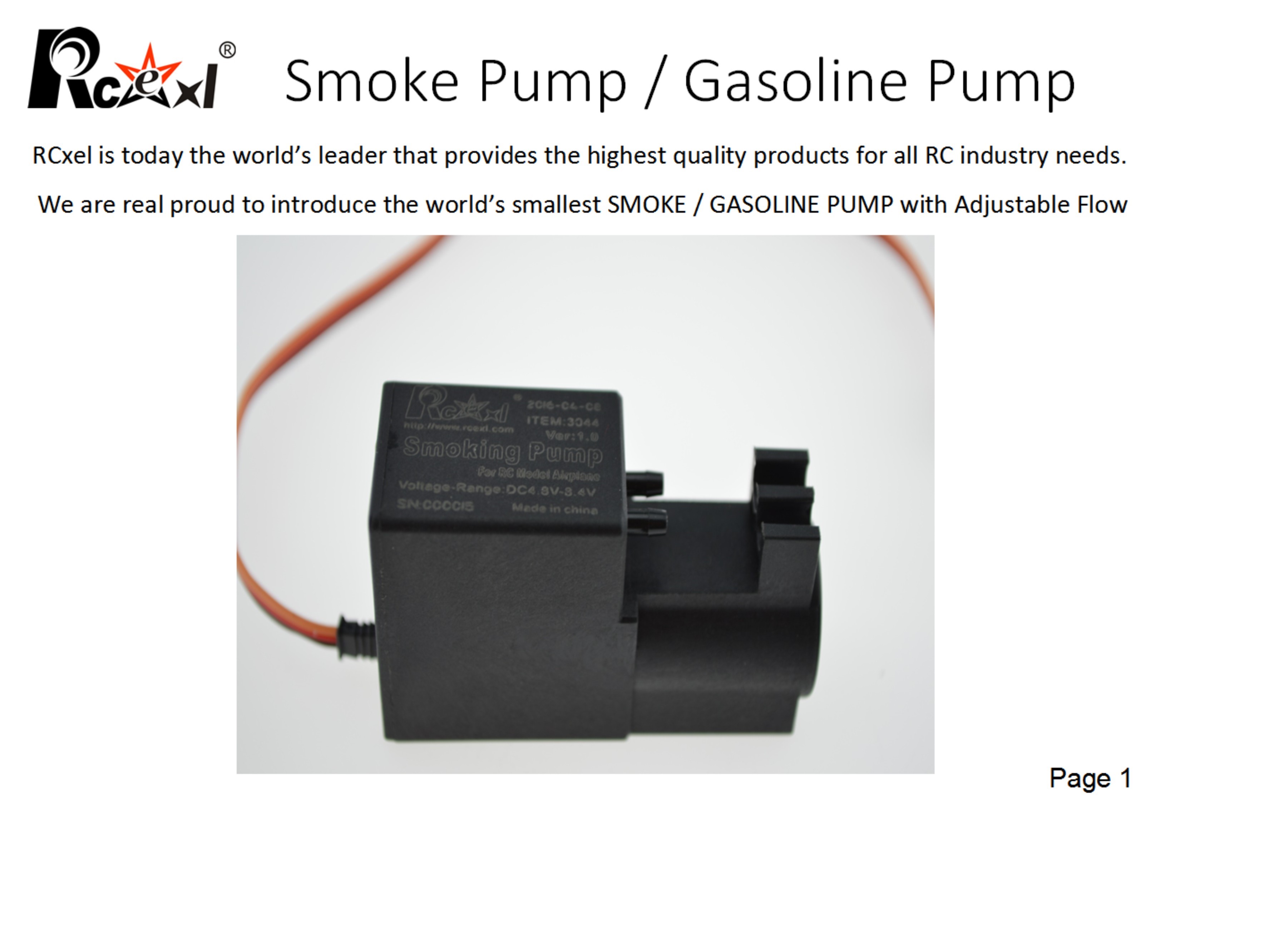

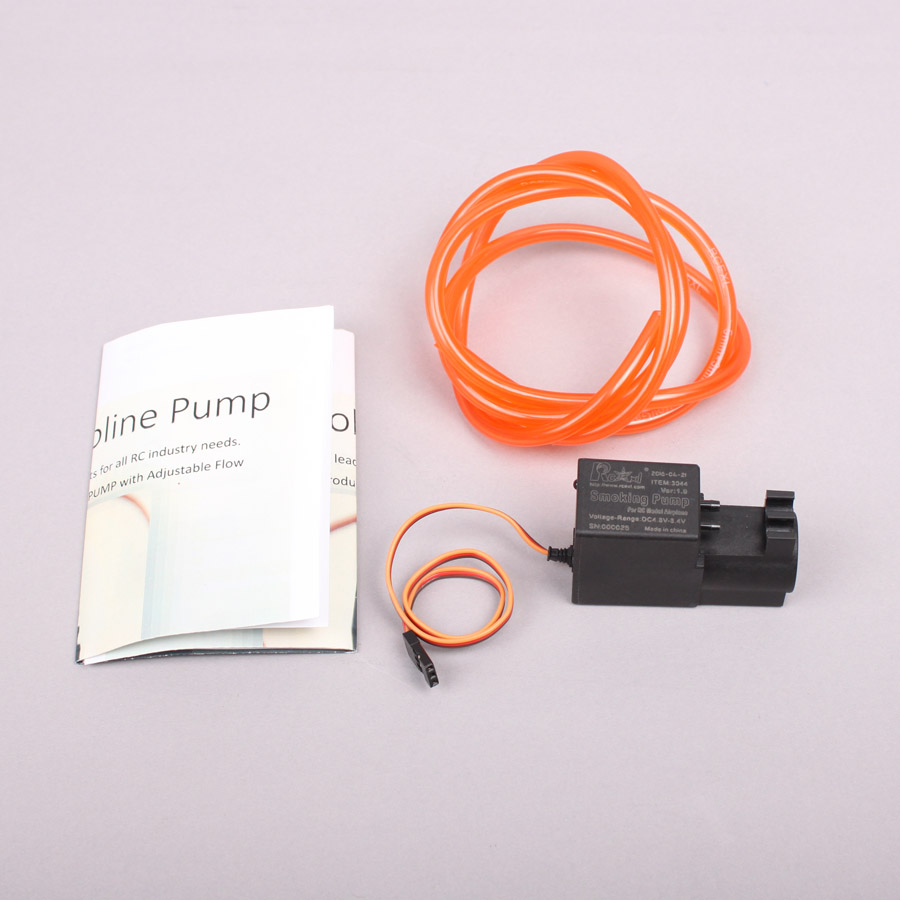

Introducing the Pro Smoke Pump System! These light weight pumps are a simple design and economical way to enter the world of smoke aerobatics.

-All new diaphragm pump provides optimized smoke/gasoline ratio controlled in a reasonable range for sufficient atomization.
-Adopting low power motor, the smoke pump can be directly powered by receiver. No need for extra batteries. The pump weighs only 85g.
-Directly driven mode, no need of complicated program settings, just need 1 channel for controlling.

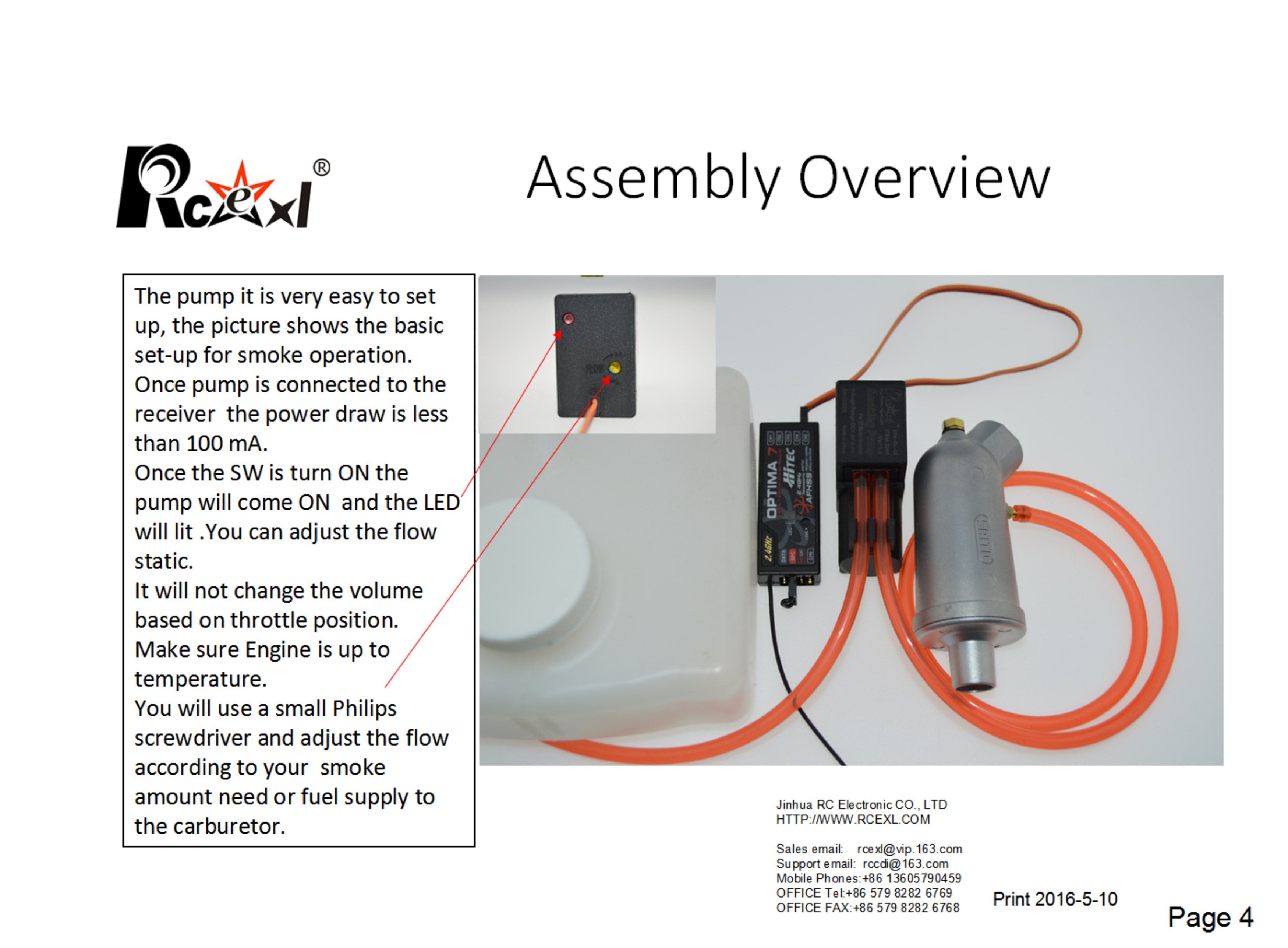

Basic Set up:

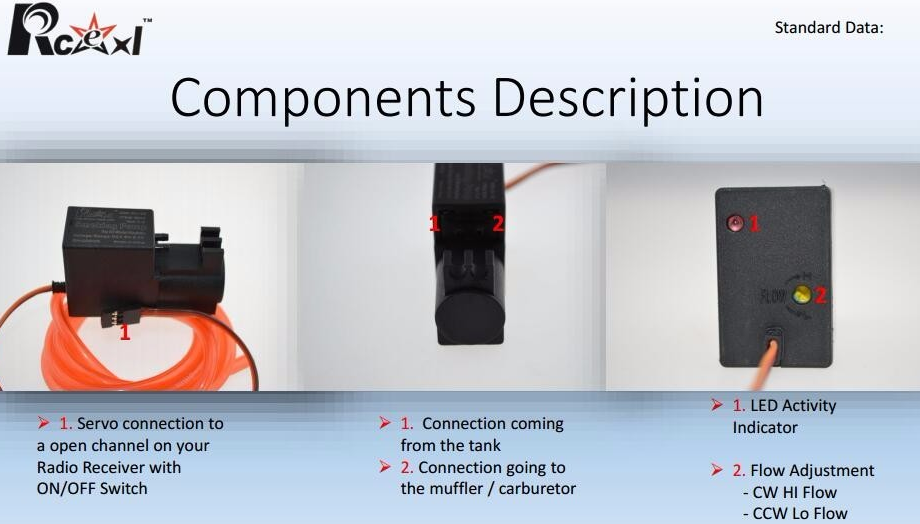

First connect the pump to the receiver, fuel filters, muffler and smoke tank (see drawing to help with this).Plug your radio connector into the switched channel (such as landing gear or flaps). Turn on radio, make sure switch is off (100% negative) for at least 5 seconds and turn on. If the pump pushes fluid toward the muffler, the set up is correct. If it tries to pump toward the tank, reverse the wires connected to the receiver.

Radio Set up:

Non programmable Radios

Use a switched channel to switch the Smoke pump on and off. Since there is no trim control on a switched channel, the flow rate is consistent. When the switch is on, flow will be at maximum. We can set the END POINT/ATV of radio switch channel to control the maximum flow rate so as to control the smoke density.

Programmable Radios

Plug the smoke signal wire into a spare channel (such as the 8th channel). Set this channel program mixing the Throttle channel, then set a switch for programming mixing on/off to control smoke pump on/off. Adjust the END POINT/Travel of this channel to control smoke pump flow rate so as to control the smoke density. For more detailed information please see your radio manual.

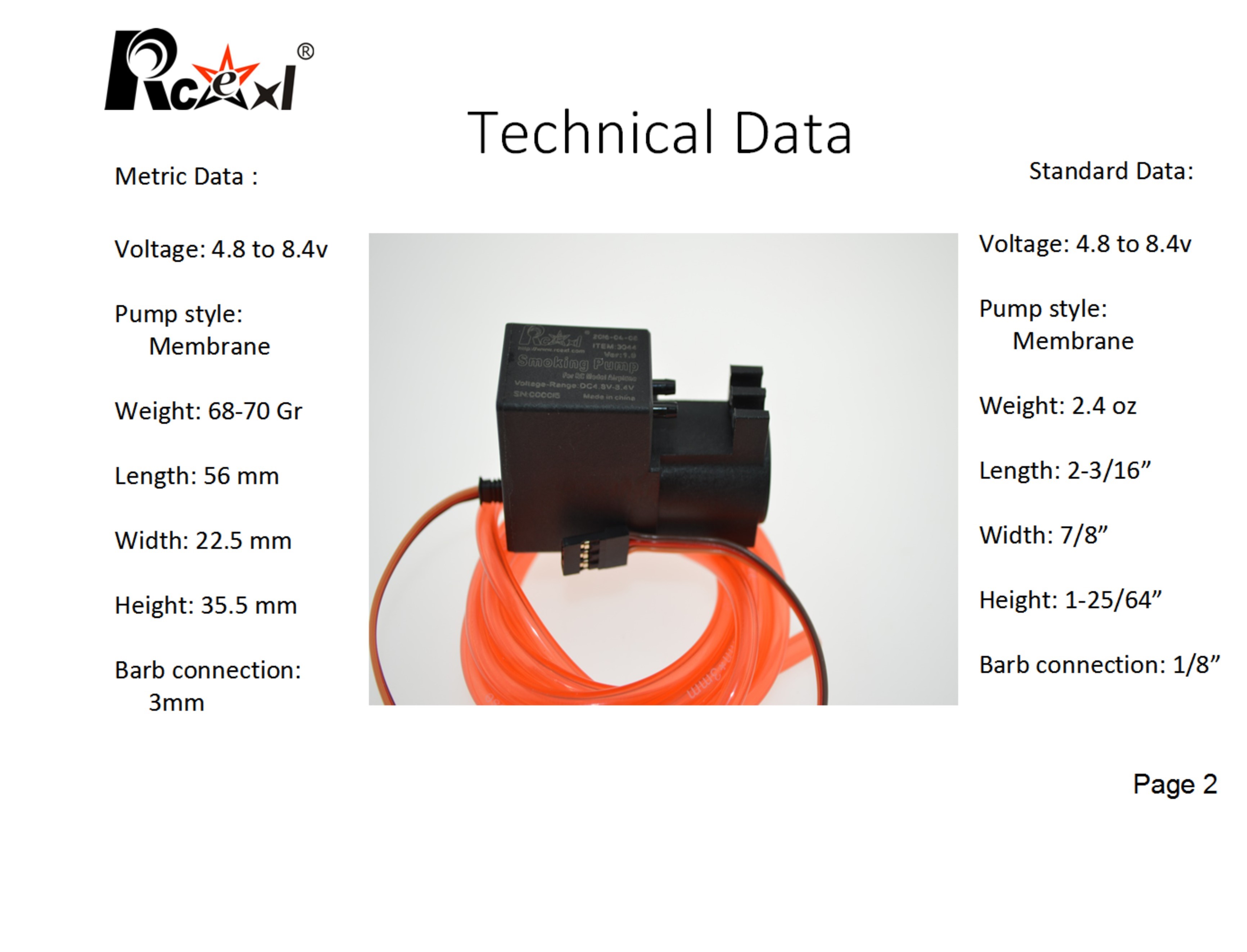

Specifications:

• Dimensions(L*W*H): 56*22.5*35.5mm
• Weight: about 68g
• Pump Style: Membrane
• Voltage: 4.8-8.4V
• Barb Connection: 3mm

**DO NOT dry run pump! This may cause failure and will void warranty.**

support email: [email protected]
