40in Tiger Sport Trainer Electric ARF (40.1"/1020mm) Balsa

Ask a question about this product

Printable version

Options

Our Price:

$189.00

Electric Power Combo

Radio and Receiver Combo

Battery Charger Combo

Quantity (3)

Notify me when back in stock

Details


Availability	3 in stock
Weight	8.00 lbs
SKU	40in-Tiger-Sport Trainer

Redwing RC is happy to introduce our newest 1M Electric Sport Trainer, the little brother to our 76" Tiger 20cc Sport Trainer! What more can we say! Get ready to have fun! The price can't be beat!

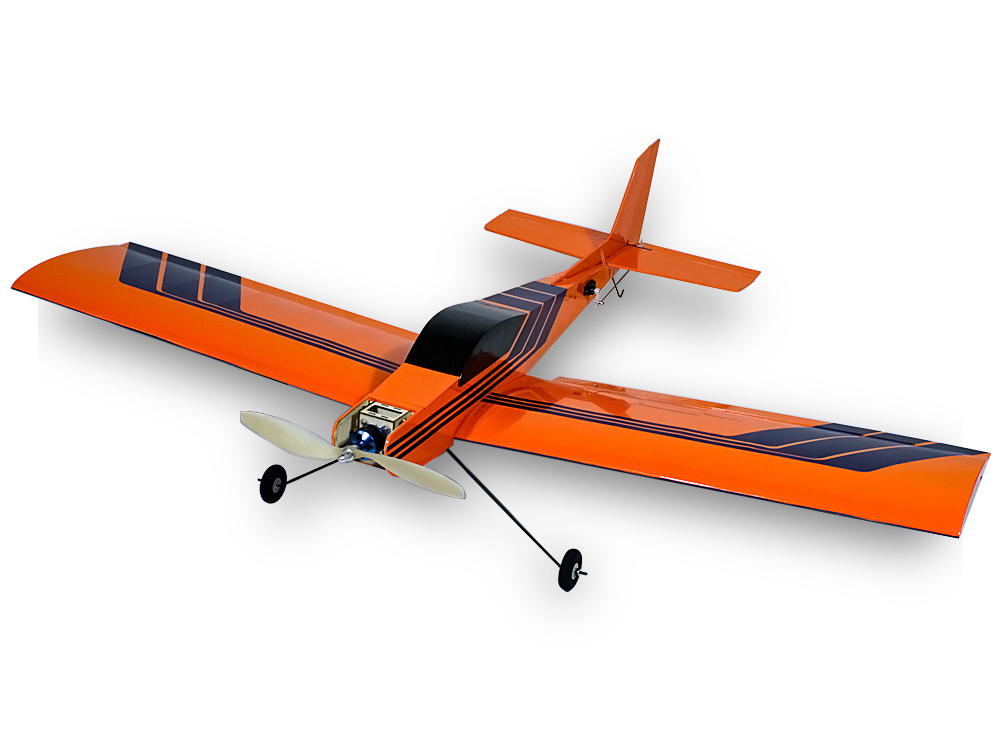

Looking for a fun, economical Low Wing Sport Trainer that won't break the bank? Check out the 40" Tiger Electric Sport Trainer, an all-balsa and plywood laser-cut sport model, heavily inspired by the classic Goldberg Tiger 60 . It is designed for experienced modelers and supports electric power setups. This sport trainer is perfect for lazy days at the flying field putting around the skies, shooting touch and goes, or teaching someone to fly!

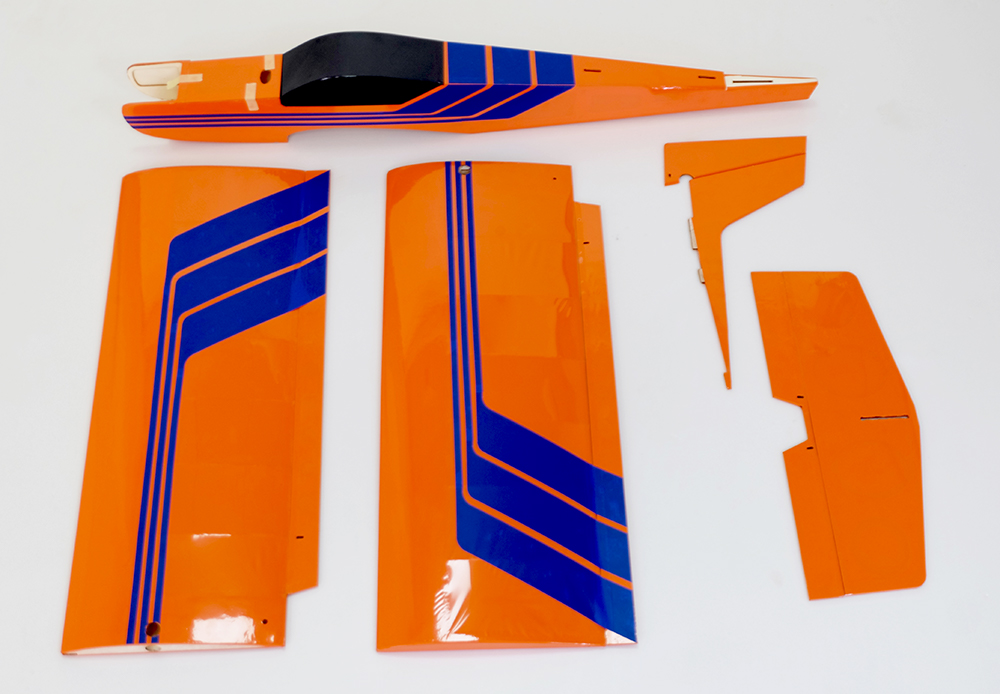

The Tiger Trainer comes almost ready to fly, meaning you just need to complete the final assembly and install your choice of equipment. The pre-fabricated wood components come covered in a high-visibility plastic film that is durable and will look great for years to come. As this is a fun, slow flying low wing sport trainer, you will just need some inexpensive micro servos for each control surface.

Features:

Almost Ready to Fly - Complete final assembly and install your choice of electronics and power system
Light-weight laser-cut ply and balsa construction
Detachable fuselage hatch for easy access of battery and electronics
Conveniently powered by included electric motor
Pre-covered in high visibility trim scheme

Specifications:

Wingspan: 40.1 in (1020mm)
Length: 30.7 in (780mm)
Flying Weight: 650g

Recommend Setup (Not Included):

Speed Controller: 30A ESC, not included.
Servos: 4 micro servos, such as Emax ES08MA II not included.
Battery: 2200mAh 3S 11.1V LiPO. not included.
Motor: GForce E400 Brushless Outrunner Motor (2212-1250KV) (included).
Control System: At least 4CH ransmitter and Receiver.not included.

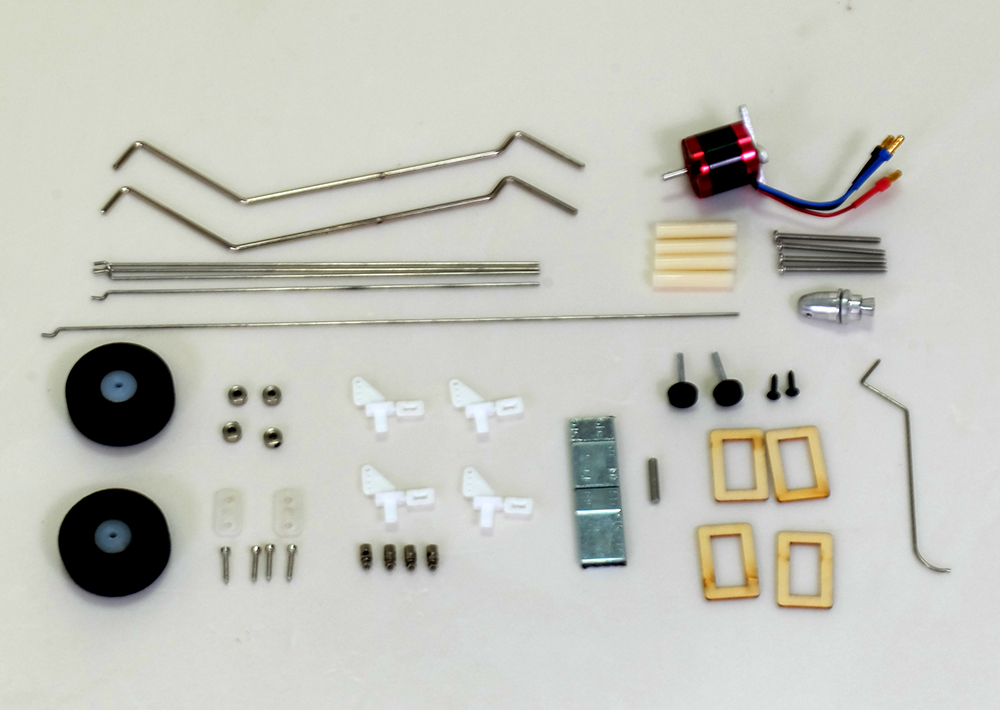

ARF Power Pack Combo includes: (see Electric Power Combo drop down)

Battery: 2200mah 3S 11.1V Lipo
Servos: 4x 9g servos with metal gears
ESC: 30A
Prop: 10" electric

We DO ship our planes internationally! Please contact us at [email protected] with your location for more specific cost.

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$279.99 279.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
