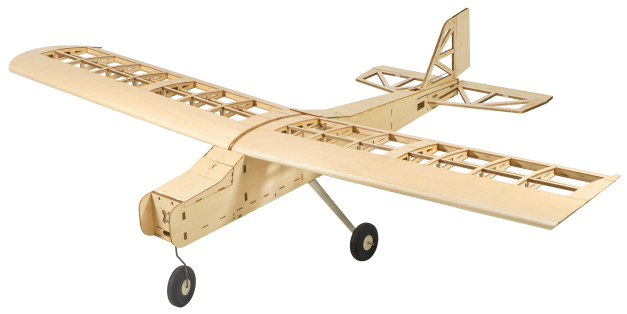

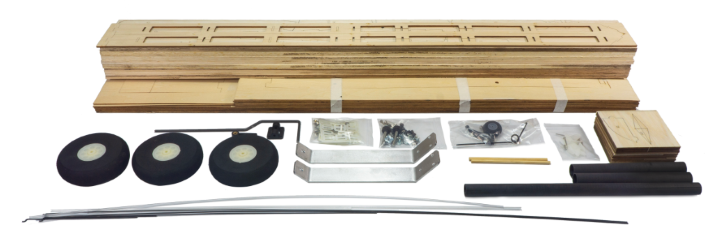

1.8M "BigBlue" Gas or Electric Sport Trainer (71"/1800mm) Balsa Kit (Tricycle or Tail-Dragger gear)





















































































































Description:
Male Deans to Male XT60 Connector

With this Deans to XT connector you can convert a battery with T-Plug to XT-60 on ESC / charger
The connector has many applications and can be used for charger adapter.

Features:

• Male Deans T style plug to Male XT60
• Durable design
• Heatshrink seal

















































































































































































































































Product Description

With 4 times the resolution of its predecessor, the Aurora 9, the Aurora 9X is sure to become a favorite among the most demanding pilots. It is HiTec's first triple protocol radio which allows selection from the G1 and G2 Adaptive Frequency Hopping Spread Spectrum (AFHSS) or Secure Link (SLT) 2.4GHz technologies. It features dual processors for fast low latency response and ultra-smooth 4096 resolution. With more than 30 additional programming enhancements and new dynamically assignable switches, it is sure to thrill sport and professional level airplane and helicopter pilots alike.

Features

• Built in AFHSS 2.4GHZ / SLTTM Module (Single / Bi-Directional Selectable)
• 4096 Resolution
• Improved Latency (Dual Processor 7ms Frame Rate)
• Vibration Mode
• Included Touch Screen Stylus
• Easy-to-Read, Easily Accessible 5.1-inch Wide Backlit LCD Touch Screen (320 x 80 Pixels)
• Customizable Menu
• One-Stop Model Type Setting
• 3 Multi-Tasking Digital Trims
• Fully Assignable Control Switches, Knobs, Sticks and Digital Trims
• Ultra-Smooth Quad Ball Bearing Gimbals
• Full-Size Comfortable Hand Grips (Top Quality Elastomer)
• Selectable 4 Different Control Stick Modes, Plus 2 Additional Manual Modes (Software)
• Easy Gimbal Mode Change and Tension Adjustment (Hardware)
• Power Management System (Adjustable Backlight & Auto Shut-off Time)
• Digital Trim Nano-Adjuster (200 Adjustable Trim Steps)

Standard Programming

• 9 Assignable Control Channels
• 3-Model Type Programming (ACRO/GLID/HELI)
• 30-Model Memory
• 20 Character Model Naming
• 8 Flight Conditions with 10 Characters
• Fail-Safe
• Channel Function
• EPA
• Dual Rate & EXP*
• Sub-Trim
• Servo Reverse
• Servo Speed (up to 25 sec. in each direction)*
• Servo Monitor (Monitor & Servo Test)
• 8 Programmable Mixes (5x 2-Point, 3x 7-Point Curves)**
• Trainer
• Throttle Lock

* Capable of a Maximum of 24 rates by 8 flight conditions and 3 switch positions
** Capable of a Maximum of 8 Rates by 8 Flight Conditions

SCORPION A-6528-160kv Motor for Giant Scale Airplane (12S 60-76cc)





































































Overview

The Tomcat G30cc Motor For 30cc gas airplane This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-6432-KV200(G30CC)
• KV(rpms per volt):... 200
• No load current: ....... 2.2 A @10V
• Resistance:................ 0.04 ohms
• Watts:........................ up to 3000
• Continuous Current:... 65A
• Max Burst Current:.... 80A,10seconds
• Cells:......................... 10 S Li-Po
• Recommended Props: 20x12 to 22x11
• Slots,Poles:............... 24,20
• Diameter:.................. 64 mm
• Shaft: Diameter:........ 10 mm
• Weight:...................... 680 g
• Brushless ESC:......... 100A
