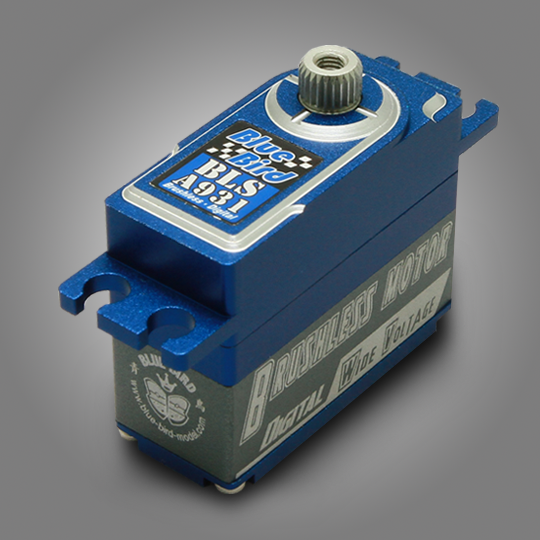

BLS-A931 HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS

Contact UsCustomer Reviews

BLS-A931 HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS

Market Price: $86.99
Our Price:

$68.99


You Save

21%

Quantity (35)

Availability 35 in stock
Weight 0.51 lbs
SKU BBR-BLS-A931
Manufacturer Blue Bird

BLS-A930 HV MINI, DIGITAL, HIGH SPEED, METAL GEAR, BRUSHLESS

APPLICATION / SUITABLE
Heli 500 Class CCPM cyclic and rudder servo use, EP Aircraft & 1/12th EP Car

SPECIFICATIONS

Torque At 4.8V 4.5 kg-cm / 62.5 oz-in
Torque At 6.0V 5.6 kg-cm / 77.8 oz-in
Torque At 7.4V 7.0 kg-cm / 97.2 oz-in
Speed At 4.8V 0.091 sec / 60°
Speed At 6.0V 0.073 sec / 60°
Speed At 7.4V 0.057 sec / 60°

Idle Current: 10mAh

POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S  LiFe / LiPo)



MINI SERVO
Control System Digital Controller / 12-Bits (4096 Steps)
Dead Band Width 0.001ms ( Default:1us)



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor Japan Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS

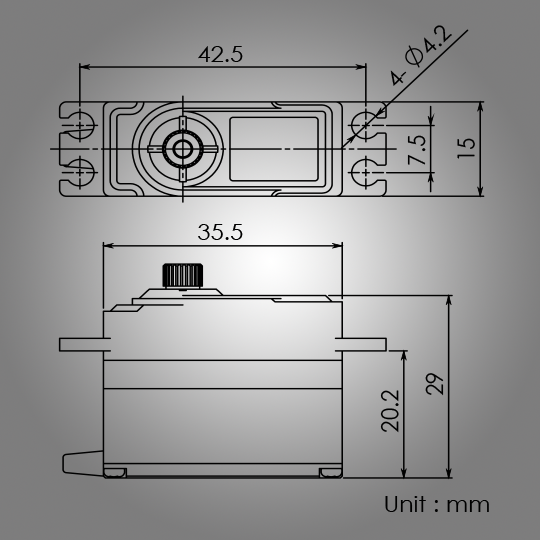

Dimension (mm) 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram) 35.3 ± 1 grams / 1.24 oz



: *
: *
: *


Super Cat 700BL Brushless RTR Catamaran Boat

RGRB1208

RGRB1207

$249.99

60" (1524mm) Laser 260 (70e) AeroplusRC

60" Laser 260 (70e) AeroplusRC



Videos:</p>
<p>
<br />
<iframe allowfullscreen="" frameborder="0" height="360" src="https://www.youtube.com/embed/GAgax5rE1kw" width="630"></iframe></p>
<p>
<iframe allowfullscreen="" frameborder="0" height="360" src="https://www.youtube.com/embed/42e5nPGnITU?rel=0" width="640"></iframe><br />
<br />
<!-- Specs:         Specs:         Specs:         Specs:         Specs:           --><font color="#999999" face="Arial, Helvetica, sans-serif" size="4"><strong>Specifications:</strong></font></p>
<ul>







Build & Ship Plane



70E-Laser-260

$299.00

Standoff (25mm) 100-120CC (Anodized Gas Engine 25mm Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

Standoff (25mm) 100-120CC (Anodized Gas Engine 25m Stand Off Mounting Kit w/6mm Nuts & Bolts- 4pcs)

High Quality 1" Aluminum servo arm from Spot-On RC

Spot On Servo Arms are made of high quality 7075-T6 aluminum, one of the highest strength alloys available for this purpose.  They feature an ultra secure double lock design, keeping your servo arm secure and eliminating any slop between the main servo gear and the arm.  Spot On Servo Arms are also sand blasted and anodized for a beautiful appearance.

Spot on offers their servo arms in many sizes, threads and gear output compatibility.  Spot On arms are offered in:
M3, or #4-40 holes, so you can use ball links that are metric or standard Futaba, Hitec or JR compatible gear mesh. Sizes ranging from 1” to 2” for single arms and 2.5” to 4.5” for rudder arms.

Available colors are Black or Silver

Spot On RC Servo Arms are measured from the center hole of the servo to the outermost hole (for example, a 1” arm is exactly 1” from hole center to hole center).  However the larger sizes offer the option of one or two more additional inner holes so you can use them for future projects or fine tune your ratios.

Redwing RC only offers the V2, upgraded version, with stronger aluminum and finer design.  No matter which Spot On RC Servo Arms you choose you will be sure to experience problem free set up and operation with these high quality servo arms.




KAG0228

$24.99
