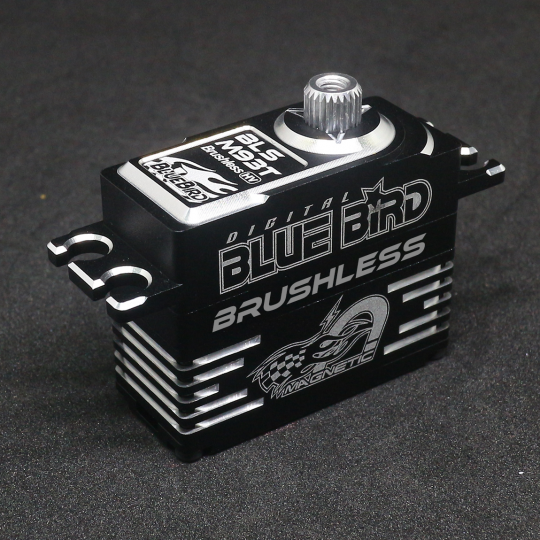

BLS-M93T, MINI HV-DIGITAL, HIGH TORQUE, MAGNETIC, BRUSHLESS (Soft Start and Includes lockable Arm) 19.8 kg/275.0oz 0.07sec 8.4V

Contact UsCustomer Reviews
  0
  5. BLS-M93T, MINI HV-DIGITAL, HIGH TORQUE, MAGNETIC, BRUSHLESS (Soft Start and Includes lockable Arm) 19.8 kg/275.0oz 0.07sec 8.4V
Tariff Information update
more offers

BLS-M93T, MINI HV-DIGITAL, HIGH TORQUE, MAGNETIC, BRUSHLESS (Soft Start and Includes lockable Arm) 19.8 kg/275.0oz 0.07sec 8.4V

Ask a question about this product
Printable version

Share

Options

Our Price:

$97.99
Quantity (12)

Details

Availability 12 in stock
Weight 0.51 lbs
SKU BBR-BLS-M93T
Manufacturer Blue Bird

BLS-M93T, MINI HV-DIGITAL, HIGH TORQUE, MAGNETIC, BRUSHLESS (Soft Start and Includes lockable Arm) 19.8 kg/275.0oz 0.07sec 8.4V

Application / Suitable
Priority for 3D Airplane & Jets, Helicopter 550-Class Swashplate CCPM cyclic and 1/12th On-Road Car.



Electrical Specification (Function Of The Performance)
Torque At 6.0V 14.2 kg-cm / 197.2 oz-in
Torque At 7.4V 17.5 kg-cm / 243.1 oz-in
Torque At 8.4V 19.8 kg-cm / 275.0 oz-in
Speed At 6.0V 0.10 sec / 60°
Speed At 7.4V 0.08 sec / 60°
Speed At 8.4V 0.07 sec / 60°



Protection Mechanism
Soft Start Protection Soft start to a neutral position.
Locked Rotor Protection Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.



Power Supply
Operating Voltage Range  4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible )



Control Specification
Control System Higher-order Algorithm of【STMicroelectronics】32-bit MCU ( Microcontroller Unit )
Frequency：Up to 400Hz / Neutral：1500us or 1520us
Dead Bend Width 0.001ms ( Default：1us)
Potentiometer (Variable Resistor) Magnetic Hall-effect Sensor【Non-Contact】instead of traditional VR.



Mechanical Specifications
Ball Bearing Dual ball bearings
Gear All Durable Metal Gears
Outside Case Full One-Piece Aluminum CNC Casing
Motor Custom High-Efficiency Brushless Motor

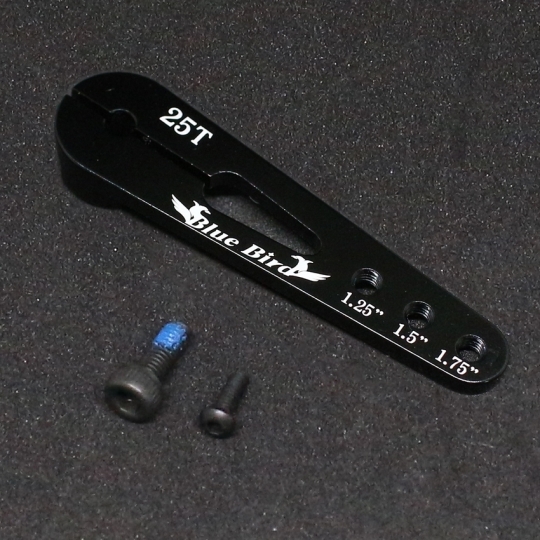

Horn / Gear Spline 25 Teeth



Physical Specifications
Dimension (mm) 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram) 35.5 ± 1 grams / 1.25 oz

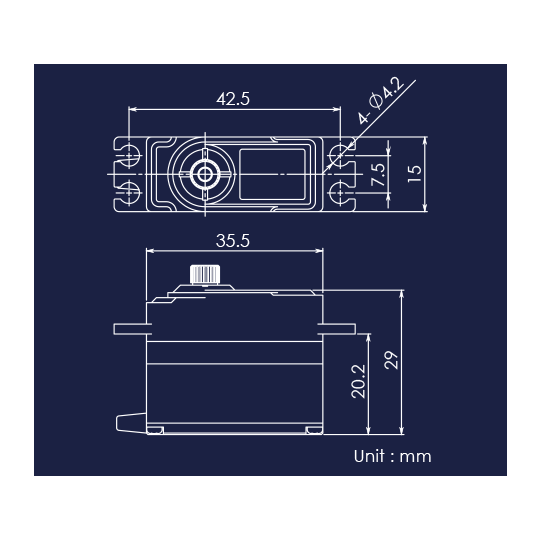

Product Picture / Dimension Sketch ​






: *
: *
: *
